Westerschelde 06 July 2020 |
 |
 |
|
| Westerschelde 25/07/20 | Westerschelde 05/09/19 | |
|
Name |

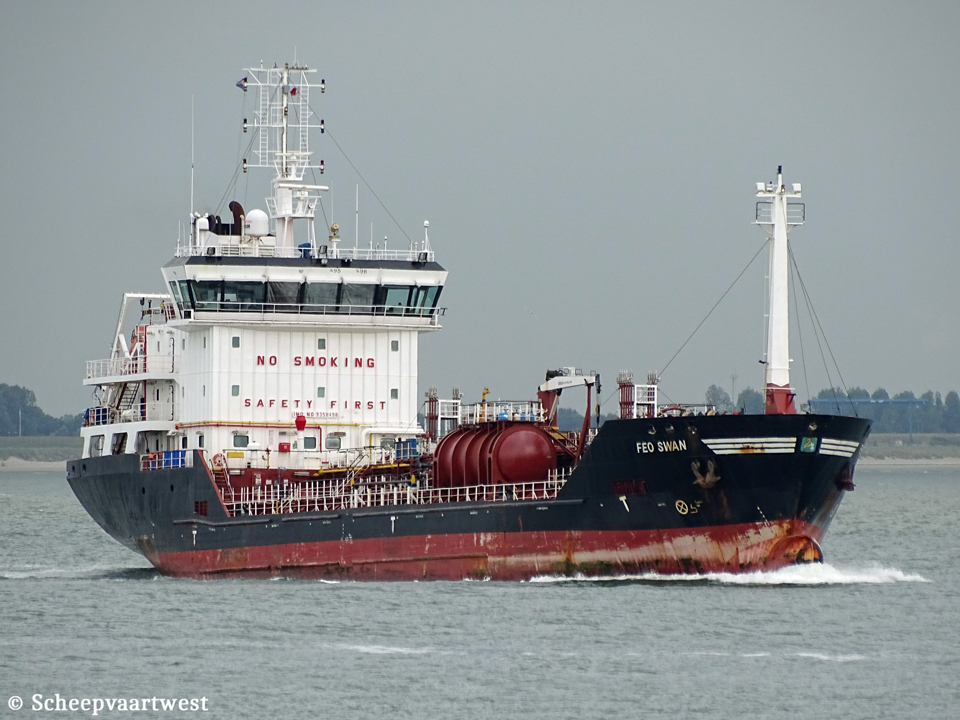

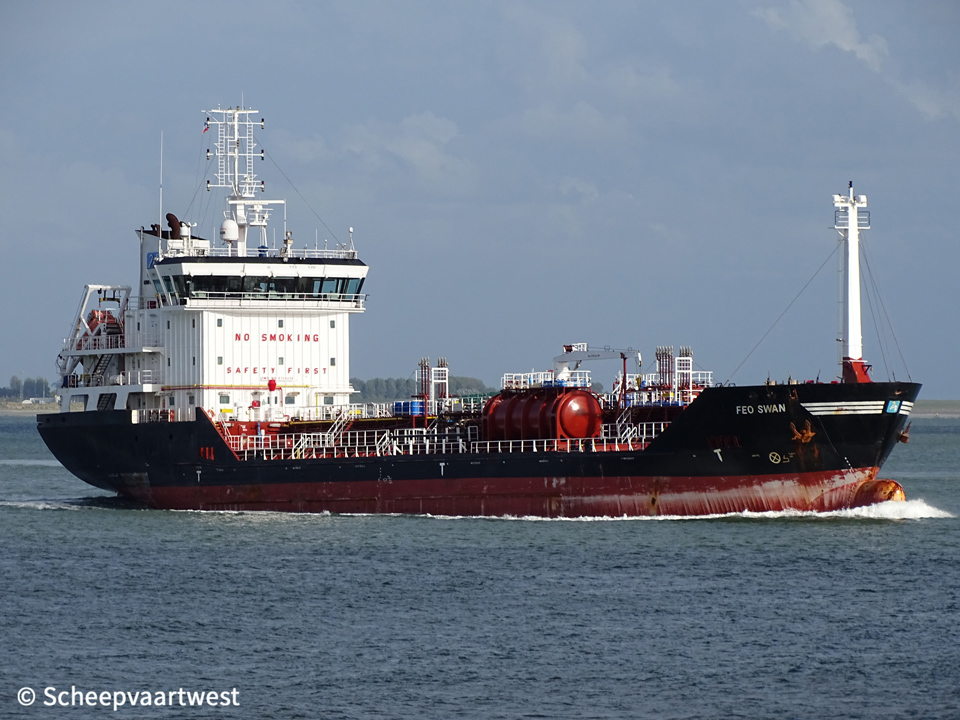

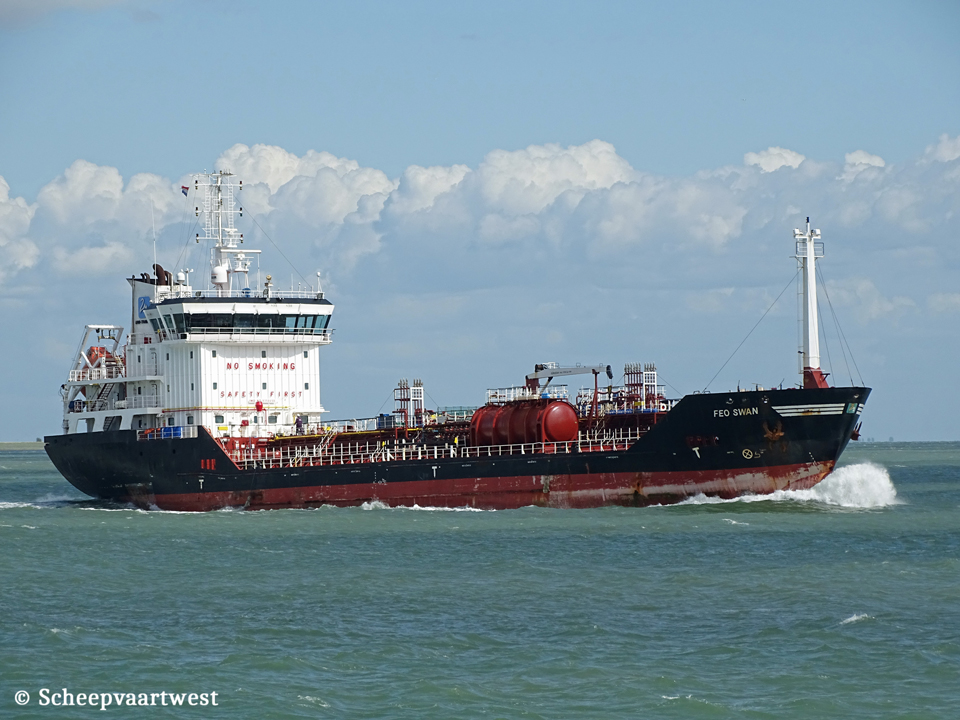

FEO SWAN |
|
Previous names |
2007 - 02/2007 Duzgit Progress 02/2007 - 02/2015 Erria Anne |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9358498 |
|
Call sign |
9HUY8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
Liberia, Monrovia - Call sign: D5AQ9 |
|
GT |
3.219 t |
|
DWT |
Summer: 4.671 t |
|
NT |
1.424 t |
|
Length |
99,90 m overall 93,95 m between perpendiculars |
|
Breadth |
15,00 m moulded |
|
Draught |
Summer: 6,04 m Ballast: 3,80 m |
|
Keel to mast end |
33,00 m |
|
Freeboard |
1.356 mm |
|
Depth |
7,40 m moulded |
|
Speed |
Max: 14,0 knots Ballast: 12,0 knots Loaded: 11,5 knots |
|
Built |
2007 |
|
Date of completion |
09/01/2007 |
|
Builder |
Celiktrans Deniz Ins. Ltd. Sti. (Shipyard) Istanbul Turkey |
|
Yard number |
30 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25 - 4 stroke 8 cylinder 255 x 400 mm combustion engine 2.640 kW / 3.587 hp at 750 rpm Build: 01/2005 Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
2x CHO 32,00 m² - 13,0 bar 1x CHR 45,00 m² - 13,0 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 230 V Frequency: 60 Hz |
|
Shaft generator |
1x 1.060 kVA - 848 kW |
|
Generators |
3x MAN main diesel generatorsets each 457 kVA - 366 kW - 582 hp |
|
Emergency generator |
1x Diesel generatorset 133 kVA - 106 kW - 166 hp |
|
Bow thruster |
1x 280 kW / 380 bhp, forward |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 98% |
4.953,9 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
118,83 m³ |
|
Number of segregation |
13 |
|
Pumps |
12x Cargo pumps each 220 m³/h 2x Cargo pumps each 70 m³/h 2x Ballast pumps each 220 m³/h |
|
Manifolds |
Size of manifolds: 254 mm Distance from bow to centre manifold: 44,00 m Distance from stern to centre manifold: 55,90 m Distance between manifolds: 0,60 m Distance from ship side to manifold: 2,95 m Distance from deck / tray to manifold: 1,90 m |
|
Tank capacities |
Fuel: 295,55 m³ Ballast: 1.885,44 m³ |
|
Lifting equipment |
1x Main crane - SWL 5,0 t 1x Provision crane - SWL 2,0 t |
|
ISM & commercial manger |
Uni-Tankers A/S Turbinevej 10 5500 Middelfart Denmark |
|
Registered owner |
Uni-Tankers ''M/T Feo Swan'' ApS Care of Uni-Tankers A/S Turbinevej 10 5500 Middelfart Denmark |
|
Latest data adjustment |
31 July 2022 |
