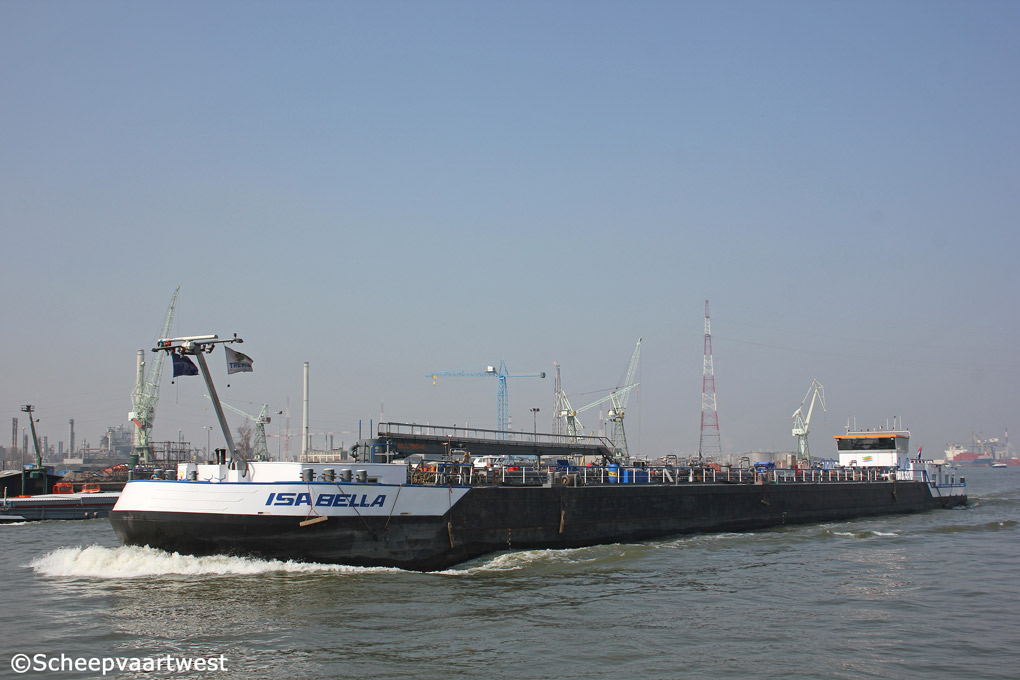

Isabella 01

Antwerpen 17 March 2015



Name

ISABELLA

Type

Inland tanker

ENI-number

02330132

Call sign

PH6904

Flag

The Netherlands

Port of registry

Rotterdam

GT

1.112 t

DWT

1.708 t

Length

85,96 m overall

84,95 m between perpendiculars

Breadth

9,60 m

Draught

3,13 m

Depth

4,70 m

Built

2008

Date of completion

22.12.2008

Builder casco

Yizheng Jianghai Shipping
Yizheng
China

Builder completion

TeamCo Shipyard
Heusden
The Netherlands

Yard number

925

Hull material

Steel

Hull type

Double hull

Main engine

1x Caterpillar C32 - 4 stroke 12 cylinder diesel engine 745 kW / 1.012 hp at 1.800 rpm

Built: 2008

Builder: Caterpillar Tractor Corp. Inc.,Lafayette, IN - USA

Propellers

1x Screw Propeller Solid - aft at 324 rpm

4 blades propeller - diameter 1.700 mm

Generators

1x 140 kVA - 112 kW - 281 hp
1x 425 kVA - 340 kW - 533 hp
1x 63 kVA - 50 kW - 83 hp

Bow thruster

1x Caterpillar 383 hp - van Wijk

Number of tanks

6

Cargo tank capacity

2.028 m³

Pumps

2x Pumps EPS-250 each 250 m³/h coupled with electric motor 105 kW

Loading speed

800 m²/h

Discharge speed

500 m²/h

Owner

Royal Tankers BV
Torontostraat 20
Rotterdam
The Netherlands

Previous names & owners

2008 - 2009 Isabella - Scheepvaartbedrijf L.W. de Leeuw BV, Nijmegen - The Netherlands

Latest data adjustment

27 April 2015
