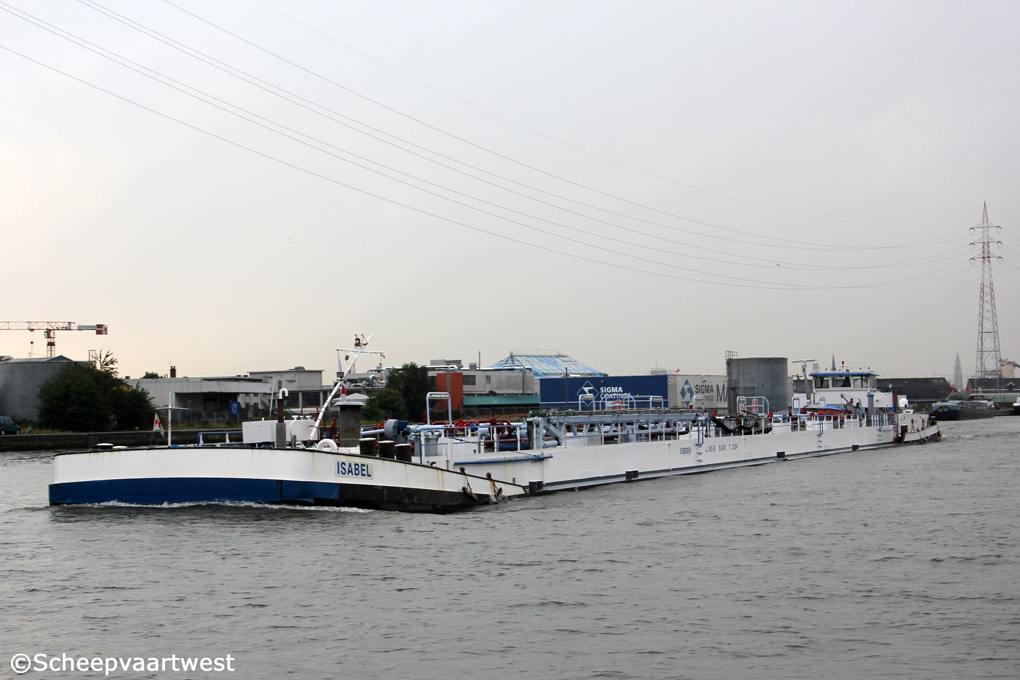

Isabel 04

Deurne, Belgium 06 September 2013

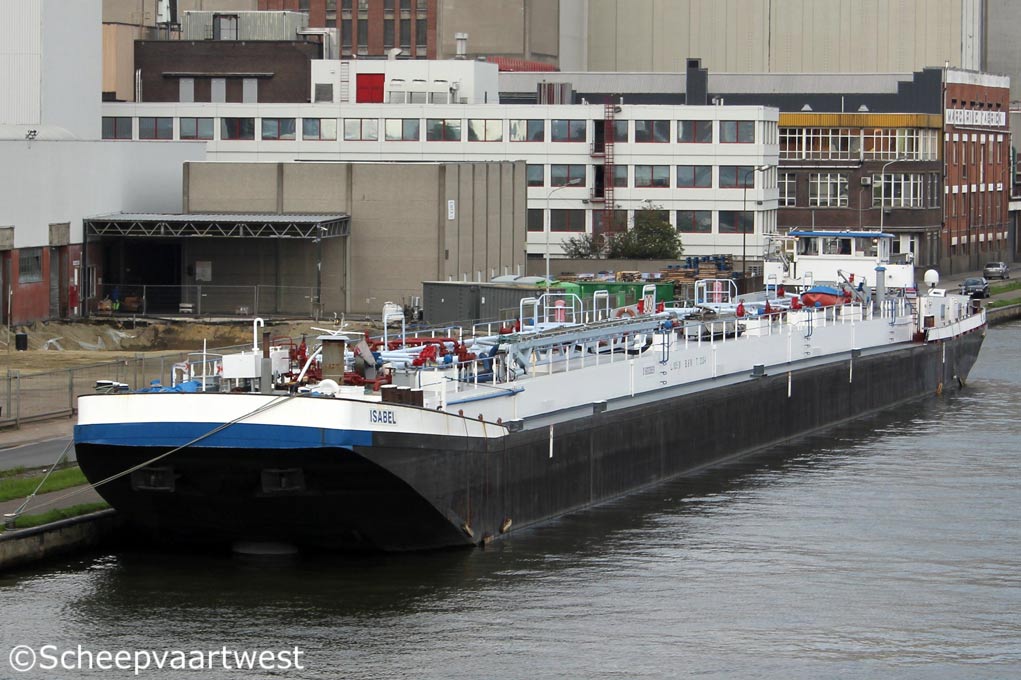

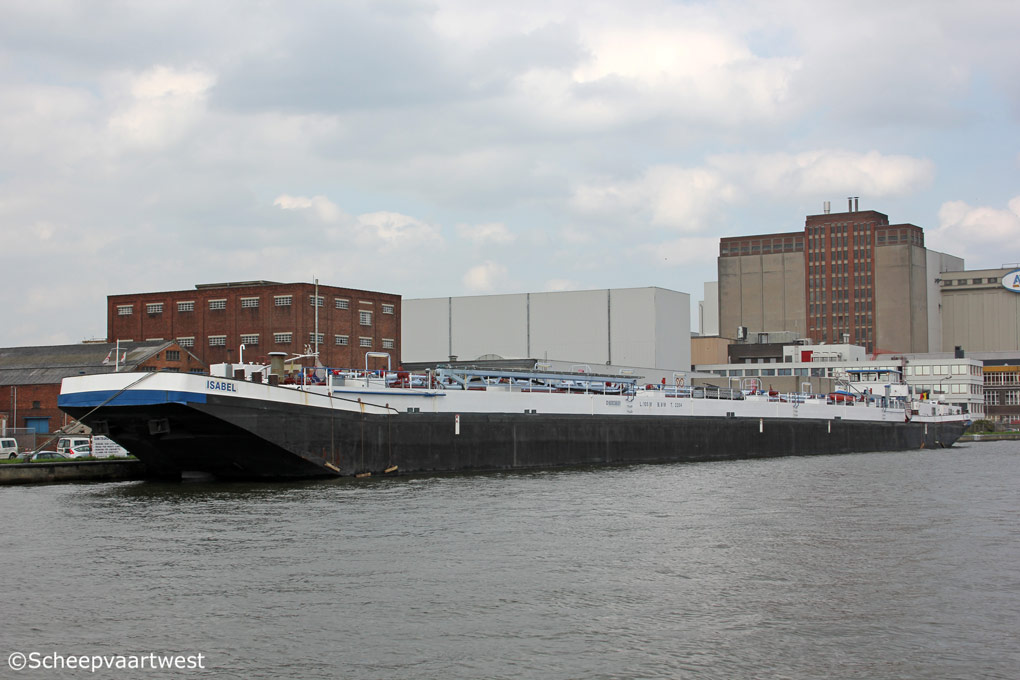

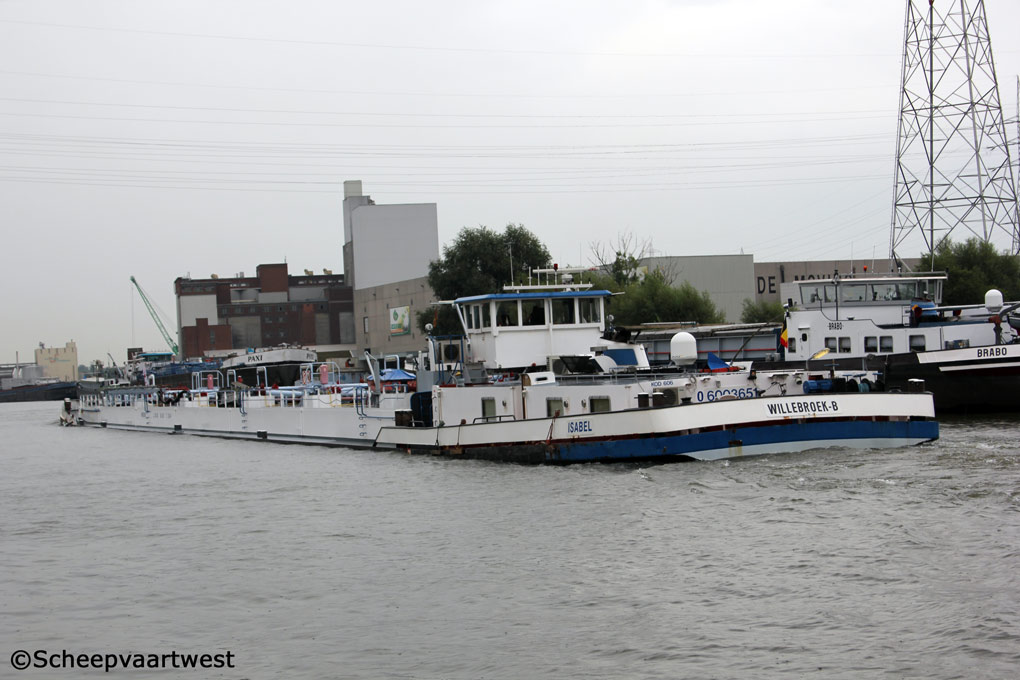

Isabel 05   Isabel 03   Isabel 02
Deurne 06/06/13 Merksem 07/05/12 Merksem 07/05/12


Name

ISABEL

Previous names

Hasselwerder

Polarmeer

Viviane-B

Internautic IV

Type

Inland tanker

ENI-number

06003651

Previous ENI-number

4303590

Call sign

OT4752

Flag

Belgium

Port of registry

Willebroek

Tonnage

2.204,168 t

Length

104,99 m

Breadth

9,01 m

Draught

3,29 m

Built

1973

06.1978 Ship lengthened

Keel laid

27.10.1972

Launch date

02.1973

Date of completion

05.12973

Builder

Kramer & Booy N.V. Handel- en Scheepsbouw Mij.
Kootstertille
The Netherlands

Yard number

179

Watertight bulkheads

11

Continuous decks

1

Main engine

2x Mitsubishi S 12 R MPTK - 4 stroke 12 cylinder 160 x 180 mm diesel engine - each 940 kW total 1.880 kW at 1.600 rpm

Year of Manufacture: 1996

Manufacturer: Mitsubishi Heavy Industries, Ltd.
2-16-5, Konan Minato-ku
108-0075 Tokyo 13
Japan

Propeller

1x Solid propeller - aft at 318 rpm

Boiler

1x Thermal oil heater, oil fired - 10,0 bar

Heating surface: 62,9 m²

Year of manufacture: 2000

Manufacturer: Apparate- und Kesselbau AKB GmbH
Baiertaler Str. 98
69168 Wiesloch
Federal Republic of Germany

Electric installations

1x Plant 380/220 V - 40 kVA

1x Plant 380/220 V - 65 kVA

1x Plant 380/220 V - 70 kVA

Generators

1x Diesel generatorset 40 kVA

1x Diesel generatorset 65 kVA

1x Diesel generatorset 70 kVA

Compressed air receiver

2x Receivers each 250 litres - 30,0 bar

1x Receiver 30 litres - 7,0 bar

Bow thruster

1x Propeller CLAUSEN - forward

Number of cargo tanks

12

Fuel capacity

200 m³

Owner

Eduard Marivoet
E. van de Veldestraat 93
2830 Willebroek
Belgium

Previous names & owners

1973 Hasselwerder - Nautica, Gesellschaft für Handel und Verkehr, Berlin - Germany

Polarmeer - Fluwemare GmbH, Hamburg - Germany

1985 Polarmeer - Babo BV, Zwijndrecht - The Netherlands

1987 Polarmeer - TMW, Berlijn - Germany

1990 Polarmeer - Taro Tankschiffahrts GmbH, Berlijn - Germany

Viviane-B - E.P. Hellwig, Bottrop - Germany

1996 Viviane-B - Fokko Scheepvaart Maatschappij BV, Rotterdam - The Netherlands

1996 Internautic IV - Linde Tankvaart BV, Raamsdonksveer - The Netherlands

1997 Internautic IV - Internautic Shipping Sarl, Grevenmacher - Luxembourg

Isabel - E. Marievoet, Willebroek - Belgium
