Deurne, Belgium 09 April 2015 |
 |
 |
 |
||

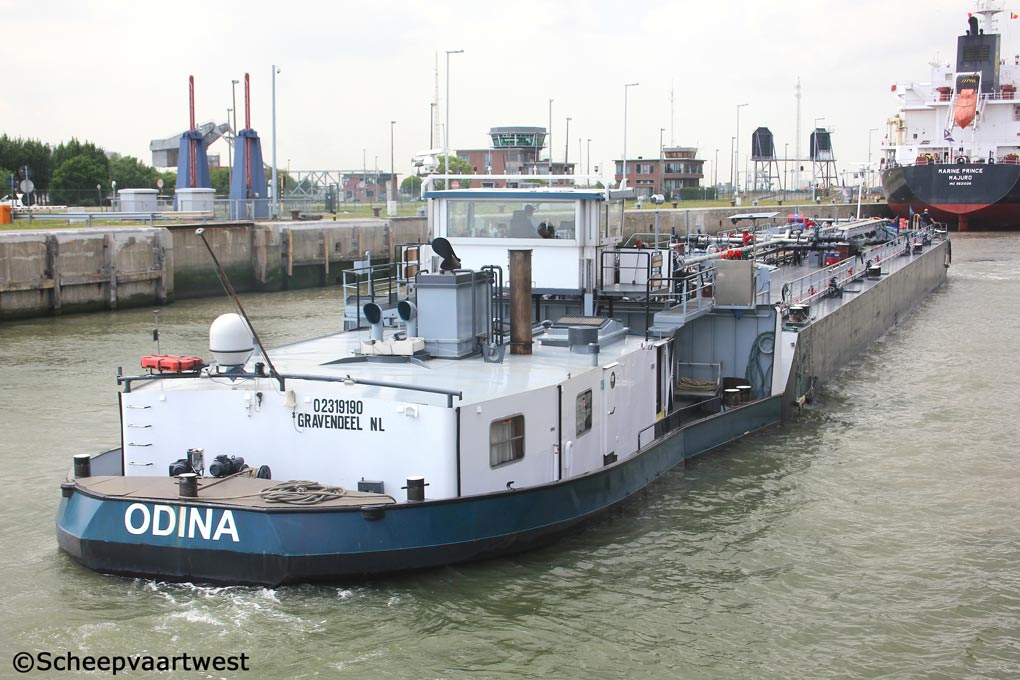

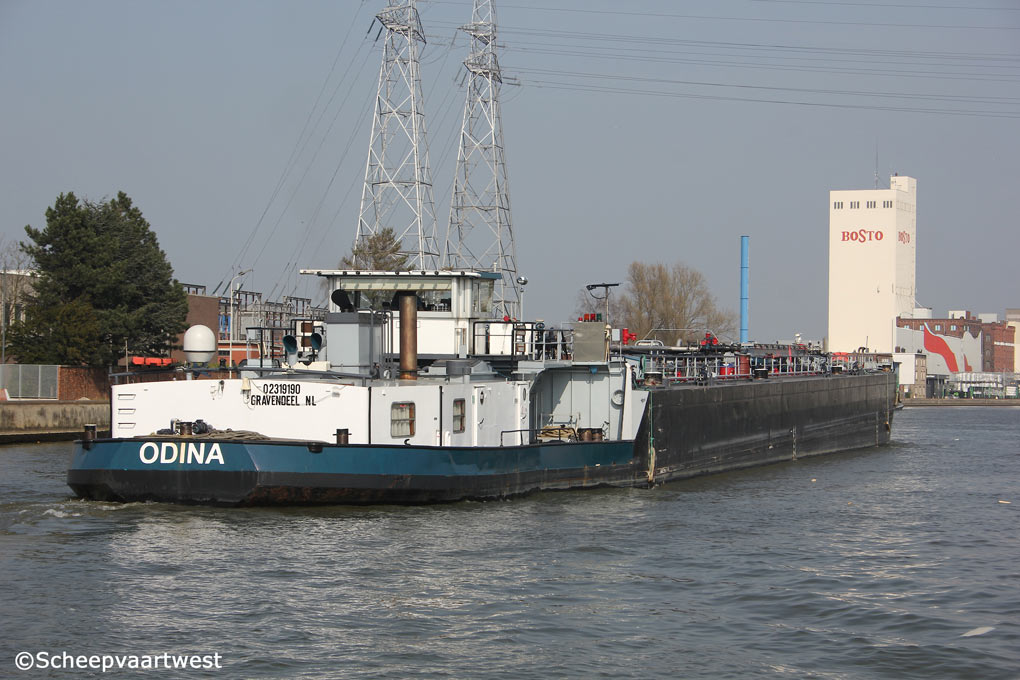

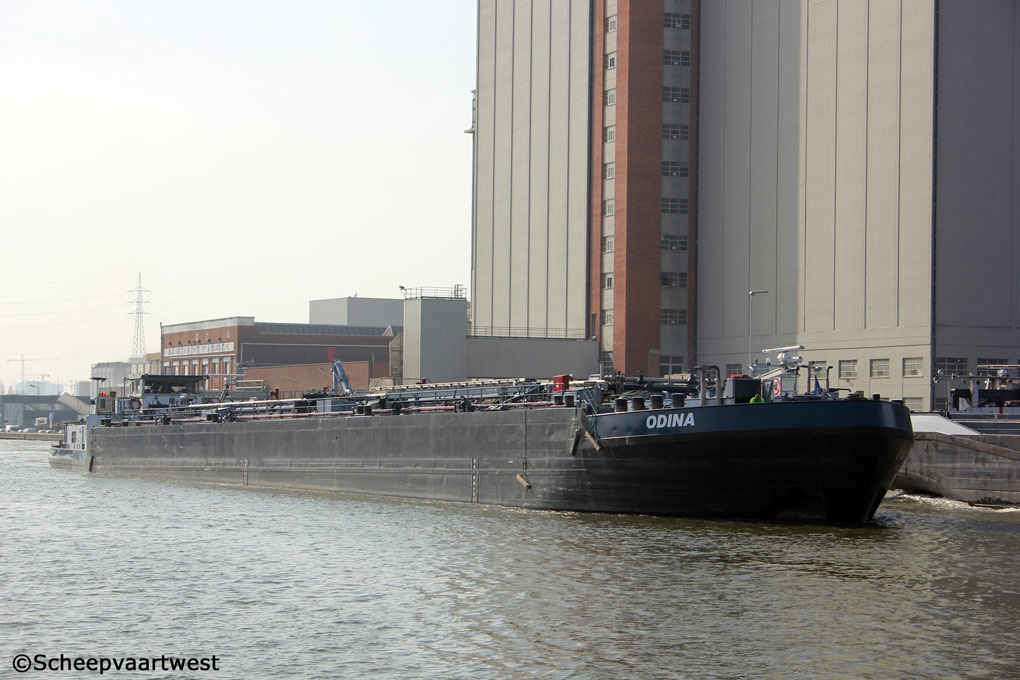

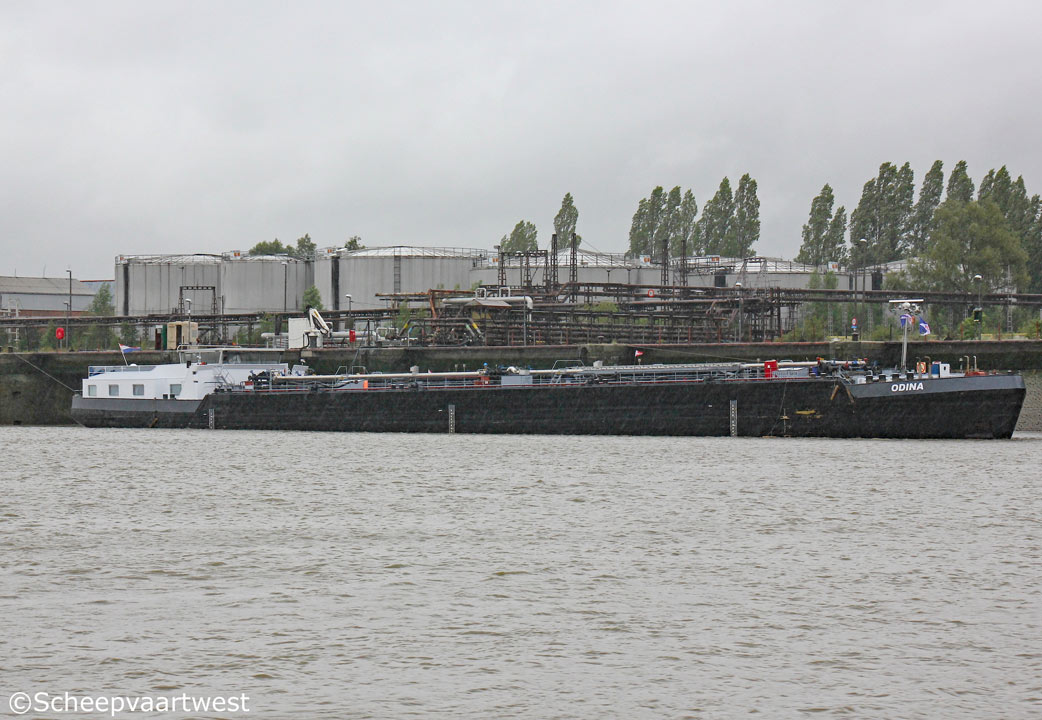

| Deurne 09/04/15 | Antwerpen 22/05/15 | Antwerpen 12/07/17 | ||
|
Name |
ODINA |
|
Previous names |
1963 Lengfurt - EU-number 4011680 1989 Hansa 30 2006 Odina |
|
Type |
Inland tanker |
|
ENI-number |
02319190 |
|
Call sign |
PE3530 |
|
Flag |
The Netherlands |
|
Port of registry |
's Gravendeel |
|
DWT |
1.737 t |
|
Length |
85,95 m overall 84,05 m between perpendiculars |
|
Breadth |
11,00 m |
|
Draught |
2,80 m |
|
Air draft |
5,25 m |
|
Depth |
4,60 m |
|
Built |
1963 Rebuild: 2006 new forward and midship Ship Yard: Jooren BV, Werkendam - The Netherlands |
|
Builder |
Ruhrorter Schiffswerft |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Cummins KTA 50 M - 4 stroke 16 cylinder 159 x 159 mm diesel engine 920 kW / 1.268 hp at 1.800 rpm Built: 1997 Builder: Cummins, Inc., Charleston, SC - USA |
|
Propellers |
1x Screw propeller solid |
|
Electric installations |
Power voltage:380 V Lighting voltage:220 V |
|
Generators |
1x Generator 40 kVA - 32 kW |
|
Bow thruster |
1x 320 hp |
|
Number of cargo tanks |
6 |
|
Cargo tank capacity 100% |
2.116,28 m³ |
|
Pumps |
1x Pump 420 m³/h |
|
Charterer |
Interstream Barging |
|
Owner |
B. Kanters |
|
Previous names & owners |
1963 Lengfurt - Gebr. Väth GmbH, Würzburg - Germany Hansa 30 - Hansa GmbH, Hamburg - Germany 1989 Hansa 30 - A.A. Steentjes, Maassluis - The Netherlands 1991 Hansa 30 - B. Kanters, 's-Gravendeel - The Netherlands 2006 Odina - B. Kanters, 's-Gravendeel - The Netherlands |
|
Latest data adjustment |
01 May 2015 |
