Westerschelde 05 May 2015 |
 |
| Westerschelde 05/05/15 |
|
Name |

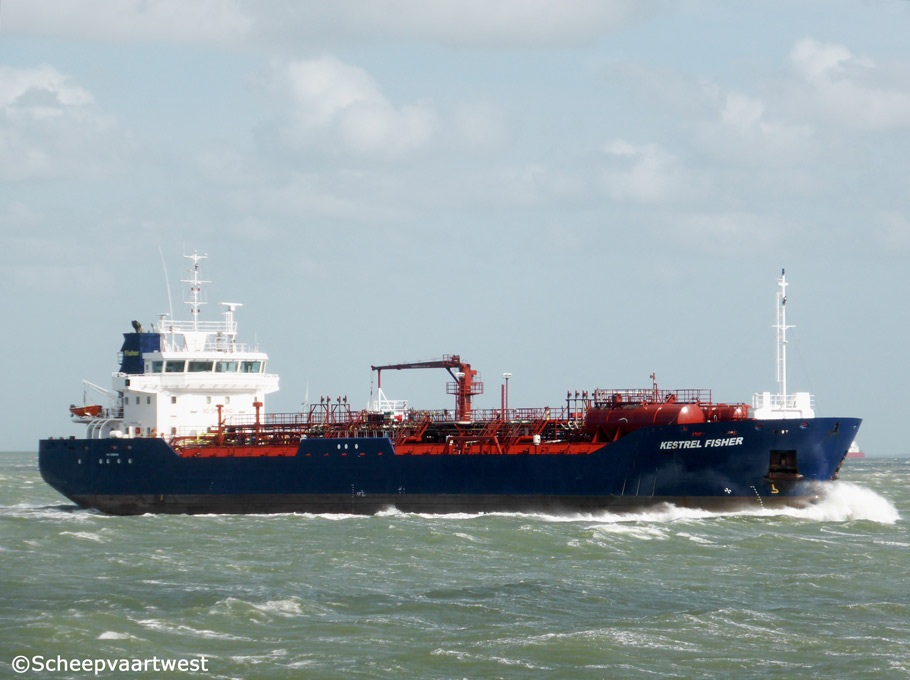

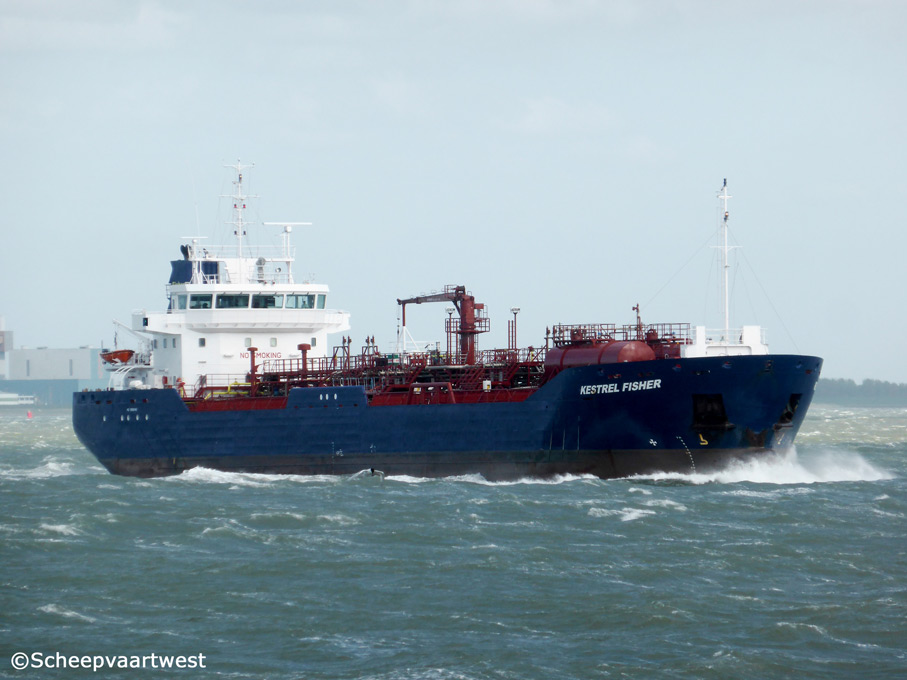

KESTREL FISHER |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9556040 |
|
Call sign |
PCXI |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
4.631 t |
|
DWT |
Summer: 7.076 t |
|
Length |
104,52 m overall 99,92 m between perpendiculars |
|
Breadth |
17,00 moulded |
|
Draught |
Summer: 6,30 m 3,80 m ballast |
|
Depth |
9,50 m moulded |
|
Speed |
Max.: 12,3 knots |
|
Built |
2013 |
|
Launch date |
22.06.2012 |
|
Delivery date |
31.10.2013 |
|
Builder casco |
Galatz Santierul Naval Damen Galati S.A Galati Romania |
|
Builder |
Damen Shipyard Bergum |
|
Yard number |
9394 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M25C - 4 stroke single acting 8 cylinder diesel engine - 2.640 kW at 750 rpm |
|
Propellers |
1x Controllable pitch propeller - Diameter 3.850 mm |
|
Boilers |
1x Thermal oil boiler for HFO tank heating and cargo tank cleaning 1.500 kW 1x Economiser |
|
Shaft generator |
1x 435 kVA - 60 Hz |
|
Generators |
2x Main diesel generatorsets each 525 kVA / 420 kW - 60 Hz |
|
Emergency generator |
1x Diesel generatorset 80 kVA / 64 kW - 60 Hz |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch propeller 400 kW, electric motor |
|
Number of tanks |
10x Epoxy coated cargo tanks with fixed tank cleaning system |
|
Cargo tank capacity |
8.363 m³ |
|
Segregations |
5 |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
172 m³ |
|
Pumps |
10x Electric driven deepwell pumps each 200 m³/h |
|
Deck lay-out and equipment |
2x Electric-hydraulic driven bow anchor winches 4x Electric-hydraulic driven mooring winches (2 fore, 2 aft) 1x Free fall life boat for 12 persons 1x MOB boat with davit |
|
Tank capacities |
HFO: 258 m³ Marine diesel oil: 43 m³ Lub oil: 21 m³ Potable water: 17 m³ Ballast water: 3,330 m³ |
|
Lifting equipment |
1x Hose handling crane cap 1,5 t at 16,00 m |
|
Accommodations |
For captain and crew for a total of 10 persons and 1 guest, all single cabins with sanitary |
|
Manager |
James Fisher & Sons (Liverpool) Ltd. |
|
Operator |
James Fisher Shipping Services Ltd. |
|
Owner |
Trent B.V. |
|
Latest data adjustment |
23 June 2015 |
