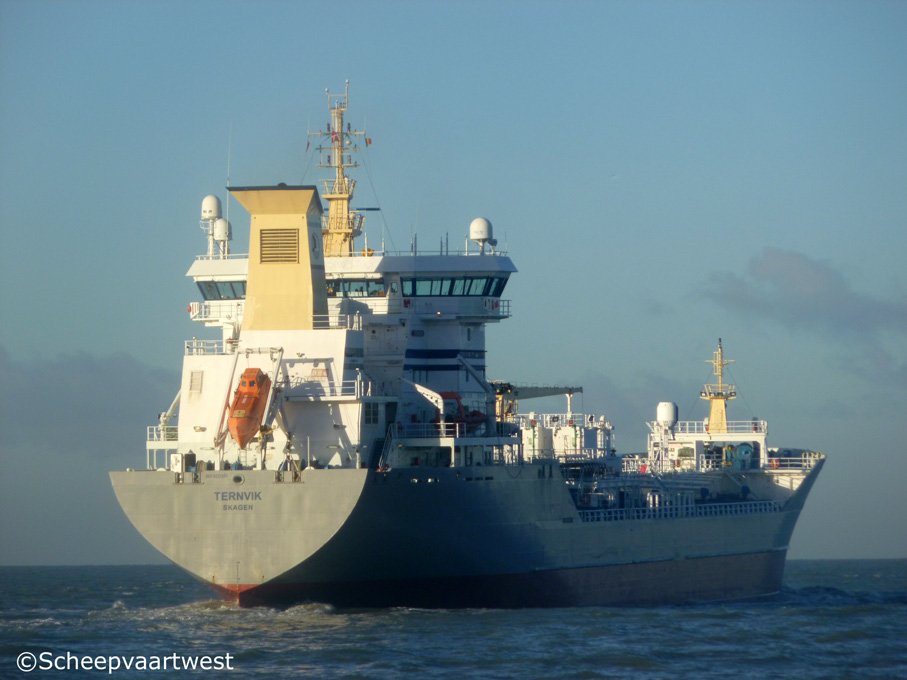

Ternvik 01

Westerschelde 10 January 2014



Name

TERNVIK

Previous names

2001 - 10.2009 Tärnvik

Type

Tanker for chemicals and oil products

IMO-number

9221267

Call sign

OWIS2

Flag

Denmark

Port of registry

Skagen

GT

9.980 t

DWT

Summer: 14.796 t

NT

4.581 t

Length

141,20 m overall

133,00 m between perpendiculars

Breadth

21,60 m moulded

Draught

9,00 m

Depth

11,50 m moulded

Speed

14,7 knots loaded condition

Built

2001

Keel laid

08.07.2000

Date of completion

15.06.2001

Builder

Shanghai Edward Shipbuilding Co. Ltd.

Yard number

119

Hull material

Steel

Main engine

1x Wärtsilä 6L46 - 4 stroke 6 cylinder diesel engine 6.300 kW at 500 rpm

Builder: Wärtsilä Finland Oy

Propellers

1x Wärtsilä Propac type controllable pitch propeller

Diameter: 5.000 mm

Boilers

1x Thermal oil heater, exhaust heated Type EGH 1300 V40

2 x GESAB / HTI thermal oil heater, Type TOH 2900 V 40 oil fried heaters 2.900 kW

Shaft generator

1x Marine Synchronous generator type ABB AMG 500S6, developing

1.875 KVA, 60 Hz at 1.200 rpm 450 V 60 HZ

Generators

3x Caterpillar 3508B diesel engine 750 kW coupled with generator 637 kVA 560 HZ each

Emergency generator

1x MAN D2866 TE diesel engine 200 kW coupled with Stamford generator 170 kW / 213 kVA - 450 Volt 60 Hz

Builder: MAN Truck & Bus AG - GE Motoren-Nürnberg - Germany

Bow thruster

1x Brunvoll thruster type FU-63-LTC-1750-800 - 800 KW

Speed of propeller 363 rpm

Cargo tank capacity 98%

15.807 m³

Tank configuration

2x 7 cargo-tanks divided P&S by centre bulkhead and building 7 natural segregation's of: 1.217 m³ + 2.134 m³ + 2.781 m³ + 1.793 m³ + 2.838 m³ + 2.240 m³ + 2.805 m³

Double skin and double bottom for clean water ballast in cargo area.

Double bottom for clean water ballast in cargo area

Slop tank capacity 98%

172 m³

Cargo pumps

7x Svanehöj Type DW 200/250-2-K electrically driven frequency controlled centrifugal pumps each 450 m³/h each pumping from two tanks

1x Svanehöj type NH 80-1- NE portable hydraulically driven pump for emergency discharge 70 m³/h

Ballast pumps

2x PG-Behrens VRF 9 / 350 G centrifugal pumps each 600 m³/h

Tank capacities

Ballast: 6.112,0 m³

Fresh water: 120 m³

Heavy oil: 576 m³

Diesel oil: 96 m³

Lifting equipment

1x Hose handling crane Hydralift MCV 1610-5-20Ex - SWL 5,0 t

Accommodation

Living quarters situated aft with public rooms and recreation facilities

14x Single cabins with separate bedrooms / toilets / bathrooms

Manager

Tärntank Ship Management AB
Donsö hamnväg 24
430 82 Donsö
Sweden

Owner

Terntank Rederi A/S

Previous owners

2001 - 2012 Tärntank Rederi AB

Latest data adjustment

21 February 2016
