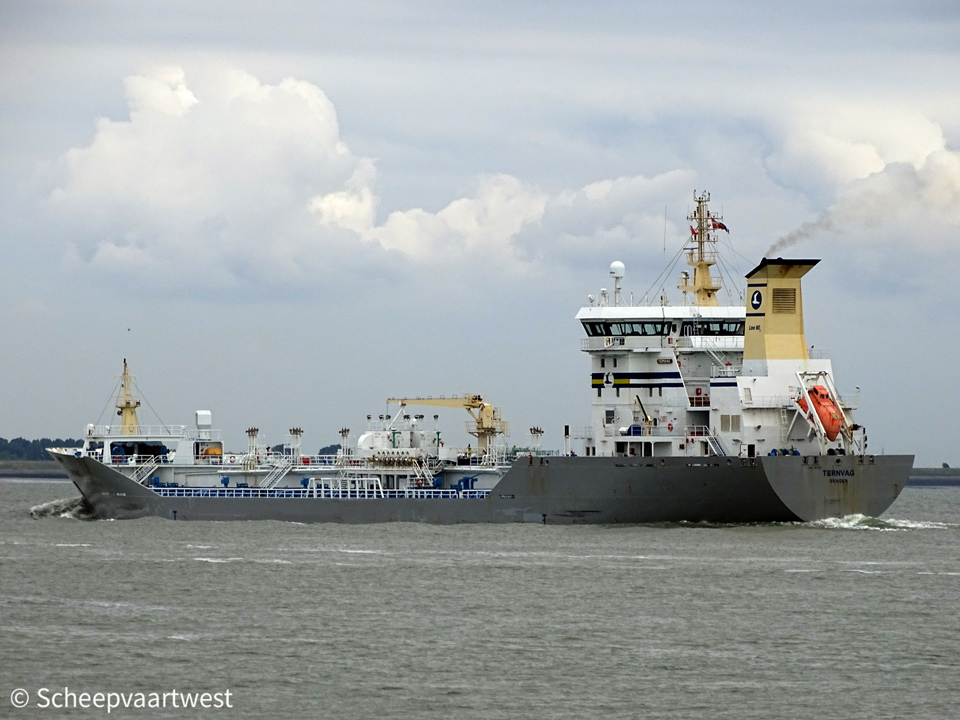

Westerschelde 19 March 2019 |
 |
 |
 |
 |
 |
 |
|||||

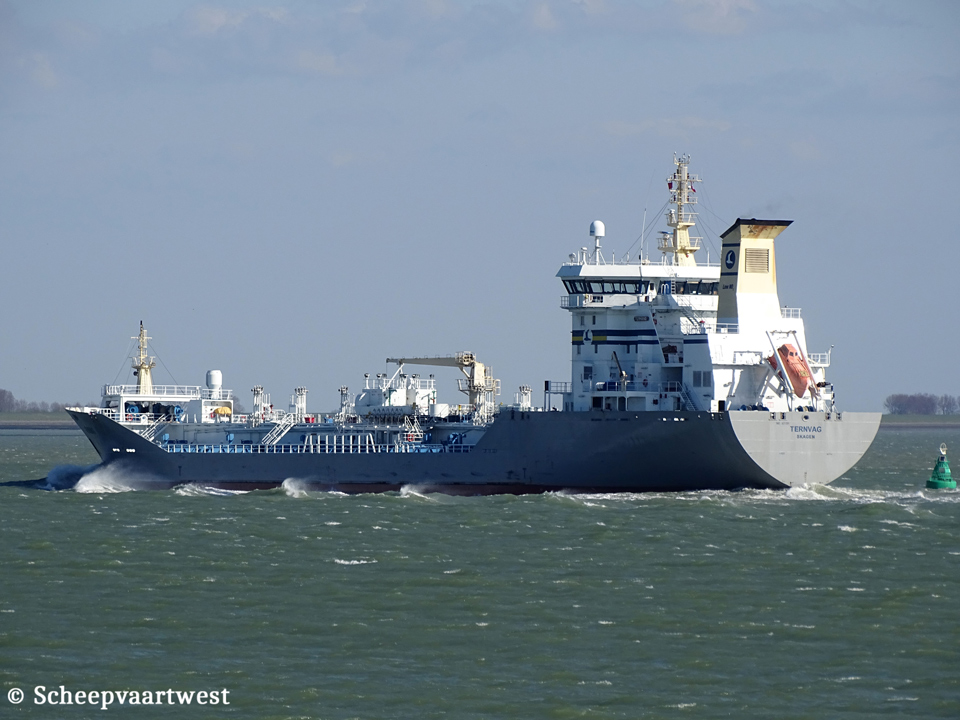

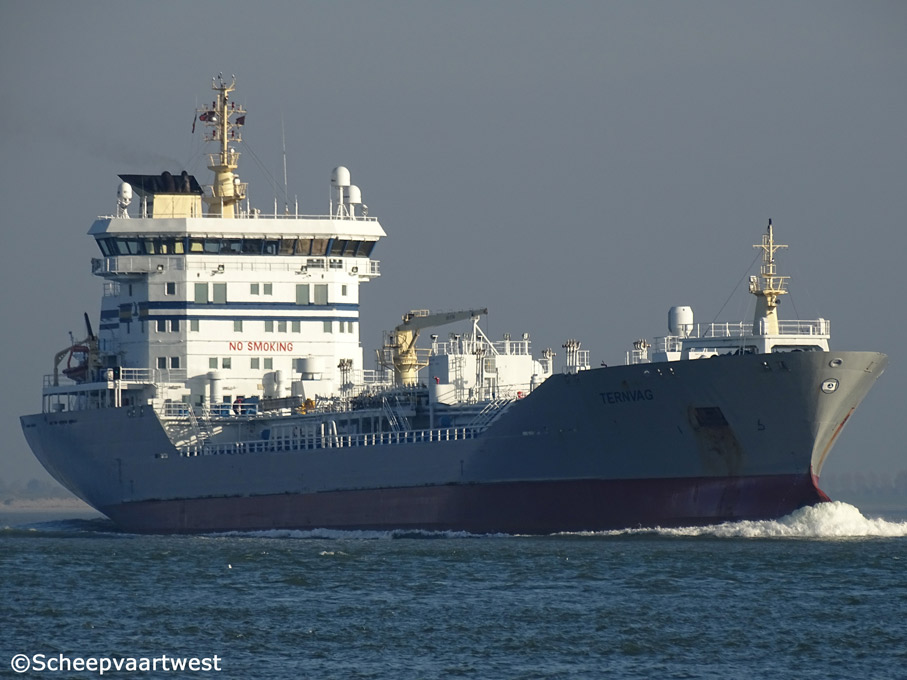

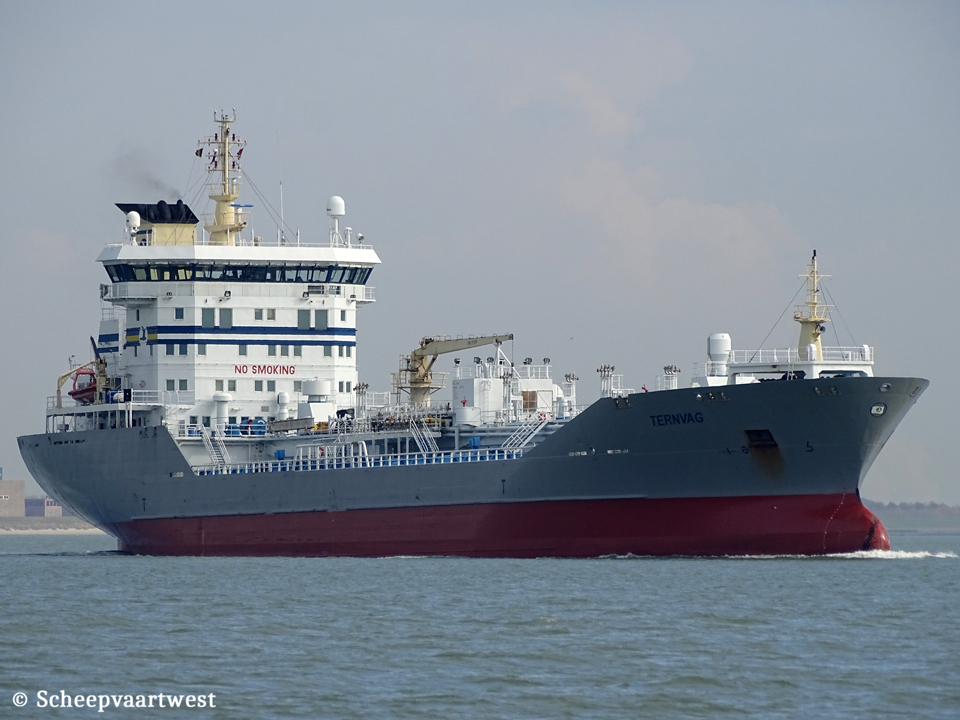

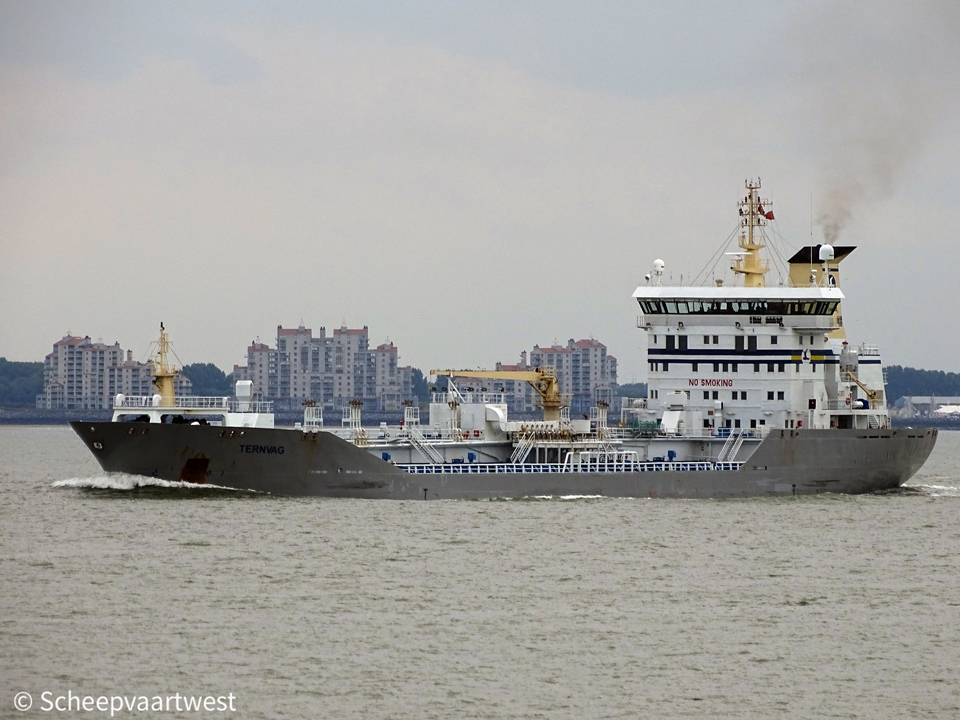

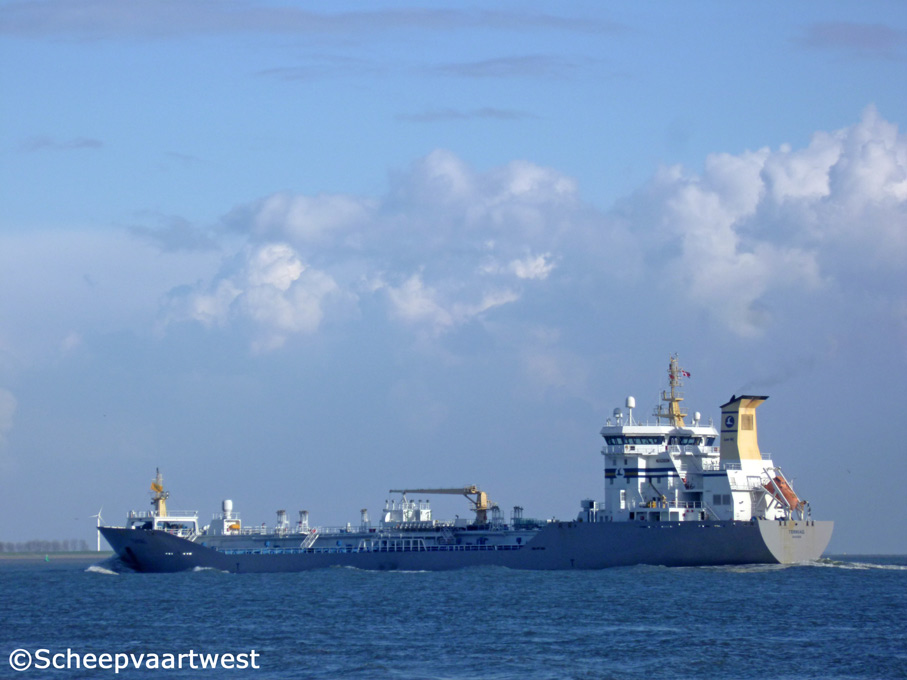

| Westerschelde 19/03/19 | Westerschelde 31/10/15 | Westerschelde 25/03/14 | Westerschelde 20/08/18 | Westerschelde 20/08/18 | Westerschelde 21/03/20 | |||||
|
Name |
TERNVAG |
|
Previous names |
2003 - 12/2009 Tarnvag |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9277371 |
|
Call sign |
OWIP2 |
|
Flag |
Denmark |
|
Port of registry |
Skagen |
|
Previous flag |
2003 - 12/2009 Sweden |
|
GT |
9.980 t |
|
DWT |
14.796 t |
|
NT |
4.581 t |
|
Length |
141,20 m overall 133,00 m between perpendiculars |
|
Breadth |
21,94 m extreme 21,60 m moulded |
|
Draught |
9,00 m |
|
Depth |
11,50 m moulded |
|
Speed |
14,7 knots loaded condition |
|
Built |
2003 |
|
Keel laid |
21/01/2003 |
|
Date of completion |
16/11/2003 |
|
Builder |
Shanghai Edward Shipbuilding Co. Ltd. Shanghai China |
|
Yard number |
127 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä 6L46C - 4 stroke 6 cylinder 460 x 580 mm medium speed combustion engine 6.300 KW / 8.565 hp at 500 rpm Builder: Wärtsilä Finland Oy |
|
Reduction gear |
1x Wichman type SCV 105-P63 - 130 rpm Type primary driven, mechanical coupling output 1.500 KW / 1.200 rpm |
|
Propellers |
1x Wärtsilä Propac type CP 130 controllable pitch propeller Diameter: 5.000 mm |
|
Boilers |
1x Type EGH 1300 V40 Heat exchanger: 2x Intermedium heater 2.900 KW 2x GESAB / HTI thermal oil heater, type TOH 2900 V 40 oil fried heaters 2.900 KW |
|
Shaft generator |
Marine Synchronous generator type ABB AMG 500S6, developing 1.875 KVA, 60 Hz at 1.200 rpm voltage/frequency 450 V 60 Hz |
|
Generators |
3x Caterpillar 3508B / 750 KW connected to CAT generators 750 KW developing 937 kVA 60 Hz Builder: Caterpillar Inc. |
|
Emergency generator |
1x DEMP/MAN diesel engine type D 2866 TE - 200 kW connected to a Stamford generator, 170 KW / 213 kVA, 450V, 60 Hz Builder: MAN Truck & Bus AG - GE Motoren-Nürnberg |
|
Bow thruster |
1x Brunvoll thruster type FU-63-LTC-1750-800 - 800 KW Speed of propeller 363 rpm |
|
Cargo tank capacity 98% |
15.807 m³ |
|
Deck tank capacity 98% |
172 m³ |
|
Tank configuration |
2x 7 Cargo-tanks divided P&S by centre bulkhead and building 7 natural segregation’s of: 1.217 m³ + 2.134 m³ + 2.781 m³ + 1.793 m³ + 2.838 m³ + 2.240 m³ + 2.805 m³ Double skin and double bottom for clean water ballast in cargo area. Double bottom for clean water ballast in cargo area |
|
Tank coating |
Cargo and deck tanks, Epoxy International TC 900 |
|
Cargo pumps |
7x Svanehöj electrically driven frequency controlled centrifugal pumps type DW 200/250-2-K each 450 m³/h each pumping from two tanks 1x Svanehöj portable hydraulically driven pump for emergency discharge 70 m³/h |
|
Ballast pumps |
2x PG-Behrens VRF 9 / 350 G centrifugal pumps capacity each 600 m³/h |
|
Cargo heating |
Primary and Secondary thermal oil system with Stainles Steel coils in cargo tanks Cargo holding temp 70 C at 0 C sea water temperature and minus 20 C in air temperature, Heating up cargo 44 degrees – 66 degrees 96 hours |
|
Tank cleaning |
28 fixed single nozzle, turbine driven, and programmable multistage tank cleaning machine type Mst50-1, capacity 16,5 m³/h 2x Butterworth heaters 2.900 kW, sea water/ freshwater capacity each 35 m³/h at delta temp. 70 degrees Celsius. 2x Technical FW tanks, 330 m³ for tank washing water 2x BLOKSMA butterworth heaters, each 62 m³/h – 0-80° C. |
|
Windlass and mooring winches |
Totally 6 double drums Brattvaag hydraulic mooring winches with a brake holding load of 32 t. Two of these are combined anchor/mooring winches |
|
Tank capacities |
Fresh water: 120 m³ Ballast capacity: 6.113,1 m³ Heavy oil: 576 m³ Diesel oil: 96 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
Lifting equipment |
1x Hose handling crane Hydralift MCV 1610-5-20Ex, length 20,00 meter / 5,0 t SWL 1x Slewing crane - SWL 1,5 t – 16,00 m aft |
|
Accommodation |
Living quarters situated aft with public rooms and recreation facilities. 14x Single cabins with separate bedrooms / toilets / bathrooms |
|
Navigation equipment |
Furuno Integrated Bridge System “Voyager”: High-performance ARPA/radars Automatic Navigation and Trackkeeping system 2x Transas ECDIS Furuno GMDSS communication equipment |
|
Commerical manager |
Tarntank Rederi A/S Vestre Strandvej 10 9990 Skagen Denmark |
|
ISM manager |
Tärntank Ship Management AB Donsö hamnväg 24 430 82 Donsö Sweden |
|
Registered owner |
Terntank Rederi A/S Vestre Strandvej 10 9990 Skagen Denmark |
|
Previous owners |
2003 - 2012 Tärntank Rederi AB |
|
Renamed |
11/2023 Lady Amira 1 Palau, Malakal Harbor - Call sign: T8A4543 Owner: Amira Shipping Lines Inc. Manager: Elite Shipping & Trading FZC |
|
Latest data adjustment |
10 November 2024 |
