Sten Aurora IMO 9318565 04

Westerschelde 30 October 2019

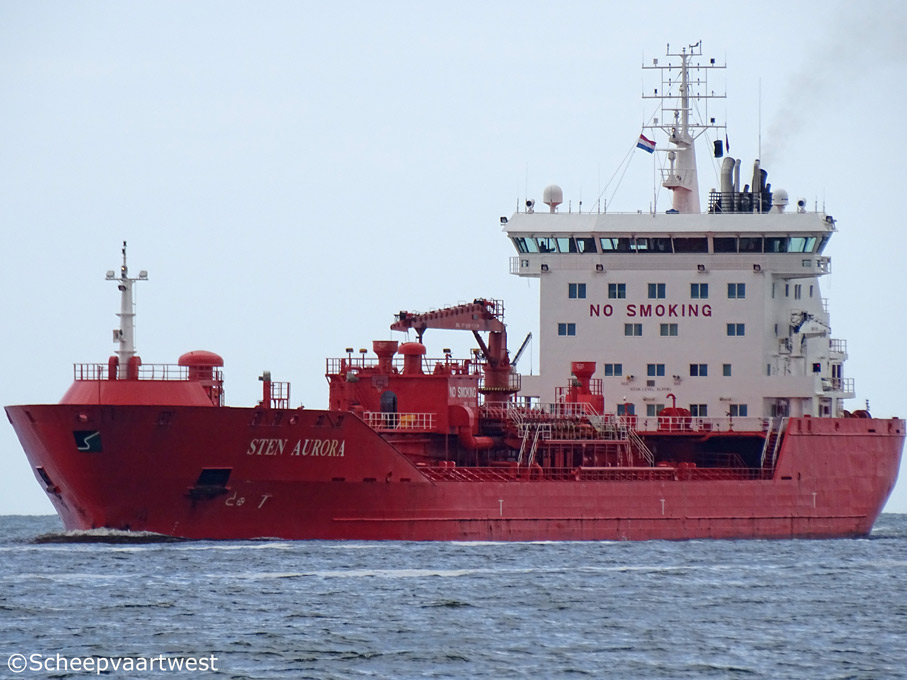

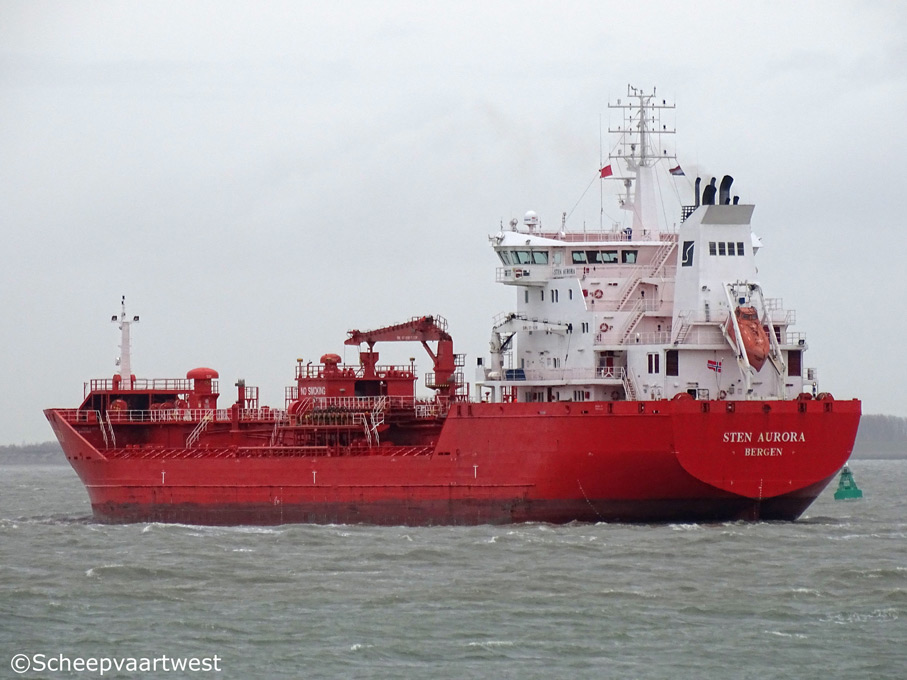

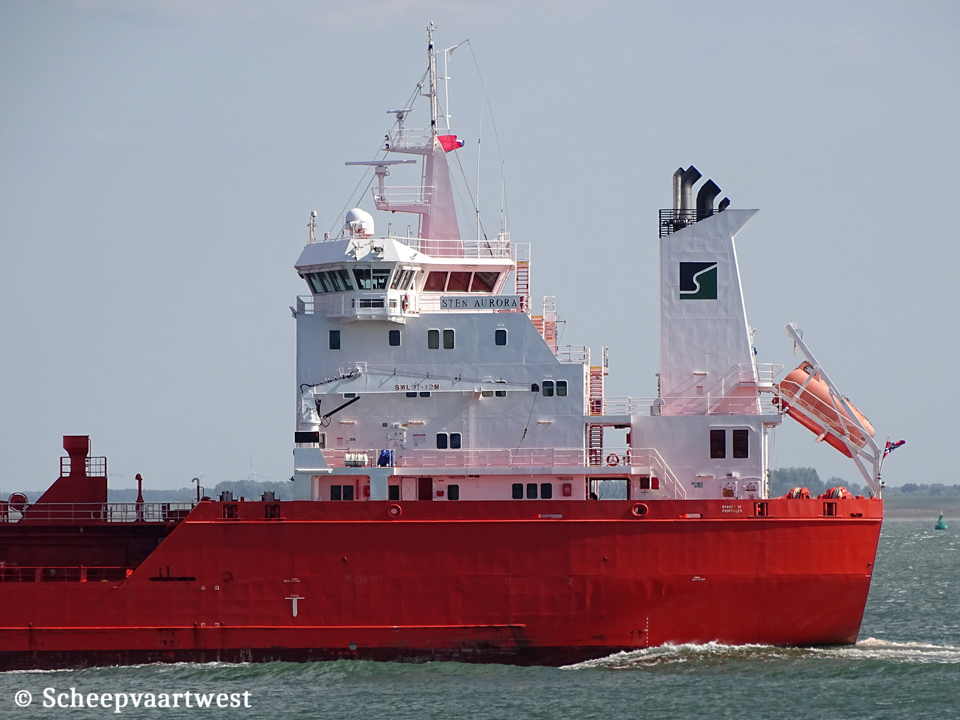

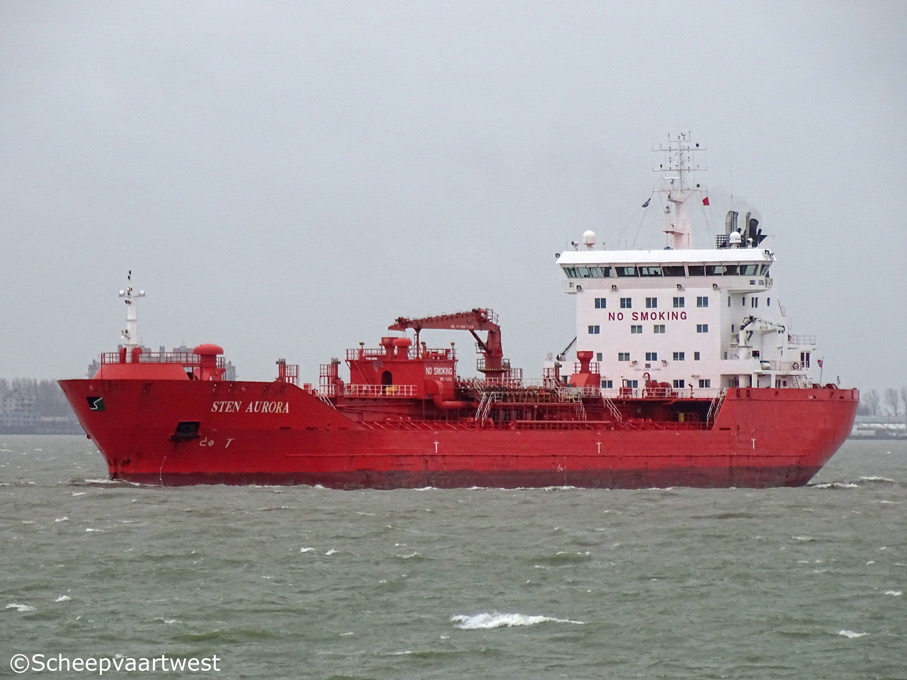

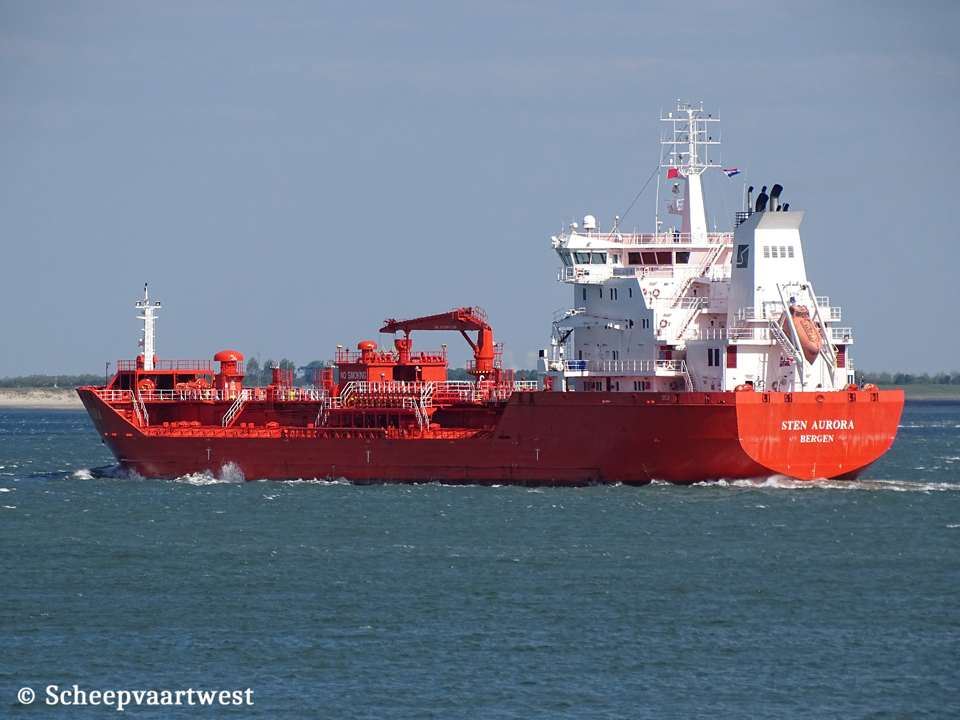

Sten Aurora 01   Sten Aurora 02   Sten Aurora 03   Sten Aurora IMO 9318565 06   Sten Aurora IMO 9318565 05
Westerschelde 20/02/16 Westerschelde 20/02/16 Westerschelde 15/06/16 Westerschelde  14/05/20   Westerschelde  14/05/20


Name

STEN AURORA

Type

Tanker for oil & chemicals

IMO-number

9318565

Call sign

LAKI6

Flag

Norway

Port of registry

Bergen

GT

11.935 t

DWT

Summer: 16.596 t

NT

5.141 t

Length

144,23 m overall

133,75 m between perpendiculars

Breadth

23,18 m extreme

23,00 m moulded

Draught

8,90 m

Keel to top of mast

44,50 m

Freeboard

3.523 mm

Depth

12,41 m

Speed

16,0 knots

Built

2007

Keel laid

24/09/2006

Launch date

06/02/2007

Date of completion

17/09/2007

Builder

Jiangnan Shipyard (Group) Co., Ltd.

Feng Chan Village, Chang Xing Town Chongmin County

Shanghai

China

Yard number

H2363

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 8

Longitudinal: 1

Main engine

1x Wärtsilä 6L46C - 4 stroke 6 cylinder combustion engine 6.300 kW / 9.792 bhp at 500 rpm

Builder: Wärtsilä Finland Oy

Propellers

1x Lips controllable pitch - 4 blades

Boilers

1x Auxiliary boiler, vertical shell type AQ-9

1x Auxiliary boiler, composite AQ-16

Builder: Aalborg Industries A/S

Shaft generator

1x AVK SDCT65 - 1.500 KW

Generators

2x Wärtsilä W4L20 diesel generatorset 600 kW

1x Wärtsilä W6L20 diesel generatorsets each 900 kW

Total 2.400 kW at 900 rpm

Builder: Wärtsilä Finland Oy

Bow thruster

1x Brunvoll 750 kW

Number of cargo tanks

12

Cargo capacity 98%

18.491 m³

Number of slop tanks

3

Slop tank capacity

981 m³

Number of segregations

8

Cargo pumps

12x Framo centrifugal pumps each 300 m³/h

3x Framo centrifugal pumps each 150 m³/h

1x Framo centrifugal pumps 75 m³/h

Pumping capacity

2.100 m³/h

Manifold

Bow to centre manifold: 71,80 m

Heating capacity

70°C

Tank capacities

HFO: 580,0 m³

Diesel oil: 74,8 m³

Fresh water: 502,0 m³

Ballast: 8.179,3 m³

Anchor equipment

Length: 577,5 m

Diameter: 58 mm

Lifting equipment

1x Hose crane - SWL 5,0 t

ISM & commercial manager

Rederiet Stenersen A/S

Solheimsgaten 13

5058 Bergen

Norway

Owner

Stentank AS

Solheimsgaten 13

5058 Bergen

Norway

Latest data adjustment

29 January 2022
