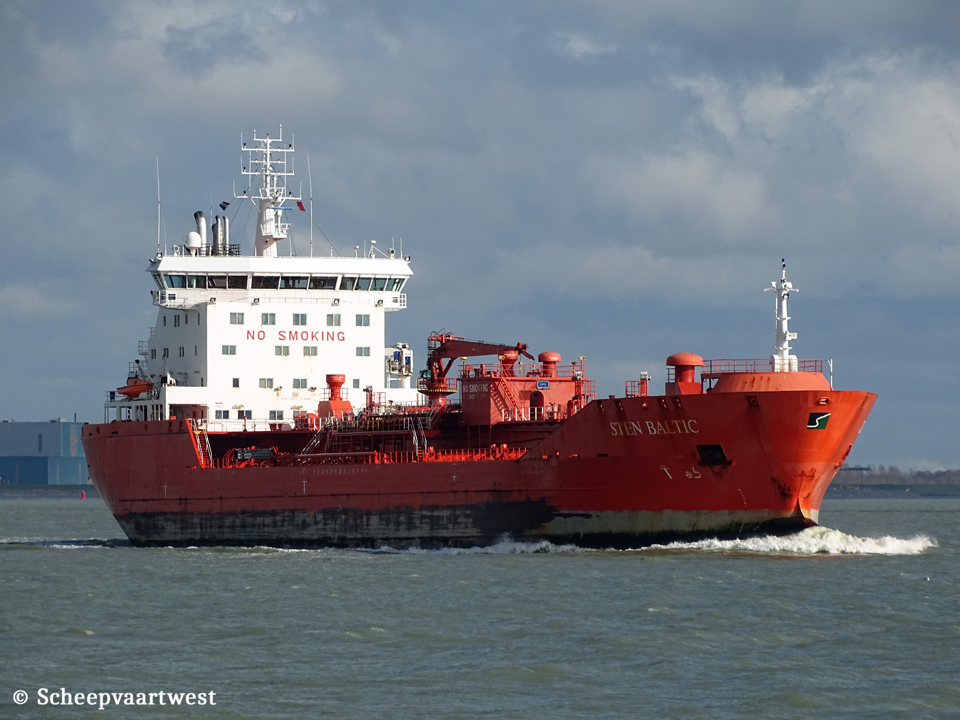

Sten Baltic IMO 9307671 05

Westerschelde 11 March 2020

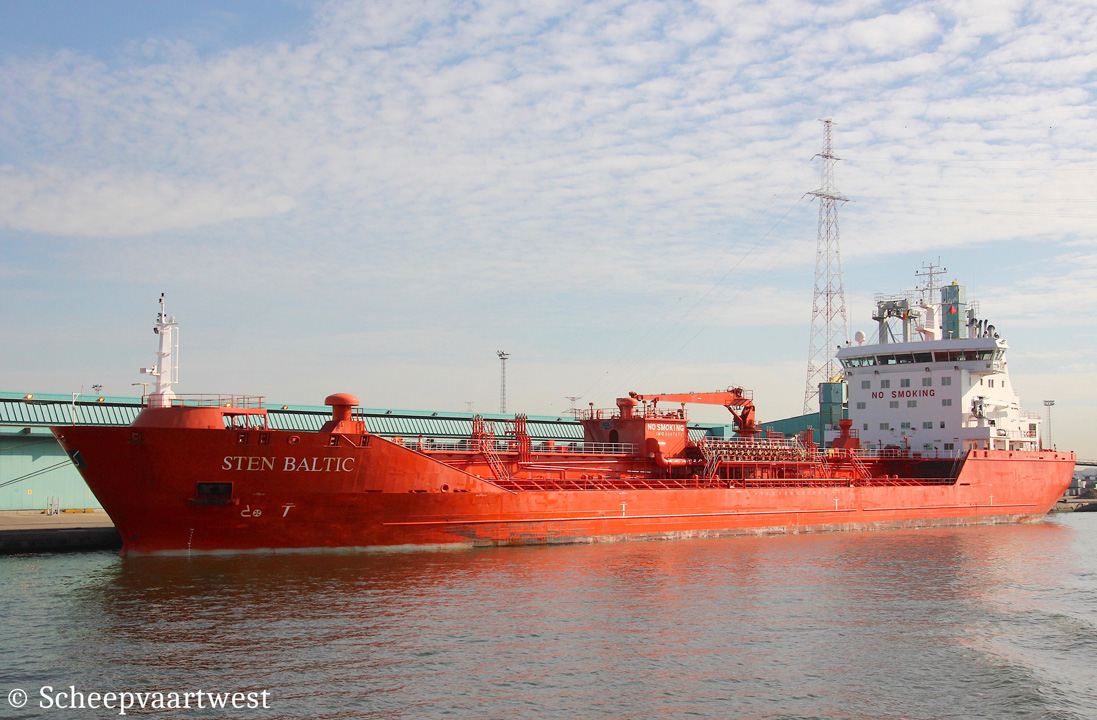

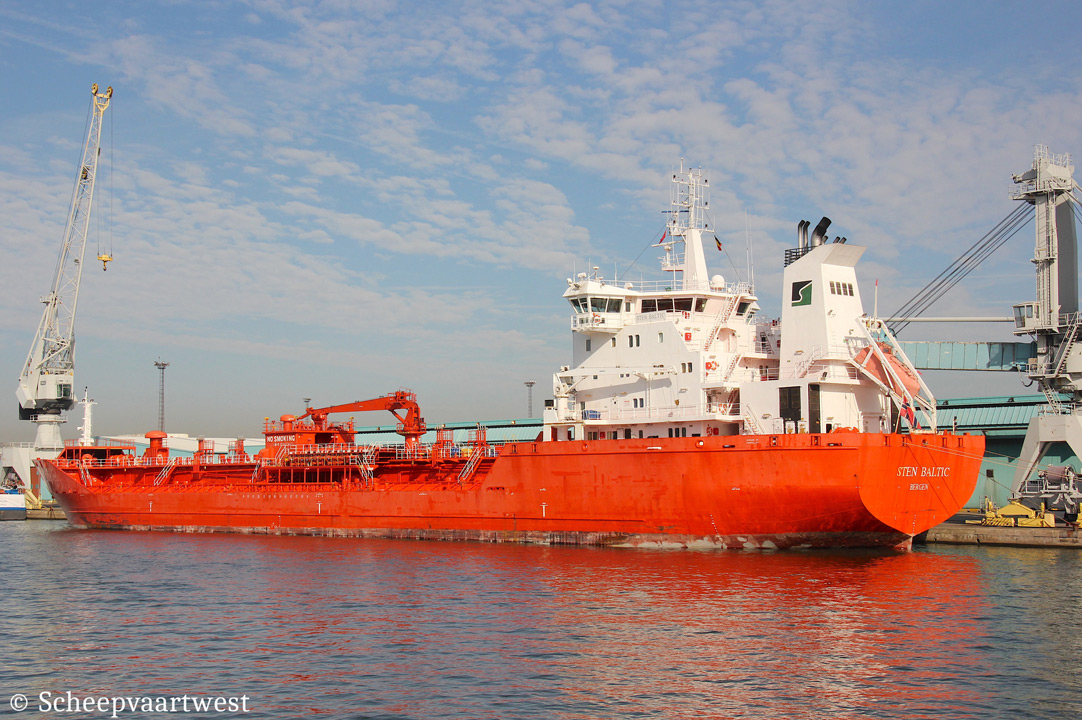

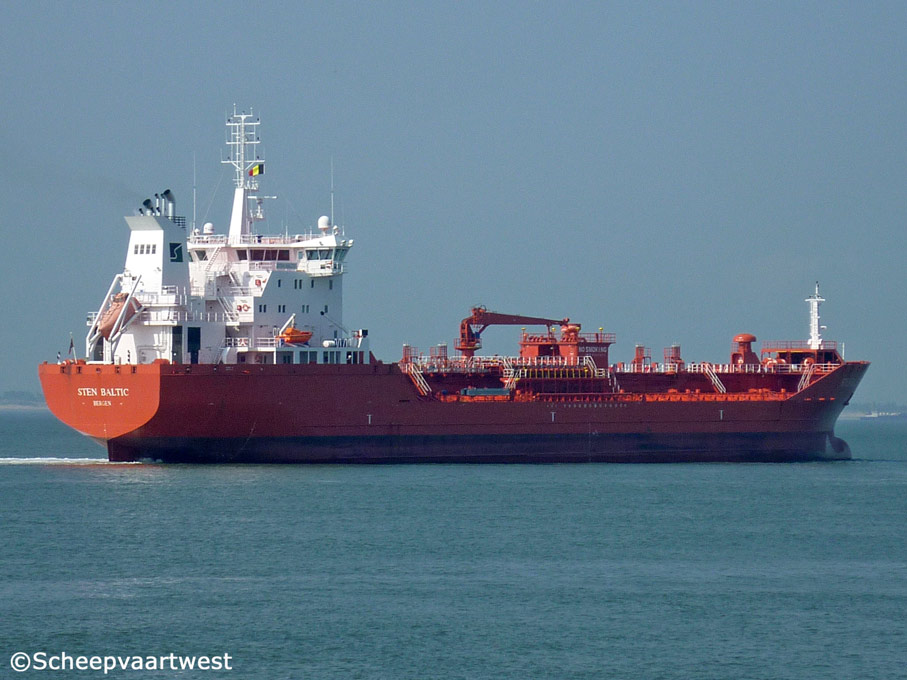

Sten Baltic 02   Sten Baltic 04   Sten Baltic 03
Westerschelde 20/06/12   Antwerpen 16/10/18 Antwerpen 16/10/18


Name

STEN BALTIC

Type

Tanker for oil and chemicals

IMO-number

9307671

Call sign

LADY6

Flag

Norway

Port of registry

Bergen

GT

11.935 t

DWT

Summer: 16.607 t

NT

5.137 t

Length

144,05 m overall

133,80 m between perpendiculars

Breadth

23,34 m extreme

Draught

8,90 m

Keel to top mast

44,50 m

Freeboard

3.511 mm

Depth

12,40 m

Speed

14,0 knots

Built

2005

Keel laid

17/10/2004

Launch date

27/01/2005

Date of completion

31/08/2005

Builder

Jiangnan Shipyard Group Co., Ltd.

Feng Chan Village, Chang Xing Town Chongmin County

Shanghai

China

Yard number

H2323

Hull material

Steel

Hull type

Double hull

Bulkheads

Transverse: 8

Longitudinal: 1

Main engine

1x Wärtsilä 6L46C - 6 cylinder diesel engine 6.300 kW / 8.565 hp at 500 rpm

Manufacture: Wärtsilä Finland Oy

Propellers

1x Controllable pitch propeller - 4 blades

Manufacture: Wärtsilä Propulsion Norway AS

Boilers

1x Auxiliary boiler, composite AQ-16

1x Auxiliary boiler, oil/gas fired AQ-9

Manufacture: Aalborg Industries A/S

Shaft generator

1x AVK - 1.500 kW

Generators

1x Wärtsilä 6L20 diesel generatorset

2x Wärtsilä 4L20 diesel generatorsets

Total: 2.380 kW at 900 rpm

Manufacture: Wärtsilä Finland Oy

Emergency generator

1x Sisu 634 diesel generatorset

Manufacture: Sisue Diesel Inc.

Number of cargo tanks

12

Cargo capacity 98%

18.491 m³

Number of slop tanks

2

Slop tank capacity 98%

681 m³

Total cargo capacity 98%

19.172 m³

Number of segregations

8

Number of pumps

12x Framo cargo pumps each 300 m³/h

2x Framo cargo pumps each 150 m³/h - portable pumps

Manifolds

Bow to centre of manifold: 71,80 m

Tank capacities

Ballast: 8.180 m²

Anchor equipment

Length: 572,50 m

Diameter: 58 mm

Lifting equipment

1x Hose crane - SWL 5,0 t

Manager

Stenersen Rederiet AS

Edvard Griegs Vei 1

5059 Bergen

Norway

Owner

Stenoil KS

Edvard Griegs Vei 1

5059 Bergen

Norway

Previous owners

2005 - 2005 Stenoil KS

2005 - 2011 Sten Baltic KS

Latest data adjustment

08 August 2023
