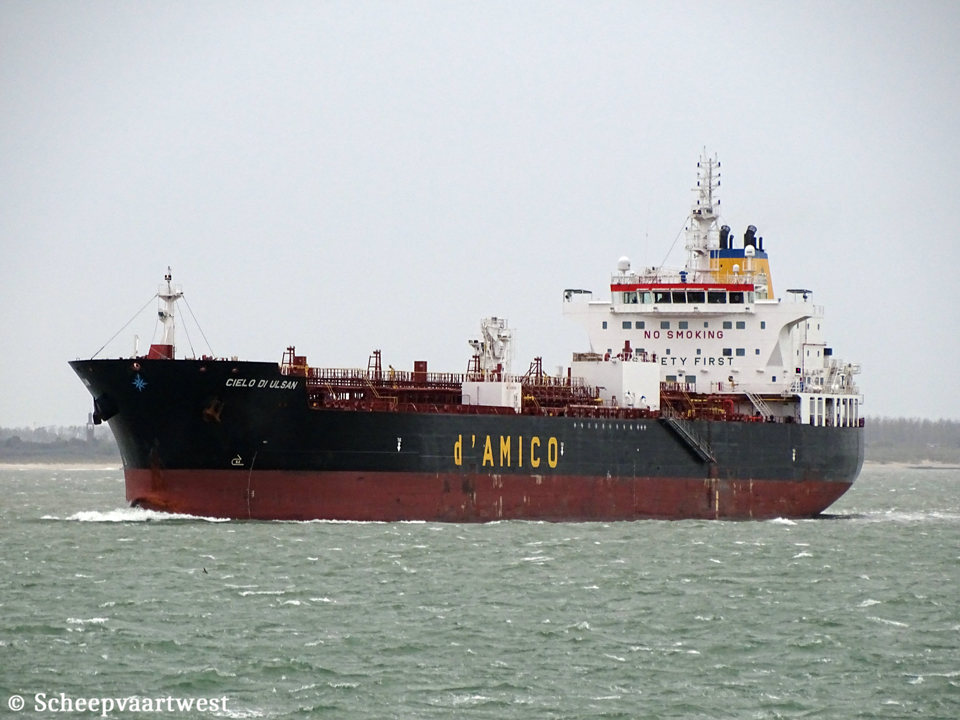

Cielo Di Ulsan IMO 9717266 03

Westerschelde 02 November 2019

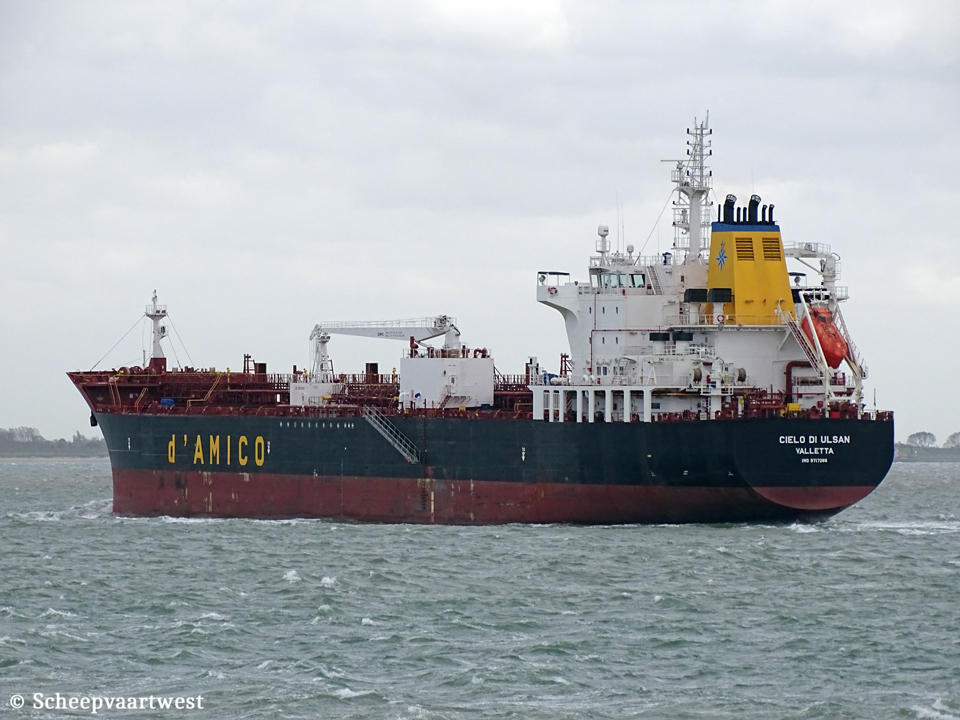

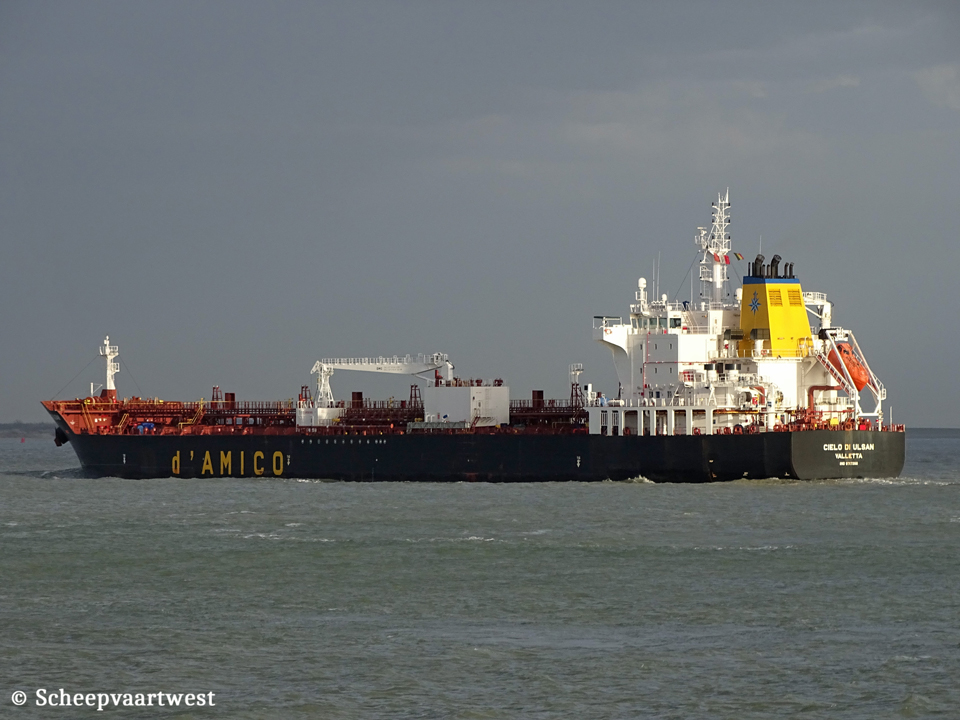

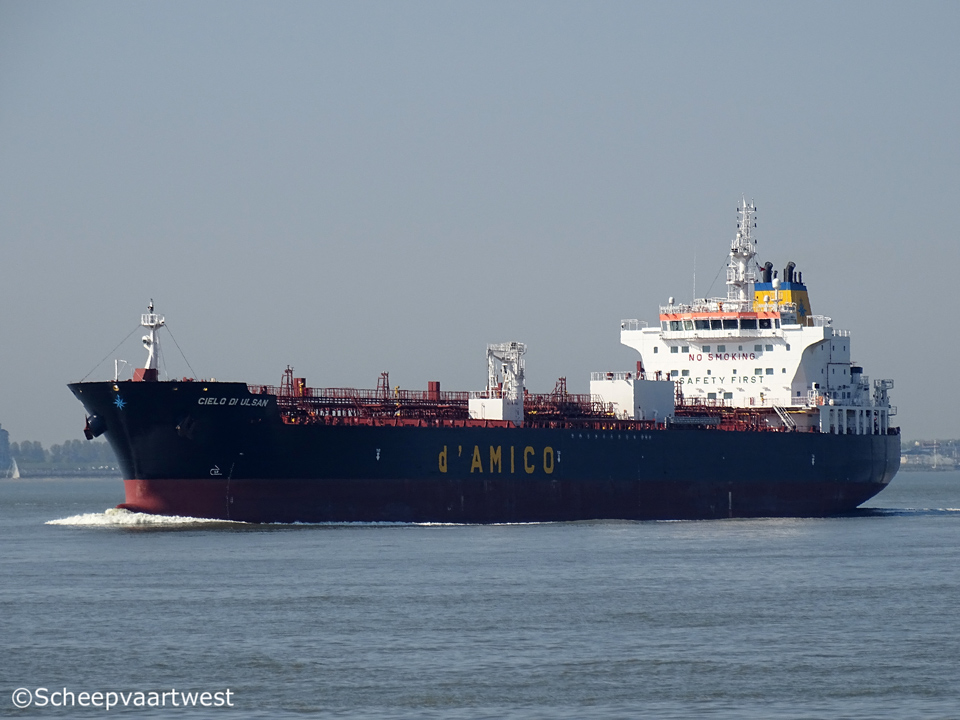

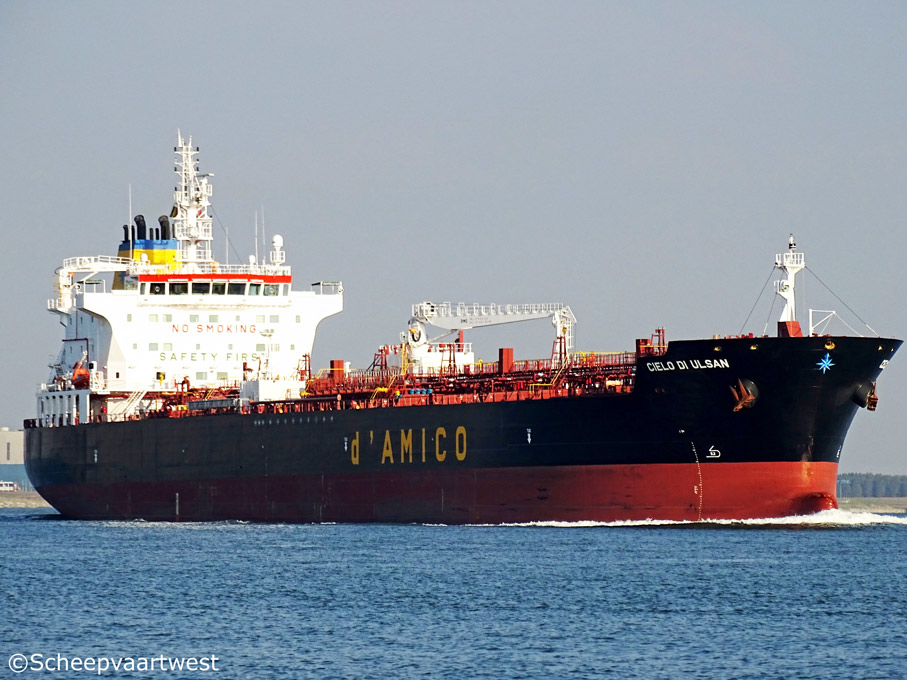

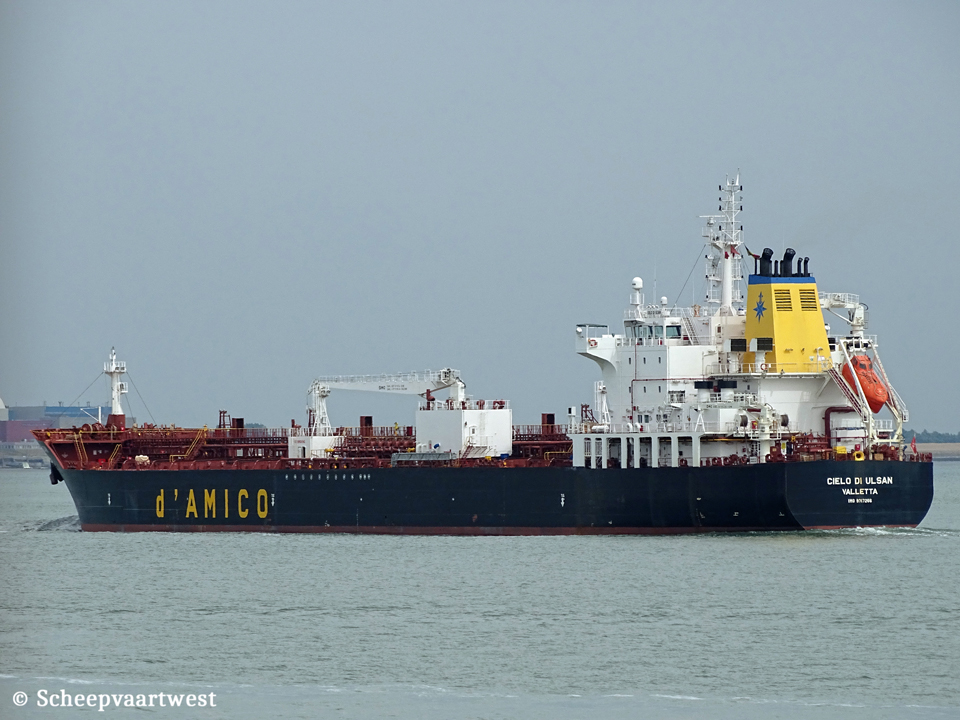

Cielo Di Ulsan IMO 9717266 05   Cielo Di Ulsan 01   Cielo Di Ulsan 02   Cielo Di Ulsan IMO 9717266 06   Cielo Di Ulsan IMO 9717266 07
Westerschelde 02/11/19   Westerschelde 20/09/16   Westerschelde 08/05/16   Westerschelde 14/03/19   Westerschelde 30/06/17


Name

CIELO DI ULSAN

Type

Oil / Chemical tanker

IMO-number

9717266

Call sign

9HA4030

Flag

Malta

Port of registry

Valletta

GT

24.184 t registered

DWT

Summer: 39.060 t

NT

10.399 t registered

Displacement

48.375 t

Length

184,26 m overall

176,00 m between perpendiculars

Breadth

27,44 m

Draught

Max.: 11,90 m

Freeboard

5.713 mm

Depth

17,60 m moulded

Speed

Max.: 17,2 knots

Service: 14,0 knots

Built

2015

Launch date

18/07/2015

Date of completion

12/10/2015

Builder

Hyundai-Vinashin Shipyard Co., Ltd.

#1 My Giang, Ninh Phuoc Ninh Hoa Khanh Hoa

Viet-Nam

Yard number

S420

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

12

Main engine

1x MAN-B&W/HHI 6S50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.214 mm combustion engine 7.290 kW / 9.911 hp at 99,0 rpm

Manufacturer: HHI Engine & Machinery Div.

Propellers

1x Fixed pitch propeller

Boilers

1x Composite boiler - 9,0 bar

1x Auxiliary boiler - 9,0 bar

Generators

3x Main diesel generatorsets each 800 kW

Number of cargo tanks

12 + 2 slop tanks

Cargo tanks cap. 100%

45.662,8 m³

Number of tanks

Ballast: 14

Fuel oil: 9

Lubricating oil: 8

Waste water: 4

Diesel oil: 4

Slop: 3

Fresh water: 2

Chain: 2

Sludge: 2

Hydraulic oil: 1

Fixed ballast liquid: 1

Tank capacities 100%

Diesel Oil: 219,3 m³

Freshwater: 211,2 m³

Fuel Oil: 1.198,4 m³

Hydraulic Oil: 17,9 m³

Lube Oil: 94,7 m³

Tank Ballast: 21.517 m³

Lifting equipment

1x Engine room crane - SWL 4,0 t

1x Hose handling crane aft - SWL 3,0 t

1x Hose handling crane - SWL 10,0 t

1x Provision crane Stbd - SWL 4,0 t

Commercial manger

D'Amico Tankers D.A.C

The Anchorage

17-19 Sir John Rogerson's Quay

Dublin 2

Ireland

ISM manager

D'Amico Societa Di Navigazione

Corso d'Italia, 35b

00198 Roma

Italy

Registered owner

D’Amico Tankers D.A.C.

The Anchorage

17-19 Sir John Rogerson's Quay

Dublin 2

Ireland

Latest data adjustment

10 October 2022
