Westerschelde 29 April 2012 |
 |
| Westerschelde 29/04/12 |
|
Name |

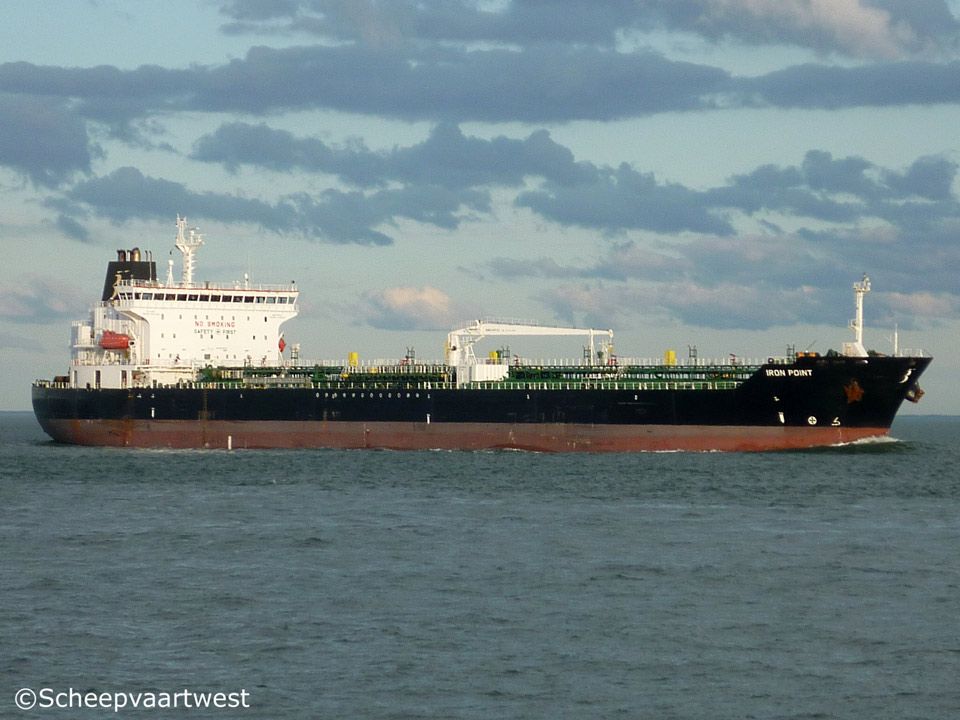

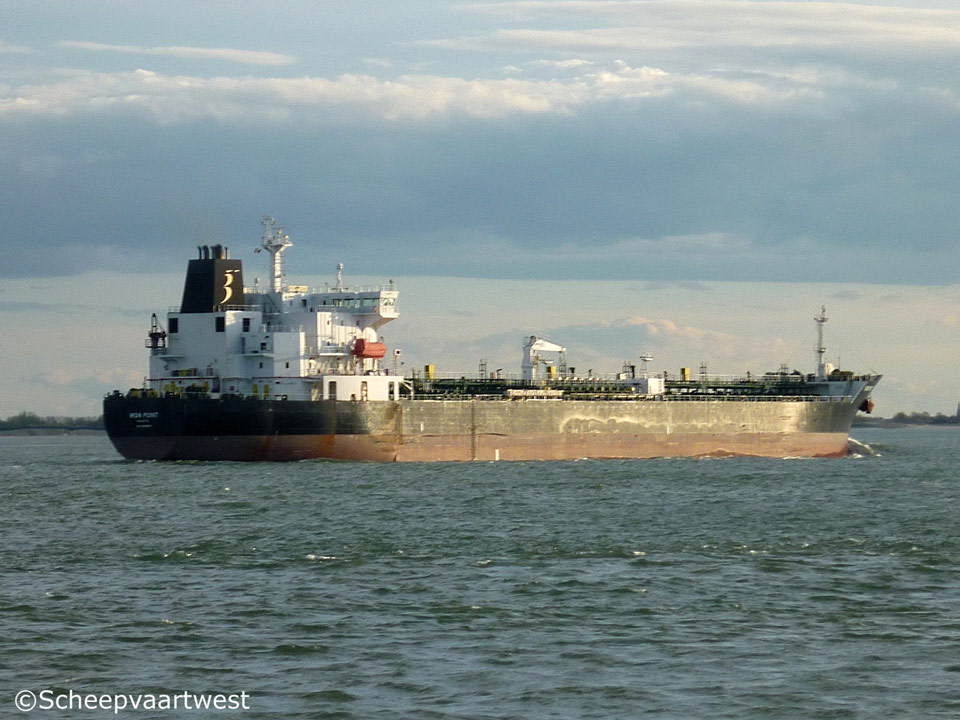

IRON POINT |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9388209 |
|
Call sign |
9HA2959 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
01.2008 - 12.2011 Italy, Palermo |
|
GT |
30.119 t registered Suez: 32.063,19 t |
|
DWT |
Summer: 50.922 t |
|
NT |
12.150 t registered Panama: 24.944 t Suez: 27.160,35 t |
|
Displacement |
62.032 t |
|
Light ship |
11.110 t |
|
Length |
183,00 m overall 173,90 m between perpendiculars 175,18 m registered |
|
Breadth |
32,24 m extreme |
|
Draught |
Summer: 13,28 m |
|
Freeboard |
5.842 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Max.: 20,6 knots service: 15,9 knots |
|
Built |
2008 |
|
Keel laid |
28.09.2007 |
|
Launch date |
23.11.2007 |
|
Delivery date |
09.01.2008 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. |
|
Yard number |
S1244 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 9 Oil tight: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x STX MAN B&W 6S60MC-C - 6 cylinder 600 x 2.400 mm diesel engine 13.560 kW / 18.420 bhp at 105,0 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller - 4 blades |
|
Boilers |
1x Auxiliary boiler 18.000 Kg/h - 7 kg/cm² 1x Composite boiler 1.200 kg/h oil fired section – 1.100 kg/h exhaust gas |
|
Generators |
3x STX MAN B&W Holeby 6L23/30H diesel generatorsets each 900 kW at 900 rpm Manufacturer: Hyundai Heavy Ind. Co., Ltd. |
|
Bow thruster |
Hydraulic 950 kW |
|
Number of tanks |
12 |
|
Total tank capacity 100% |
53.300 m³ incl. Slop tanks |
|
Number of slop tanks |
2 + 1 residual tank |
|
Slop tank capacity 100% |
1.288 m³ |
|
No. of segregations |
6 |
|
Pumps |
12x Submerged, centrifugal, hydraulic driven cargo pumps each 600 m³/h 2x Submerged, centrifugal, hydraulic driven cargo pumps each 200 m³/h 1x Submerged, centrifugal cargo pump 20 m³/h 2x Ballast pumps each 750 m³/h |
|
Discharge capacity |
3.600 m²/h |
|
Cargo & slop tank coating |
Epoxy Phenolic |
|
Number of tanks |
Ballast: 10 Lubricating oil: 9 Fuel oil: 9 Diesel oil: 5 Fresh water: 3 Chain: 2 Sludge: 2 Sea water: 1 Waste water: 1 Hydraulic oil: 1 |
|
Tank capacities 100% |
Diesel Oil: 227,6 m³ / 208,14 t Freshwater: 420 m³ Fuel Oil: 1.327,6 m³ / 1.340,49 t Lube Oil: 145,4 m³ / 131,13 t Tank Ballast: 23.461,3 m³ / 24.047,83 t |
|
Lifting equipment |
1x Cargo hose crane - SWL 10,0 t |
|
Operator |
PB Tankers S.p.A. |
|
Owner |
PB Tankers S.p.A. |
|
Registered owner |
Iron Point Shipping SRL |
|
Latest data adjustment |
07 January 2017 |
