Merksem, Belgium 14 March 2014 |
|
Name |

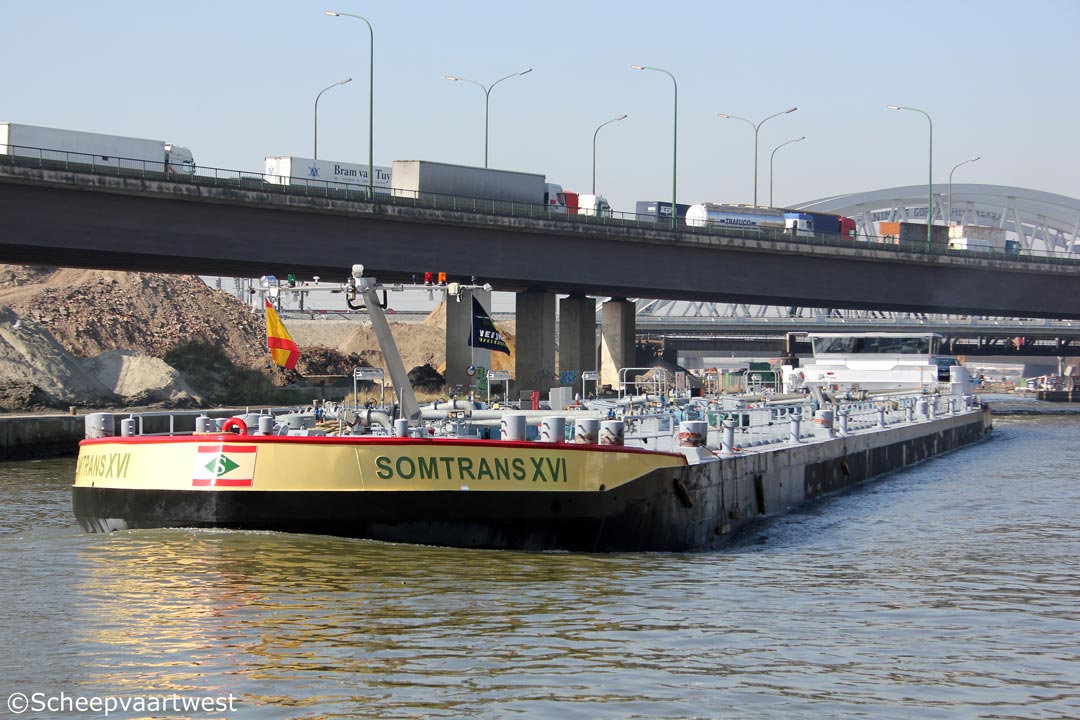

SOMTRANS XVI |
|
Type |
Inland tanker |
|
ENI-number |
02332526 |
|
Call sign |
PD2077 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
2.690 t |
|
Length |
110,00 m |
|
Breadth |
11,45 m |
|
Draught |
3,20 m |
|
Depth |
5,65 m |
|
Built |
2010 |
|
Builder casco |
Jin Niu Shipyard |
|
Builder completion |
Technisch Buro H.& U. Heijningen The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x ABC 6 MDZC - 6 cylinder diesel engine 1.102 kW / 1.500 hp at 800 rpm Builder: Anglo Belgian Corporation NV Wiedauwkaai 43 9000 Gent |
|
Gearbox |
1x Reintjes type WGF 763 - reduction: 3,007:1 |
|
Propellers |
1 |
|
Bow thruster |
1x Caterpillar 538 hp - Veth-Jet type VSG-1200 - 396 kW at 1.800 rpm |
|
Cargo tank capacity 100% |
3.041 m³ |
|
Pumps |
4x EPS type EPS185 cargo pumps each 500 m³/h coupled with electric motor ABB - 55 kW 1x EPS type EPS10 slob pump 10 m³/h coupled with electric motor ABB - 8,6 kW |
|
Lifting equipment |
1x Hydraulic car crane |
|
Owner |
Somtrans NV |
|
Previous owners |
Somtrans N.V., Wijnegem - Belgium |
|
Latest data adjustment |
23 March 2017 |
