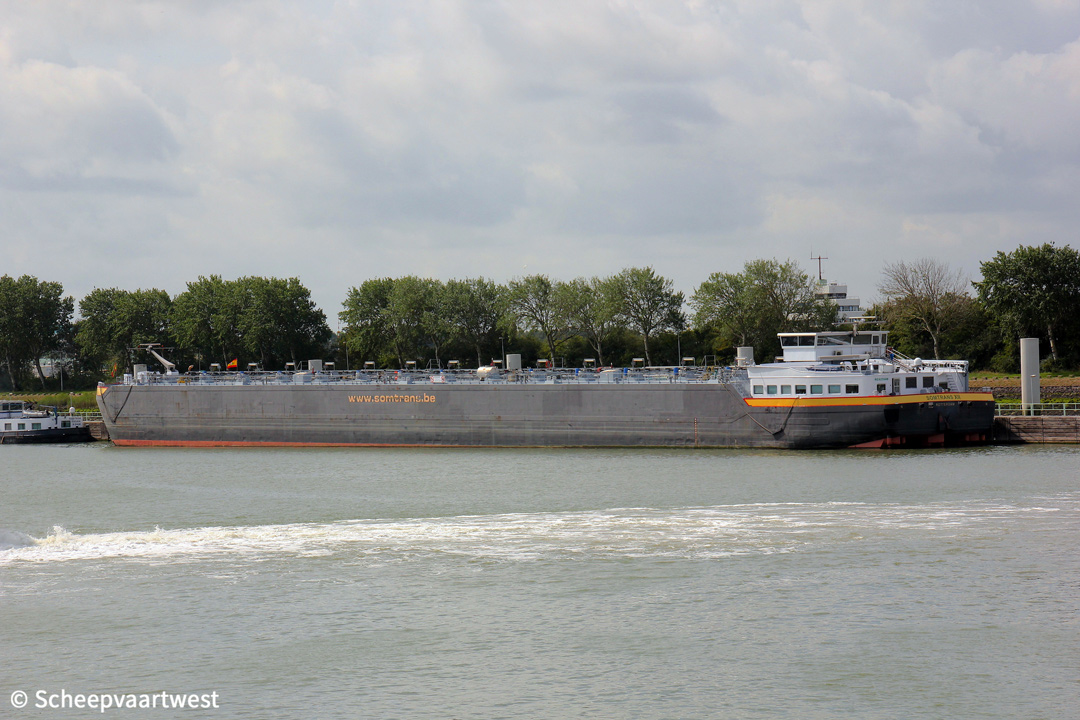

Terneuzen, The Netherlands 16 August 2019 |
|
Name |
SOMTRANS XII |
|
Previous names |
2005 - 2006 Mick I |
|
Type |
Inland tanker |
|
ENI-number |
02327440 |
|
Call sign |
PD3420 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
6.610 t |
|
Length |
135,00 m |
|
Breadth |
16,85 m |
|
Draught |
4,06 m |
|
Depth |
7,45 m |
|
Built |
2005 |
|
Builder casco |
Severnav SA Drobeta-Turnu Severin Romania |
|
Builder completion |
Breko Nieuwbouw BV Papendrecht The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
3x MTU 8V4000M60 combustion engines each 647 kW / 880 hp at1.800 rpm |
|
Gearbox |
3x ZF W4400 - Reduction 1:5.913 |
|
Propellers |
3x 5x blades propellers diameter 1.750 mm 2x left turning and 1x right turning 3x Nozzle type van de Giessen Optima - diameter 1.762 mm |
|
Generators |
1x Cummins KTA19 G4 engine connected with generator 483 kW for bow thrusters and cargo pumps 1x Cummins 6CT 8.3 D(M) engine connected with Marathon 572 RSL 4032 generator 140 kVA 1x Cummins 6BT 5.9 G5 engine connected with Marathon 431 PSL 6202 81 kVA |
|
Bow thruster |
1x Veth-Jet bow thruster type 4-K-1200 with Cummins diesel engine type N14G2 - 530 hp at 1.800 rpm 1 Veth-Jet bow thruster type 4-K-1200 with Leroy Somer E-motor type PLS315LG - 530 hp at 1.800 rpm |
|
Cargo tank capacity 100% |
10.237 m³ |
|
Pumps |
14x Marfex MDPD-100 Deepwell cargo pumps |
|
Pump capacity |
1.400 m³/h |
|
Lifting equipment |
1x Car crane - SWL 2.00 kg at 15,00 m |
|
Owner |
R. Somers bvba Rotterdam The Netherlands |
|
Registered names & owner |
2005 - 2006 Mick I - Breko BV, Papendrecht - The Netherlands |
|
Latest data adjustment |
25 July 2020 |
