Westerschelde 05 January 2017 |
 |
|
| Westerschelde 03/03/16 | |
|
Name |

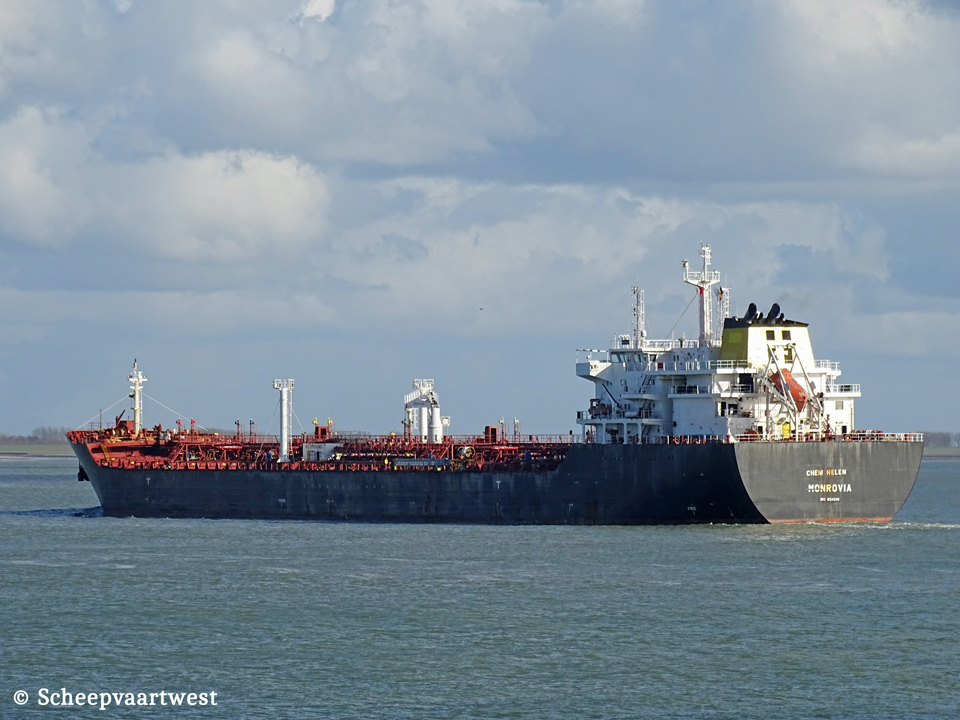

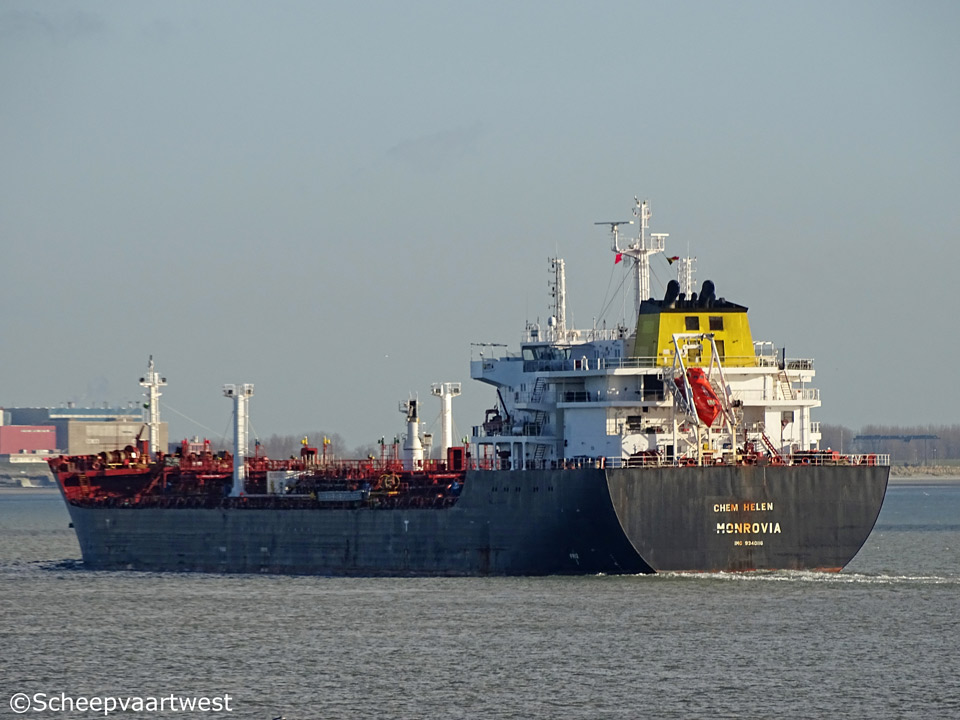

CHEM HELEN |
|
Previous names |
2007 - 06/2012 Meg 06/2012 - 01/2013 Spruce 3 |
|
Type |
Handysize tanker for oil and chemicals |
|
IMO-number |
9340116 |
|
Call sign |
A8MG4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
24.112 t |
|
DWT |
Summer: 38.696 t |
|
NT |
11.118 t |
|
Length |
182,86 m |
|
Breadth |
27,42 m |
|
Draught |
Max.: 11,80 m |
|
Keel to mast |
44,00 m |
|
Depth |
16,80 m |
|
Speed |
Max.: 15,5 knots |
|
Built |
2007 |
|
Date of completion |
16/06/2007 |
|
Builder |
Guangzhou International Shipyard Co., Ltd. Guangzhou China |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50MC-C - 6 cylinder combustion engine 9.480 kW / 12.707 hp Builder: Dalian Marine Diesel Works Co., Ltd.(B&W), Dalian - China |
|
Propellers |
1 |
|
Cargo tank capacity 98% |
37.963,97 m³ |
|
Slop tank capacity 98% |
5.480,89 m³ |
|
Tank coating |
Pure epoxy |
|
Pumps |
10x Deepwell pumps each 540 m³/h 2x Deepwell pumps each 300 m³/h 1x Deepwell pump 100 m³/h |
|
Manifolds |
Bow centre manifolds: 89,80 m |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Manager |
Cyprus Sea Lines Co.,Ltd. Athens Greece |
|
Operator |
Executive Ship Management Pvt. Ltd. 78 Shenton Way, #21-00/#22-00 Singapore 079120 Republic of Singapore |
|
Owner |
Robin Enterprises S.A Athens Greece |
|
Latest data adjustment |
03 May 2023 |
