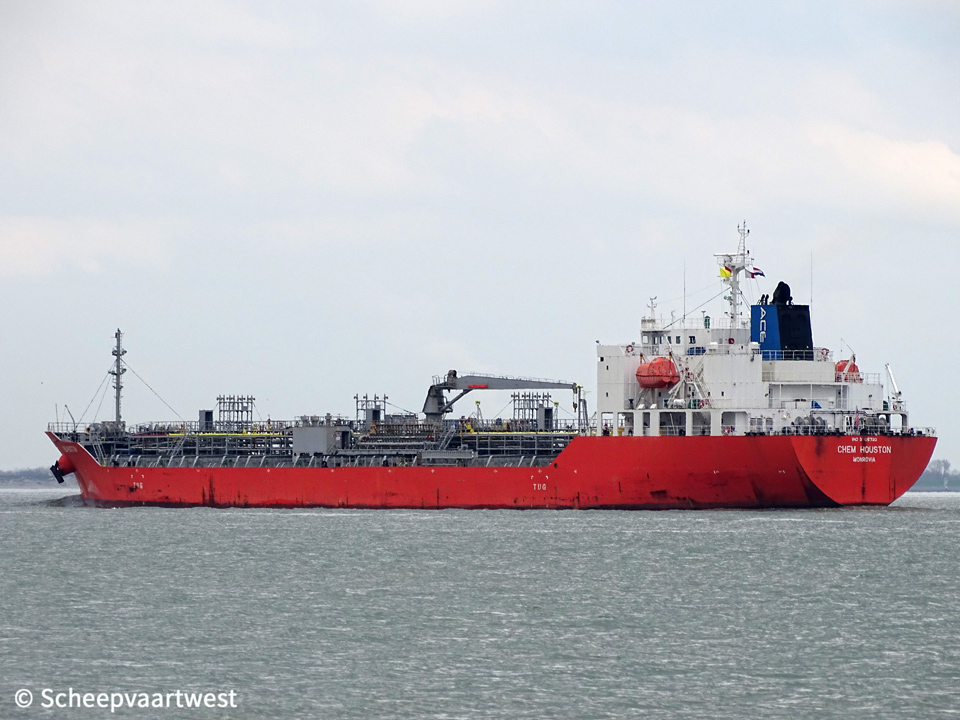

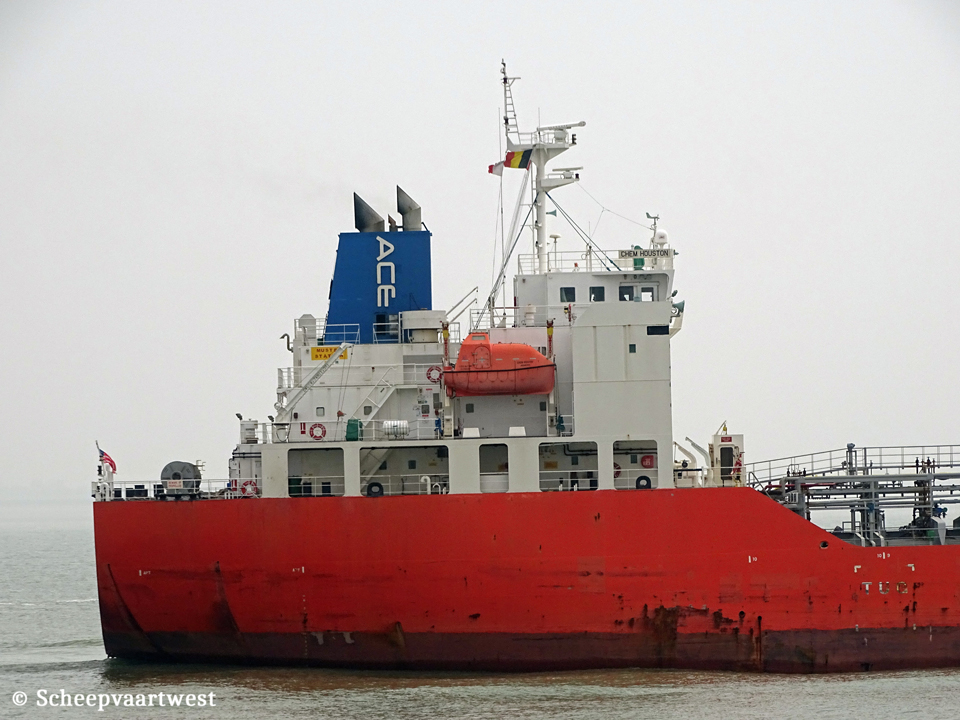

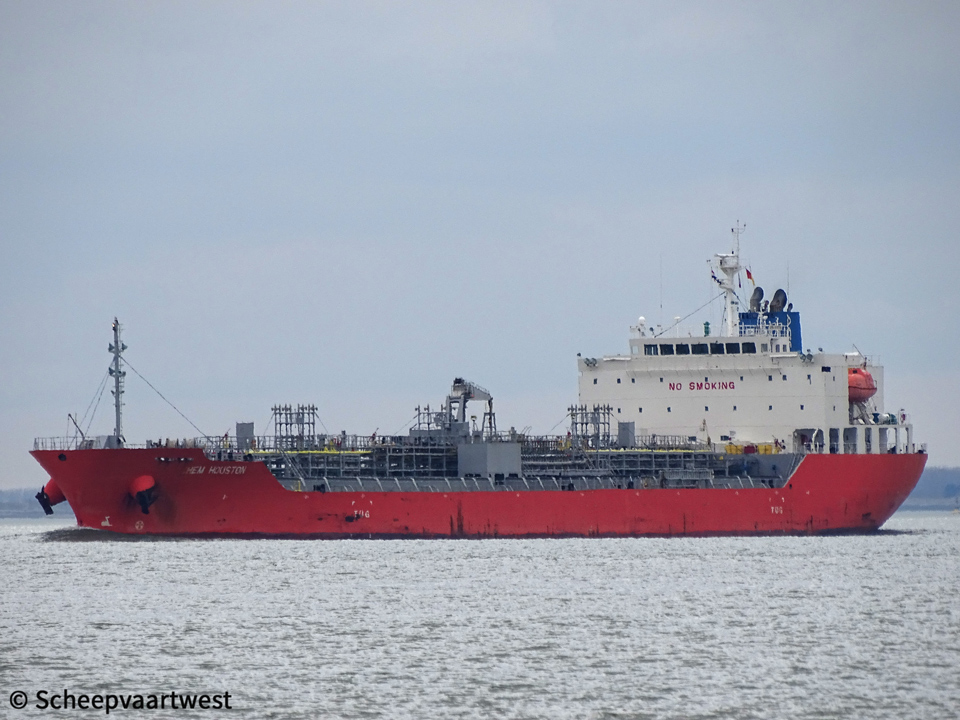

Westerschelde 04 April 2018 |
 |
 |
 |
||
| Westerschelde 09/04/18 | Westerschelde 31/03/18 | Westerschelde 31/03/18 | ||
|
Name |
CHEM HOUSTON |
|
Type |
Chemical & Oil product tanker |
|
IMO-number |
9705720 |
|
Call sign |
D5FT8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
12.129 t registered |
|
DWT |
Summer: 19.996,83 t |
|
NT |
6.225 t registered |
|
Length |
145,00 m overall |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,78 m |
|
Moulded L x B x D |
139,00 x 24,20 x 13,20 m |
|
Registered L x B x D |
139,26 x 24,20 x 13,20 m |
|
Freeboard |
Summer: 3.445 mm |
|
Depth |
13,20 m moulder |
|
Speed |
Max: 15,3 knots |
|
Built |
2014 |
|
Keel laid |
16/10/2013 |
|
Launch date |
18/03/2014 |
|
Date of completion |
19/07/2014 |
|
Builder |
KitaniHon Shipbuilding Co., Ltd. Hachinohe Japan |
|
Yard number |
566 |
|
Hull material |
Steel |
|
Hull type |
Double Hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC43LSII - 2 stroke single acting 6 cylinder 420 x 1.500 mm combustion engine 4.900 kW / 6.662 hp at 125,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 16,28 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 530 kW |
|
Bow thruster |
1x Tunnel thruster 700 kW / 952 bhp, forward |
|
Number of cargo tanks |
20 |
|
Cargo tank capacity 98% |
Liquid: 20.664 m³ |
|
Slop tank capacity |
1.280 m³ |
|
Number of pumps |
20x Cargo pumps each 250 m³/h |
|
Tank capacities |
Fuel oil: 1.107 m³ Fresh water: 415 m³ |
|
Crew size |
19 |
|
Manager |
ASM Maritime B.V. Amsterdam The Netherlands |
|
Operator |
Ace Ships Management BV Strawinskylaan 1997 1077 XX Amsterdam The Netherlands |
|
Registered owner |
Chem Houston SA Monrovia Liberia |
|
Latest data adjustment |
27 July 2024 |
