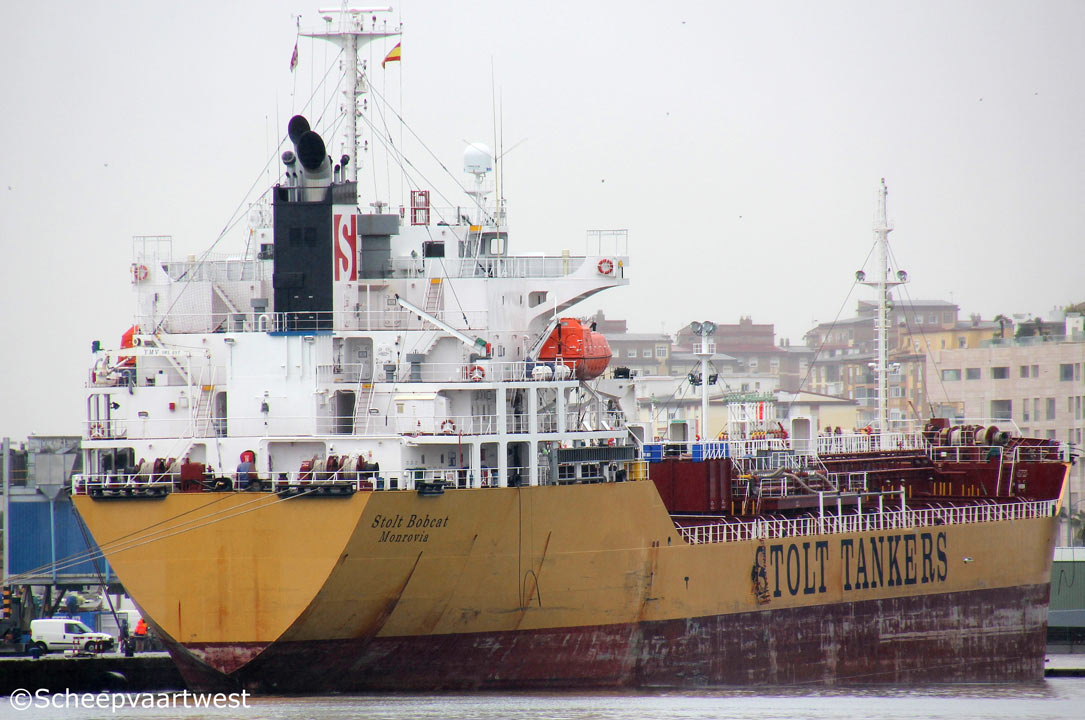

Malaga, Spain 14 March 2017 |
|
Name |
STOLT BOBCAT |
|
Previous names |
2009 - 01.2011 Golden Legend |
|
Type |
Oil/Chemical carrier |
|
IMO-number |
9511167 |
|
Call sign |
A8XZ9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
13.526 t registered |
|
DWT |
Summer: 23.432,12 t |
|
NT |
7.143 t registered |
|
Length |
155,00 m overall |
|
Breadth |
24,80 m moulded |
|
Draught |
10,21 m |
|
Moulded L x B x D |
145,00 x 24,80 x 13,35 m |
|
Registered L x B x D |
145,09 x 24,80 x 13,35 m |
|
Freeboard |
Summer: 3.165 mm |
|
Depth |
13,35 m moulded |
|
Speed |
15,4 knots |
|
Built |
2009 |
|
Keel laid |
25.06.2008 |
|
Launch date |
11.05.2009 |
|
Date of completion |
30.07.2009 |
|
Builder |
Kurinoura Dockyard Co., Ltd. |
|
Yard number |
396 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x 2 stroke single acting 6 cylinder 520 x 1.850 mm diesel engine 7.980 kW at 120,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 455 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 19,21 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
5x Generators - 2.480 kVA |
|
Cargo tank capacity |
Liquid: 24.724 m³ |
|
Tank capacities |
Fuel oil: 2.075 m³ Fresh water: 945 m³ |
|
Manager |
Stolt Tankers B.V. |
|
Operator |
Stolt Tankers |
|
Registered owner |
Stolt Bobcat B.V. |
|
Latest data adjustment |
20 April 2017 |
