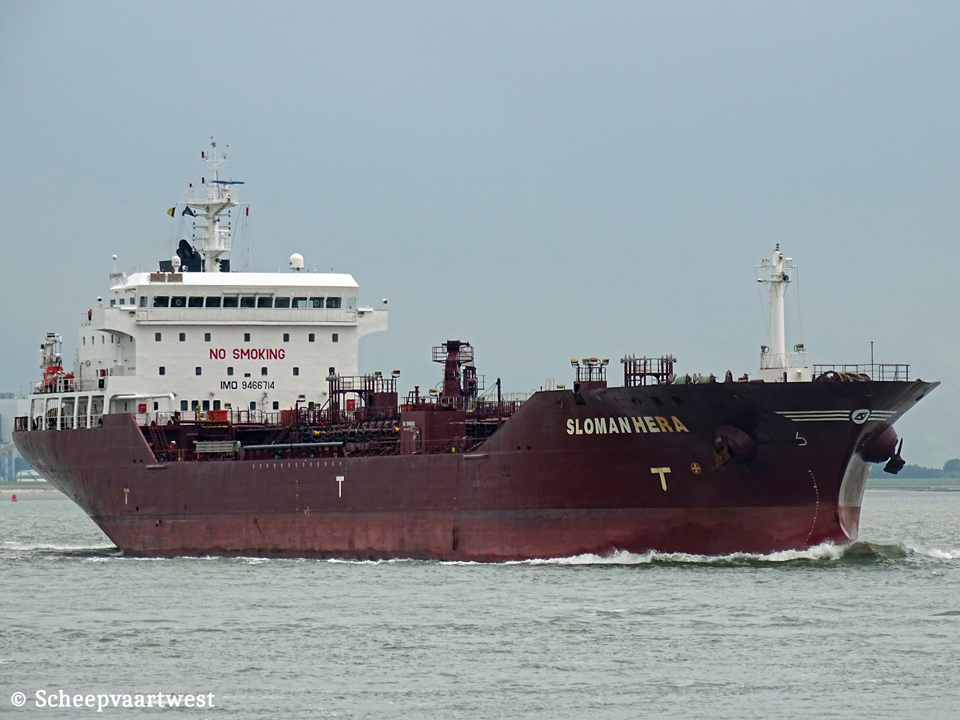

Westerschelde 30 July 2016 |
 |
 |
 |
 |
|||

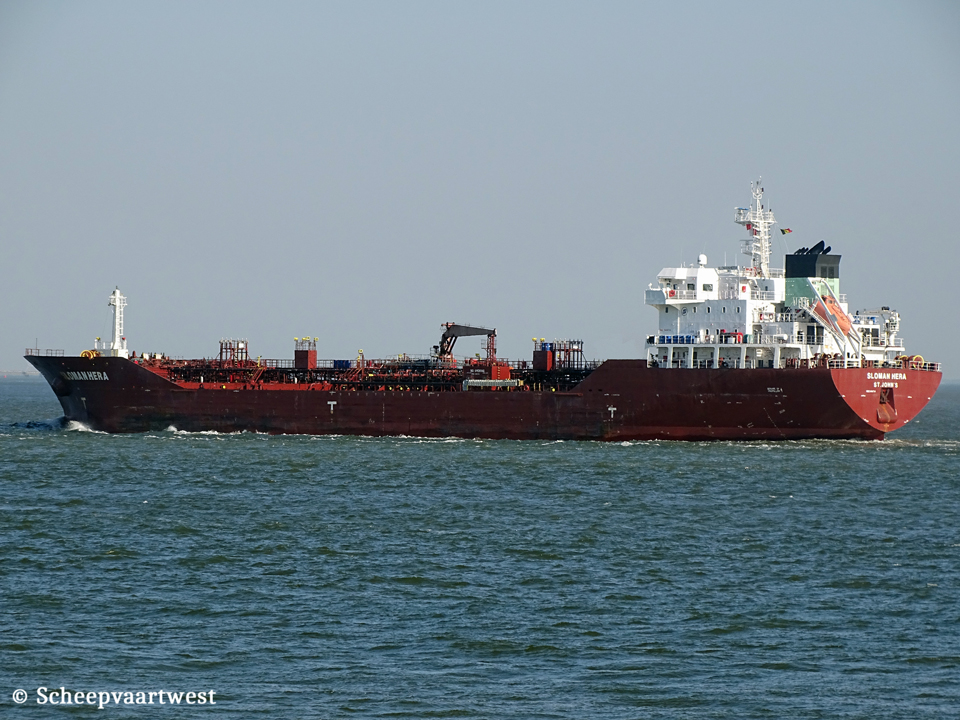

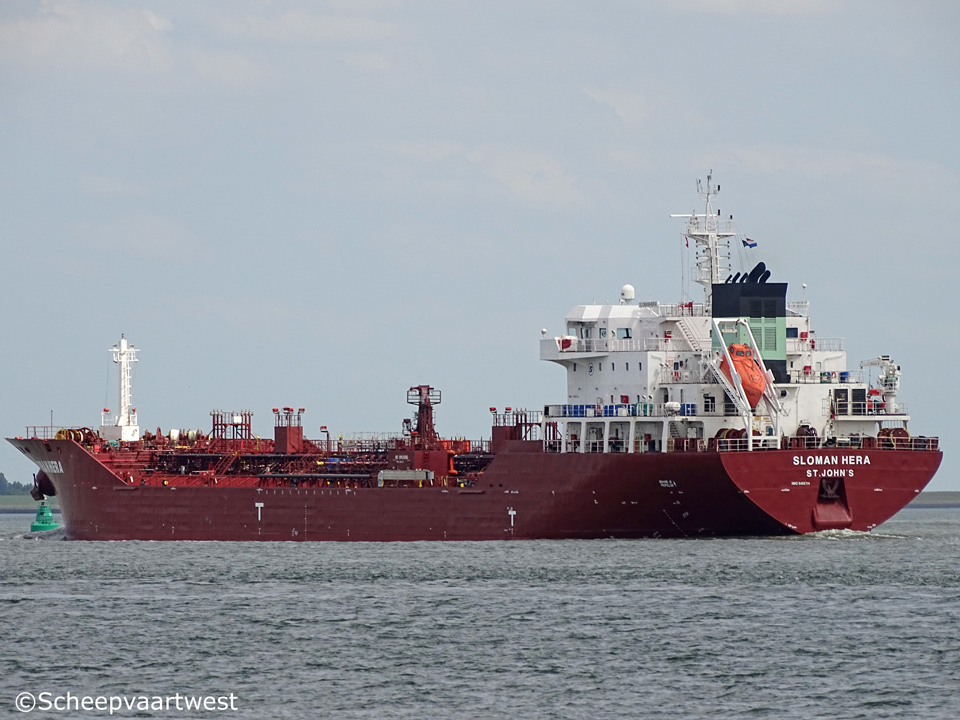

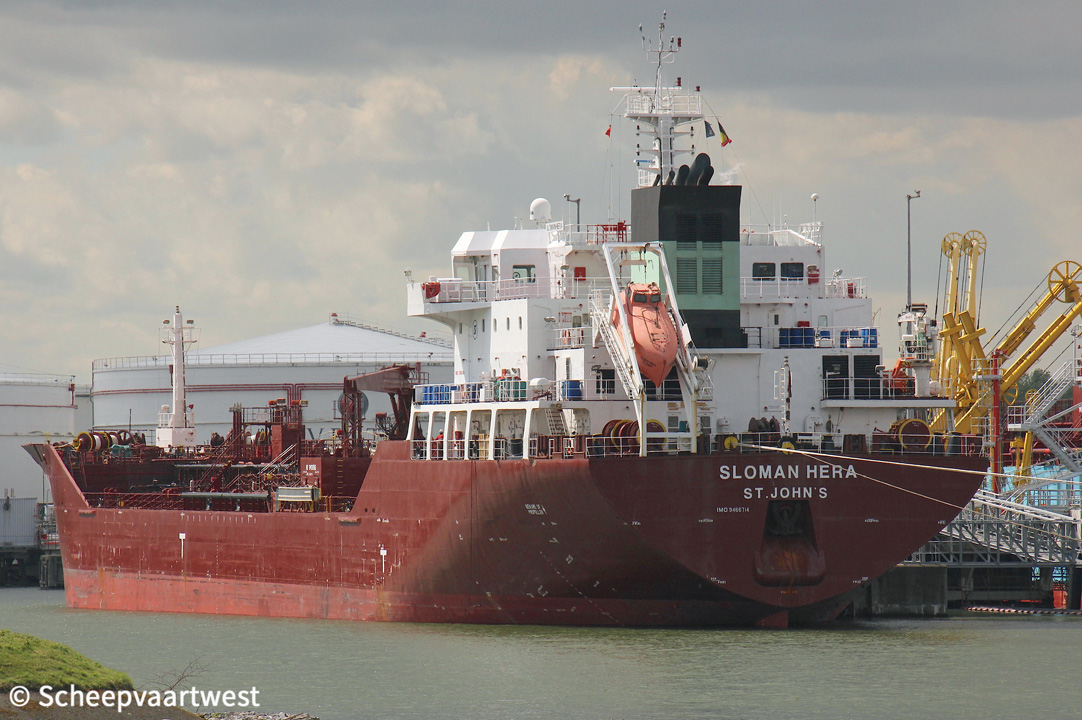

| Westerschelde 18/04/17 | Antwerpen 16/04/19 | Westerschelde 21/07/17 | Westerschelde 22/04/20 | |||
|
Name |
SLOMAN HERA |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9466714 |
|
Call sign |
V2FY3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
11.956 t registered Suez: 11.956,22 t |
|
DWT |
Summer: 16.426 t |
|
NT |
4.961 t registered Panama: 9.467 t Suez: 9.802,10 t |
|
Length |
145,15 m overall 135,60 m between perpendiculars |
|
Breadth |
23,00 m moulded |
|
Draught |
8,81 m |
|
Keel to mast end |
39,55 m |
|
Freeboard |
3.714 mm |
|
Depth |
12,50 m moulded |
|
Speed |
Service: 13,0 knots Max.: 17,6 knots |
|
Built |
2012 |
|
Keel laid |
22/08/2008 |
|
Launch date |
21/08/2009 |
|
Delivery date |
26/06/2012 |
|
Builder |
Jiangxi Jiangzhou Union Shipbuilding Co., Ltd. Rui Chang China |
|
Yard number |
JZ1022 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 3 Oil tight: 12 |
|
Main engine |
1x MAN-B&W/STX 6S35MC-MK7 - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.400 kW / 6.037 hp at 173 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co., Ltd. |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated (Economizer) 2x Auxiliary boiler, oil/gas fired - 9,0 bar Builder: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
3x Daihatsu 5DK-20 main diesel generatorsets each 600 kW Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Division / Wuxi Fenxi Electrical Machine Co., Ltd. |
|
Emergency generator |
1x AGCO Sisu 634 diesel generatorset |
|
Bow thruster |
600 kW |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity 100% |
19.616,28 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Number of tanks |
Ballast: 13 Fuel oil: 10 Lubricating oil: 8 Fresh water: 5 Diesel oil: 4 Chain: 2 Sludge: 2 Waste water: 1 |
|
Tank capacities |
Diesel Oil: 92,12 m³ Freshwater: 659,57 m³ Fuel Oil: 682,49 m³ Lube Oil: 83,63 m³ Tank Ballast: 7.720,64 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 56 mm |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t Manufacture: Zhenjiang Marine Auxiliary Machinery Works 1x Engine room crane - SWL 2,0 t Manufacture: Jiangyin Oya Marine Machinery Co., Ltd. |
|
ISM & commercial manager |
Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstr. 44 D-28195 Bremen Germany |
|
Registered owner |
MT “Sloman Hera” Schifffahrtsgesellschaft Mbh & Co. Care of Sloman Neptun Schiffahrts-Aktiengesellschaft Langenstrasse 44 28195 Bremen Germany |
|
Latest data adjustment |
17 March 2023 |
