Westerschelde 01 January 2019 |

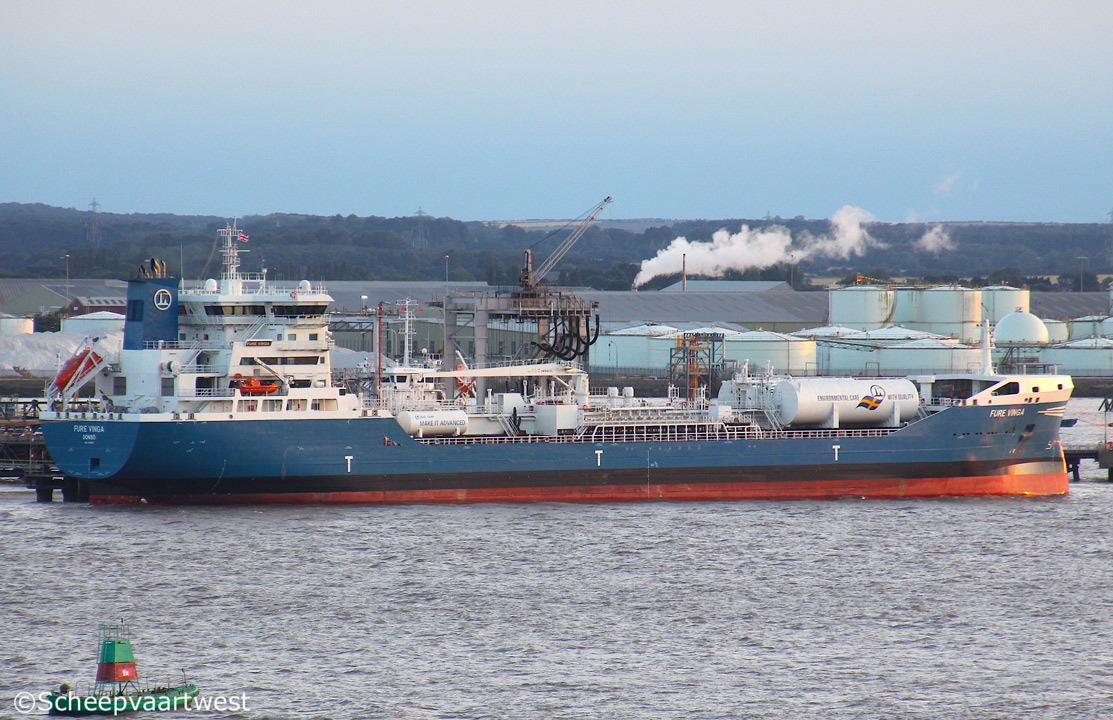

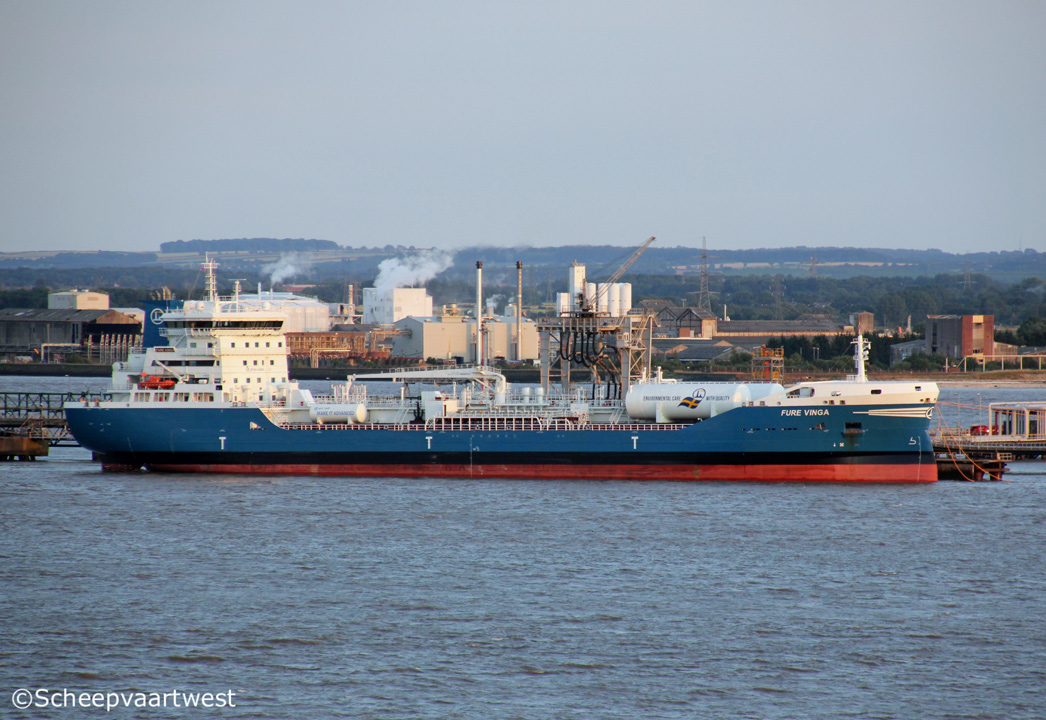

Westerschelde 01/01/19 | Immingham, UK 13/07/18 | Immingham, UK 13/07/18 | ||
Name |
FURE VINGA |
Type |
Oil/Chemical tanker |
Main products |
Chemicals |
IMO-number |
9739800 |
Call sign |
SGRV |
Flag |
Sweden |
Port of registry |
Donsø |
GT |
12.770 t |
DWT |
17.999 t |
NRT |
5.838 t |
Length |
149,90 m overall 146,64 m between perpendiculars |
Breadth |
22,80 m |
Draught |
9,36 m |
Freeboard |
2.752 mm |
Depth |
12,10 m |
Speed |
Loaded: eco 12,0 knots. Max 14;6 knots Ballast: eco 12,0 knots, Max: 15,9 knots |
Built |
2018 |
Date of completion |
04/04/2018 |
Builder |
China Merchants Jinling Shipyard(Yangzhou)Dingheng Co.,Ltd. China |
Yard number |
AD0026 |
Hull material |
Steel |
Hull type |
Double hull |
Continuous decks |
1 |
Main engine |
Dual fuel engine: 1x Wärtsilä 9L34DF - 4 stroke single acting 9 cylinder 340 x 400 mm combustion engine 4.500 kW / 6.114 hp at 750 rpm Built: 22/05/2017 Manufacturer: Wärtsilä Finland OY, Vaasa - Finland |
Propellers |
1x Screw propeller controllable pitch 4 blades - diameter 5.200 mm |
Boilers |
1x Combined auxiliary boiler 03896CHN17 235,00 m² - 8,0 bar 1x Oil fired auxiliary boiler 03897CHN17 64,00 m² - 8,0 bar |
Shaft generator |
1x Marelli Motori MJRM 560 LB6 B3 - 2.250 kVA - 1.800 kW |
Generators |
1x Wärtsilä 688W4L20 main diesel generatorset 856 kVA - 685 kW - 980 hp at 900 rpm 1x Wärtsilä 1600W9L20 main diesel generatorset 2.000 kVA - 1.600 kW - 2.262 hp at 900 rpm |
Emergency generator |
1x Diesel generatorset 250 kVA - 200 kW - 345 hp |
Bow thruster |
1x Brunvoll FU63LTC1750 - 850 kW |
Number of cargo tanks |
12 |
Segregation |
6 x 2 |
Cargo tank capacity 98% |
19.812 m³ |
Max. loading rate |
600 m³/h for each tank |
Max. discharge rate |
1.800 m³/h, @ 12 bar, 6 cargo pumps |
Number of pumps |
12x Cargo pumps each 300 m³/h 1x Slop & residue tank pump 300 m³/h 1x Portable emergency pump 70 m³/h 2x Ballast pumps each 500 m³/h |
Tank capacities |
HFO: 522 m³ MDO: 153 m³ Ballast: 6.350 m³ LNG: 619 m³ Fresh water: 297 m³ |
Operator |
Furetank Rederi AB Korsholmebacke 1 430 82 Donsö Sweden |
Owner |
Furetank Rederi AB Donsø Sweden |
Renamed |
04/2019 Gaia Desgagnes Canada, Quebec - Call sign: CFA2990 Owner: Transport Desgagnes Inc., Quebec QC - Canada Manager: Desgagnes Transport Inc., Quebec QC - Canada |
Latest data adjustment |
21 July 2021 |
