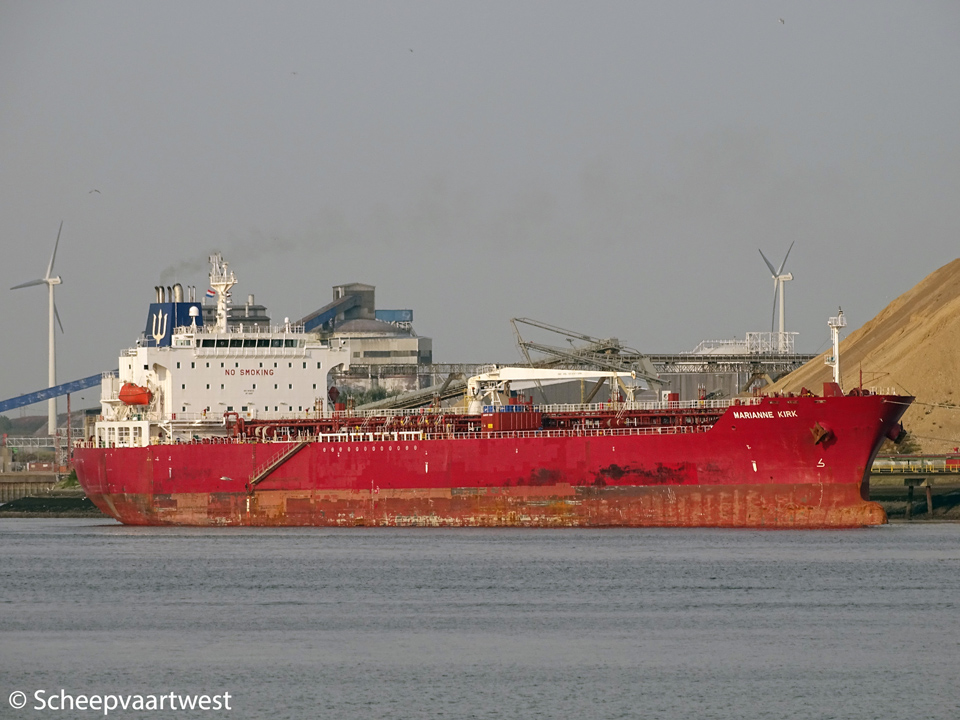

Vlissingen 26 July 2018 |
|
Name |
MARIANNE KIRK |
|
Previous names |
2009 - 06/2011 Blue Jade |
|
Type |
Oil/chemical tanker |
|
IMO-number |
9419735 |
|
Call sign |
OXQM2 |
|
Flag |
Denmark |
|
Port of registry |
Hellerup |
|
Previous flags |
2009 - 2011 Republic of Singapore 2011 - 2018 United Kingdom, London |
|
GT |
29.955 t Suez: 31.449,29 t |
|
DWT |
Summer: 49.900 t Winter: 48.508,2 t |
|
NT |
13.607 t Suez: 26.946,49 t Panama: 24.862 t |
|
Displacement |
Summer: 59.9235 t Winter: 58.531,7 t |
|
Length |
183,00 m overall 173,90 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Summer: 10,88 m Winter: 12,61 m |
|
Keel to masthead |
47,78 m |
|
Air draft |
Lightship: 45,13 m Normal ballast: 40,42 m Summer deadweight: 34,90 m |
|
Freeboard |
Summer: 6.251 mm Winter: 6.520 mm |
|
Depth |
19,10 m moulded |
|
Speed |
Ballast 14,50 knots Laden: 14,0 knots Economic: 10,0 knots |
|
Built |
2009 |
|
Date of completion |
12/05/2009 |
|
Builder |
STX Shipbuilding Co. Ltd. |
|
Yard number |
Steel |
|
Hull material |
Double hull |
|
Main engine |
1x MAN-B&W-STX MAN B&W 6S50MC-C MK7 - 2 stroke 6 cylinder combustion engine 9.480 kW |
|
Propellers |
1 |
|
Generators |
3x MAN-STX 6L23/30H diesel generatorsets each 900 kW |
|
Number of cargo tanks |
12 |
|
Total cargo tanks capacity 98% |
52.148,3 m³ |
|
Segregation capacity with double valve 98% |
Seg#1: 6.156,4 m³ (No 1 Wings) Seg#2: 9.247,0 m³ (No 2 Wings) Seg#3: 9.414,0 m³ (No 3 Wings) Seg#4: 9.418,3 m³ (No 4 Wings) Seg#5: 9.418,1 m³ (No 5 Wings) Seg#6: 8.494,5 m³ (No 6 Wings) Seg#7: 1.410,1 m³ (S P/S (700.0 + 710.1) |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
1.410,1 m³ |
|
Pumps |
2x Submerged ballast pumps each 750 m³/h 12x Submerged cargo pumps each 600 m³/h 2x Submerged cargo pumps each 300 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 57,23 m Bow to centre manifold: 92,07 m Stern to centre manifold: 90,94 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.750 mm Distance main deck to centre of manifold: 2.100 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Fuel oil: 1.265 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Crew size |
27 |
|
Operator |
Hafnia Management |
|
Renamed |
08/2018 Nord Singray Denmark, Hellerup - Call sign: OXQM2 Owner: Dampskibsselskabet NORDEN A/S - Denmark |
|
Latest data adjustment |
02 February 2019 |
