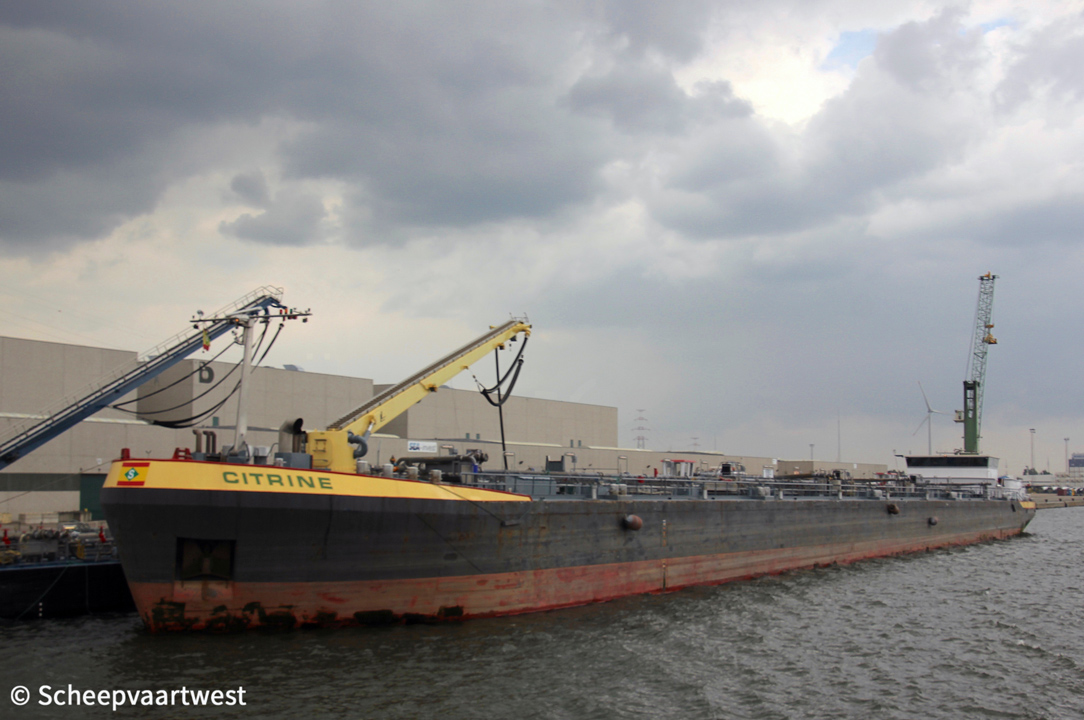

Citrine 02

Antwerpen 07 May 2019

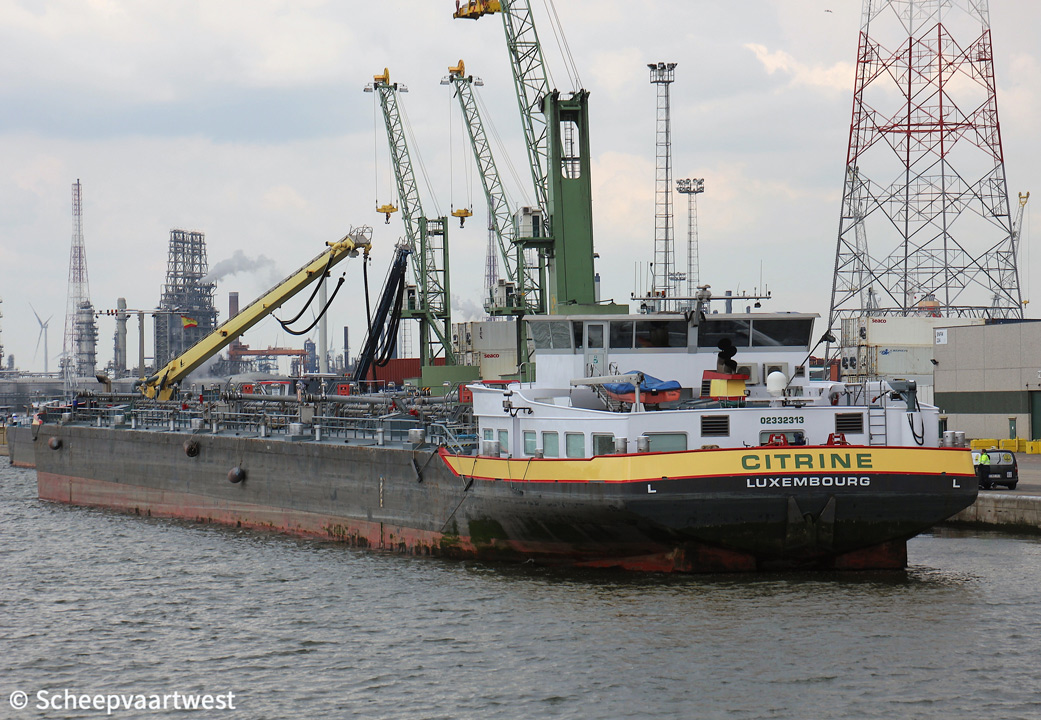

Citrine 01
Antwerpen 07/05/19


Name

CITRINE

Type

Inland tanker

ENI-number

02332313

Call sign

PB4298

Flag

G.D. Luxembourg

Port of registry

Luxembourg City

GT

3.172 t

Tonnage

6.194 t

Length

135,00 m overall

130,76 m between perpendiculars

Breadth

15,00 m

Draught

4,25 m

Depth

5,39 m

Built

2009

Date of completion

27/11/2009

Builder casco

Sainty Longhuan Shipbuilding
Jiangdu
China

Builder completion

TeamCo Shipyard
Heusden
The Netherlands

Hull material

Steel

Watertight compartments

15

Continuous decks

1

Main engine

2x ABC 6DZC - 6cylinder diesel engines each 1.324 kW / 1.800 hp at 1.000 rpm

Builder: Anglo Belgian Corporation NV

Wiedauwkaai 43

9000 Gent

Belgium

Build: 2008

Gearbox

2x Masson Marine type MM W18000 - reduction 2,967:1

Propellers

2x Fixed propellers - aft at 337 rpm

5 blades diameter 1.700 mm

Generators

2x Scania DI-16, 52M diesel engine each 450 kW coupled with 2 Stamford HCM 534D generators each 520 kVA

2x Sisu Diesel, 49 CTAG diesel engines each 116 kW coupled with Stamford UCM 274E generators each 120 kVA

Bow thruster

1x Scania - Verhaar Omega-Jet 31120-4k - 600 hp

Pumps

9x EPS cargo pumps each 200 m³/h Electric motor driven each 86 KW

Tank capacities

Fuel: 80 m³

Operator

Somtrans NV
Albertkanaalbaan 9
2110 Wijnegem
Belgium

Previous owners

Tankreederei II SA
52A Rue Basse
L-6670 Mertert (Mäertert)

G.D. Luxembourg

Latest data adjustment

18 June 2019
