Antwerpen 26 April 2019 |
 |
| Antwerpen 26/04/19 |
|
Name |

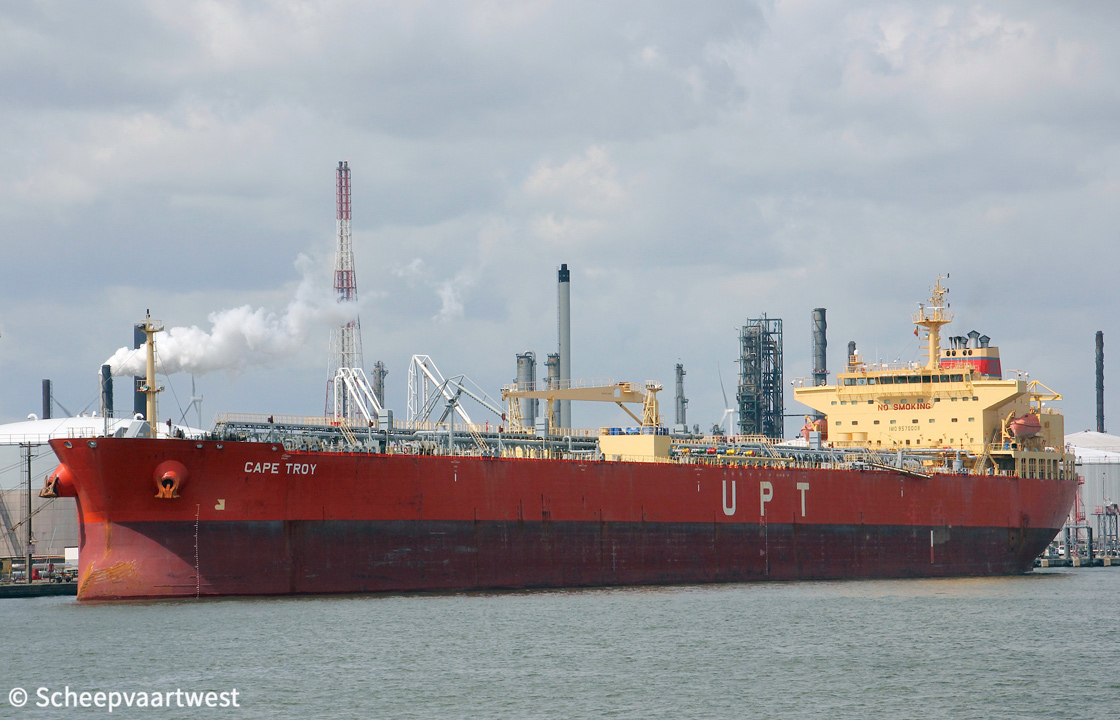

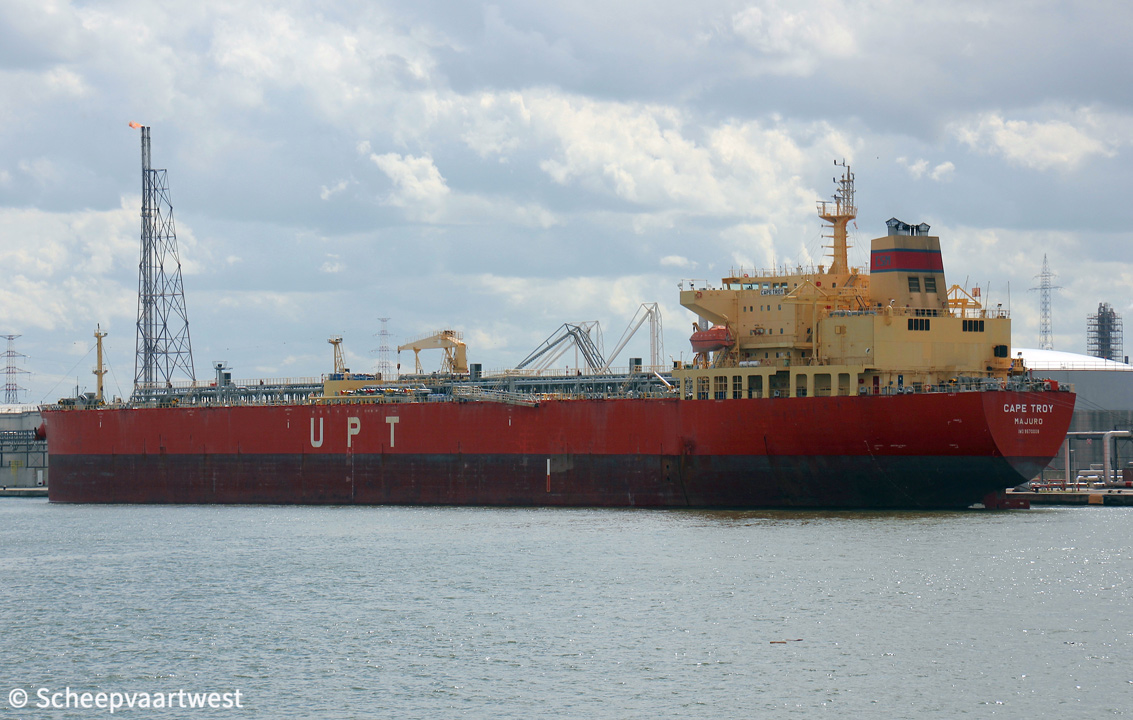

CAPE TROY |
|
Previous names |
2011 - 08/2011 Primera 73 II |
|
Type |
Crude oil tanker - Panamax |
|
IMO-number |
9570008 |
|
Call sign |
V7VQ9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
42.053 t |
|
DWT |
Summer: 73.180,25 t |
|
NT |
22.387 t Suez: 39.487 t Panama: 34.740 t |
|
Displacement |
89.186 t |
|
Length |
228,60 m overall 219,70 m between perpendiculars 221,61 m registered |
|
Breadth |
32,35 m extreme 32,26 m moulded |
|
Draught |
Max: 14,48 m |
|
Keel to mast end |
49,64 m |
|
Freeboard |
Summer: 6.340 mm Winter: 6.600 mm |
|
Depth |
20,80 m moulded |
|
Speed |
14,0 knots |
|
Built |
2011 |
|
Keel laid |
11/12/2010 |
|
Launch date |
31/03/2011 |
|
Date of completion |
01/08/2011 |
|
Builder |
New Times Shipbuilding Co., Ltd (NCS) |
|
Yard number |
0307368 |
|
Hull material |
shipbuilding steel (standard) |
|
Hull type |
Double hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight compartments |
12 |
|
Bulkheads |
Water tight: 2 Oil tight: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x HHM-MAN B&W 5S60MC-C7 - 2 stroke 5 cylinder 600 x 2.400 mm combustion engine 11.300 kW at 105,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Solid fixed pitch propeller - aft at 101,0 rpm Manufacturer: Wärtsilä CME Zhenjiang |
|
Boilers |
2x Auxiliary boiler, oil/gas fired Mission OL 20 T/H - 18,0 bar Heating surface: 110 m² 1x Auxiliary boiler, exhaust gas heated Mission AV-4 1.6 T/H - 10 bar Heating surface: 388 m² |
|
Generators |
3x Yanmar 6N21AL-EV diesel engine coupled with Taiyo FE553B-10 generators each 900 kW |
|
Emergency generator |
1x CCF FJ 264 KCS diesel generatorset 375 kVA - 300 kW - 408 hp |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 1x Receiver 1.500 litres - 9,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Number of cargo tanks |
14 |
|
Cargo tanks 98% |
81.313 m³ |
|
Slop tank capacity 98% |
3.154 m³ |
|
Total cargo tank cap. 98% |
84.467 m³ |
|
Tank coating |
Epoxy |
|
Segregations |
3 |
|
Pumps |
2x Steam centrifugal pumps 2.300 m³/h |
|
Manifolds |
Bow to centre manifolds: 114,10 m |
|
Tank capacities |
Ballast: 41.527,3 m³ |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Length: 687,50 m Diameter: 81 mm |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,5 t 1x Hose handling crane - SWL 15,0 t 2x Hose handling davits: - SWL 1,0 t each 1x Provision crane - SWL 5,0 t 1x Pump room pneumatic davit A-Deck - SWL 1,5 t |
|
Manager |
Columbia Shipmanagement Ltd. |
|
Operator |
UPT United Product Tankers Limited |
|
Registered owner |
BB Cape Troy Shipping Co Ltd. |
|
Renamed |
06/2019 Troy Marshall Islands, Majuro - Call sign: V7VQ9 Owner: Movida Finance Inc. Manager: Columbia Shipmanagement Ltd. |
|
Latest data adjustment |
26 June 2019 |
