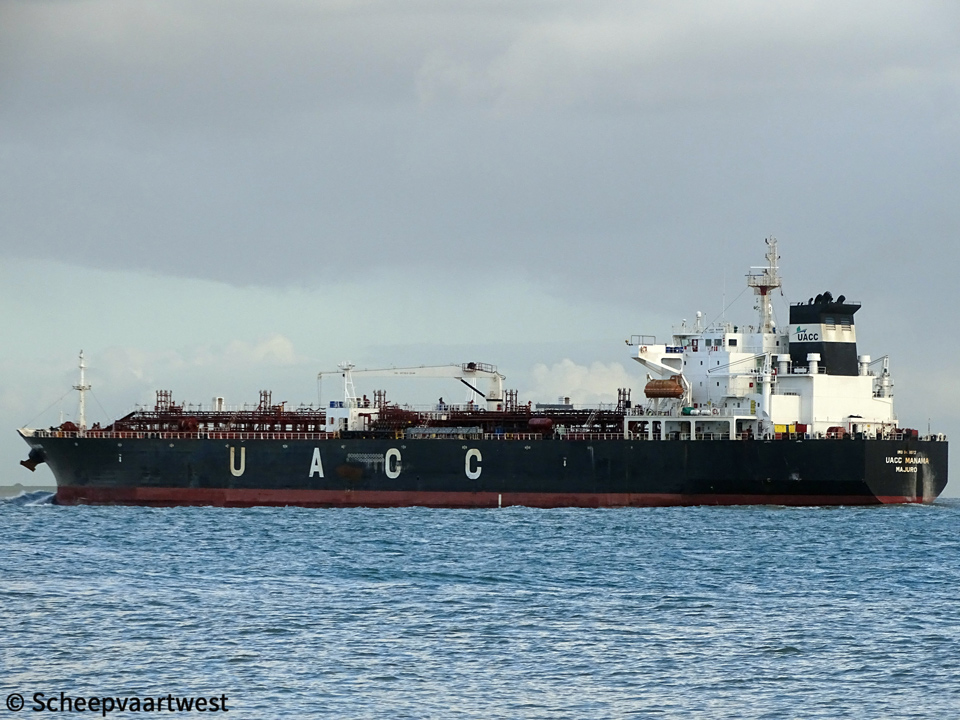

UACC Manama 01

Westerschelde 06 October 2017



Name

UACC MANAMA

Previous names

2010 - 06/2014 Bunga Balsam

Type

Oil product tanker

IMO-number

9458822

Call sign

V7FS7

Flag

Marshall islands

Port of registry

Majuro

Previous flags

2010 - 2014 Malaysia

GT

29.124 t

Suez: 30.644,91 t

DWT

Summer: 45.612 t

Winter: 44.193,26 t

NT

11.608 t

Suez: 26.763 t

Panama: 24.763 t

Displacement

Summer: 56.610,80 t

Winter: 55.293,26 t

Length

183,00 m overall

174,00 m between perpendiculars

Breadth

30,20 m extreme

Draught

Summer: 12,17 m

Winter: 11,912 m

Keel to masthead

46,20 m

Air draft

Lightship: 43,35 m

Normal ballast: 37,47 m

At loaded summer deadweight: 34,03 m

Freeboard

Summer: 6.764 mm

Winter: 7.017 mm

Depth

18,90 m moulded

Speed

15,0 knots

Built

2010

Date of completion

30/09/2010

Builder

SLS Shipbuilding Co., Ltd.
Tong Yeong
South Korea

Hull material

Steel

Hull type

Double hull

Main engine

1x Hyundai/MAN-B&W 6S50MC-C7 - 6 cylinder combustion engine 9.480 kW

Builder: Hyundai Engine & Machinery Co., Ltd. (B&W), Ulsan - South Korea

Propellers

1x Fixed pitch propeller

Total tank capacity 98%

50.681,96 m³ excluding slop tanks

Slop tank capacity 98%

1.752,43 m³

Number of cargo tanks

22

Segregation

22

Pumps

12x Submersible, centrifugal Framo cargo pumps SD200-6 DTHH200-C401 each 500 m³/h

8x Submersible, centrifugal Framo cargo pumps SD150-5 DTHH107-B309 each 360 m³/h

2x Submersible, centrifugal Framo cargo pumps SD150-5 DTHH107-B309 each 300 m³/h

2x Submersible, centrifugal Framo ballast pumps SB300-4 MUHH168-A405 each 800 m³/h

Manifolds

Bow to centre manifold: 94,40 m

Stern to centre manifold: 88,60 m

Distance bridge front to centre of manifold: 53,40 m

Distance between cargo manifold centres: 580 mm

Distance ships rail to manifold: 4.600 mm

Distance manifold to ships side: 4.600 mm

Top of rail to centre of manifold: 1.350 mm

Distance main deck to centre of manifold: 2.100 mm

Lifting equipment

1x Crane - SWL 10,0 t
Outreach of cranes: 4,50 m

Manager

Fleet Management Limited

Technical operator

Selandia Ship Management (India) Pvt. Ltd.
R 102 Remi Bizcourt, Plot No 9, Shah Industrial
State, Andheri
West Mumbai - 400053
India

Commercial operator

United Arab Chemical Carriers Ltd.
Level 23, Suite 08 P.O Box 125445, Emirates
Financial Towers (South) Dubai International
Financial Centre Sheikh Zayed Road Dubai
United Arab Emirates

Registered owner

Manama Tankers Inc.
The Trust Company Complex
Ajeltake Road
MH 96960
Ajeltake Island
Republic of Marshall Islands

Previous names & owners

MISC Berhad 2010 - 06/2014 - Bunga Balsam

Latest data adjustment

13 April 2019
