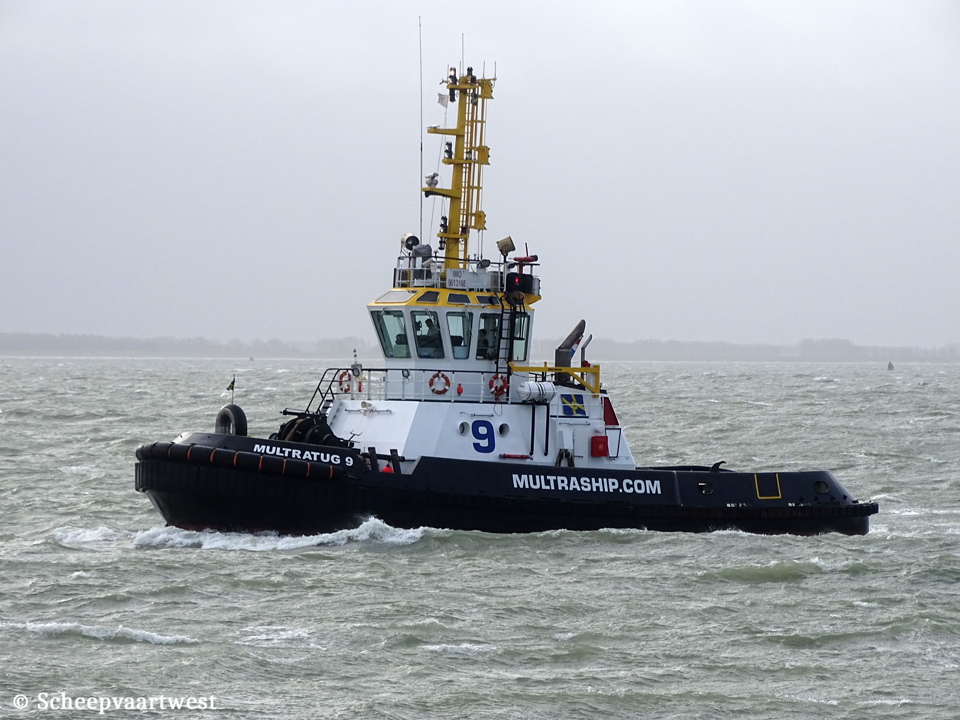

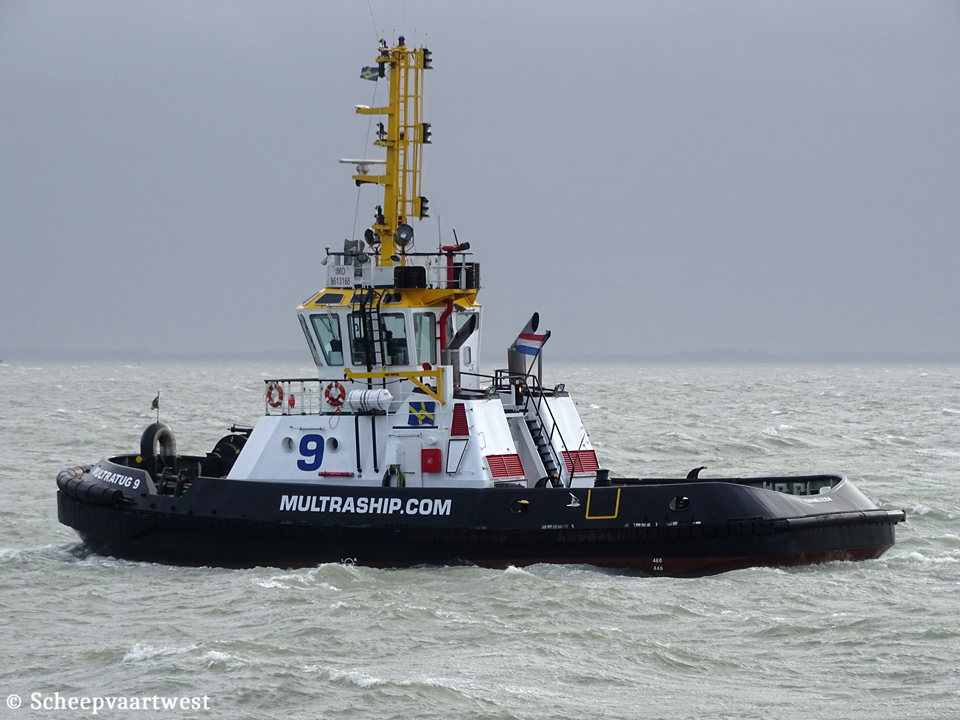

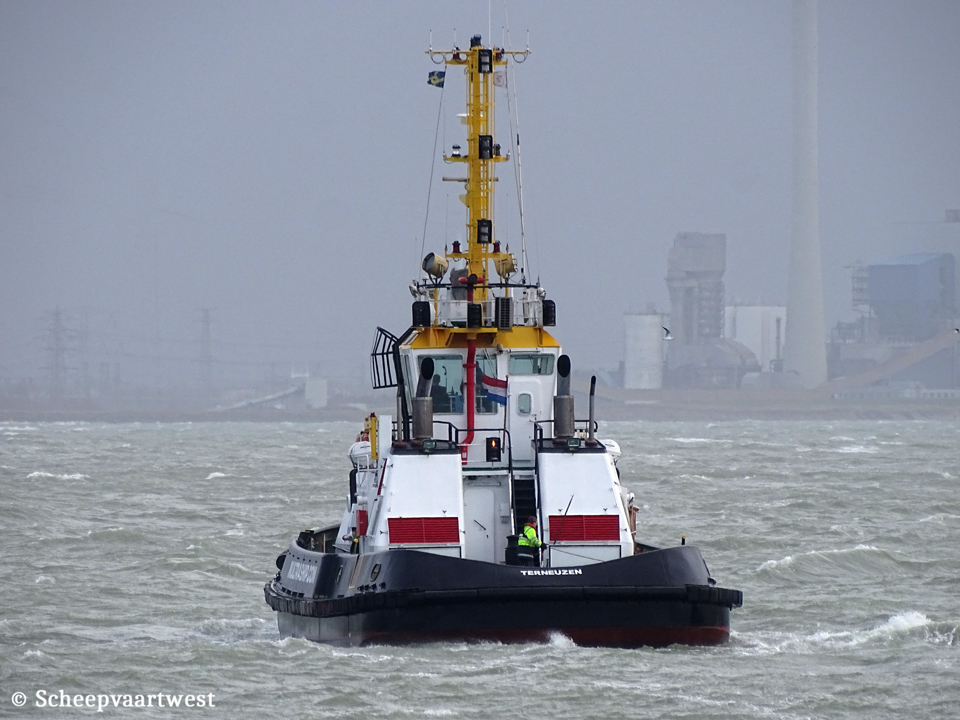

Multratug 9 - IMO 9513165

Westerschelde 21 December 2018

Name

MULTRATUG 9

Previous names

2009 - 2010 Ulupinar

2010 - 2017 Arpas

2017 - 2018 MED XXI

Type

Tug/Pusher

IMO-number

9513165

Call sign

PCZR

Flag

The Netherlands

Port of registry

Terneuzen

Previous flags

Turkey

GT

196 t

DWT

113 t

NT

136 t

Length

24,39 m overall

23,09 m between perpendiculars

Breadth

9,15 m moulded

Draught

3,50 m load draft

4,60 m max

Depth

4,04 m

Speed

11,8 knots

Built

2009

Keel laid

19/01/2009

Date of completion

18/06/2009

Builder

Pirlant Yat Cekek Ltd. Yard

Tuzla

Turkey

Yard number

20

Hull material

Steel

Number of decks

1

Main engine

2x Caterpillar 3512B - combustion engines each 1.230 kW / 1.650 hp at 1.800 rpm

Propulsion

2x Rolls Royce US155 Azimuth stern drivers

Generators

2x Perkins 4TMG generatorsets 67 kW / 72 kVA @ 1.500 rpm

1x Kubota V3300-BG-ES01 generatorset 40 kW @ 1.800 rpm

Bollard pull

52 ton

Deck lay-out

• Anchors & chain: 2x 427,5 kg Short link chain 22 mm

• Fore Towing winch: Rolls Royce hydraulic type, 100 tonnes BHF

• Towing Hook: DATA quick release disc type towing hook, type DTH 45-90

• Fenders: Rubber, W and D type fendering around the hull

• Liferaft: 2x On top deck, 10 persons

FiFi system

Type: Main engine driven pump Fifi monitor

1x 650 m³/h water/foam

Tank capacities

Fuel oil: 72 m³

Accommodation

2x 1-man cabin

2x 2-men cabin

1x Mess room

1x Galley

Nautical and communication equipment

Radar

Autopilot

Magnetic Compass

GPS

DGPS

Chart Plotter

AIS Class B

Echo Sounder

Registered owner

Multraship Towage & Towage

Schuttershofweg 1

4538 AA Terneuzen

The Netherlands

Previous names & owners

2009 - 2010 Ulupinar VI - Sanmar Denizcilik Makine ve Ticaret Ltd., Istanbul - Turkey

2010 - 2017 Arpas - Apas, Istanbul - Turkey

2017 - 2018 MED XXI - Med Marine Pilotage & Towage, Istanbul - Turkey

Renamed

05/2022 Riverman

United kingdom - Call sign: MLNU4

Owner: SMS Towage Ltd. - United Kingdom

Latest data adjustment

16 July 2022
