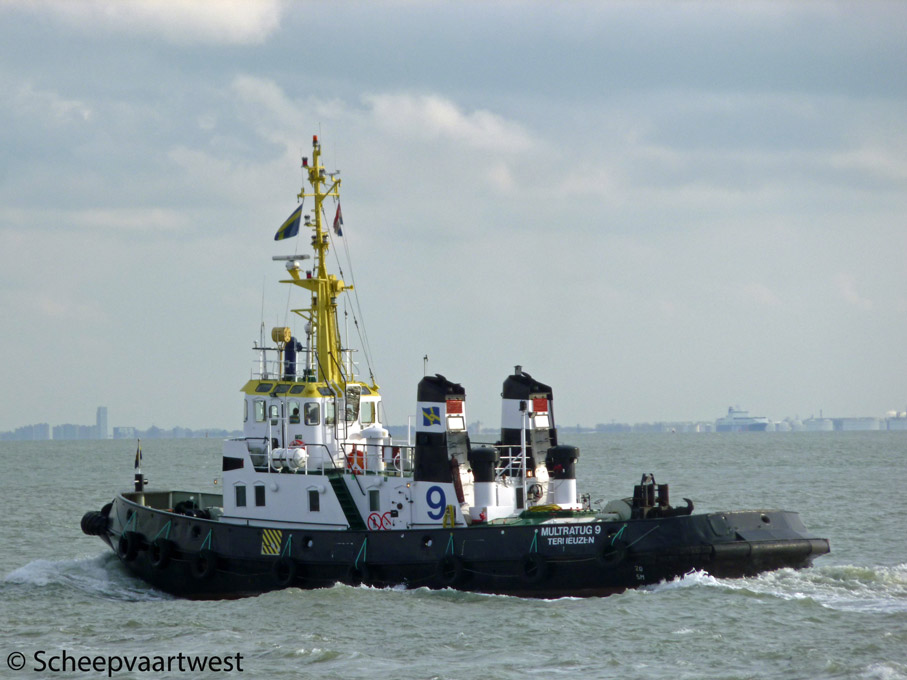

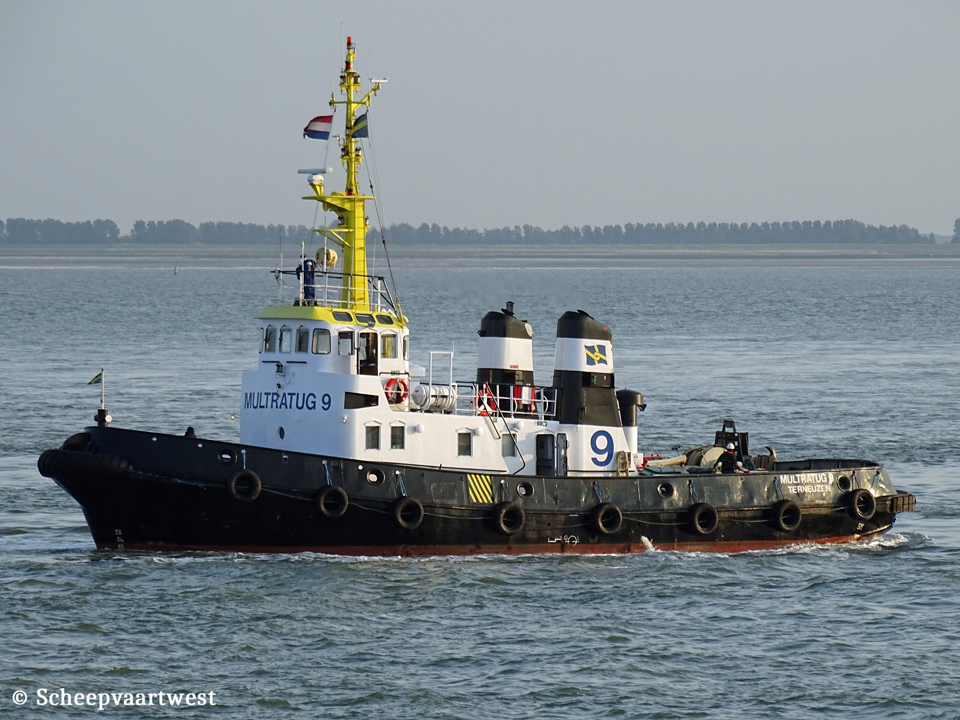

| Westerschelde 18 August 2016 |
 |
 |
 |
 |
 |
 |
|||||

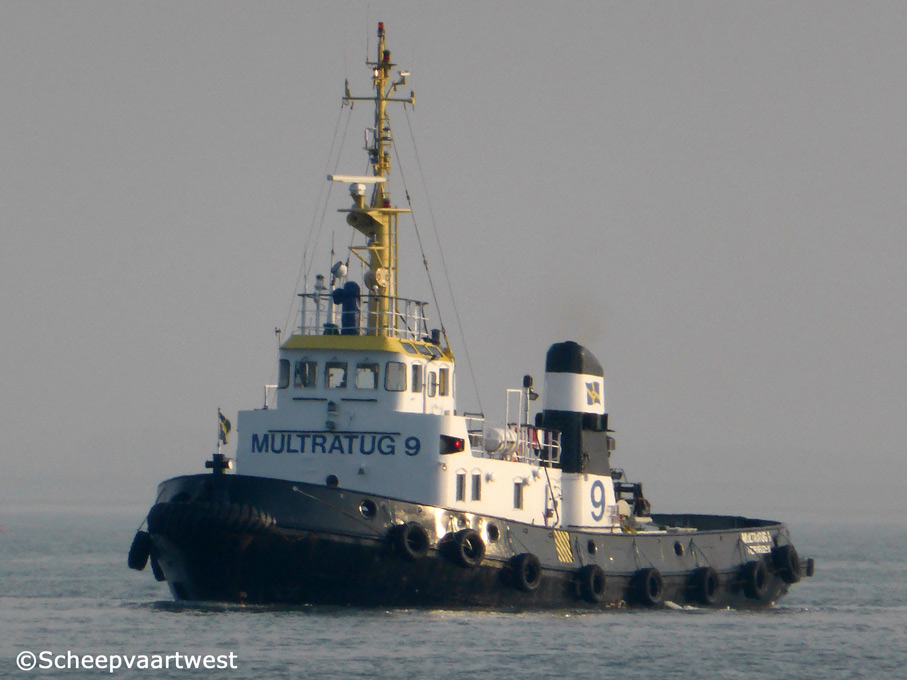

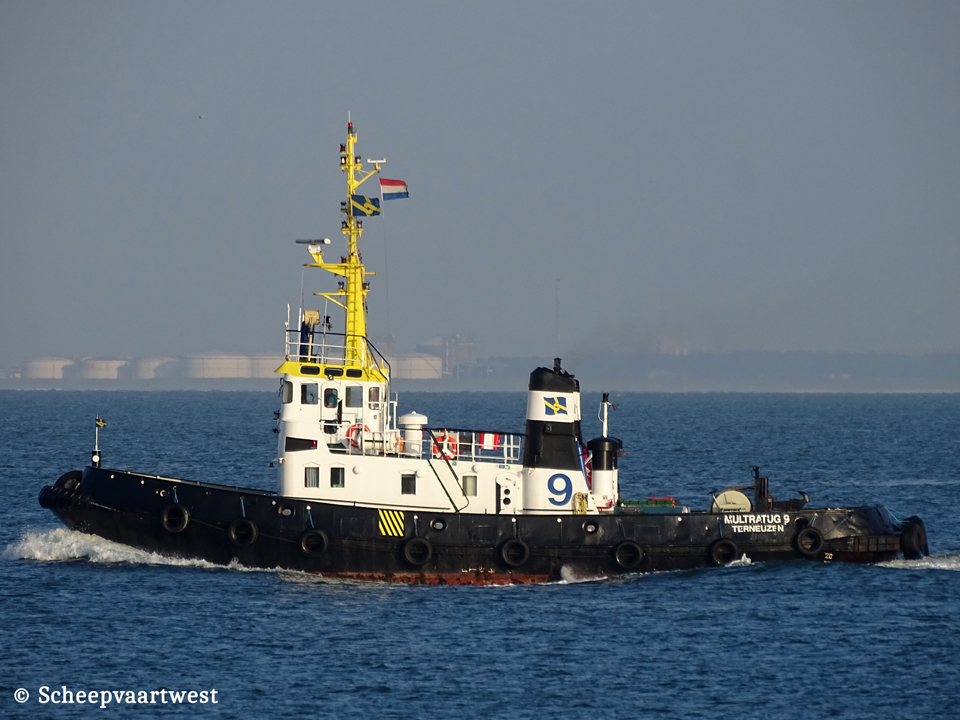

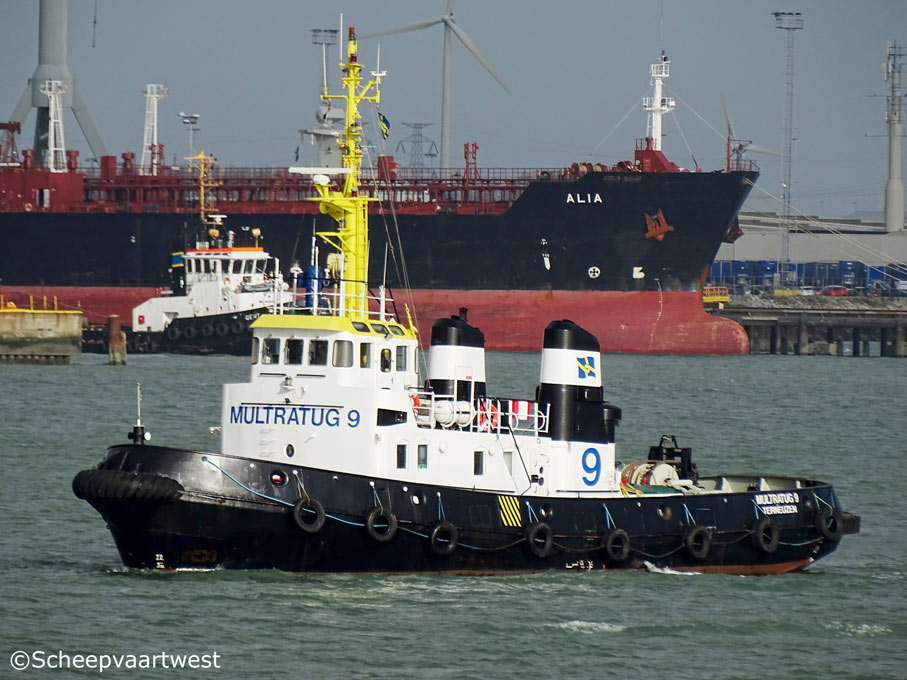

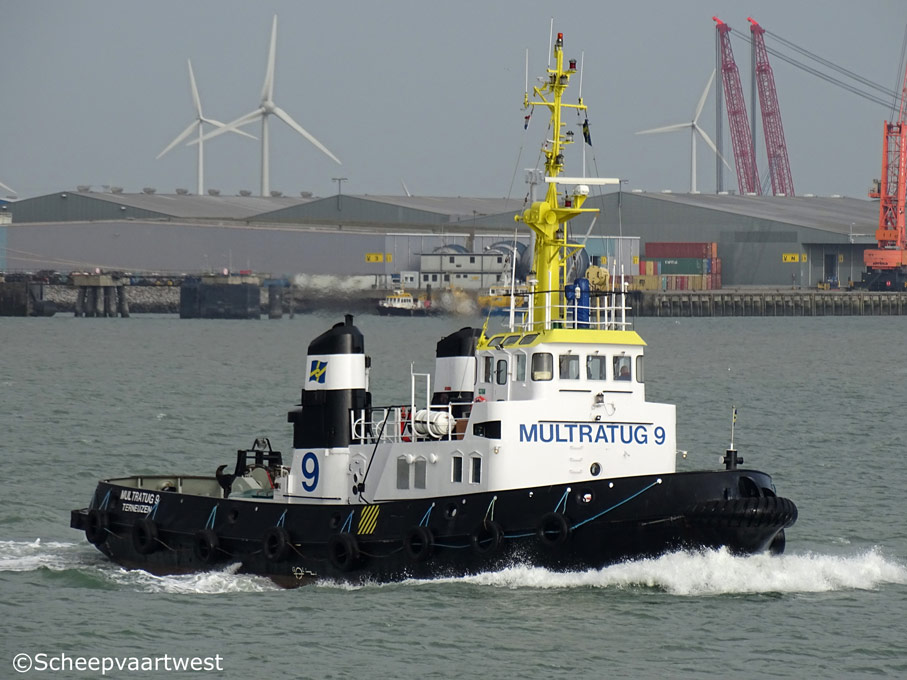

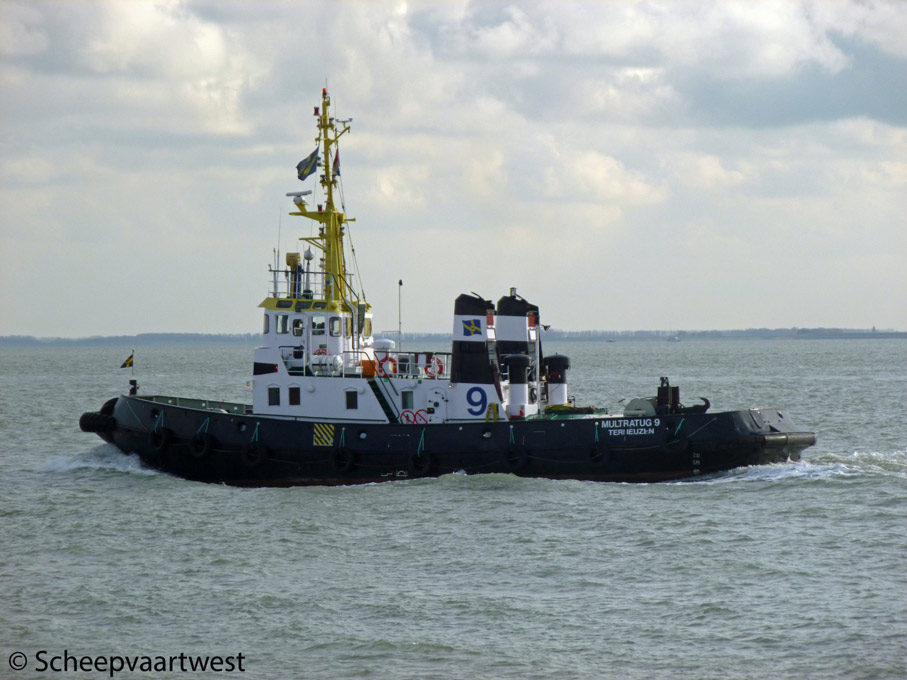

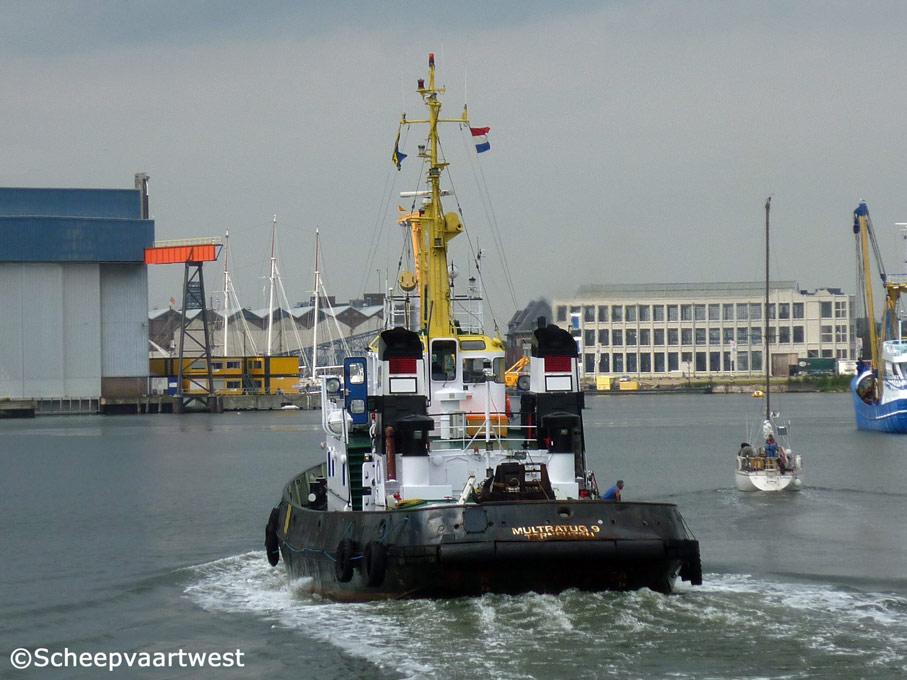

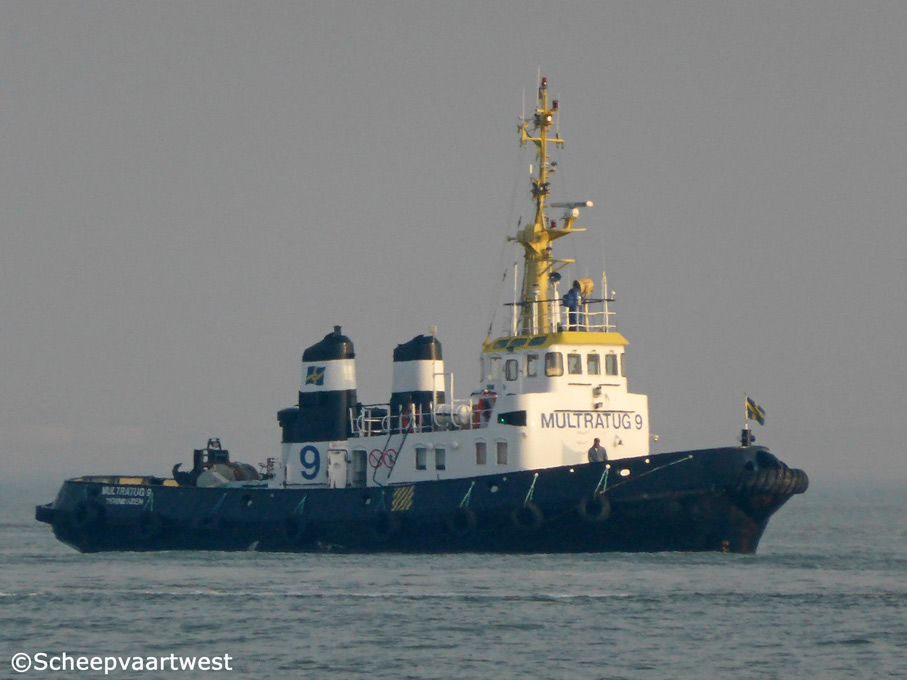

| Westerschelde 30/10/12 | Vlissingen 25/08/11 | Westerschelde 01/04/14 | Westerschelde 01/04/14 | Westerschelde 01/04/14 | Westerschelde 13/11/15 | |||||
 |
 |
 |
||||||||

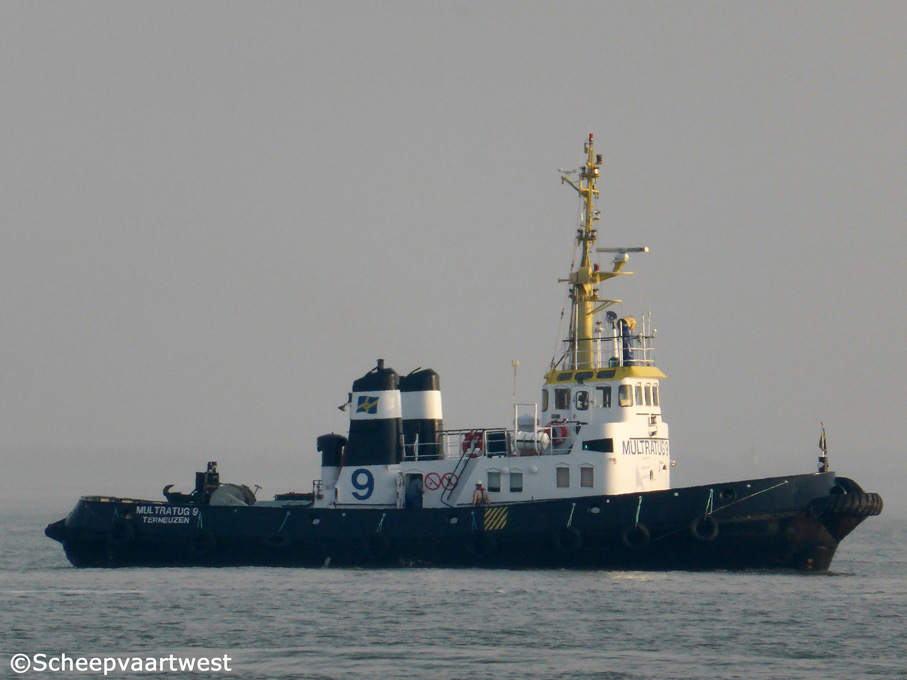

| Westerschelde 13/11/15 | Westerschelde 05/06/18 | Westerschelde 30/10/12 | ||||||||
|
Name |
MULTRATUG 9 |
|
Previous names |
1973 - 2000 Bugsier 3 |
|
Type |
Tug |
|
IMO-number |
7328114 |
|
ENI number |
02719567 |
|
Call sign |
PDBX |
|
Flag |
The Netherlands |
|
Port of registry |
Terneuzen |
|
Previous flag |
1973 - 2000 Germany - Call sign: DABQ |
|
GT |
180 t |
|
NT |
54 t |
|
Length |
26,63 m overall 24,22 m registered |
|
Breadth |
8,84 m registered |
|
Draught |
2,79 m |
|
Depth |
3,60 m moulded |
|
Speed |
11,0 knots |
|
Built |
1973 |
|
Keel laid |
08/02/1973 |
|
Launch date |
11/05/1973 |
|
Date of completion |
10/08/1973 |
|
Builder |
Schiffswerft und Maschinenfabrik Max Sieghold Bremerhaven Federal Republic of Germany |
|
Yard number |
163 |
|
Hull material |
Steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Deutz SBA6M528 - 4 stroke 6 cylinder 220 x 280 mm combustion engines 870 bhp / 640 kW at 900 rpm Total: 1.740 bhp / 1.280 kW Year of manufacture: 1973 Manufacturer: Klöckner-Humboldt-Deutz AG 51057 Köln Federal Republic of Germany |
|
Propellers |
2x Rudder propeller - at 270 rpm |
|
Electric installations |
1x Plant 380/220 V - 30 kVA 1x Plant 380/220 V - 30 kVA |
|
Generators |
2x Deutz F4L912 main generatorsets each 30 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bollard pull |
33 t |
|
Deck lay-out |
Winch: 1x Recovery winch Towing hook: Seebeckwerf Spare towing wire: ropes 3x 15,00 m, 64 mm/8 inch, wire 1x 15,00 m, 32 mm |
|
Tank capacities |
Fuel oil : 68,78 m³ Fresh water: 13,00 m³ Lubrication oil : 0,85 m³ Hydraulic oil : 0,60 m³ Dirty oil: 0,17 m³ |
|
Anchor equipment |
2x Anchors weight each 480 kg Chain length: 275,00 m Diameter: 20,5 mm |
|
Accommodation |
2x 2-Men cabins 2x 1-Man cabins 1x Messroom 1x Galley |
|
Manager |
Multraship Towage & Salvage BV Terneuzen The Netherlands |
|
Owner |
Multraship BV Scheldekade 48 4531 EH Terneuzen The Netherlands |
|
Previous owners |
1976 - 2000 Bugsier Reederei- und Bergungs AG, Hamburg - Germany |
|
Renamed |
2018 Golf The Netherlands, Terneuzen - Call sign: PDBX Manager: Handel- en Scheepvaartmaatschappij Multraship B.V Charter: Bergingsbedrijf Polderman B.V. 02/2022 Golf Cameroon – Call sign: TJM0007 |
|
Latest data adjustment |
13 May 2024 |
