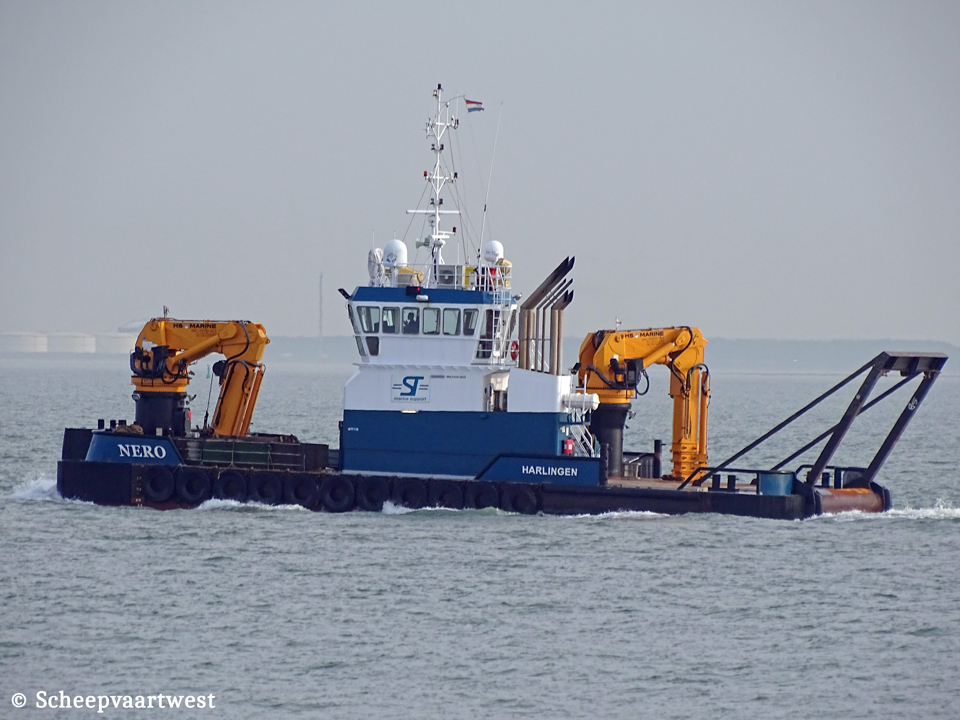

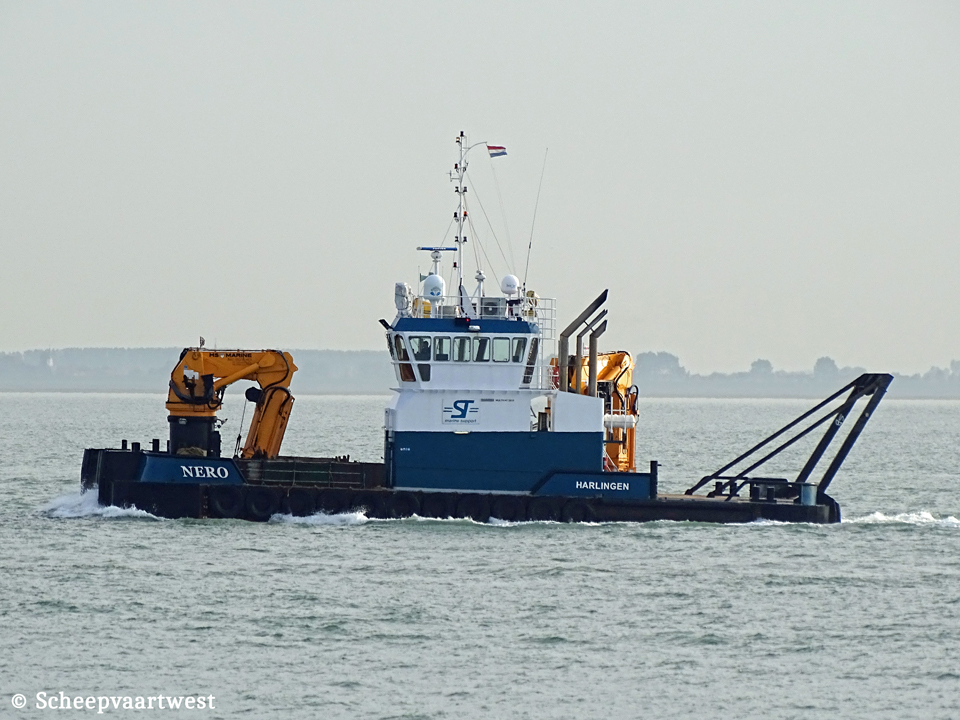

Nero - IMO 9641481

Name

NERO

Type

Tug - Pusher

Damen Multi Cat 3013

Basic functions

Anchor handling, dredger service, supply, towing, ploughing, hose handling and survey

IMO-number

9641481

Call sign

PCTM

Flag

The Netherlands

Port of registry

Harlingen

GT

345 t

NT

102 t

Length

30,14 m overall

28,00 m moulded

Breadth

12,50 m moulded

13,40 m extreme

Draught

Summer: 2,60 m

Freeboard

1.207 mm

Depth

3,54 m

Speed

Max: 10,8 knots

Built

2013

Date of completion

15/03/2013

Builder

Damen Shipyards Hardinxveld

Hardinxveld Giessendam

The Netherlands

Yard number

571678

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

3x Caterpillar C 32 TTA - 4 stroke 12 cylinder 145 x 162 mm combustion engines each 708,5 kW at 1.600 rpm

Total: 2.127 kW / 2.889 hp

Gearbox

3x Reintjes WAF 562 - reduction: 5,947:1

Propellers

3x Promarin fixed pitch propellers - at 269 rpm

4 blades - Diameter 1.700 mm

Generators

2x Caterpillar C-04.4 TA diesel generatorsets each 107 kVA - 86 kW - 128 hp

Hydraulic power

1x Cat C32 TTA - 634 kW at 1.800 rpm

Bow thruster

1x Hydraulically driven 294 kW / 400 hp

Deck lay-out

• Anchor: 2x 360 kg Pool TW (HHP) (one spare), Chain 19 mm stud-link anchor chain 275 m

• Anchor winch: Ridderinkhof, hydraulically driven

• Deck crane: 2x HS marine AKC 410 18 HE3 49,1 ton(m) @ 5,74 m; 13,5 ton (m) @ 18,00 m

• Anchor handling winch: Kraaijeveld KA-30/3-H-TR, capacity 150 ton at 8,00 m/min pulling force (1st layer) 30 ton at 32,00 m/min pulling force (1st layer) 170 ton brake holding force (1st layer)

• Towing winch: Kraaijeveld KA-20-H-TR, capacity 40 ton at 12,00 m/min pulling force (1st layer) 12 ton at 24,00 m/min pulling force (1st layer) 100 ton brake holding force (1st layer)

• Towing hook, 2x Mampaey 20 ton SWL

• Tugger Winches: 2x Dromec 12 ton at 4,50 m/min

• Towing pins: Fore WK Hydraulics four pins in row type Aft WK hydraulics triple pin type

Bollard pull

39 t

Cargo deck area

190 m²

Deck load

12,0 t/m²

Tank capacities

Fuel oil: 208,5 m³

Fresh water: 53,5 m³

Sewage: 6,8 m³

Dirty oil: 4,4 m³

Hydraulic: oil 4,4 m³

Lubrication: oil 2,8 m³

Bilge water: 2,8 m³

Technical water tanks aft: 25,0 m³

Technical water tanks fore: 30,0 m³

Accommodation

Comfortable heated and air-conditioned accommodation for 7 persons in two double and three single cabins.

A combined galley - mess with adjacent store and sufficient sanitary facilities are provided

Nautical & communication equipment

• Search lights: 2x Pesch 2.000 W

• Radar system: 1x Furuno, FAR 2117; 1x Furuno, FR 8062

• Compass: 1x Cassens & Plat, Reflecta 1

• Gyro compass: 1x Tokimec, ES- 160

• Echo sounder: 1x Furuno, FE-700

• Speedlog: 1x Furuno, DS-80

• GPS: 1x Furuno, GP-150 D

• Chartsystem: 1x Transas NS 4000

• Autopilot: 1x Sea pilot 75

• VHF: 2x Sailor, RT6222

• Handheld VHF: 2x TR-20

• SSB: 1x Furuno FS 1570

• Inmarsat - C: 2x Thrane & Thrane Sailor 6110

• Navtex: 1x Furuno, NX-700

• Iridium telephone: 1x Sailor, SC 4000A

• GSM telephone: 1x Sagem, RT 3000

• AIS: 1x Furuno, FA-150

• Watch alarm: 1x Marble, 421

• Intercom: Sigma-700

• Entertainment system: 1x Seatel, Coastal 24

Owner

St Marine Support Vof

Lanen 22

8861 CD Harlingen

The Netherlands

Latest data adjustment

15 December 2022
