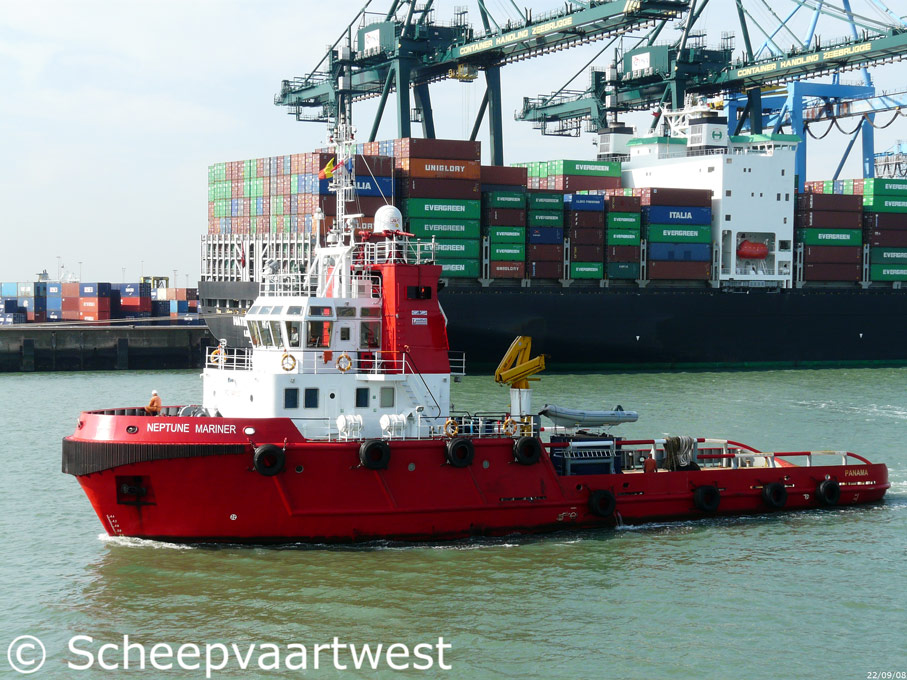

| Zeebrugge 27 September 2008 |
 |
 |
 |
 |
|||

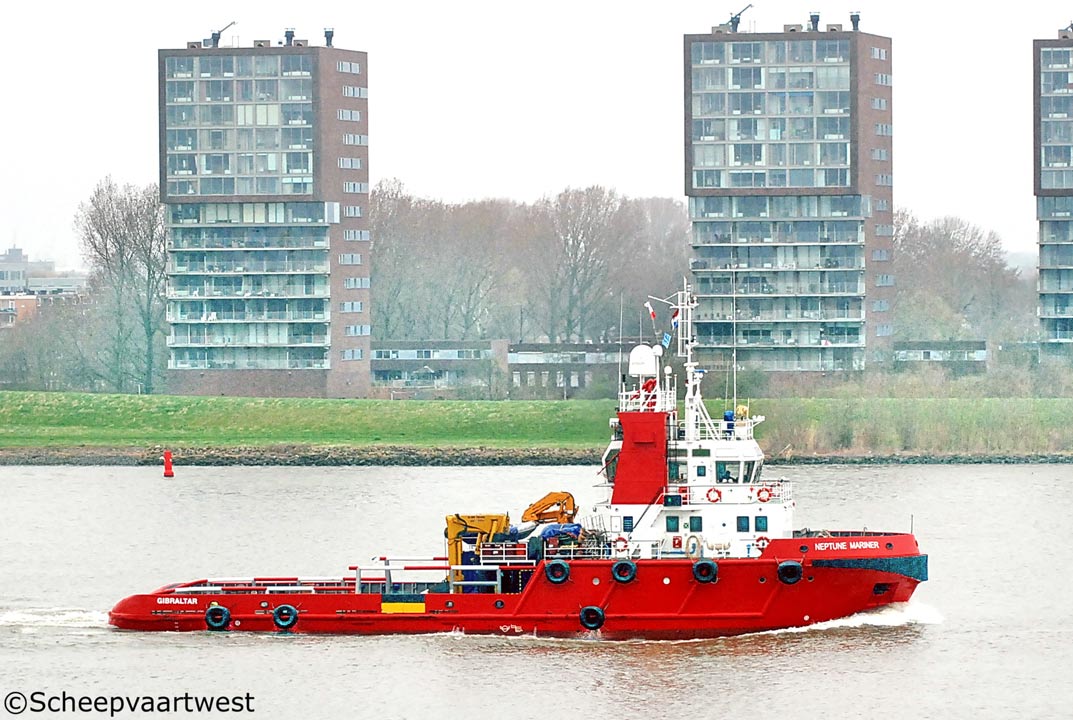

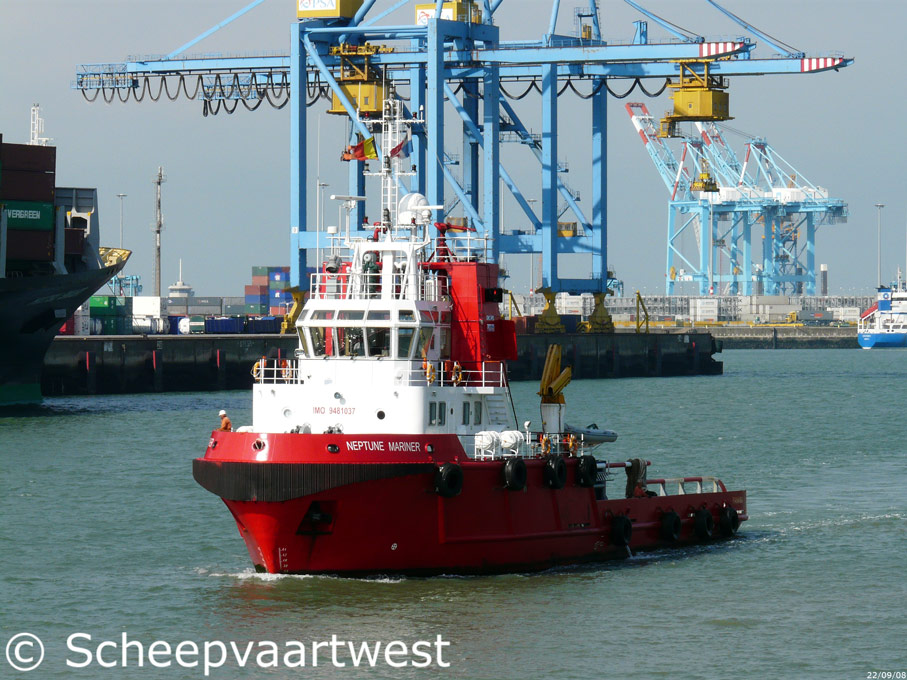

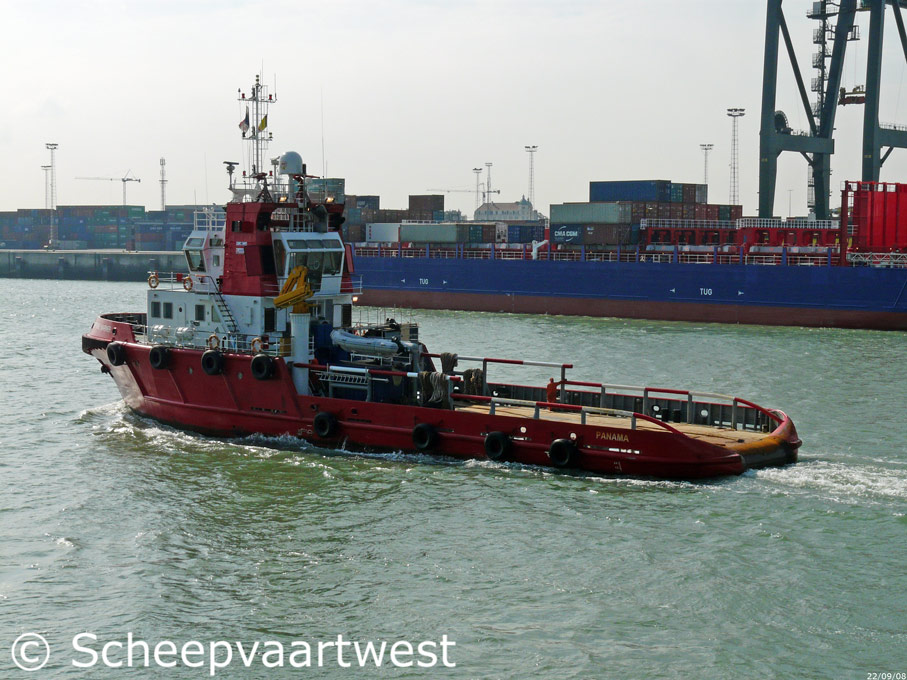

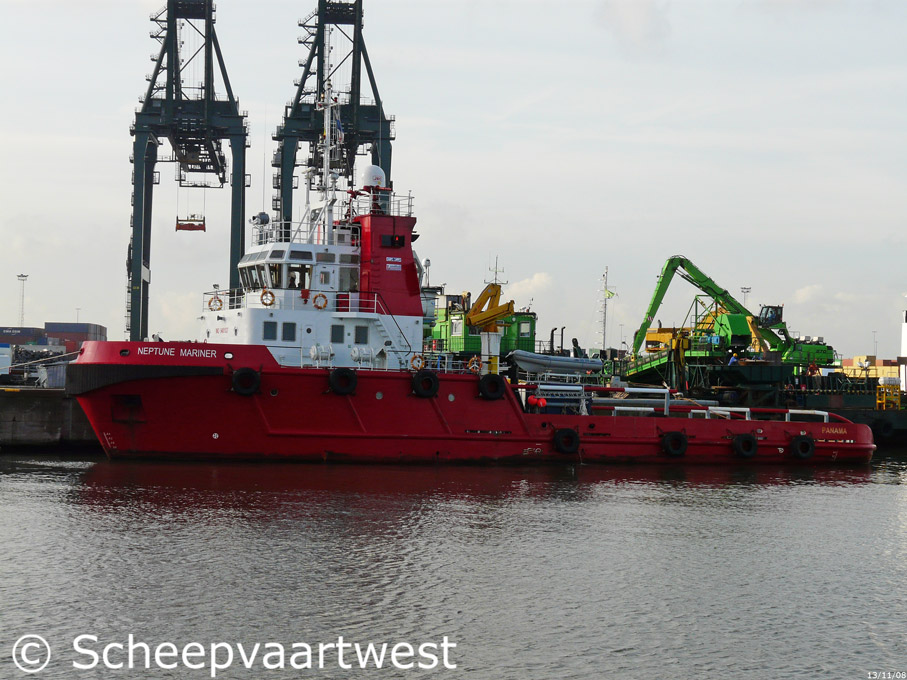

| Zeebrugge 22/09/08 | Zeebrugge 22/09/08 | Zeebrugge 13/11/08 | Spijkenise 19/03/17 | |||
|
Name |
NEPTUNE MARINER |
|
Type |
Anchor handling tugboat / Utility vessel |
|
IMO-number |
9481037 |
|
Call sign |
ZDIW8 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flag |
Republic of Panama, Panama City - Call sign: HO4883 |
|
GT |
499 t |
|
DWT |
996 t |
|
NT |
149 t |
|
Length |
42,00 m overall 39,20 m between perpendiculars |
|
Breadth |
11,40 m |
|
Draught |
Summer: 4,15 m |
|
Draught lightship |
3,50 m |
|
Freeboard |
810 mm |
|
Depth a midships |
4,90 m |
|
Speed |
12,6 knots without tow |
|
Built |
2007 |
|
Date of completion |
15/11/2007 |
|
Builder |
South China Shipyard Guangdong Province Jiangmen China |
|
Yard number |
181 |
|
Hull material |
Steel |
|
Watertight compartments |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3512B - 4 stroke 12 cylinder 170 x 190 mm internal combustion engine each 1.119 kW / 1.520 hp total output 2.238 kW / 3.043 bhp at 1.600 rpm Built: 2006 Builder: Caterpillar Inc., Lafayette - USA |
|
Propelling system |
2x Fixed pitch propellers - at 266 rpm |
|
Generator sets |
2x Caterpillar 3406C diesel generatorsets each 215 kW - 269 kVA - 292 hp - 400 Volt |
|
Bow thruster |
140 kW |
|
Stern thruster |
Ejection unit 1.500 m³/h |
|
Fire fighting monitors |
2x Water foam at 750 m³ |
|
Bollard pull |
43 t |
|
Towing winch |
Hydraulic Towing winch: Double drum waterfall 65 t |
|
Tow wires |
2x 800 m - diameter: 52 mm |
|
Tugger winch |
5,0 t |
|
Marine crane |
1x Promac AK 30 E2 (max. 8,0 t @ 2,00 m) 1x Heila 140-4SL (max. 3,5 t @ 21,20 mm) |
|
Deck cargo capacity |
9x 20ft containers - 100 t |
|
Clear deck area |
160 m² + 2x 20 m² |
|
Cargo deck load |
5,0 t/m² |
|
Tank capacities |
Fuel oil: 390.000 litres Fresh water: 78.000 litres Fifi foam tanks: 10.000 litres |
|
Navigation & radio |
Radar Echo sounder Speed log GPS Autopilot 2x compass AIS Navtex Sart Epirb VHF SSB Inmarsat C + GMDSS A3 |
|
Manager |
Landfall Marine Contractors B.V. Seatowage, Anchorhandling and Marine sales Gieterijstraat 88 2984 AB Ridderkerk The Netherlands |
|
Owner |
Dutch international Towage Company B.V. Prinsenweer 25 3363 JK Sliedecht The Netherlands |
|
Renamed |
03/2020 Koole 42 Gibraltar - Call sign: ZDIW8 Owner: Koole Maritiem BV - The Netherlands |
|
Latest data adjustment |
18 June 2020 |
