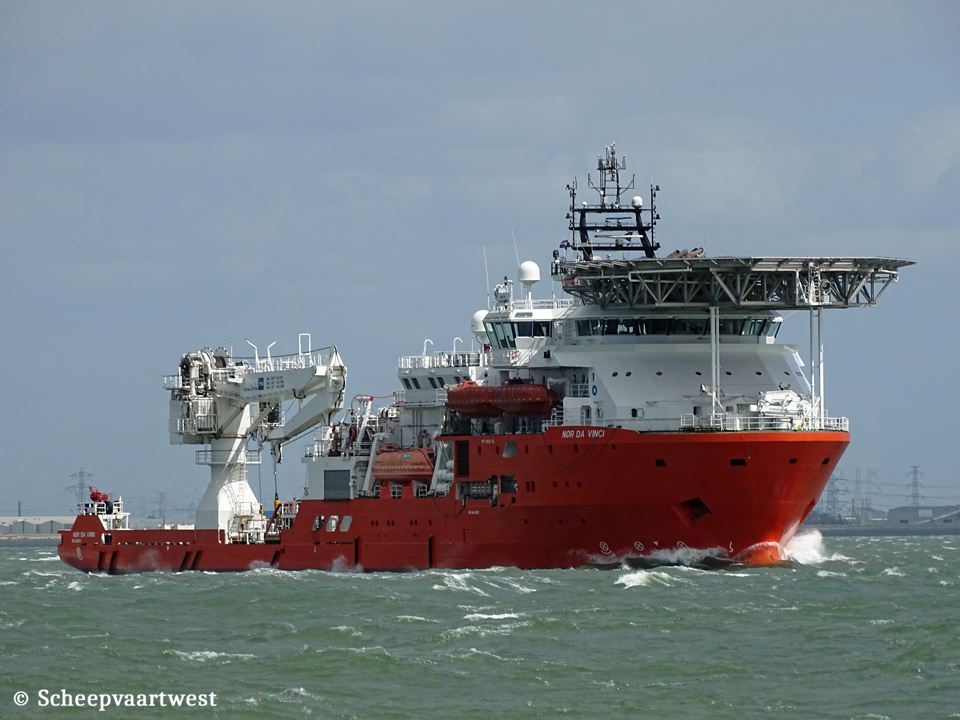

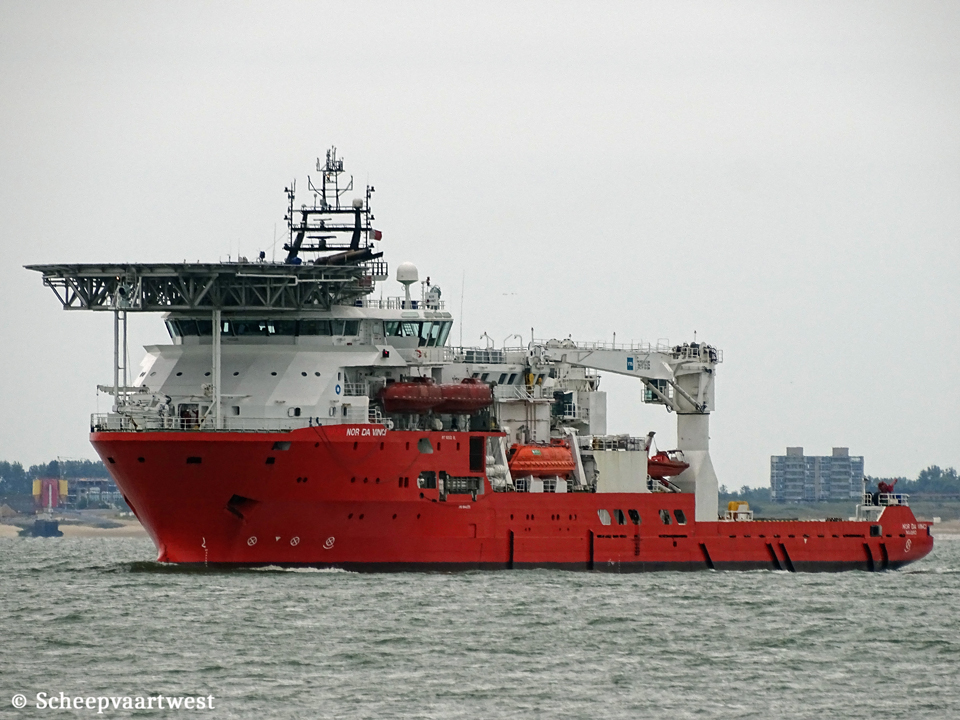

Nor Da Vinci - IMO 9441233

Name

NOR DA VINCI

Previous names

2011 - 2012 Gulmar Da Vinci

2012 - 2013 Iremis Da Vinci

2013 - 2016 Harkand Da Vinci

Type

Offshore support vessel - Diving support vessel - Crane operation - Supply operations - Fire fighting

IMO-number

9441233

Flag

Marshall Islands

Port of registry

Majuro

GT

8.691

DWT

5.662 t

NT

2.608

Displacement

12.565 t

Length

115,40 m overall

107,40 m between perpendiculars

Breadth

22,20 m

Draught

Summer: 7,03 m

Depth

9,00 m to main deck

11,80 to shelter deck

Speed

14,0 knots

Build

2011

Keel laid

09/02/2009

Launch date

23/08/2009

Date of completion

28/06/2011

Builder

Hanjin Heavy Industries & Construction Co., Ltd.

Pusan

South Korea

Yard number

S068

Hull material

Steel

Propulsion

Diesel/Electric

Main generators

3x MAN-B&W 8L27/38 main diesel generatorsets each 2.510 ekW at 720 rpm / 690 Volt/60Hz

2x MAN- B&W 6L27/38 main diesel generatorsets each 1.880 ekW at 720 rpm / 690 Volt/60Hz

Auxiliary generators

2x MAN-B&W 8L27/38 diesel generatorsets each 835 ekW at 1.200 rpm / 690 Volt/60Hz

Emergency generator

1x Caterpillar 3508B diesel generatorsets 910 ekW at 1.800 rpm

Thruster

Bow thrusters: 2x Wärtsilä tunnel thrusters each 1.900 kW

Bow azimuth: 1x Wärtsilä retractable thruster 1.500 kW

Stern thrusters: 2x Wärtsilä azimuth thrusters each 3.000 kW

Deck load capacity

3.300 t

Deck surface

Main deck: 1.120 m²

Forecastle deck: 235 m²

Max permitted loads

Main deck: 10,0 t/m²

Forecastle deck: 6,5 t/m²

Tank capacities

Fuel oil: 1.440 m³

Lub oil: 53,0 m³

Potable water: 1.160 m³ + 40 m3/day water makers

Ballast: 5.122,5 m³

Anti-heeling: 940 m³

Anchor equipment

Length: 550,00 m

Diameter: 54 mm

Cargo gear

1x TTS Marine type CCLKO 1600-140-35 main Crane - SWL 140,0 t

1x TTS Marine type CCLO 1250-40-27 - SWL 40,0 t

Accommodation

For 120 persons

23 x 1-man cabins

46 x 2-men cabins

2 x (2+2)-men cabin (Pullman)

123 beds in total

mess rooms, control rooms and offices

Hospital: 4 beds

Navigation equipment

Radar plant:

• 1x ARPA, Furuno FCR-2837S chart 10 cm/S band

• 1x ARPA, Furuno FAR-2117 3 cm/X band

Navigation/Direction finder:

• 1x NMEA distribution unit

• 2x GPS Furuno GP-150

• 2x AIS type Furuno Universal AIS FA-150

• 2x ECDIS type Furuno w/interface to radars, DGPS, Echo Sounder, AIS System, gyro

Gyro plant/Autopilot:

• 3x Gyro compass, Sperry Marine model Navigate MK1

• 1x Anschutz Std 22

Compass:

• 2x Bearing compass with brackets

• 1x Magnetic compass with digital repeater

• 1x Autopilot, Sperry model Navi Pilot 4000

Echo sounder a speed log:

• 1x Echo sounder, Furuno FE 700 (colour)

Positioning:

• EIVA positioning software

Communication equipment

GMDSS A3 Radio Station

• 2x Satellite V-system w/interface to email system

• 1x MF/HF 150W simplex radio station

• 2x Inmarsat C

• 1x FBB

• 1x Receiver type Furuno Navtex 500

VHF & UHF

• 2x Duplex VHF stations w/DSC and multi watch, type Sailor RT4822, one with slave handset in hospital

• 2x Simplex VHF station w/dual watch, slave handset in ECR

• 3x UHF type Motorola GM380

• 3x UHF radio, stationary model type GP950

• 1x GSM radio w/line interface and antenna

Digital communication:

• Twin V-Sat with internet (Marlink WiFi, LAN Connection). High speed data transfer and desktop terminal w/17” flat screen monitor

Navigation / Video Screen:

• Digital video network sharing w/10 multiple audio/video channels

CCTV System:

• Consists of 11 cameras, main station allocated in instrument room

Manager

Nor Offshore SPV Ltd. & Anglo-Eastern (UK)

Owner

Nor Offshore Da Vinci SPV Ltd.

Previous names & owners

2011 - 2012 Gulmar Da Vinci - Gulmar Da Vinci Marine Investment S.A.

2012 - 2013 Iremis Da Vinci - Iremis Da Vinci Marine Inc.

2013 - 2016 Harkand Da Vinci - Harkand Da Vinci Inc.

Renamed

21/05/2019 Boka Da Vinci

Marshall Islands, Majuro - Call sign: V7SG4

Owner: Boskalis Subsea North Star Limited

Manager: Boskalis Subsea Services Limited

Latest data adjustment

10 December 2024
