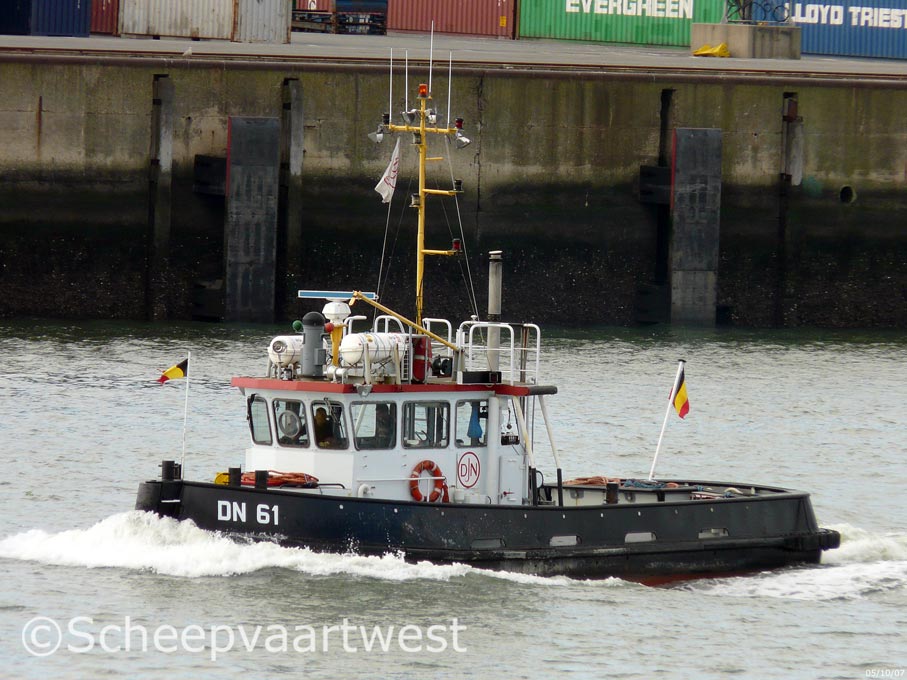

DN 61 01
Zeebrugge 05 October 2007

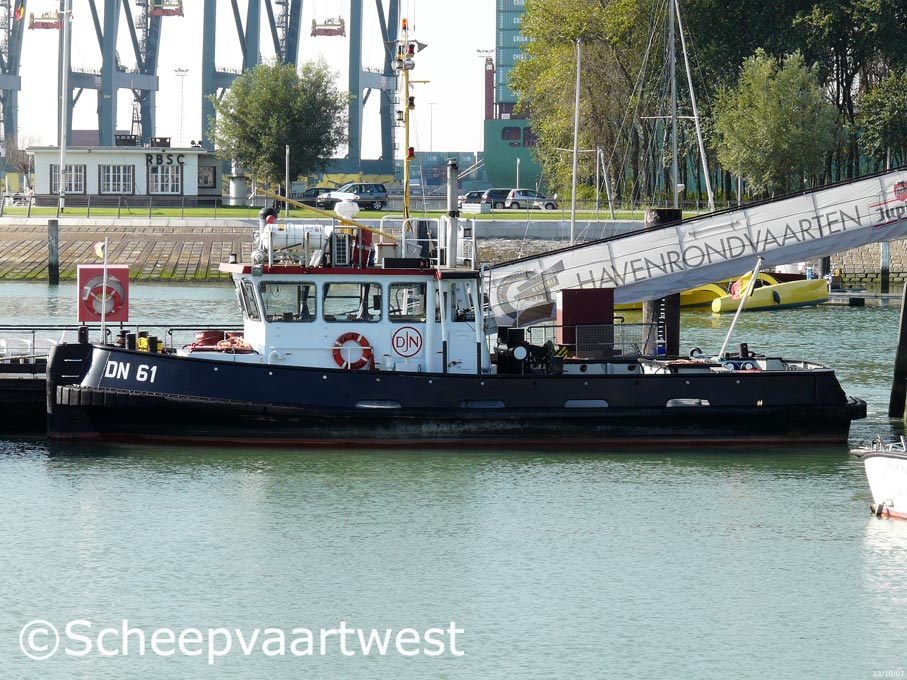

DN 61 03
Zeebrugge 13/10/07


Name

DN 61

Type

Tug boat coastal area

ENI-number

6504023

Call sign

ORMD

Flag

Belgium

Port of registry

Brugge

GT

31 t

NT

9 t

Length

15,54 m overall

Breadth

4,94 m

Draught

Summer: 1,72 m

Depth

2,30 m

Speed

10,0 knots

Built

1995

Date of completion

06.01.1995

Builder

IHC Delta Shipyard B.V.
Sliedrecht
The Netherlands

Yard number

954

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

2x Caterpillar - 4 stroke 6 cylinder 137 x 165 mm internal combustion engine - each 394 kW / 536 hp at 1.800 rpm

Built: 1994

Licence: Caterpillar, Mossville - USA

Propelling system

2x Screw propeller solid - at 395 rpm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

1x Diesel generatorset 27 kVA - 22 kW

Owner

N.V. Onderneming Jan De Nul
Tragel 60
9308 Hofstade - Aalst
Belgium
