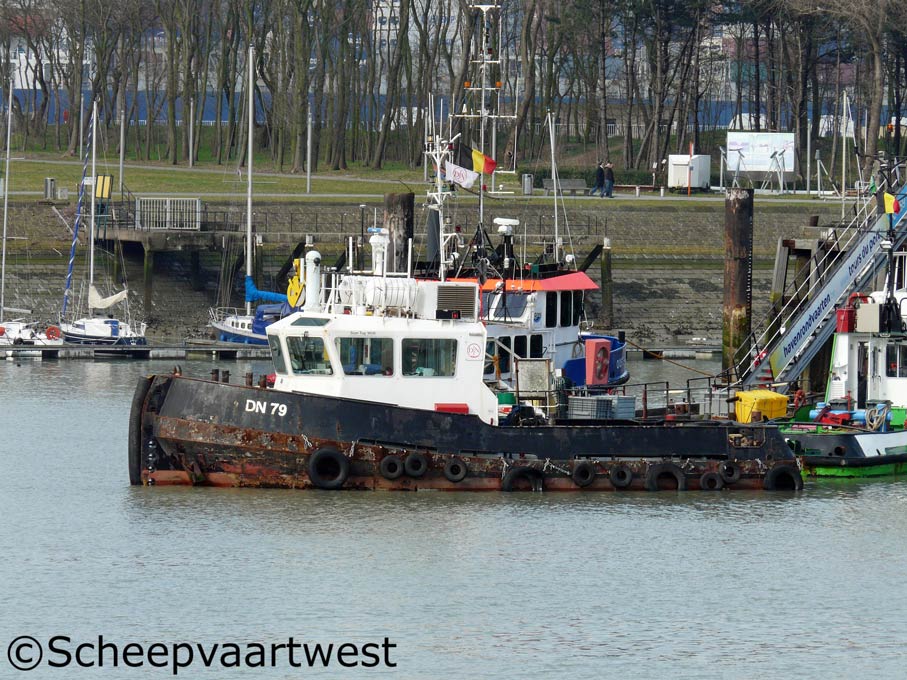

DN 79 01
Zeebrugge 24 February 2011

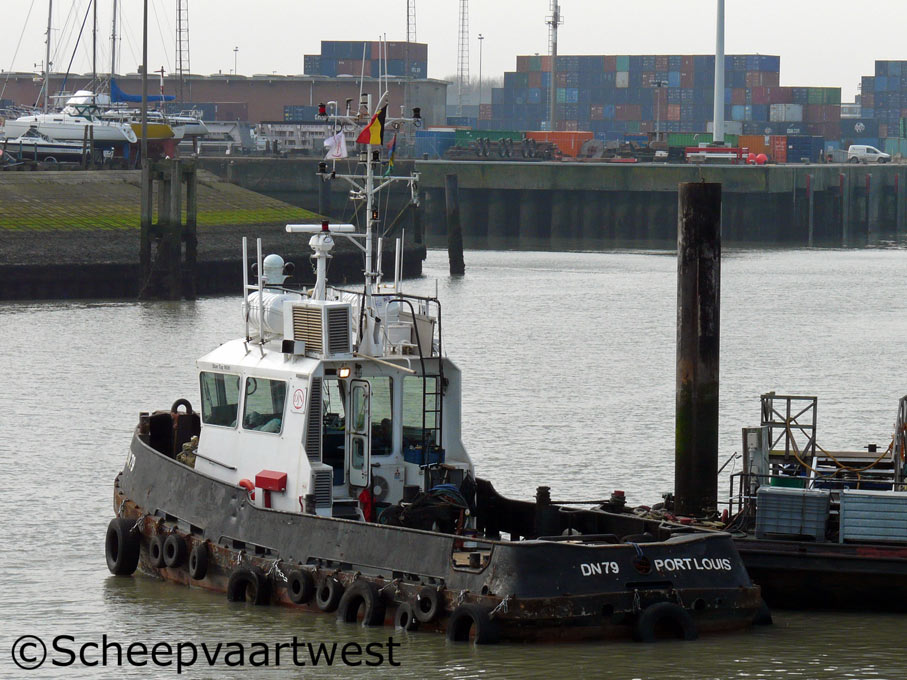

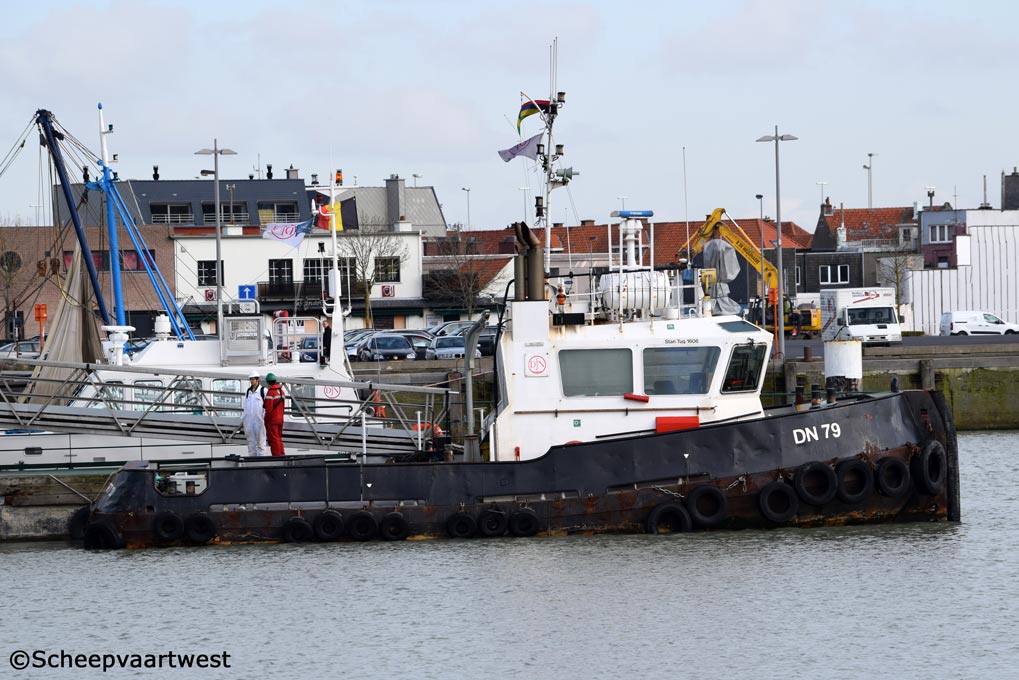

DN 79 05   DN 79 08
Zeebrugge 24/02/11 Zeebrugge 17/02/14


Name

DN 79

Type

Tug boat for coastal area - Stan Tug 1606

Basic functions

Towing and mooring operations

Call sign

3BPD

Flag

Republic of Mauritius

Port of registry

Port Louis

GT

37 t

Displacement

89 t

Length

16,56 m overall

16,00 m between perpendiculars

Breadth

5,54 m

Draught

2,35 m aft

Depth

3,54 m at sides

Speed

Service: 10,0 knots

Trials: 11,0 knots

Built

2007

Date of completion

07.03.2007

Builder

Damen Shipyards Changde Co., Ltd.

Changde
China

Yard number

503108

Hull material

Steel

Main engines

2x Caterpillar C18 TA/B- 4 stroke 6 cylinder 183 x 145 mm internal combustion engines - 896 kW / 1.218 bhp each at 1.800 rpm

Build: 2005

Builder:Caterpillar, Inc., Mossville (Illinois) - USA

Gearboxes

2x Reintjes WAF 264L - 4,5:1

Propelling system

2x Kaplan screw propeller solid - at 400 rpm

Nozzles

2x 1.350 mm Van de Giessen Optima

Rudders

2x streamlined, double plates

Electrical installation

Power voltage:230 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

1x Caterpillar C2.2 NA diesel generatorset 18 kVA - 13 kW - 33 hp

Battery sets

2x 24 Volt 200 Ah

Bollard pull ahead

14,5 t

Bilge pump

1x Sterling SIHI VWSI 5013 - 20 m³/h - Electrical driven

Deck lay-out

Anchors: 1x 80 kg + 1x 24 kg Poll

Chain: 100 m shortlink chain 13 mm diameter

Anchor winch: Manual for one anchor

Towing hook: Mampaey disc type - 25 t

Push bow: Cylindrical rubber fender diameter 380 mm

Tank capacities

Fuel oil: 14,2 m³

Fresh water: 1,10 m³

Sewage: 0,70 m³

Dirty oil: 0,50 m³

Operator

Jan De Nul

Owner

Jan De Nul Dredging Ltd.
Level 3, Alexander House, 35 Cybercity
Ebene
Mauritius
