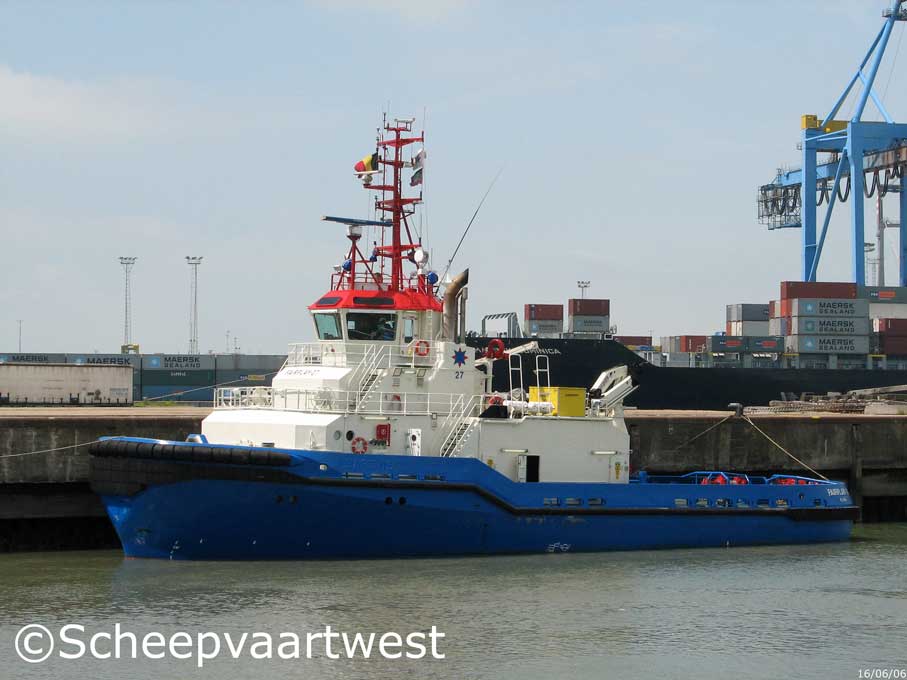

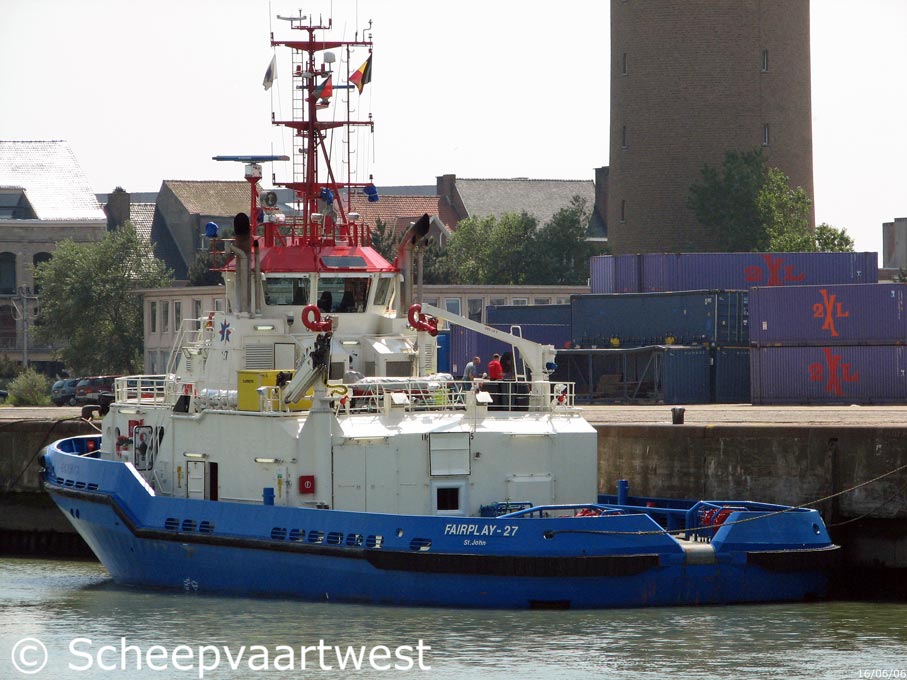

| Zeebrugge 16 June 2006 |
 |
| Zeebrugge 16/06/06 |
|
Name |
FAIRPLAY-27 |
|
Previous names |
2006 - 2006 Barents 2006 Fairplay-27 |
|
Type |
Tug - Azimuth stern drive tug Fire Fighter |
|
IMO-number |
9334765 |
|
Call sign |
V2WJ |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John |
|
GT |
731 t |
|
DWT |
690 t |
|
NT |
220 t |
|
Length |
37,06 m overall |
|
Breadth |
15,00 m overall |
|
Draught |
Summer: 5,35 m |
|
Depth |
6,91 m moulded |
|
Speed |
Abt.: 14,0 knots |
|
Built |
2006 |
|
Date of completion |
02.2006 |
|
Builder casco |
Riga Shipyard Yard number: 1075 |
|
Outfitting yard |
Moen Slip A.S. Yard number: 58 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
2x Deutz SBV 9 M 628 diesel engines - each output 2.070 kW |
|
Number of screws |
2 |
|
Generators |
2x Scania DI 12 62M diesel engine coupled with Stamford HCM534C generator each 400 V / 50 Hz 260 kW |
|
Bow thruster |
1x Pumpjet SPJ82RD - input 333 kW |
|
Bow thruster engine |
Deutz BF8M1015MC - output 374 kW |
|
Compressors |
Starting air compressor: 2x Sauer HP WP33L - 31,5 m³/h Working air compressor: Sauer SCK 31-8MA50 - 170 m³/h |
|
Anchor chain |
Length 357,5 m |
|
Bollard pull |
Abt.: 75 t |
|
Tank capacities |
Oil fuel (oil recovery tanks included): 320 m³ Fresh water: 34 m³ Water ballast: 90 m³ Foam detergent: 16 m³ Recovered oil: 205 m³ Lub oil cargo: 50 m³ |
|
Manager |
Fairplay Schleppdampfschiffs - Rederei Richard Borchard GmbH |
|
Owner |
Haaland & Sønn AS |
|
Owner as completed |
Bukser og Berging A.S. |
|
Renamed |
Barents |
