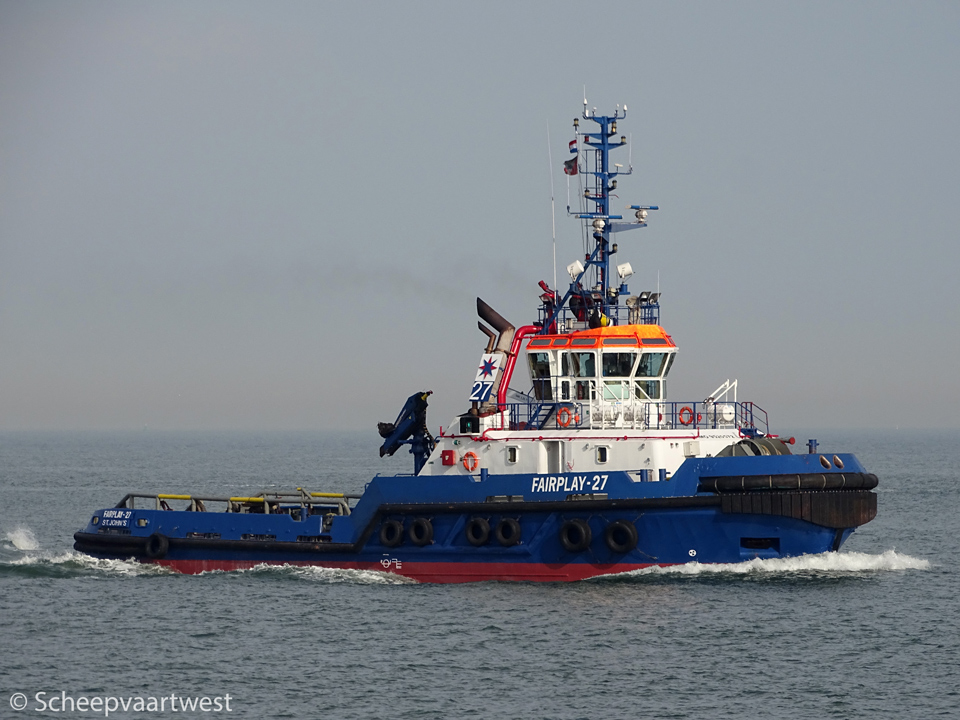

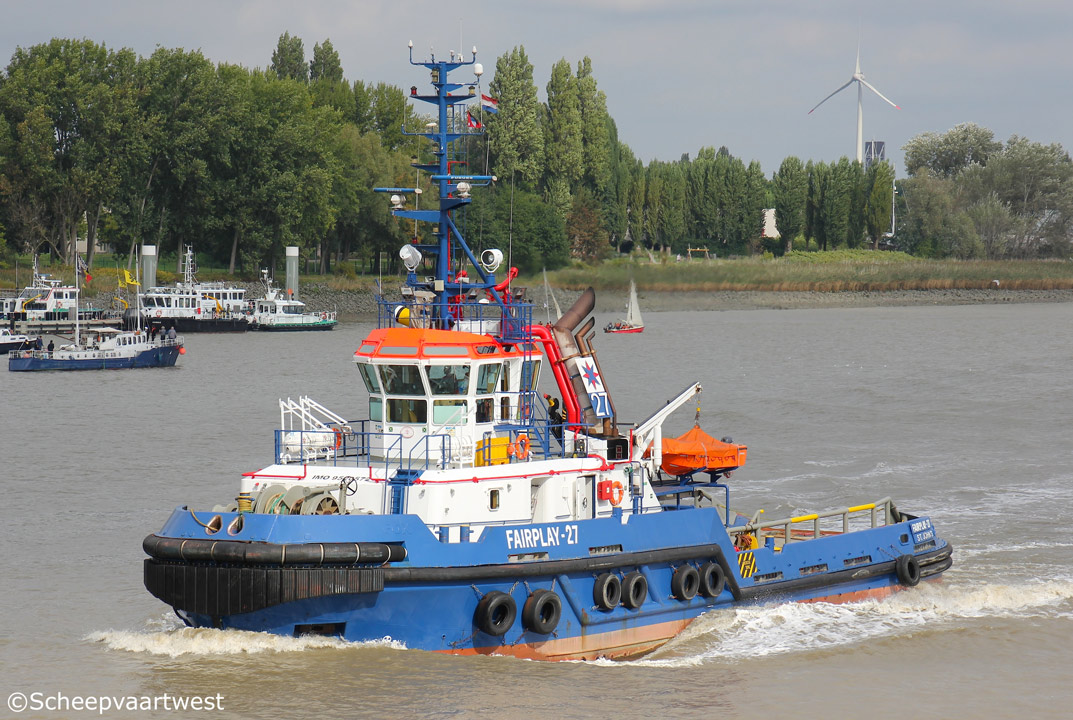

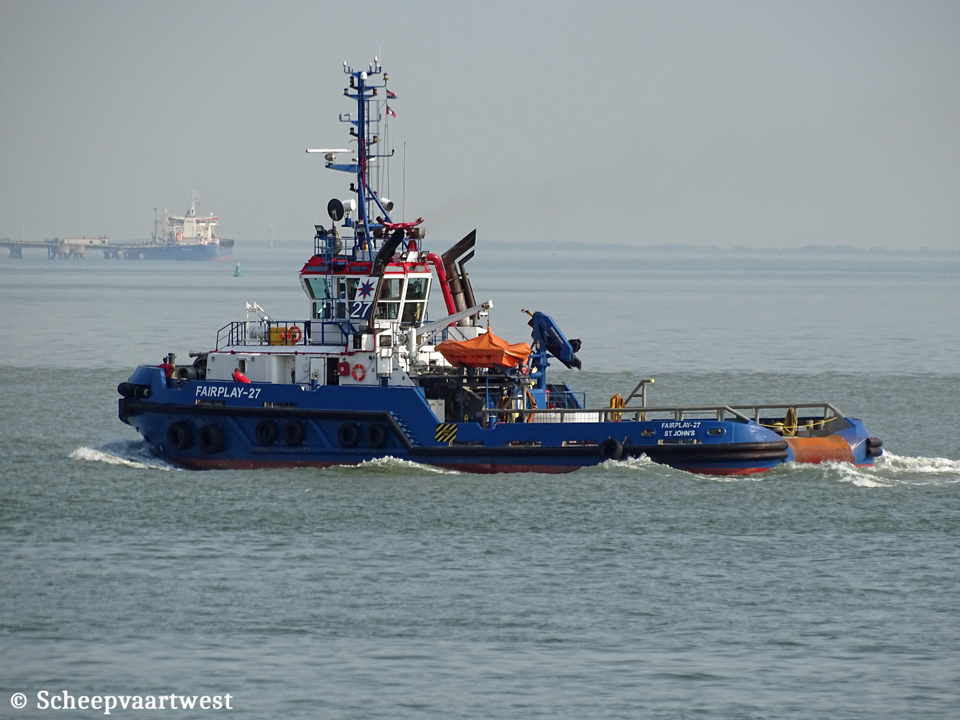

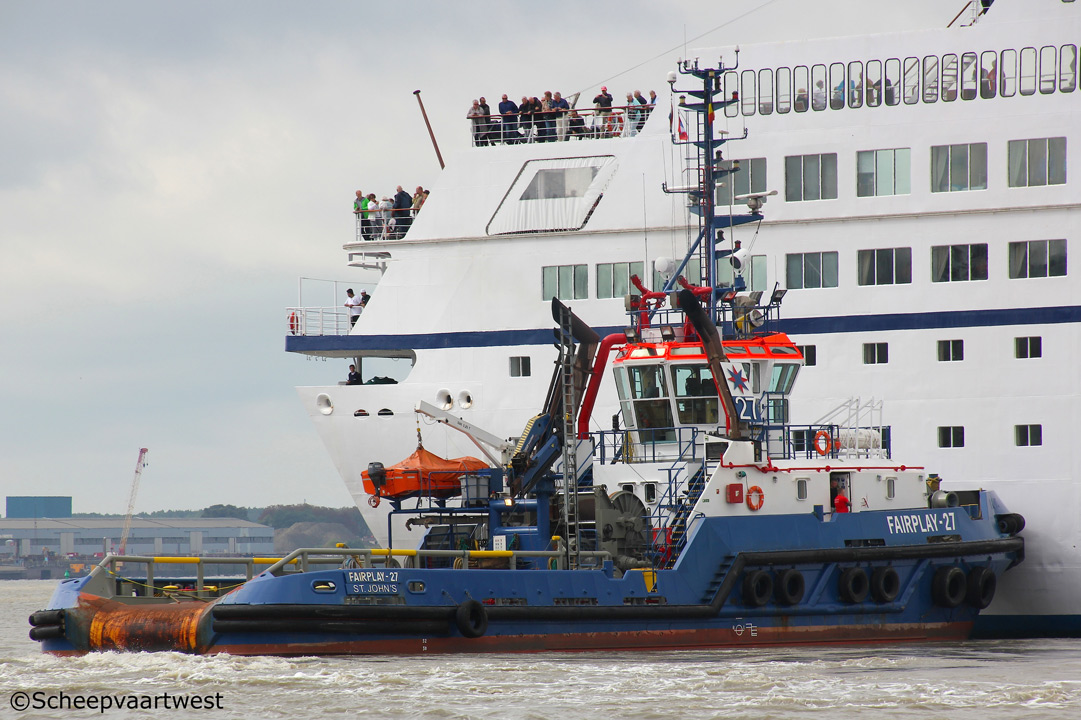

Fairplay-27 - IMO 9520572

Westerschelde 26 August 2019

Name

FAIRPLAY-27

Previous names

2009 - 04.2010 Fox

Type

Schottel ASD - Anchor handling tug

IMO-number

9520572

Call sign

V2GS3

Flag

Antigua & Barbuda

Port of registry

St. John’s

Previous flags

2009 - 2013 Malta, Valletta

GT

499 t

DWT

Summer: 444 t

NT

149 t

Length

36,00 m overall

30,30 m between perpendiculars

Breadth

11,61 m overall

Draft

Min.: 4,55 m

Max.: 5,40 m

Speed

13,7 knots

Built

2009

Keel laid

18/08/2008

Launch date

08/04/2009

Date of completion

25/05/2009

Builder

Astilleros Armon

Navia

Spain

Yard number

679

Hull material

Steel

Continuous decks

1

Main engine

2x Caterpillar type 3516B DI-TA - 4 stroke single acting 16 cylinder 170 x 190 mm combustion engines each 2.720 bhp - total 5.438 bhp / 4.056 kW at 1.600 rpm

Build: 2008

Manufacturer: Caterpillar Tractor Co.

Propulsion

2x Schottel SRP 1515 controllable pitch propellers - Azimuth stern drive propellers

4 Blades - diameter 2.600 mm

Generators

2x Caterpillar C9 D1 - 6 cylinder 112 x 149 mm diesel engine 132 kW each at 1.500 rpm coupled with generator 150 kW each

Build: 2008

Manufacturer: Caterpillar Tractor Co.

Bow thruster

1x Schottel STT 110 LK - 200 kW

Bollard pull

74,3 t

Towing gear

• Stern Winch: Deep sea towing winch, 900 m / 52 mm galvanized steel wire, store winch, 900 m / 52 mm galvanized steel wire (spare in hold)

• Breakhold 1.600 KN

• Bow winch: Harbour towing winch with two drums, 2 synthetic ropes diameter 100 mm, length 100 m

• Static breakhold: 1.500 KN

• Free deckspace abt.: 104 m²

• Tugger winch: 100 KN

• Towing Pins and shark Jaw Karm 300 SWL

• Sternroller 4.000 mm x 2.000 mm SWL 200 t

• Lower drum split in two drums

• Harbour towing drum, diameter 52 mm, length 300 m, breakhold 1.600 KN

FiFi monitors

2

Tank capacities

Gas oil: 357 m³

Fresh water: 50 m³

Foam liquid: 15,63 m³

Ballast: 107 m³

Lifting equipment

1x Marine Palfinger PK 12084 deck crane 10,70 m, SWL 930 kg

Navigation & Communications

2x Radars

1x SART

1x EPIRB

1x Navtex

1x GPS

2x VHF

2x Handheld VHF

1x Watch Receiver

1x SSB Radio

1x Magnetic Compass

1x Gyro Compass

1x Autopilot

1x AIS

1x Speedlog

Manager

Fairplay Schleppdampfschiffs-Reederei Richard Borchard GmbH

Registered owner

Fairplay Schleppdampfschiffs Reederei Richard Borchard GmbH

Ludwig-Erhard-Str. 22

20459 Hamburg

Germany

Group

Fairplay Towage Group

Latest data adjustment

16 April 2021
