Name |

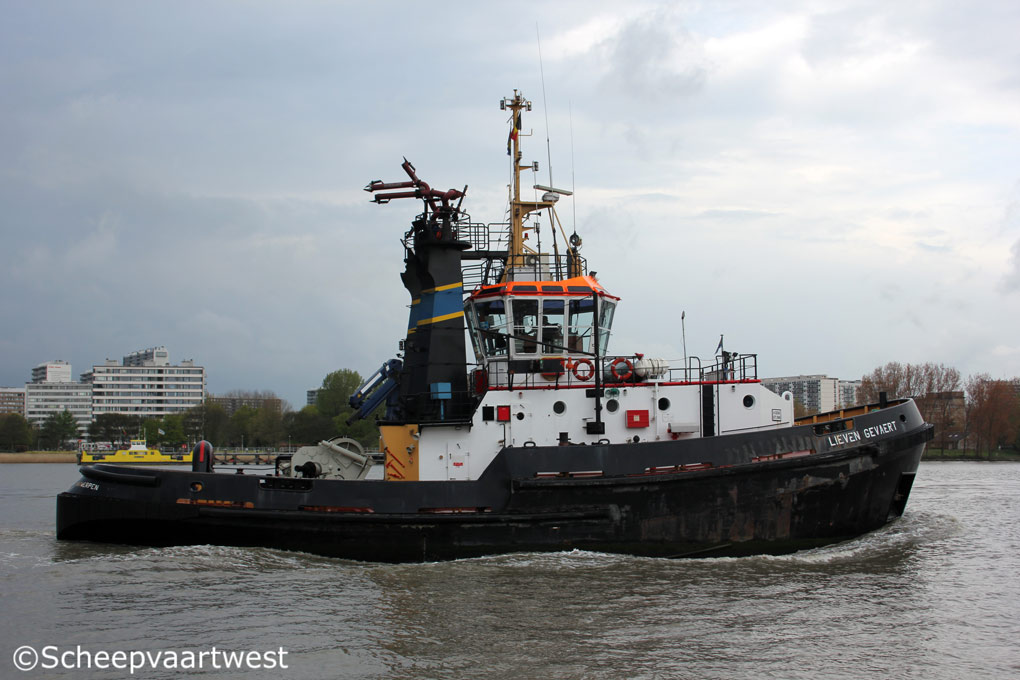

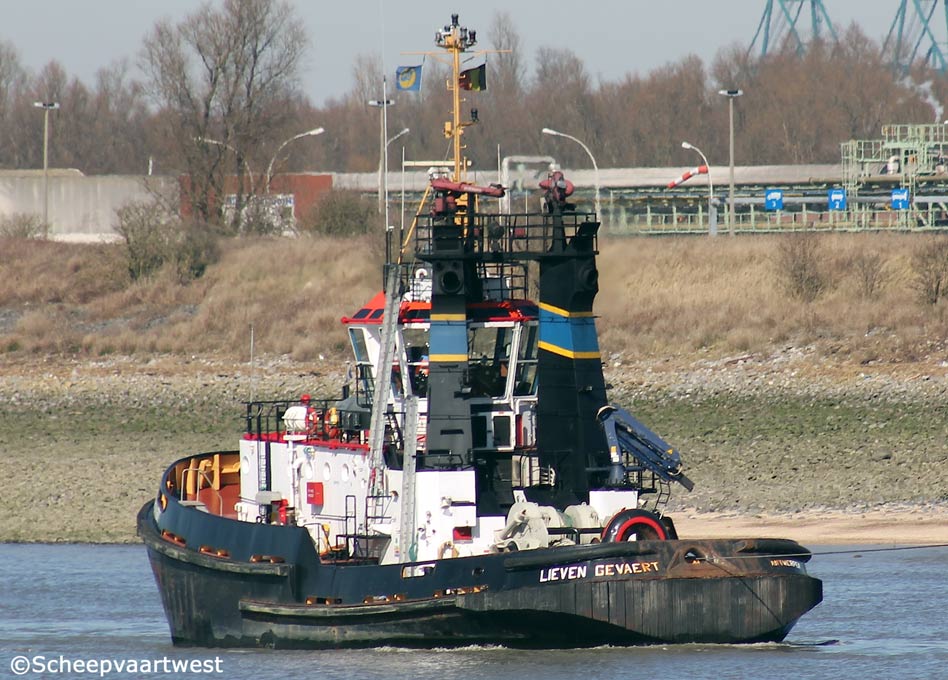

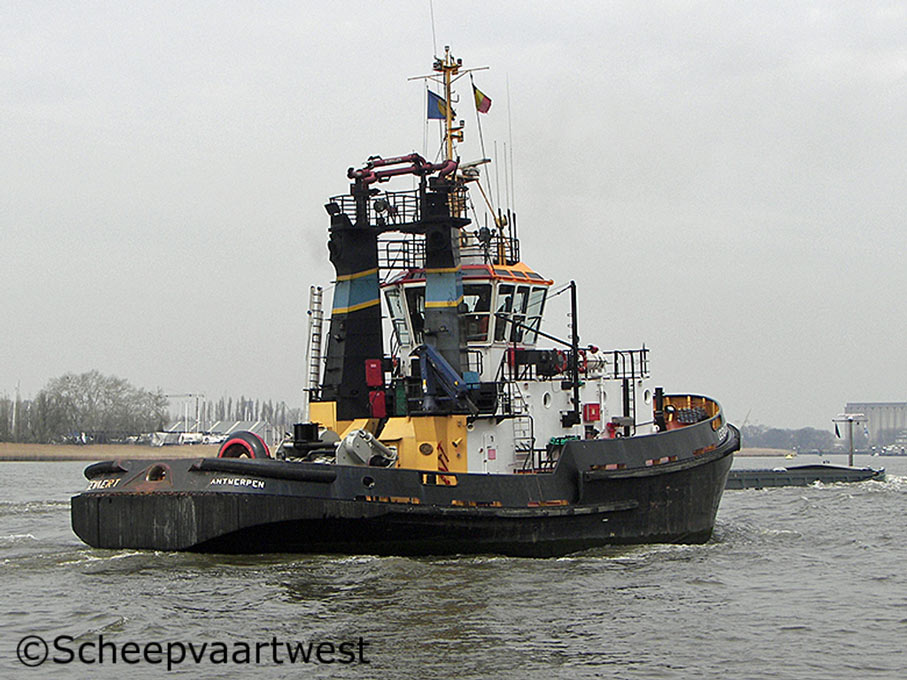

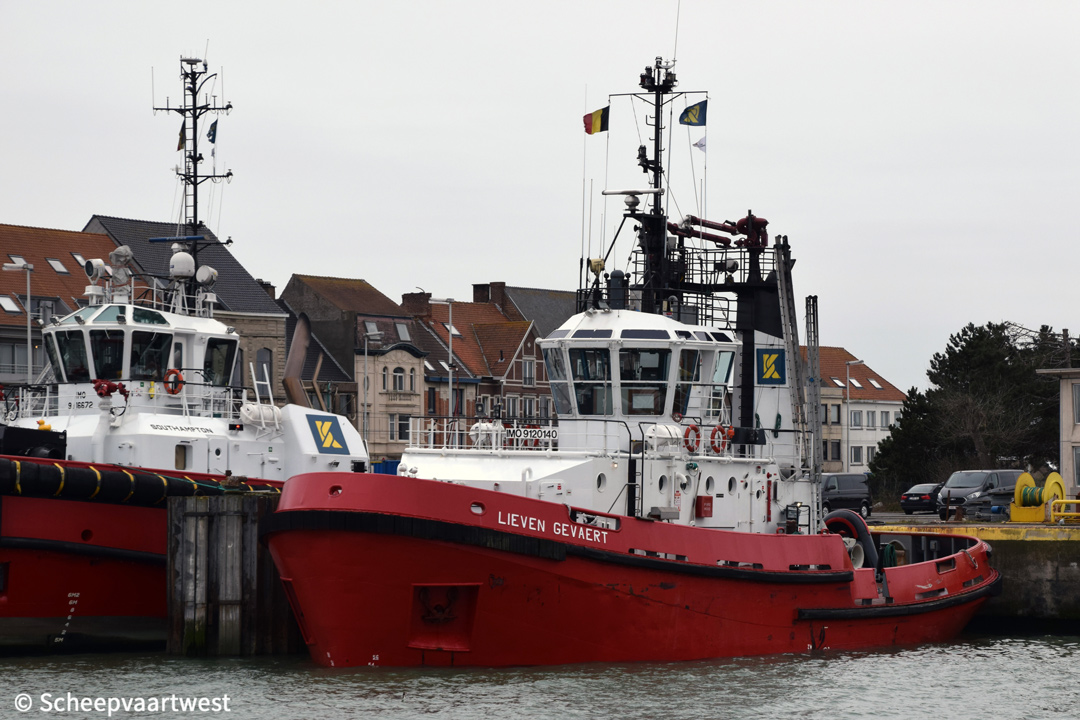

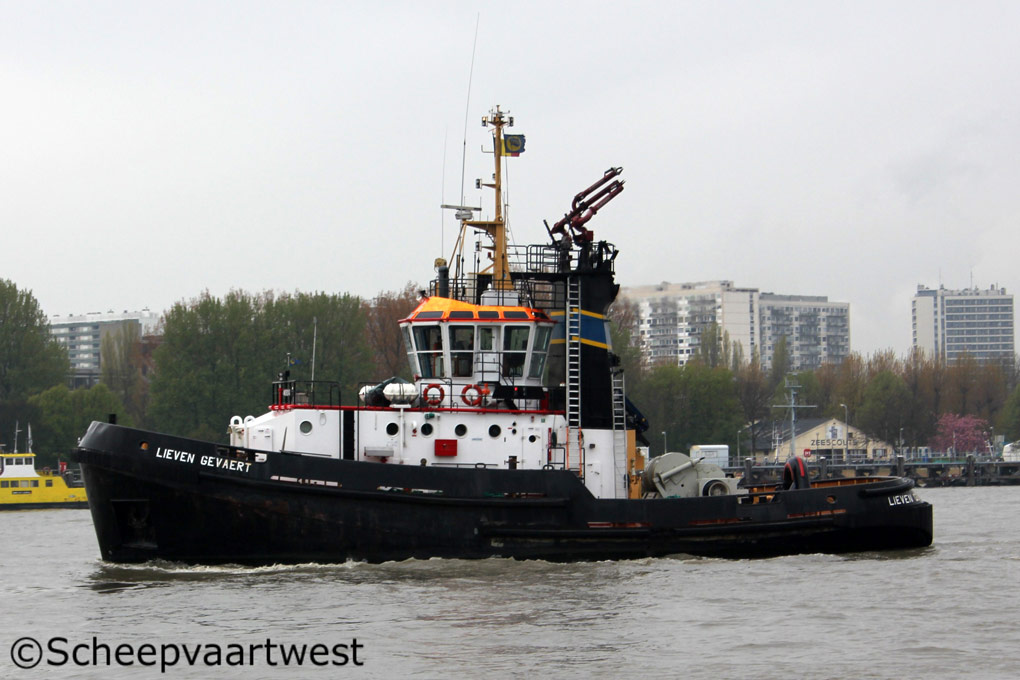

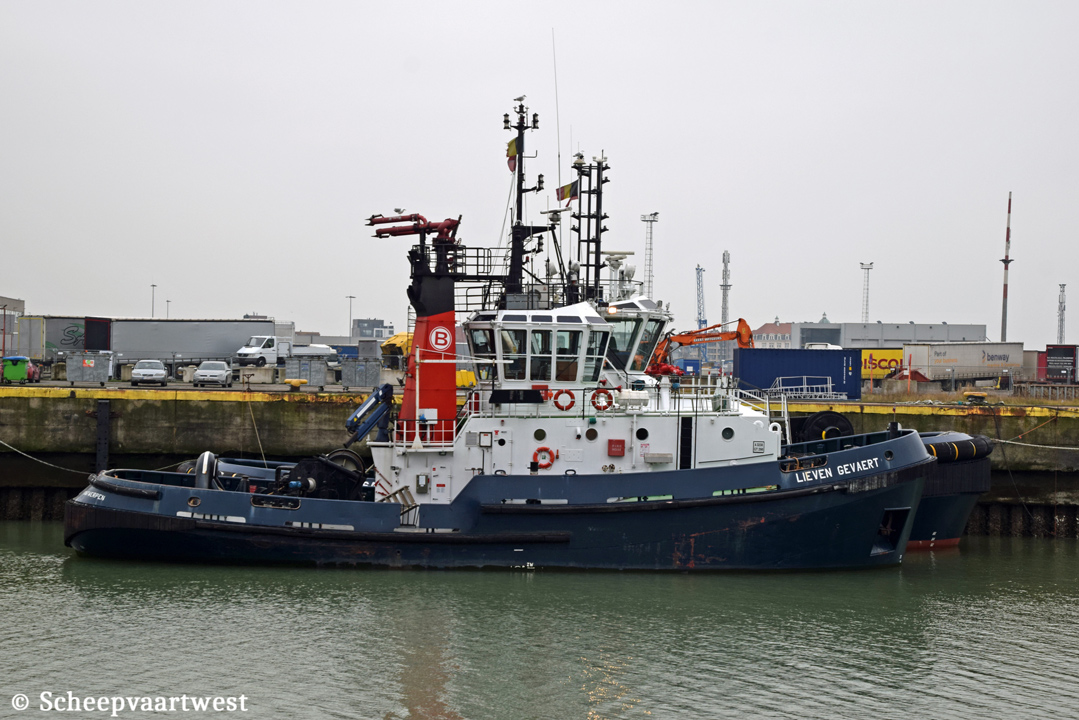

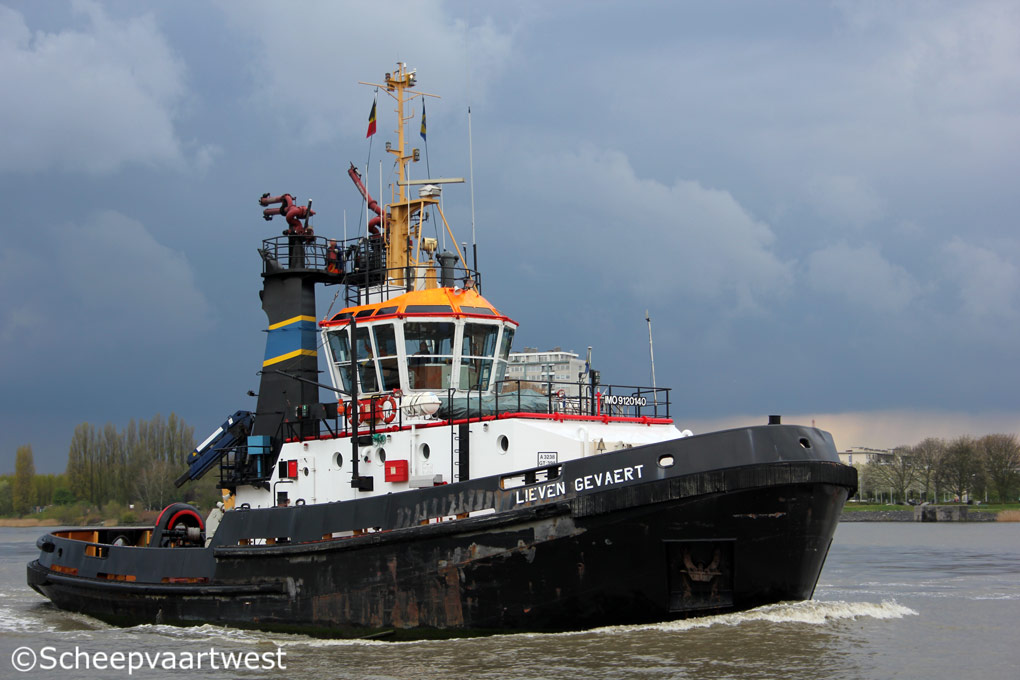

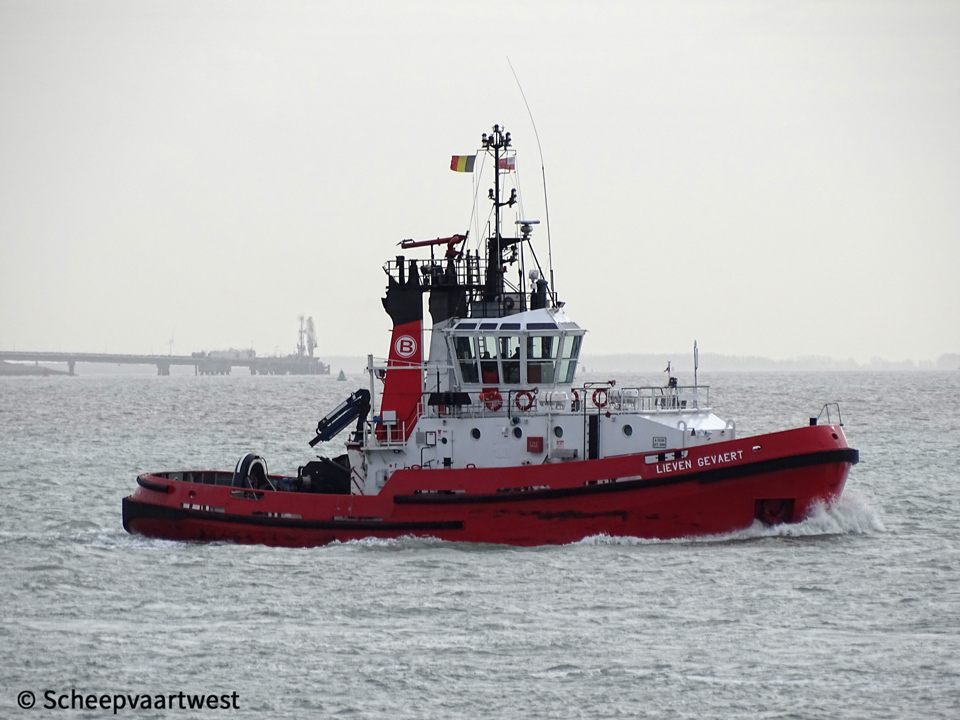

LIEVEN GEVAERT |
|
Type |
Seagoing tug - Fire fighting Ship |
|
IMO-number |
9120140 |
|
Call sign |
ORKH |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
398 t |
|
DWT |
Summer: 255 t |
|
NT |
119 t |
|
Length |
30,06 m overall 28,50 m between perpendiculars |
|
Breadth |
11,04 m extreme |
|
Draft |
Max.: 4,50 m |
|
Speed |
Max.: 13,0 knots Economic: 11,0 knots |
|
Built |
1995 |
|
Keel laid |
19/05/1994 |
|
Launch date |
09/09/1995 |
|
Delivery date |
15/12/1995 |
|
Builder |
Astilleros Armon SA Navia Spain |
|
Yard number |
368 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Main engine power |
2x Deutz type SBV8M628 - 4 stroke 8 cylinder medium combustion engines each 1.550 kW total 3.100 kW / 4.080 bhp at 900 rpm |
|
Propelling |
2x Voth Schnieder propulsion |
|
Generators |
2x Main diesel generators each 180 kVA - 3x 380 V - 50 Hz 1x Harbour diesel generatorset 90 kVA |
|
Deck equipment |
Remote controlled hydraulic driven combined towing winch with double drum on aft deck, for harbour and long distance towing jobs Harbour winch: Brake holding: 90 t. Dynamic: 16.5 t. at 10,60 m/min, slack rope speed: 50,00 m/min. Towing hook with pneumatic release device Hydraulic deck crane |
|
Fire-fighting equipment |
2x Main engine driven fire-fighting pumps of 1.200 and 1.500 l/h at a pressure of 15 bar 2x Remote controlled monitors The tugs carry 30 m³ of heavy foam Self protection water spray system for hull and superstructure |
|
Bollard pull |
45 t |
|
Bunker capacity |
Potable water: 30,0 m³ Fuel oil: 120 m³ Foam: 30,0 m³ |
|
Lifting equipment |
1x Crane - SWL 3,3 t at 11,00 m outreach |
|
Accommodation |
The air-conditioned accommodation provides for 8 men |
|
Navigation & communication equipment |
Magnetic compass: Geomar Gobierno Echo sounder: Furuno FCV-528L VHF: Furuno RT2048/RM2042 Radar: Sperry Bridgemaster GPS: Furuno GP-37 |
|
Previous owner |
1995 - 2016 Unie van Redding en Sleepdienst NV in Antwerpen - Belgium 2016 - 2019 Kotug Smit Towage, 3072 AR Rotterdam - The Netherlands |
|
Manager |
Boluda Towage Belgium NV 3, Italielei 2000 Antwerpen Belgium |
|
Owner |
Boluda Corporacion Maritioma Paseo de Caro, s/n - Edificio Boluda 46024 Valencia España |
|
Previous joint venture |
2016 - 2019 Kotug International B.V. & Boskalis Westminster N.V. |
|
Last data adjustment |
08 February 2022 |
