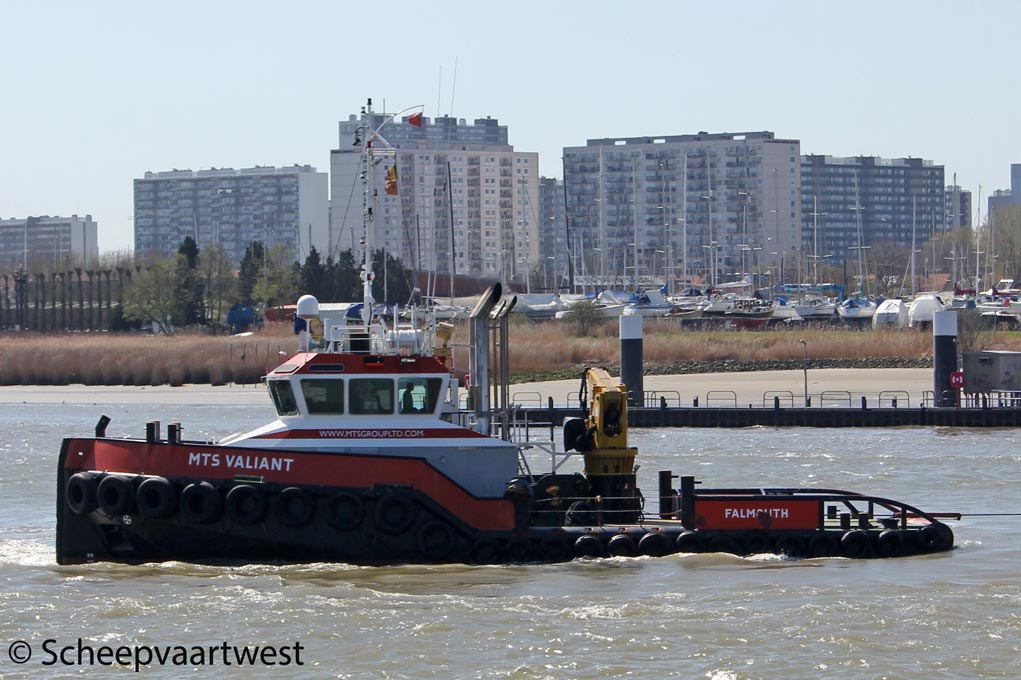

| Antwerpen 20 April 2013 |
 |
 |
 |
||

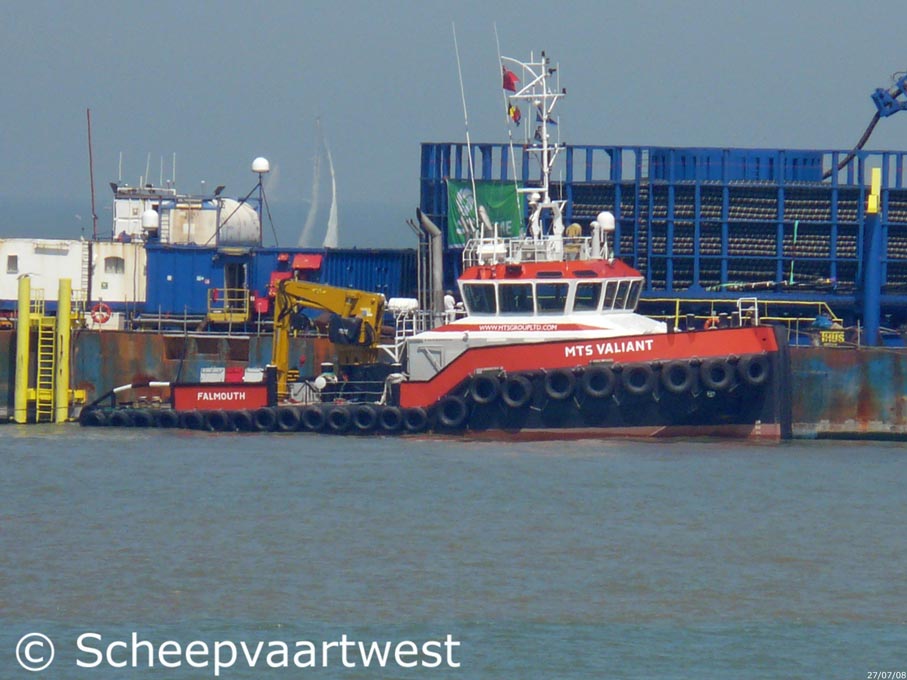

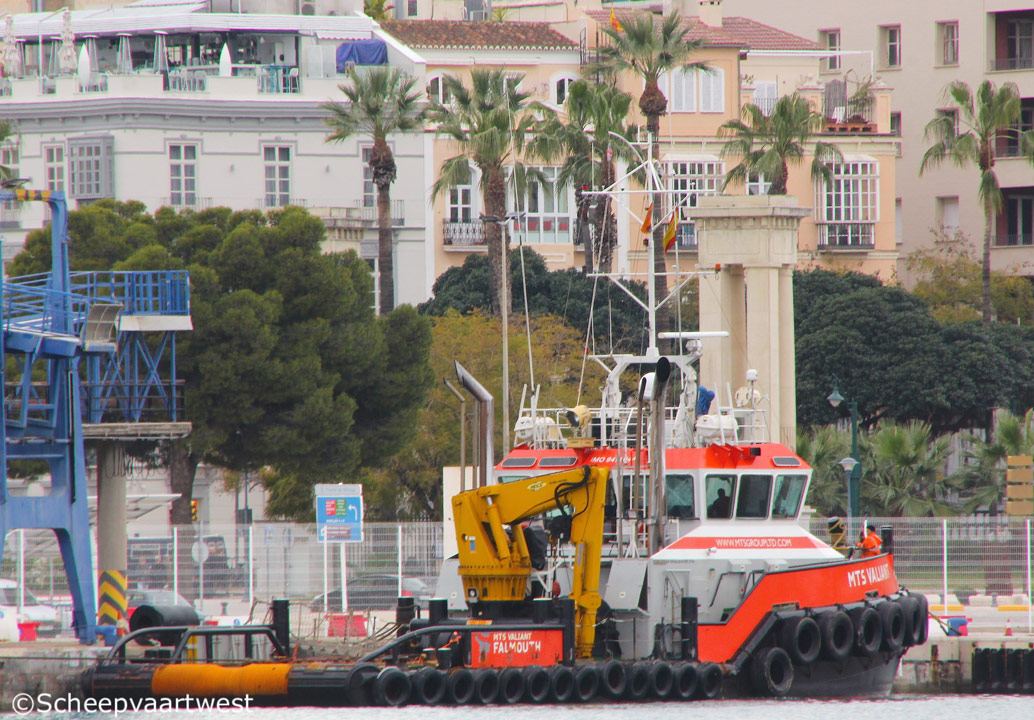

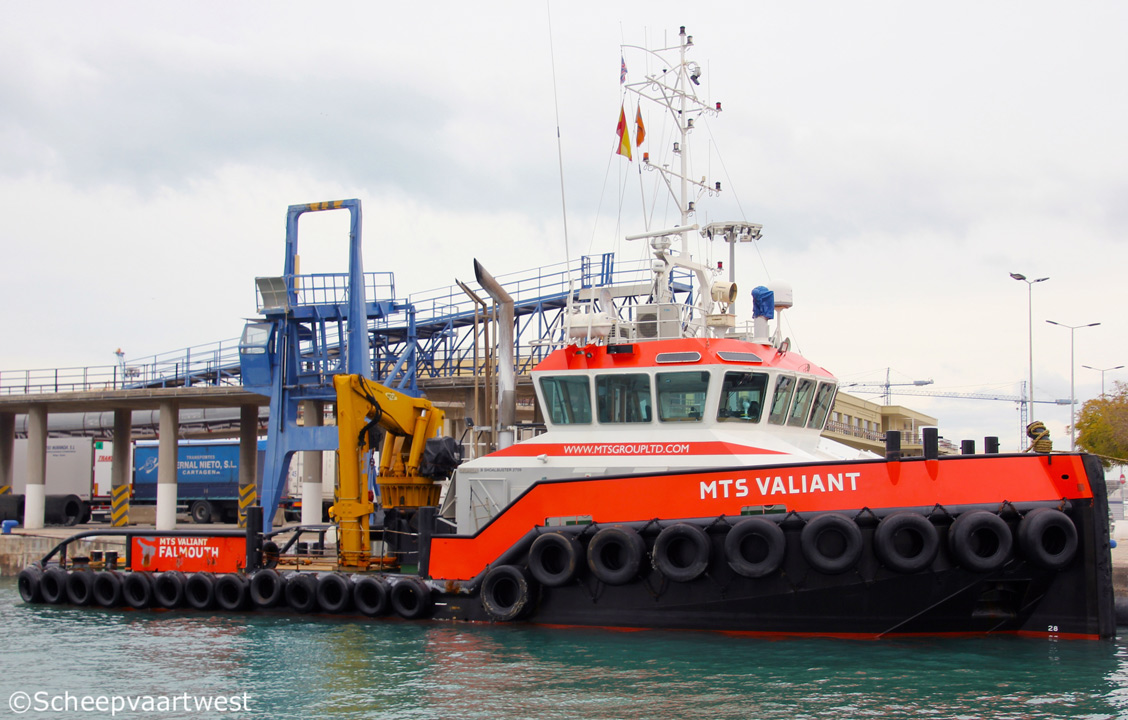

| Antwerpen 27/06/08 | Malaga, Spain 14/03/18 | Malaga, Spain 14/03/18 |
|
Name |
MTS VALIANT |
|
Type |
Tug boat Damen Shoalbuster 2709 |
|
Basic functions |
Towing - mooring - anchor handling - dredging support |
|
IMO-number |
9476044 |
|
Call sign |
2AVA4 |
|
Flag |
United Kingdom |
|
Port of registry |
Falmouth |
|
GT |
221 t |
|
DWT |
200 t |
|
Length |
27,02 m overall 23,84 m between perpendiculars |
|
Breadth |
9,65 m overall |
|
Draught |
2,63 m aft |
|
Depth |
3,60 m at sides |
|
Speed |
Service: 11,0 knots Max.: 12,3 knots |
|
Built |
2008 |
|
Date of completion |
30.05.2008 |
|
Builder casco |
Kozle Shipyard Yard number: 1122 |
|
Outfitting yard |
Damen Shipyard BV Yard number: 1607 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartment |
4 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar type 3512BTTA diesel engines - totalling power 3.071 hp / 2.261 kW at 1.600 rpm Builder: Caterpillar, Mossville - USA |
|
Electrical propulsion gen. |
1x 20 kW 400 V |
|
Gearbox |
2x Reintjes WAF 664 - 5,95:1 |
|
Propulsion |
2x Promarin fixed pitch propellers - at 269 rpm Diameter 2x 2.100 mm in Optima nozzles |
|
Generators |
2x Caterpillar C-44TA diesel generatorsets each 86,3 kVA -69 kW - 102 hp 220/380 V - 50 Hz 1x Hatz 3L41C diesel generatorset 20 kVA 220/380 V - 50 Hz |
|
Bow thruster |
200 hp - hydraulic driven |
|
Transfer pumps |
For water & fuel make SIHI - 32 m³/h |
|
Fuel separator |
Alfa Laval |
|
Bollard pull |
40 t |
|
Tank capacities |
Fuel oil: 121,6 m³ Fresh water: 30,10 m³ Lub oil: 3,90 m³ Hydraulic oil: 1,50 m³ |
|
Deck crane |
1x Heila 140-3SL, remote controlled with winch |
|
Anchor |
2x 225 kg Pool (H.H.P.) |
|
Anchor winch |
Ridderinkhof, twin drum hydraulic |
|
Anchor handling / towing winch |
40,0 t - 6 m/min - 65,0 t brake holding |
|
Towing wire |
1st drum 42 mm x 550,00 m 2nd drum 36 mm x 300,00 m |
|
Tugger winch |
8,0 t - 30,00 m |
|
Stern deck |
Hydraulic anchor pins |
|
Accommodation |
Heated and fully air-conditioned living spaces for 7 persons, consisting of three single and two double crew cabin, a gallery / mess & sanitary facilities |
|
Owner |
Marine & Towage Services Group Ltd. (MTS Group) |
|
Last update |
02.05.2013 |
