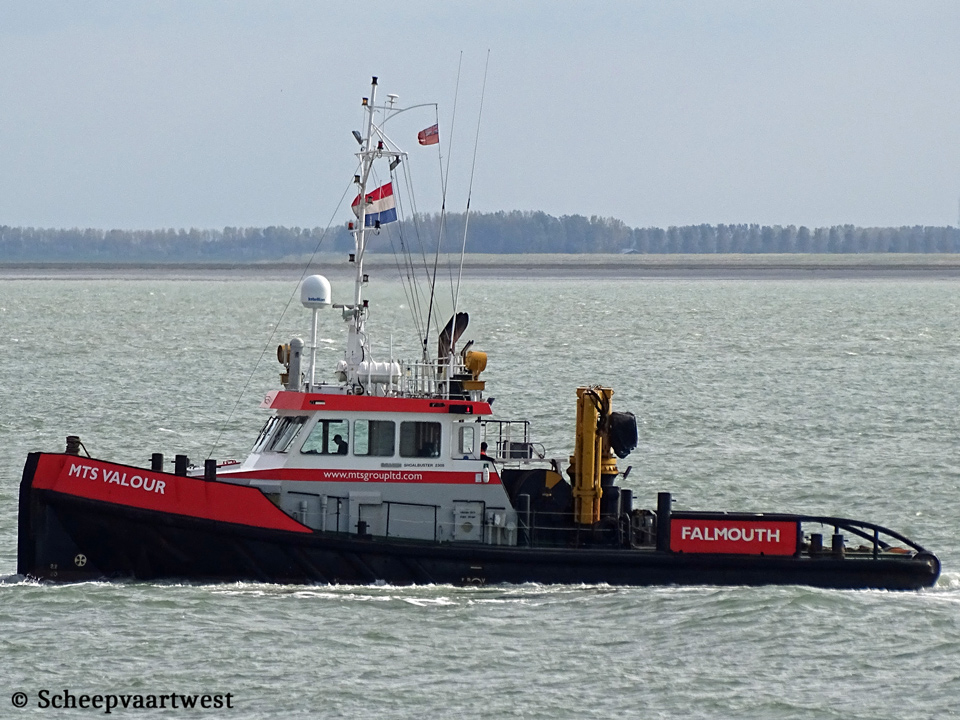

Westerschelde 09 October 2020 |
 |
 |
 |
 |
|||

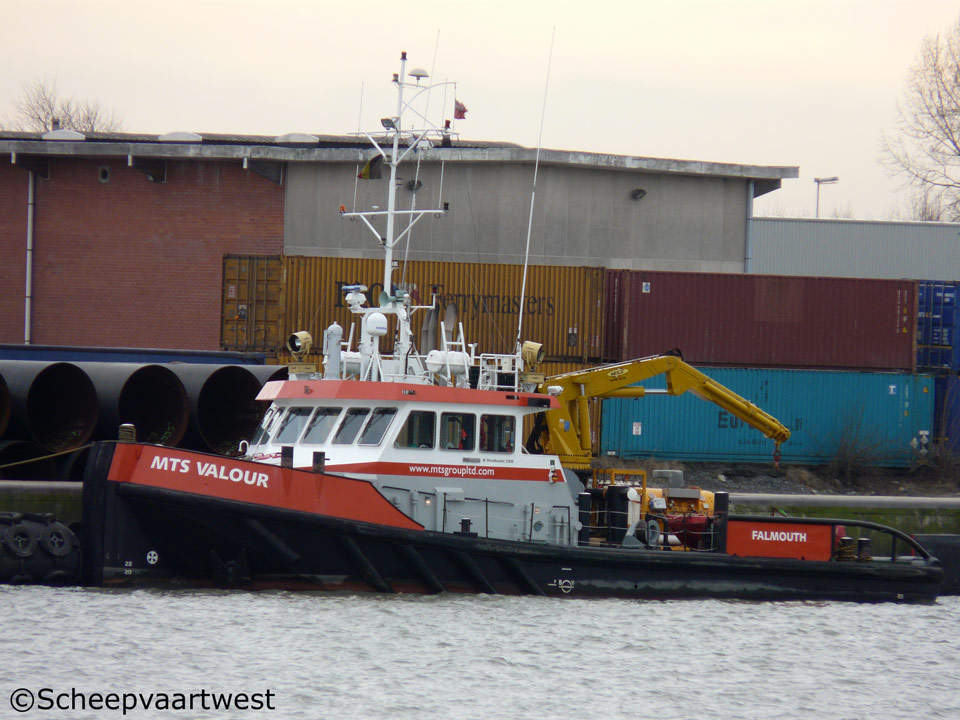

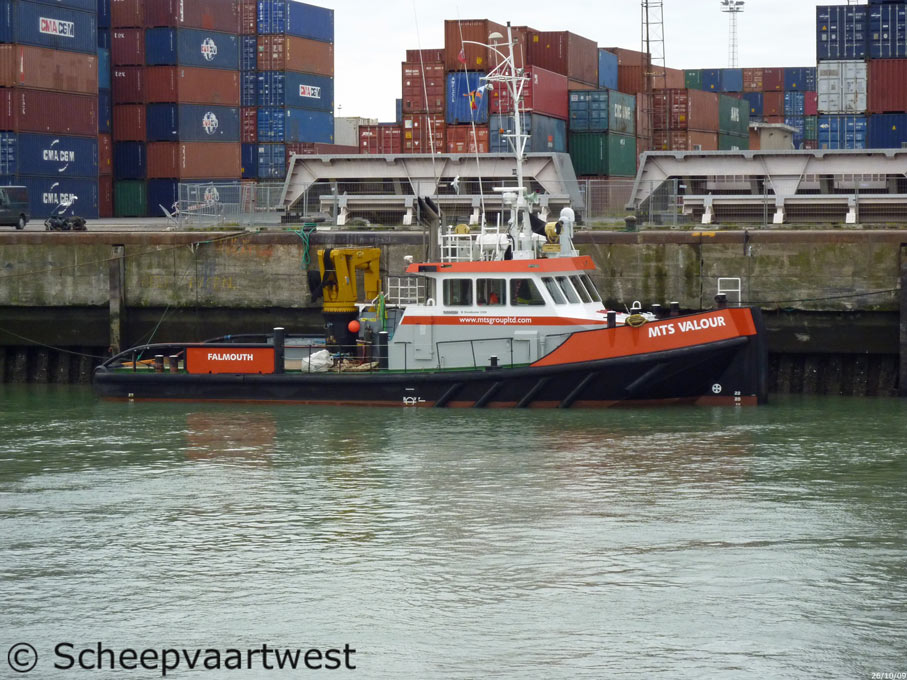

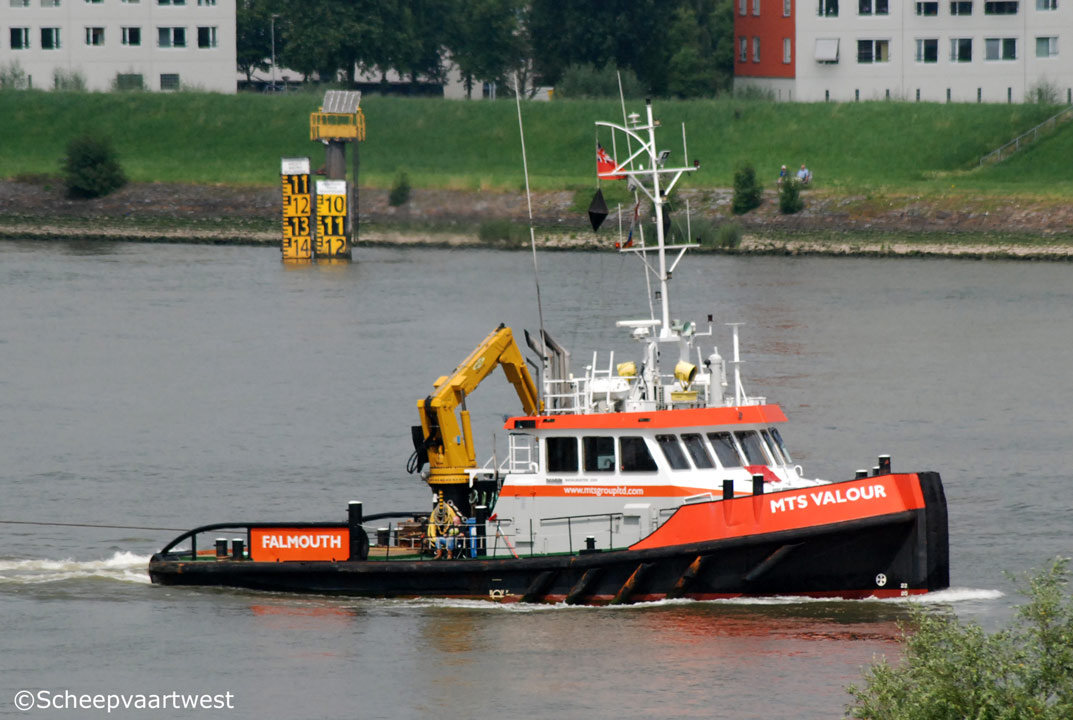

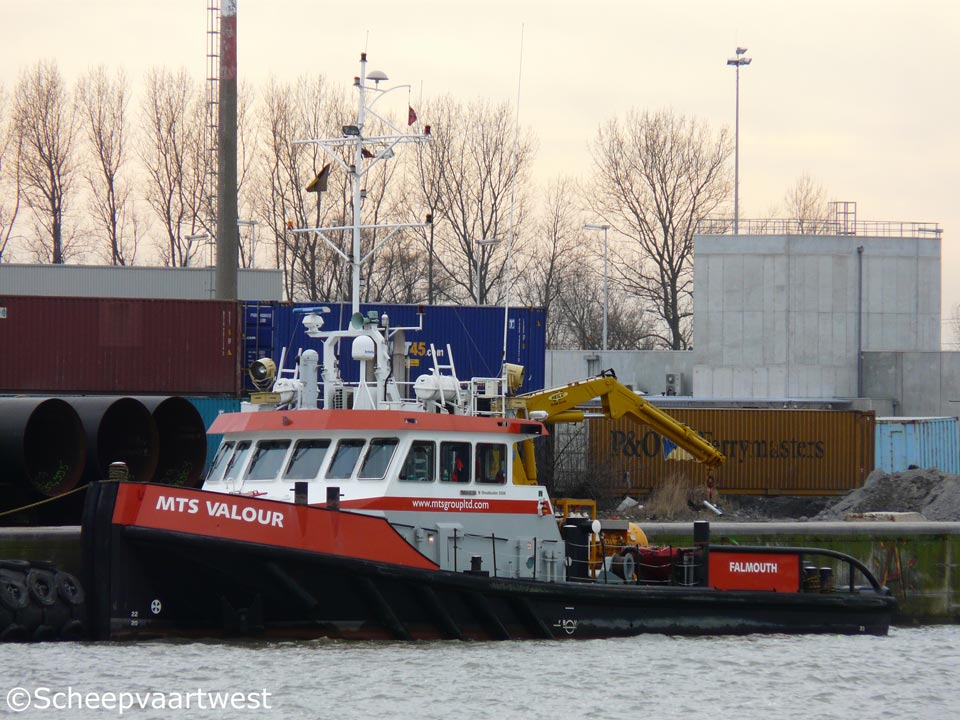

| Zeebrugge 26/10/09 | Zeebrugge 03/03/10 | Zeebrugge 03/03/10 | Spijkenisse 24/07/16 | |||
|
Name |
MTS VALOUR |
|
Type |
Tug coastal area- Damen Shoalbuster 2308 |
|
Basic functions |
Towing - Mooring - Anchor handling - Dredging support |
|
IMO-number |
9407299 |
|
Call sign |
MPVV8 |
|
Flag |
United Kingdom |
|
Port of registry |
Falmouth |
|
GT |
123 t |
|
NT |
37 t |
|
Length |
23,35 m overall 20,34 m between perpendiculars |
|
Breadth |
8,65 m overall |
|
Draught |
Summer: 1,95 m 2,10 m aft |
|
Depth at sides |
2,99 m |
|
Speed |
Service: 10,5 knots Max.:11,5 knots |
|
Built |
2006 |
|
Build completion |
02/11/2006 |
|
Builder |
Damen Shipyard Hardinxveld The Netherlands |
|
Yard number |
1572 |
|
Hull material |
Steel |
|
Number of decks |
1 |
|
Main engine |
2x Caterpillar type 3412D BTTA - 4 stroke 12 cylinder 145 x 162 mm combustion engines each 632 kW / 859 hp at 1.800 rpm Total: 1.264 kW / 1.720 hp Build: 2006 Builder: Caterpillar Inc., Peoria, Illinois - USA |
|
Propulsion |
2x Promarin fixed pitch propellers diameter 1.600 mm in Optima nozzle |
|
Gearbox |
2x Reintjes WAF 464 reduction 5,042:1 |
|
Generators |
1x John Deere 6068TF 258 diesel generatorset 60 kVA / 220/380 Volt 50 Hz 1x Hatz 4L41C diesel generatorset 30 kVA - 24 kW - 30 hp / 220/380 Volt 50 Hz |
|
Bow thruster |
120 hp - hydraulically driven |
|
Bollard pull |
23 t |
|
Tank capacities |
Fuel oil: 45,50 m³ Fresh water: 13,90 m³ Lub oil: 1,30 m³ Hydraulic oil: 0,90 m³ |
|
Transfer pumps |
For water and fuel Manufacture: SIHI |
|
Fuel separator |
Alfa Laval |
|
Deck lay-out |
Anchor winch: Ridderinkhof hydraulic 30,0 t - 6m/min Towing wire: First drum 550,00 m x 34 mm / Second drum 300 m x 32 mm Tugger winch: 8,0 t - 30,00 m Stern deck: Hydraulic anchor pins x 3 |
|
Deck crane |
1x Heila 80-3S, remote controlled |
|
Accommodation |
Heated and fully air-conditioned living spaces for 5 persons, consisting of a captain's cabin, a C.E. Cabin, one single and one double crew canine, a galley and sanitary facilities |
|
Nautical & communication equipment |
GMDSSA300 Equipped 2x Pesche 300 W searchlights 1x Kotter type 1x Gyro compass 1x Furuno FR 8051 ARPA radar 1x Furuno GP - 80 GPS system 2x PCNAV stations with Transas chart software Radio Holland Seapolit Autopilot Furuno FCV-582J Echo Sounder 2x Sailor 5822 DSC 2x H/H VHF 5x Navtex Inmarsat C / SSB / Phone / Fax |
|
Crew |
4 |
|
Owner |
MTS - Marine and Towage Services Group Ltd. Kings Quay, King Street Brixham, Devon TQ5 9FW United Kingdom |
|
Latest data adjustment |
18 February 2021 |
