| Antwerpen 16 April 2010 |
 |
 |
 |
 |
|||
| Antwerpen 16/04/10 | Vlissingen 03/12/11 | Antwerpen 14/09/13 | Spijkenisse 24/11/16 | |||
|
Name |

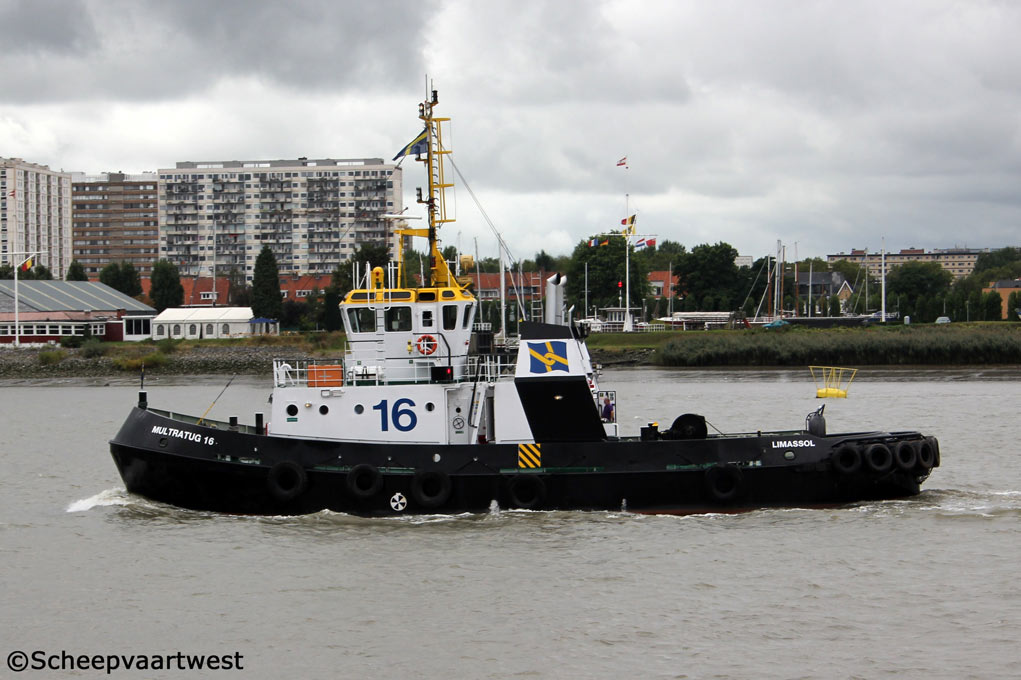

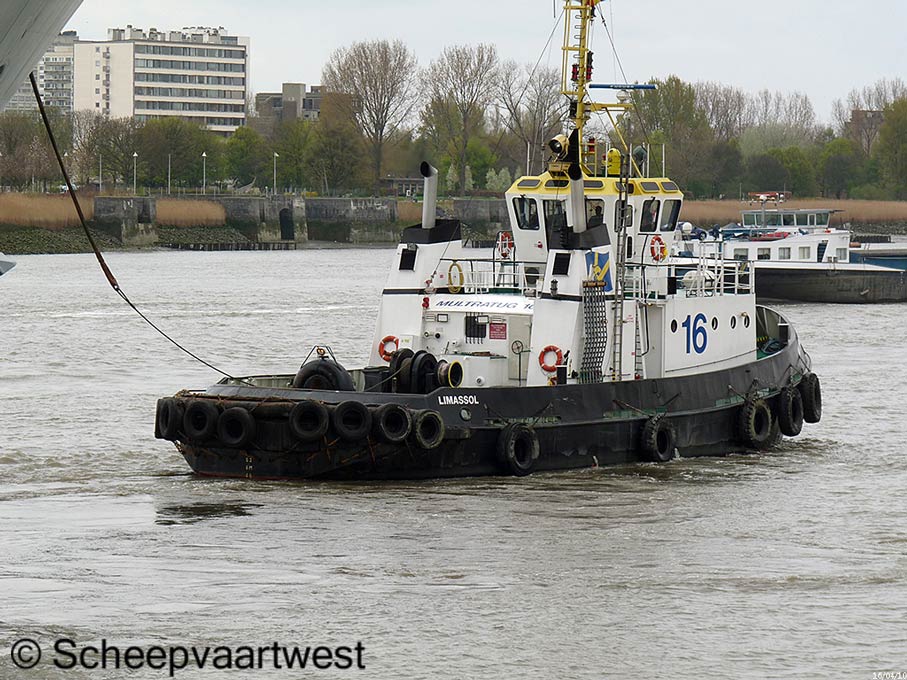

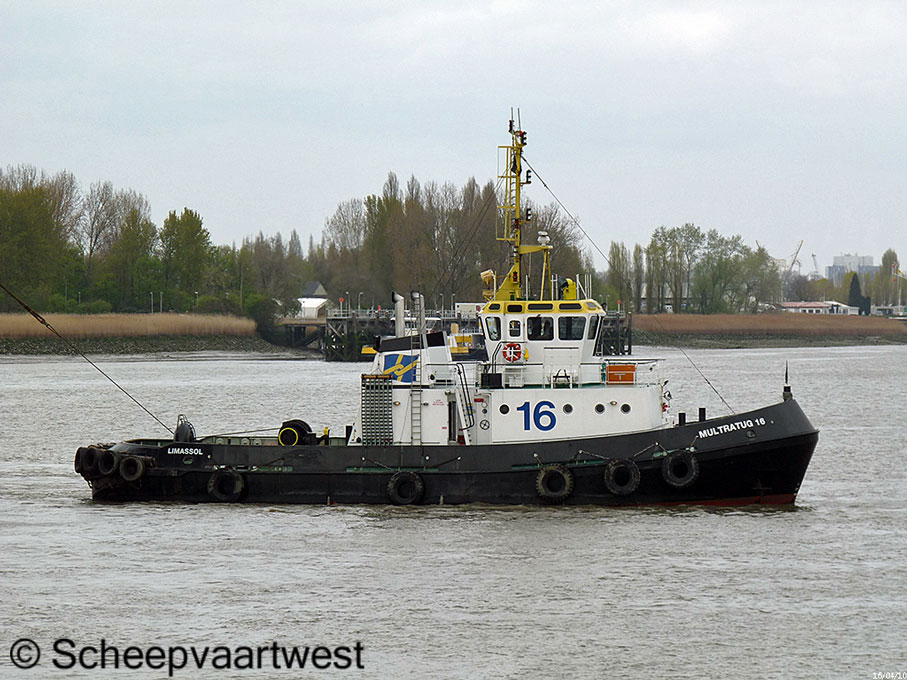

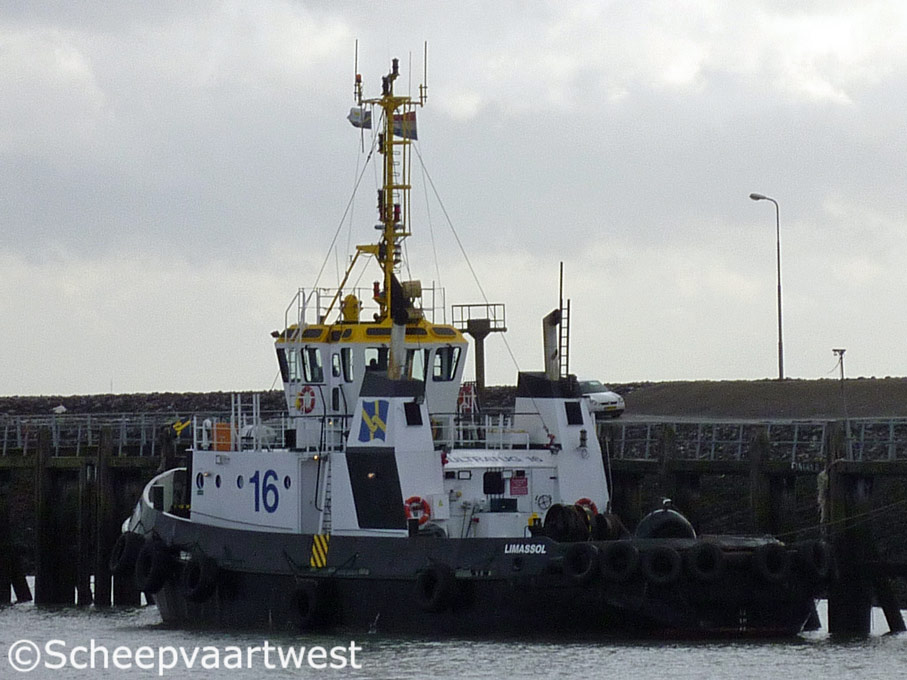

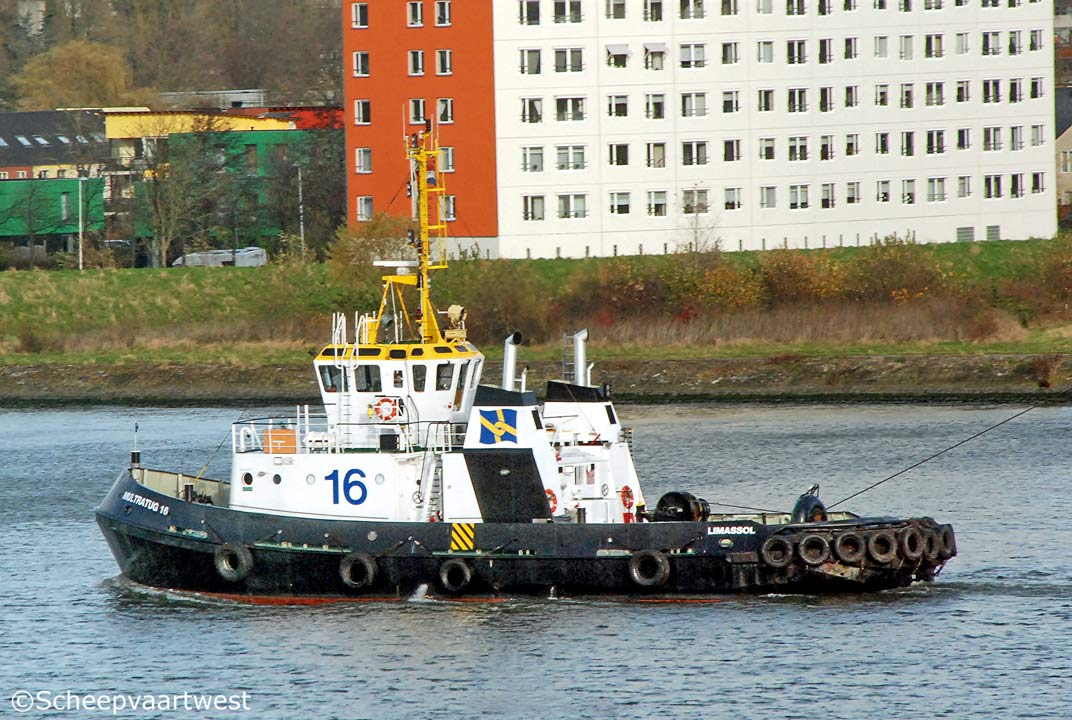

MULTRATUG 16 |
|
Previous names |
1985 Hamtun 2006 Multratug 16 |
|
Type |
Tug - Twin Schottel |
|
IMO-number |
8414154 |
|
Call sign |
C4PF2 |
|
Flag |
2006 Cyprus |
|
Previous flag |
1985 -2006 United Kingdom 2006 - 2006 The Netherlands |
|
Port of registry |
2006 Limassol |
|
Previous port of registry |
1985 - 2006 Southampton 2006 - 2006 Terneuzen |
|
GT |
280 t registered |
|
DWT |
94 t |
|
NT |
75 t registered |
|
Length |
29,37 m overall 27,24 m between perpendiculars |
|
Breadth |
9,12 m |
|
Draught |
Max.: 4,69 m |
|
Depth |
3,71 m |
|
Speed |
11,3 knots |
|
Built |
1985 |
|
Builder |
McTay Marine |
|
Yard number |
57 |
|
Main engine |
2x Stork Werkspoor type 6FHD240 - 4 stroke 6 cylinder diesel engines - total 2.001 kW / 2.720 bhp Builder: Stork-Werkspoor Diesel B.V., Zwolle - The Netherlands |
|
Propulsion |
2x Schottel SRP 503/503 with nozzle - Schottel tractor tug |
|
Auxiliary equipment |
Main generator sets: 2x Gardner 6LxB Diesels Capacity: 2x 91 kW Voltage, frequency: 380/220V, 50 Hz |
|
Bollard pull |
36,0 t |
|
Deck lay-out |
Anchor: Gemmell & Frow LTD Enginee Winch: Gemmell & Frow LTD Engineers Capacity: 100 m Brake capacity : 31,8 tons 1x towing hook |
|
Towing gear |
Various wires, shackles, bridles, etc. for towage and salvage purposes |
|
Pumps |
Ample supply of portable pumps |
|
Tank capacities |
Fuel oil: 36 m³ Fresh water: 15.,20 m³ Lubrication oil: 0.,90 m³ Dirty oil :2,00 m³ |
|
Accommodation |
5x 1-Man cabins 1x Messroom 1x Galley |
|
Navigation |
Radar Furuno echosounder Alphachart plotter Magnetic compass |
|
Manager |
Multraship Towage & Salvage |
|
Owner |
Multraship Towage & Salvage |
|
Latest data adjustment |
01 March 2015 |
