| Antwerpen 29 July 2009 |
 |
 |
|
| Antwerpen 29/07/09 | Antwerpen 12/09/07 | |
|
Name |

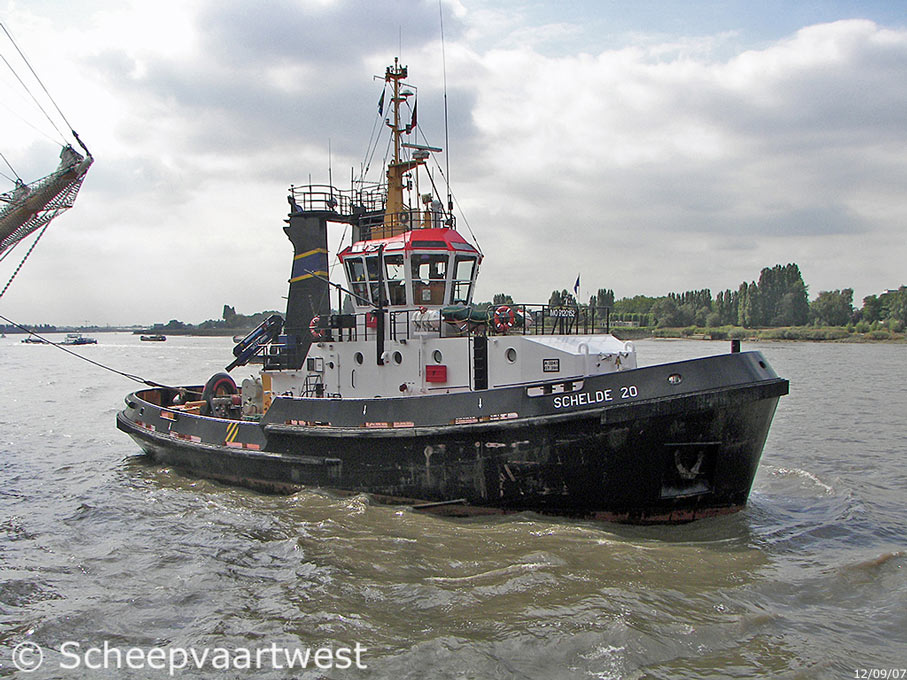

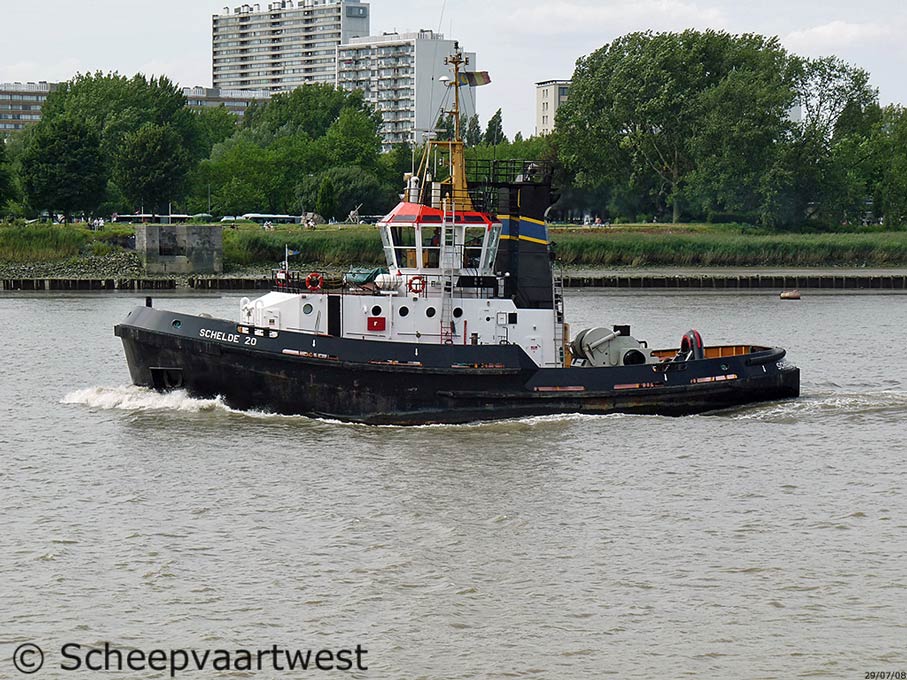

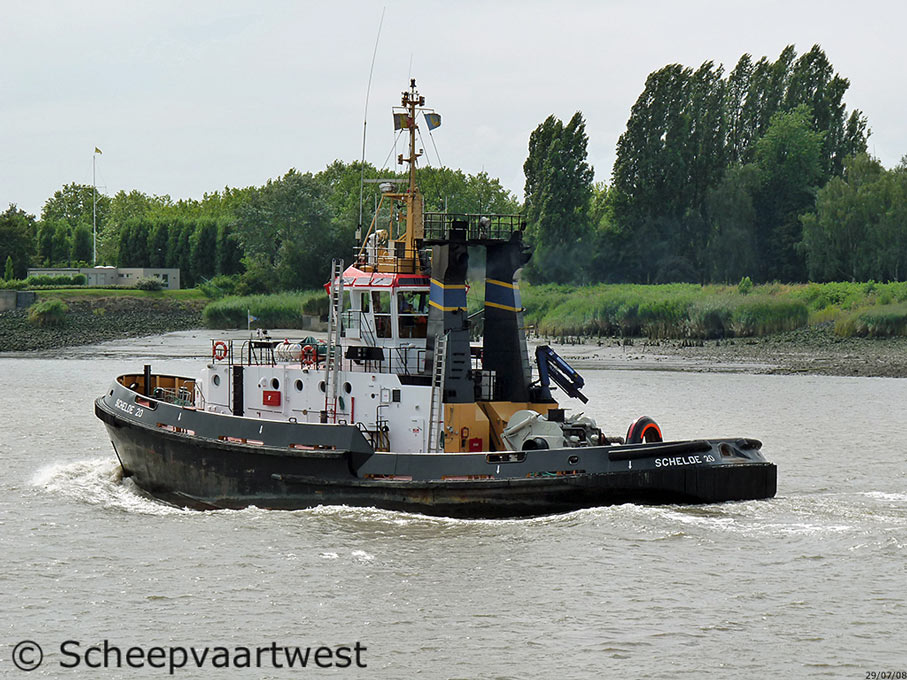

SCHELDE 20 |
|
Type |
Seagoing Voith Schneider tugs |
|
IMO-number |
9120152 |
|
Call sign |
ORKB |
|
Flag |
Belgium |
|
Port of registry |
Antwerpen |
|
GT |
398 t |
|
DWT |
Summer: 255 t |
|
NT |
119 t |
|
Length |
30,54 m overall 28,50 m between perpendiculars |
|
Breadth |
11,52 m overall |
|
Max. draught |
4,50 m |
|
Depth |
3,34 m |
|
Speed |
12,5 knots |
|
Built |
1996 |
|
Builder |
Astilleros Armon |
|
Yard number |
369 |
|
Main engine |
2x Deutz’type SBV8M628 - 4 stroke 8 cylinder diesel engines each 1.550 kW total 3.100 kW / 4.080 bhp at 900 rpm |
|
Propeller |
2x Voith Schneider propeller via a fluid coupling |
|
Generators |
2x Diesel generatorsets each 180 kVA - 3x 380 V - 50 Hz 1x Diesel generatorset of 90 kVA for harbour duties |
|
Harbour winch |
Brake holding: 90 t. |
|
Bollard pull |
43 t |
|
Accommodation |
Air-conditioned accommodation provides for 8 men |
|
Owner |
N.V. Unie van Redding- en Sleepdienst Italiëlei 3 |
|
Previous owners |
1996 Schelde 20 Schelde Sleepvaartbedrijf, Antwerpen - Belgium 2000 Schelde 20 Unie van Redding en Sleepdienst N.V., Antwerpen - Belgium |
