Spijkenisse, The Netherlands 27 March 2013 |
 |
 |
 |
||

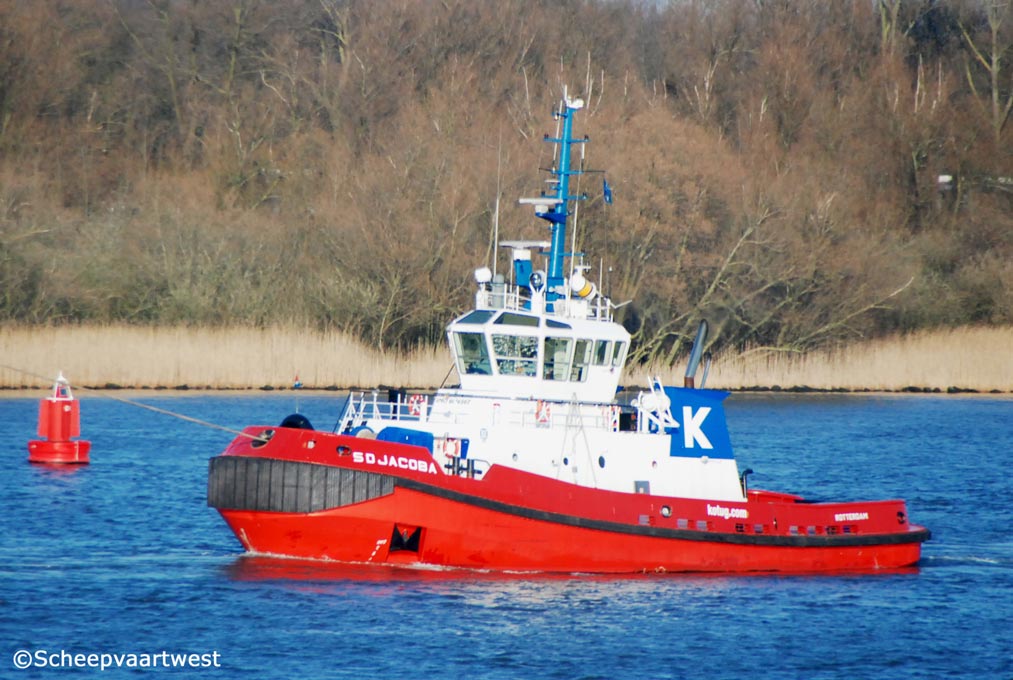

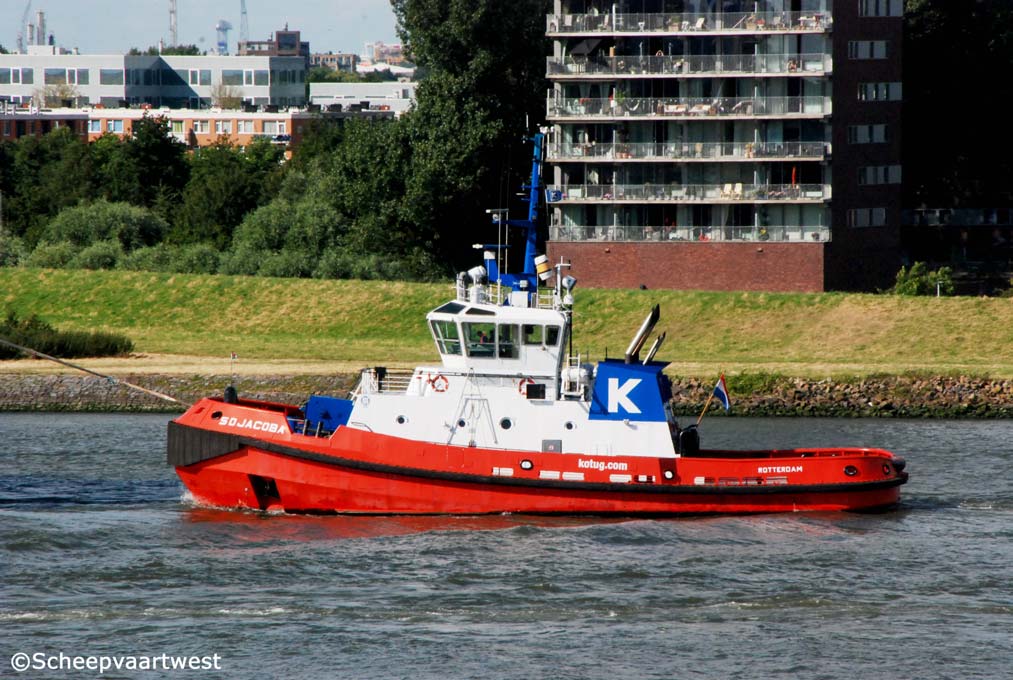

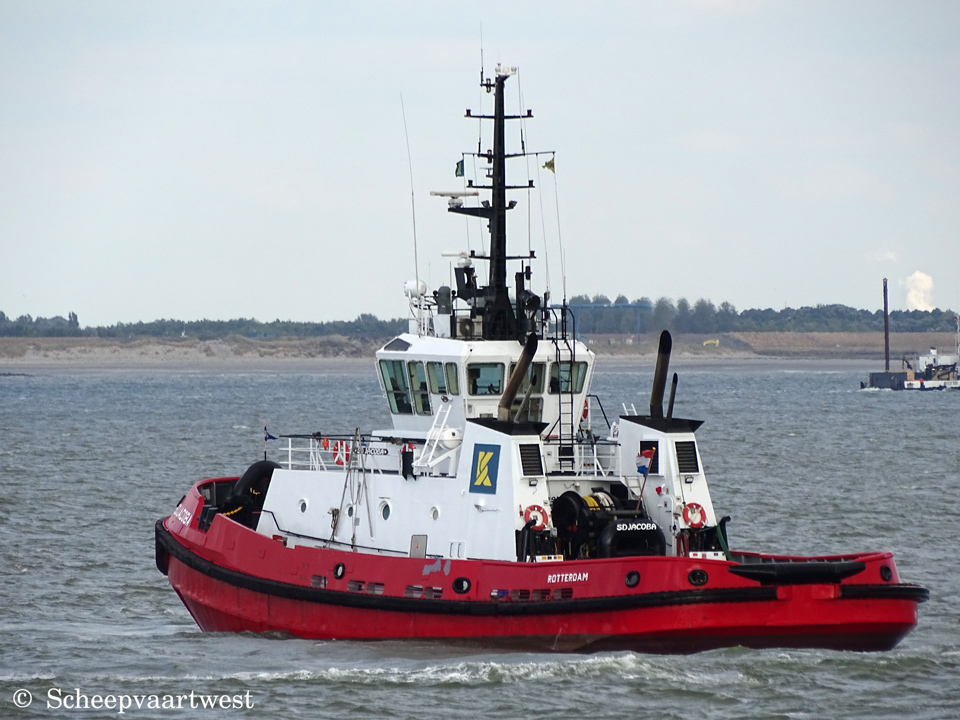

| Spijkenisse 01/07/14 | Spijkenisse 30/10/14 | Westerschelde 08/08/18 | ||
|
Name |
SD JACOBA |
|
Previous names |
1998 Launch as: Atlantic Fir - From Atlantic Towing, St. John - Canada |
|
Type |
Tug - Azimuth stern drive |
|
IMO-number |
9174567 |
|
Call sign |
PIAM |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
392 t |
|
DWT |
Summer: 145 t |
|
NT |
117 t |
|
Length |
30,80 m |
|
Breadth |
11,14 m |
|
Draught |
4,78 m |
|
Air draft |
17,00 m |
|
Depth |
5,21 m |
|
Speed |
Max.: 13,2 knots |
|
Built |
1998 |
|
Keel laid |
15/11/1997 |
|
Date of completion |
01/08/1998 |
|
Delivery date |
23/05/1998 |
|
Builder |
East Isle Shipyard Georgetown Prince Edward Island Canada |
|
Yard number |
66 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516 TA - 4 stroke single acting 16 cylinder 170 x 190 mm combustion engines each 1.491,5 kW total 2.983 kW / 4.056 bhp at 1.500 rpm Starter type: Compressed air Built: 1998 |
|
Propellers |
2x Azimuth Stern drive propulsion |
|
Electric installation |
440/220 Volt - 50 Hz |
|
Generators |
2x Caterpillar 3306 main diesel generatorsets each 142 kW |
|
Bollard pull |
52 t |
|
Towing equipment |
Single drum forwards, pull 10,8 t, brake holding power 109 t, pulling speed 21,30 m/min, capacity 122,00 m 3" Single drum aft, pull 31 t, brake holding power 109 t, pulling speed 7,30 m/min, capacity 762,00 m, 50,8 mm Fwd 250,00 m, 50,8 mm diameter Aft. 550,00 m, 50,8 mm diameter |
|
Bunker capacity |
Fuel oil: 273 m³ Potable water: 22 m³ Lubricating oil: 1,4 m³ |
|
Accommodation |
2x Single cabins 2x Double cabins |
|
Communication navigation |
MF/HF/DSC Radio Navtex 2x Radar Echo sounder GPS Magnetic compass Rate of turn indicator 2x VHF / DSC 2x VHF Hand Held Epirb Sart GSM Mobile Phone Ais |
|
Operator |
KOTUG International B.V. Wilhelminakade 318 3072 AR Rotterdam The Netherlands |
|
Owner |
K. & K. International BV Sleepdienst Adriaan Kooren B.V. Parklaan 2 3016 BB Rotterdam The Netherlands |
|
Renamed |
2020 VB Furie The Netherlands - Call sign: PIAM Operator: Boluda Towage Europe |
|
Latest data adjustment |
09 July 2020 |
