| Vlissingen, The Netherlands 07 October 2011 |
|
Name |

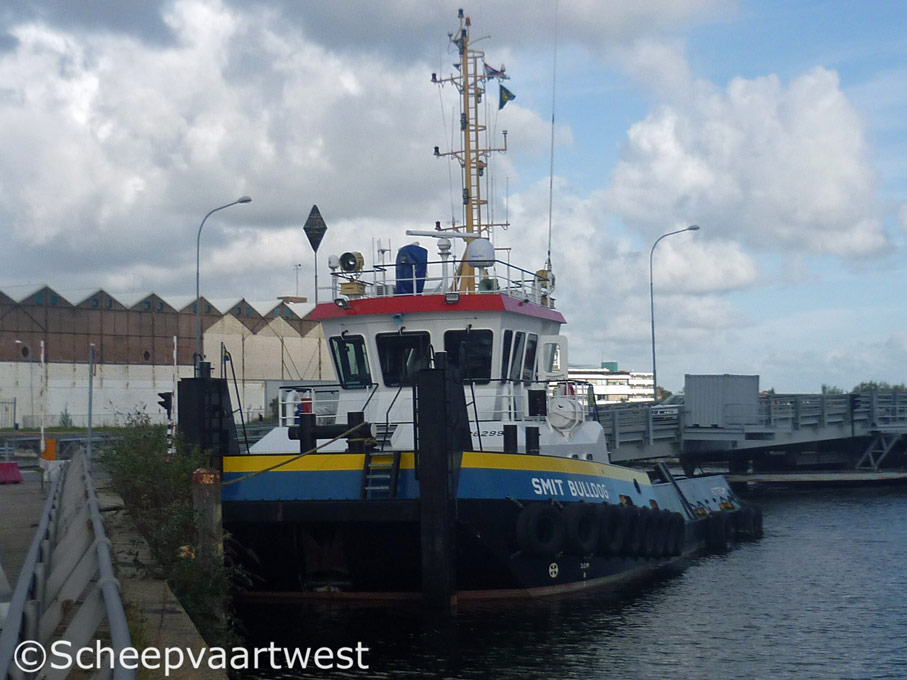

SMIT BULLDOG |
|
Type |
Tug - Pusher 28 tonnes bollard pull multi-purpose vessel |
|
IMO-number |
9528299 |
|
Call sign |
PBWD |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
230 t |
|
NT |
69 t |
|
Length |
25,80 m overall 23,66 m between perpendiculars |
|
Breadth |
10,05 m overall |
|
Draught |
3,17 m |
|
Air draught |
8,75 m |
|
Speed |
11,0 knots |
|
Built |
2009 |
|
Date of completion |
30.09.2009 |
|
Builder |
Damen Shipyards Hardinxveld |
|
Yard number |
571611 |
|
Hull material |
Steel |
|
Watertight Comp |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3508B- 4 stroke 12 cylinder 170 x 190 mm diesel engines - each 746 kW total 1.492 kW / 2.028 hp at 1.600 rpm Builder: Caterpillar, Lafayette - USA |
|
Propelling system |
2x Screw propeller solid - at 295 rpm |
|
Generators |
2x Caterpillar 3056T diesel generatorsets each 97,5 kVA |
|
Bow thruster |
150 kW |
|
Deck equipment |
Towing anchor handling winch Kraaieveld, hydraulic driven: Tow drum capacity 700 m, diameter 38 mm. Anchor handling drum capacity 200 m, diameter 44 mm. Towing hook - SWL 35 t. Stern roller - SWL 100 t. Anchor handling gear: towing pins and wire stopper. |
|
Pumps |
Bilge pumps: 24 m³ Fuel supply pump: 12 m³ Water supply pump: 12 m³ |
|
Fuel oil separator |
600 litres/hr |
|
Bollard pull |
28 t |
|
Tank capacities |
Fuel oil: 64 m³ Fresh water: 33 m³ |
|
Lifting equipment |
1x Crane Heila type HLRM 140-3S hydraulic driven: 1400 kNm Capacity load: 26 t at 5,65 m Capacity reach: 10 t at 12,25 m |
|
Optional modular units |
Fire-figthing (fifi) unit, double drum mooring winch, pump unit for ballast/salvage purposes, diving/decompression unit, survey equipment, oil spill response unit. |
|
Accommodation |
Accommodation for 6 people, fully air-conditioned, sewage treatment unit |
|
Operator |
SMIT Transport Europe 3008 PB Rotterdam The Netherlands |
|
Owner |
Smit Shipping Singapore Private Limited |
