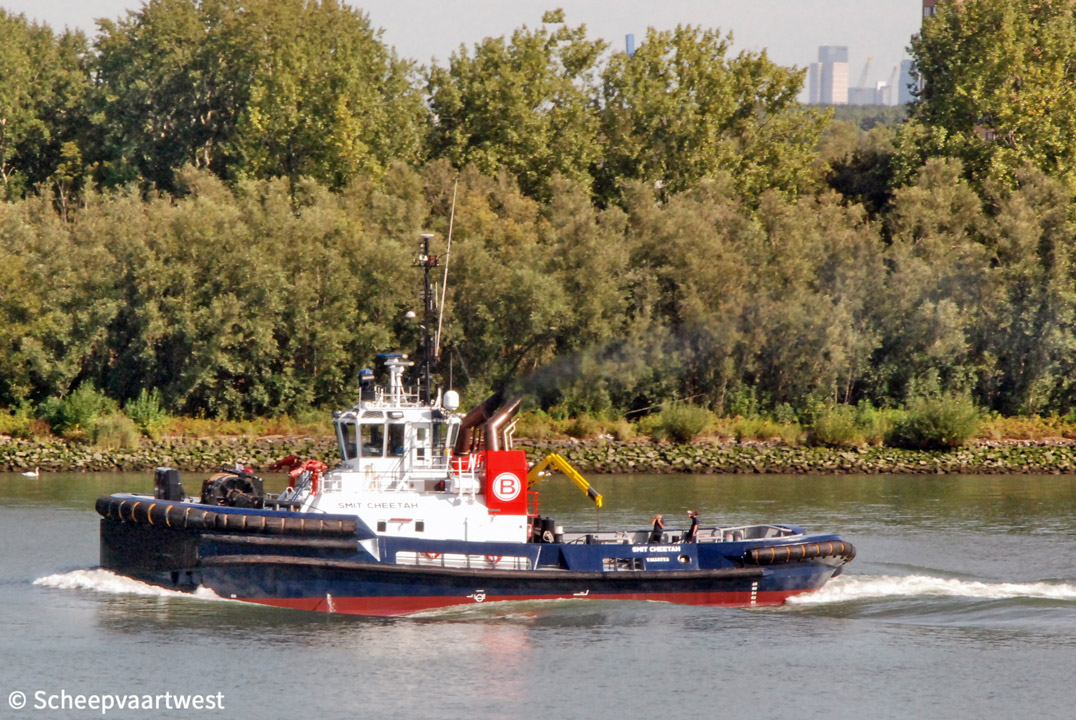

Smit Cheetah 01

Spijkenisse, The Netherlands 20 September 2019



Name

SMIT CHEETAH

Type

Seagoing Tug - Azimuth Stern Drive tug 3213

Basic functions

Towing, mooring, escorting and fire fighting operations

IMO-number

9454876

Call sign

C6YB7

Flag

Bahamas

Port of registry

Nassau

GT

484 t

NT

145 t

Displacement

1.012 t

Length

32,14 m overall

29,50 m between perpendiculars

Breadth

13,39 m

Draught

Aft: 6,26 m

Air draft

12,00 m mast lowered

Depth

5,50 m at sides

Speed

Max: 12,5 knots

Built

2009

Keel laid

30/05/2008

Launch date

08/03/2009

Date of completion

18/09/2009

Builder casco

Damen Shipyard Song Cam Shipyard

Haiphong

Vietnam

Yard number

513003

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

2x Caterpillar C280-8/MC - 4 stroke 16 cylinder combustion engines total 5.420 kW / 7.268 bhp at 1.000 rpm

Propellers

2x Controllable pitch ASD propellers - diameter 3.000 mm

Azimuth thrusters

2x Rolls Royce US 285

Generators

2x Caterpillar C9TA diesel generatorsets each 188 kVA - 230/400 Volt 50 Hz

Bollard pull

Ahead: 96,6 t

Astern: 89,6 t

Auxiliary equipment

  • Bilge pumps: 2x Sterling SIHI AKHK 6101 - 34 m³/h

  • Bilge water separator: Facet 0,5 m³/h

  • Fuel pumps: Sterling SIHI AKHA 5101 and 2x R35/40

  • Fuel purifiers: 2x Westfalia OTC 2-02-137

  • Cooling system: Box cooling + anti marine growth system

  • Sewage treatment plant: Headhunter TW-200B

  • Pressure set: Headhunter Turbopaq-230

  • Hydraulic system: Double main engine driven pumps

  • Dispersant: Dispersant pump set with 2 spraybooms

  • Fire fighting: Main engine driven pumps, 2x 1.400 m³/h (FiFi 1)

  • Fifi monitors: 2x 1.200 m³/h, water/foam

Deck equipment

  • Anchor equipment: 2x 585 kg Pool ( HHP) + 330,00 m chain, 24 mm, U2

  • Anchor/towing winch: Hydraulically driven escort winch with double drum and warping head, pull 100 ton at 0-10 m/min, 1x 320,00 m diameter 56 mm wire, 1x 160,00 m diameter 60 mm rope, 320 ton brake

  • Capstan: 5 ton at 15 m/min. Electrically driven

  • Towing winch aft: Hydraulically driven, escort winch with spooling device, pull 80 ton at 0-11 m/min, 600,00 m /56 mm wire, 320 ton brake

  • Towing hook aft: Mampaey 100 ton SWL.

  • Stern roller: SWL. 126 ton, length: 3,00 m diameter: 1,20 m

Tank capacities

Fuel oil: 200,0 m³

Fresh water: 65,6 m³

Foam: 14,3 m³

Dispersant: 3,0 m³

Lubrication oil: 10,7 m³

Bilge water: 4,9 m³

Dirty oil: 4,9 m³

Sewage: 2,3 m³

Sludge: 2,4 m³

Nautical & communication equipment

  • Searchlight: 2x Pesch Xenon 450W

  • Radar system: 2x Furuno FAR-2117

  • Compass: Magnetic Kotter/ Satellite Furuno SC 50

  • Autopilot: Simrad AP-50

  • GPS: Furuno GP-150

  • Echosounder: Furuno FE-700

  • Speedlog: Furuno DS-80

  • VHF Radio Telephone: 2x Sailor RT5022 (one with DSC)

  • SSB: Furuno FS-1570

  • AIS: Furuno FA-150

  • Navtex: Furuno NX-700

  • Inmarsat: Furuno Felcom 15 + spare

  • Anemometer: Windsonic OMC 115

Lifting equipment

1x Deck crane Heila HLM 10-2S - SWL 1.100 kg at 7,84 m

Accommodation

For 13 persons, insulated and finished with durable modern linings, floating floors, acoustical ceiling in the wheelhouse and air-conditioned. With 8 cabins, galley, mess/dayroom and sanitary facilities

Head quarters

Boluda Corporation Maritima

Waalhaven Zuidzijde 21

3007 GA Rotterdam

The Netherlands

Previous names & owners

2009 - 2014 Smit Cheetah - Smit Habour Towage Rotterdam BV , Rotterdam - The Netherlands

2014 - 2016 Smit Cheetah- Cheetah Ltd in Sliema- Malta

2016 - 2019 Smit Cheetah - Kotug Smit Towage, Rotterdam - The Netherlands

Renamed

VB Cheetah

Malta, Valletta - Call sign: 9HA4275

Owner: BOLUDA Corporation Maritima,Valencia - Spain

Latest data adjustment

01 June 2020
