Westerschelde 04 July 2019 |
 |
 |
|
| Vlissingen 20/01/14 | Vlissingen 20/01/14 | |
|
Name |

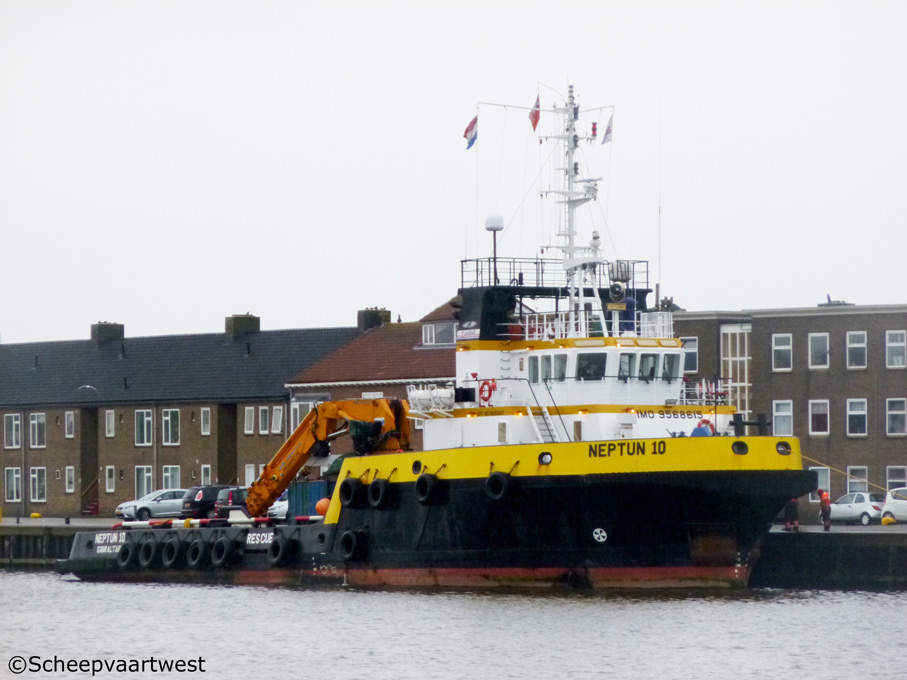

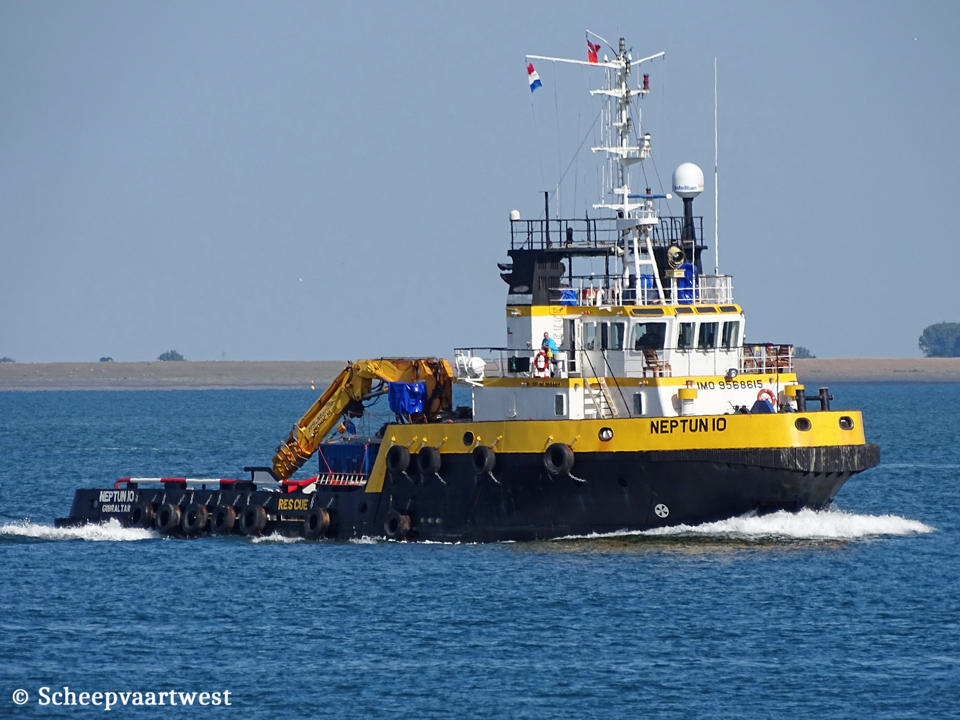

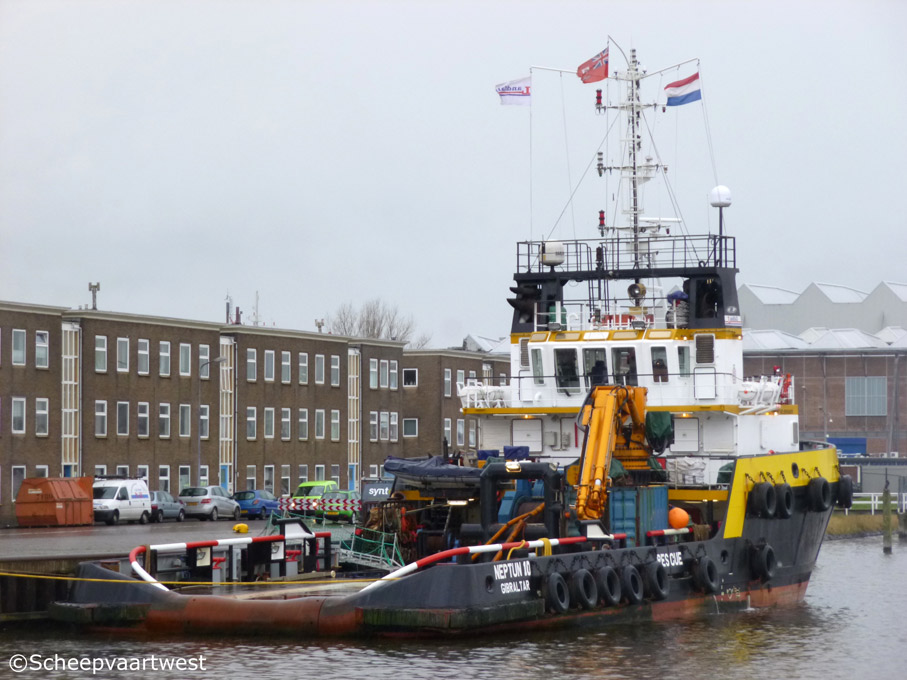

NEPTUN 10 |
|
Type |
Anchor handling tugboat / Utility vessel / Offshore supply ship |
|
IMO-number |
9568615 |
|
Call sign |
ZDJQ8 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
498 t |
|
NT |
149 t |
|
Length |
40,00 m overall 34,90 m between perpendiculars |
|
Breadth |
11,80 m |
|
Draught |
3,80 m light ship 4,15 m max. |
|
Freeboard |
612 mm |
|
Depth |
4,60 m |
|
Speed |
Max: 12,0 knots |
|
Built |
2010 |
|
Launch date |
06/07/2009 |
|
Date of completion |
30/04/2010 |
|
Builder |
Zhongshan Jinhui Ship Repair & Building Factory Co.,Ltd. Zhongshan China |
|
Yard number |
JH2006 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
5 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar 3516TA - 4 stroke 16 cylinder 170 x 215 mm combustion engine total 2.982 kW / 4.052 bhp at 1.600 rpm Starter type: Electrical starter Built: 2007 |
|
Propellers |
2x Screw propeller solid - aft at 242 rpm 4 blades |
|
Generators |
2x Caterpillar 3406C diesel generatorset each 306 kVA - 245 kW - 353 hp 1x Caterpillar C18 diesel generatorset 563 kVA - 450 kW - 668 hp |
|
Emergency generator |
1x Caterpillar C4.4 diesel generatorset 102 kVA |
|
Bow thruster |
320 kW |
|
Deck equipment |
Towing winch double drum waterfall type 75,0 ton Tow wires: 1x 1.000 m and 1x 800 m Tow wire diameter: 52 and 48 mm Towing hook: 60,0 ton |
|
Bollard pull |
53,0 ton |
|
Deck cargo capacity |
6 TEU - 125 ton |
|
Clear deck area |
159 m² |
|
Cargo deck load |
5,0 t/m² |
|
Tank capacities |
Fuel oil: 311,2 m³ Fresh water: 150.000 litres |
|
Lifting equipment |
1x Deck Crane Promac HS AKC 220/22-1.4 - SWL: 4.500 kg at 22,00 m 7.600 kg at 15,00 m 10.500 kg at 11,00 m 15.840 kg at 8,50 m 14 t @ 2,00 m |
|
Crew |
14 |
|
Navigation equipment |
Radar Echosounder Speed log GPS Autopilot 2x Compass AIS Navtex Sart Epirb VHF SSB Inmarsat C + GMDSS A3 |
|
Operator |
Landfall Marine Contractors Gieterijstraat 88 2984 AB Ridderkerk The Netherlands |
|
Registered owner |
Dutch Towing Company B.V. Rivierdijk 458 3372BW Hardinxveld-Giessendam The Netherlands |
|
Renamed |
04/2021 Bukkholmen Norway, Sandnessjøen - Call sign: LGUC Owner: Helgeland Aqua Service AS - Norway |
|
Latest data adjustment |
07 July 2022 |
