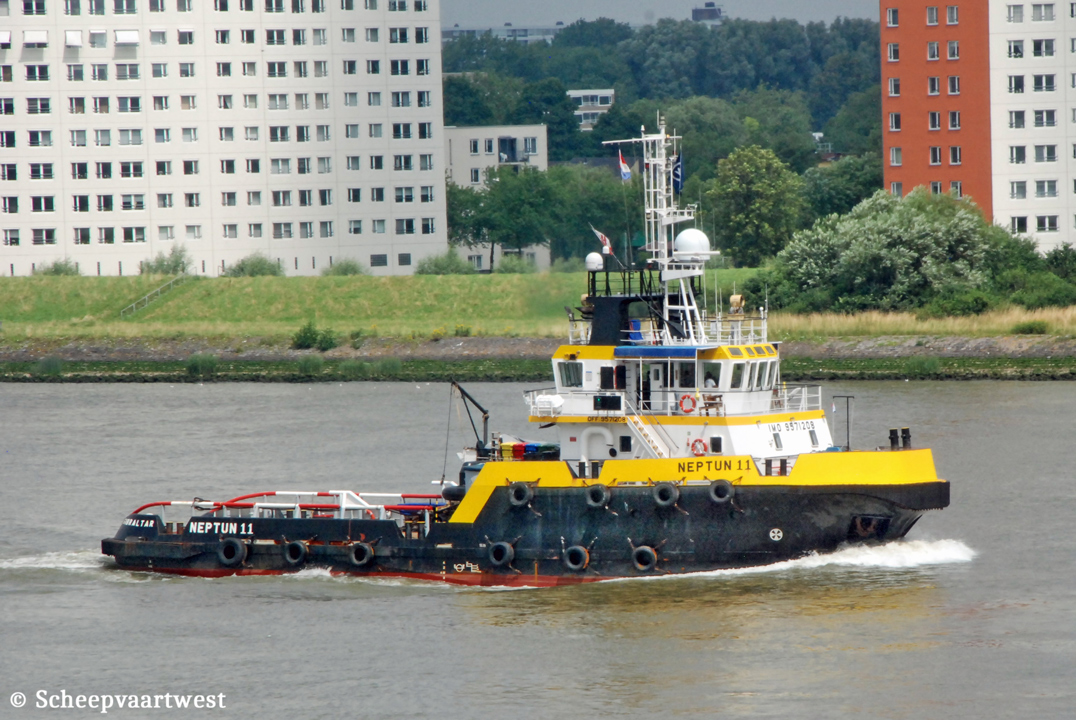

Neptun 11 - IMO 9571208

Name

NEPTUN 11

2011 - 2014 Neptun 11

2014 -2016 Graceland

Type

Anchor handling tug supply / Utility vessel

IMO-number

9571208

Call sign

ZDKE9

Flag

Gibraltar

Port of registry

Gibraltar

GT

459 t

DWT

500 t

NT

137 t

Length

36,00 m overall

31,02 m between perpendiculars

Breadth

10,40 m

Draught

Min: 3,80 m

Max: 4,15 m

Air draft

17,00 m

Freeboard

760 mm

Depth

5,00 m at sides

Speed

Max: 12,0 knots

Built

2011

Refit: 2016

Launch date

27/10/2010

Date of completion

08/07/2011

Builder casco

Panyu Yuefeng Ship Building & Repairing Factory

China

Builder completion

Neptune Shipyards BV

Aalst

The Netherlands

Yard number

YD12-349

Hull material

Steel

Watertight compartments

26

Main engine

2x Cummins KTA-50-M2 - 4 stroke 16 cylinder 159 x 159 mm combustion engines total 2.388 kW / 3.244 hp at 1.800 rpm

Propellers

2x Fixed propellers in nozzles

Diameter: 2,10 m

Generators

1x Cummins 6CTA8.3-D(M) diesel generatorset 170 kVA - 136 kW - 220 hp

2x Cummins QSM11-D(M) diesel generatorsets each 300 kVA - 240 kW - 471 hp

Bow thruster

1x Van Ballegooy 320 kW

Bollard pull

42,8 t

Deck equipment

• Winch: ME double drum Waterfall

• Towing drum: Pull force 50 t, holding force 100 t

• Anchor handling drum: Pull force 50 t, holding force 100 t

• Tow wires: 2x 800,00 m

• Tow wire diameter: 48 mm

• Tuggerwinch: 5,0 t

• Towing pins: 2 pc, SWL 200 ton

• Wire catcher: 2 pc, SWL 200 ton

• Stern roller: SWL 200 t

Deck cargo capacity

6x 1 TEU, 90 t

Clear deck area

120 m²

Cargo deck load

5,0 t/m²

Transfer

Fresh water generator: 2,5 m³/day

Fuel oil: 50 m³/h

Fresh water: 20 m³/h

Tank capacities

Fuel oil: 305.000 litres

Fresh water:100.000 litres

Accommodation

Air-conditioned, 9 berths

Navigation & Radio

Radar, AIS, echo sounder, speed log, GPS, autopilot, Navtex, 2x compass, SART, V-SAT + FBB, EPIRB, VHF, SSB, Inmarsat C + GMDSS A3

Manager

Landfall Transport & Towage BV

Registered owner

Neptune Marine Towage VI BV

Rivierdijk 586

3371 ED Hardinxveld-Giessendam

The Netherlands

Previous names & owners

2011 - 2014 Neptun 11 - Neptune Marine Towage BV, Hardinxveld - The Netherlands

2014 -2016 Graceland - Landfall Transport & Towage Company, Sliedrecht - The Netherlands

Latest data adjustment

06 March 2022
