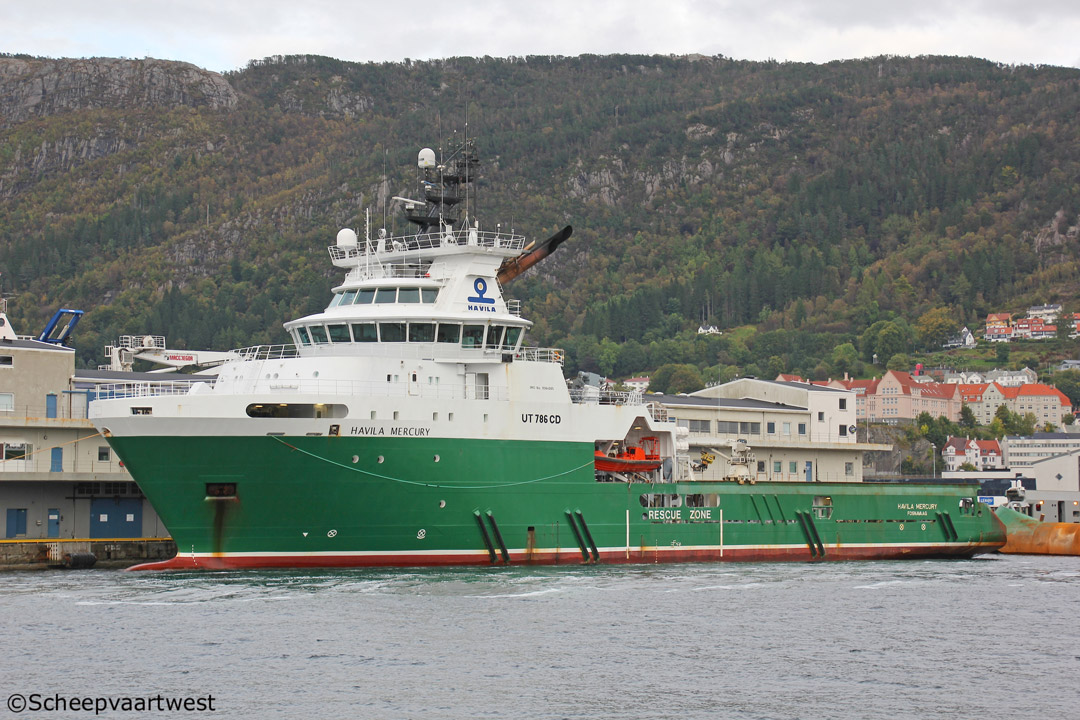

Bergen, Norway 01 October 2017 |
 |
 |
|

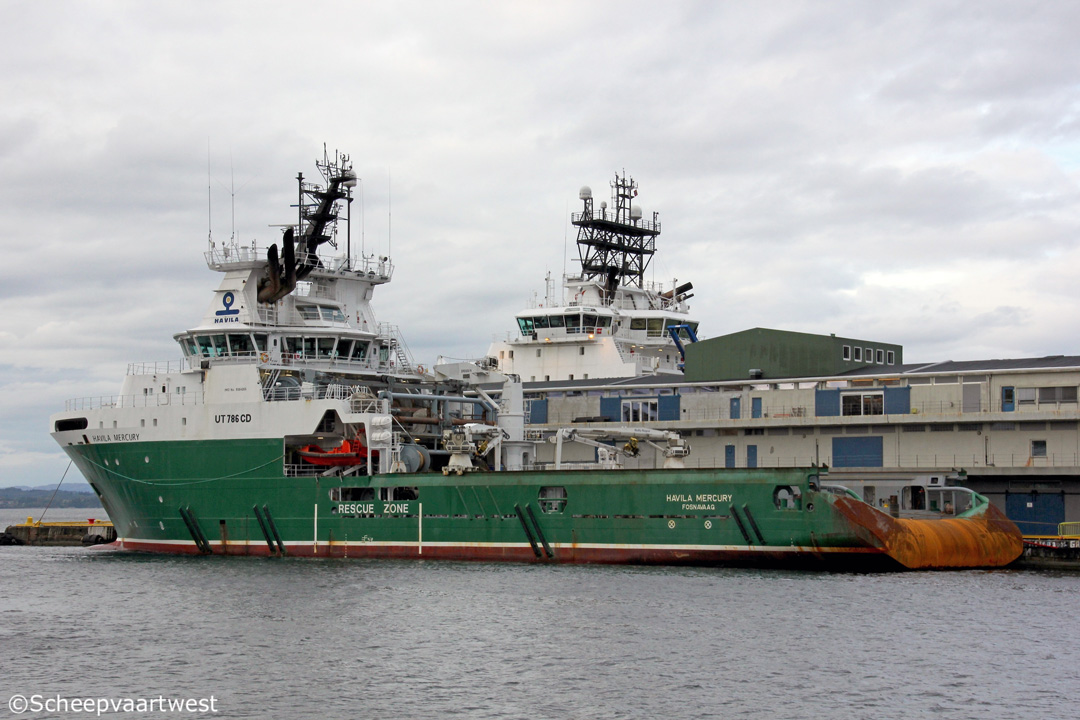

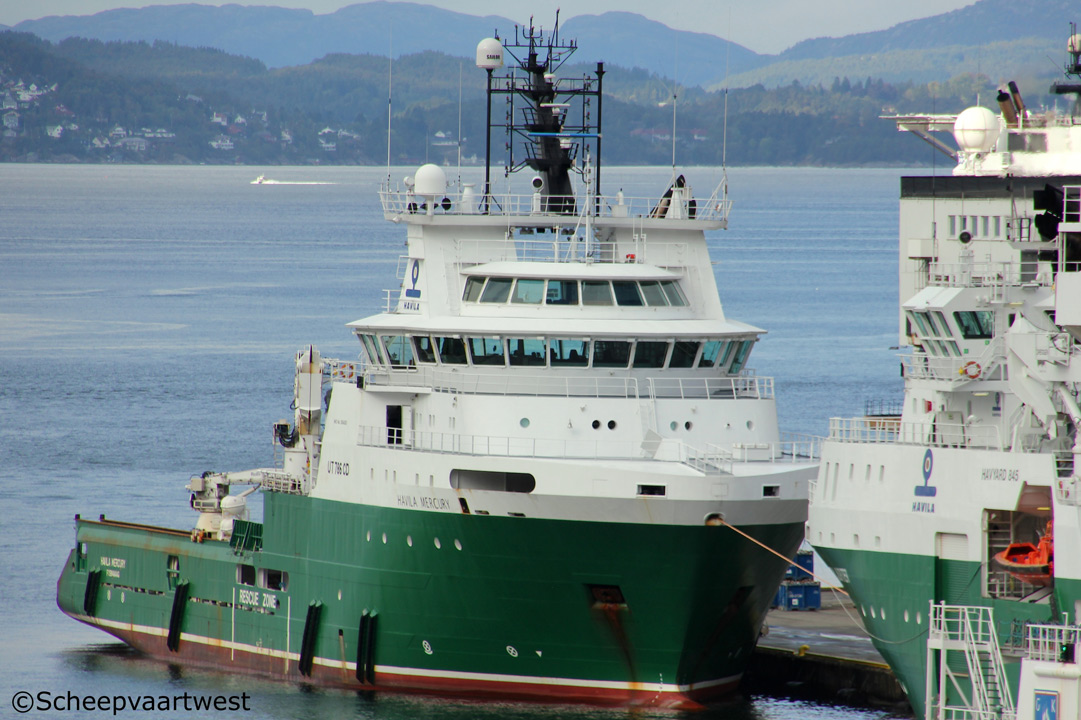

| Bergen 01/10/17 | Bergen , Norway 20/09/17 | |
|
Name |
HAVILA MERCURY |
|
Type |
Offshore tug - Supply vessel UT 786 CD |
|
IMO-number |
9364265 |
|
Call sign |
JWNC |
|
Flag |
Norway |
|
Port of registry |
Fosnavåg (Fosnavaag) |
|
GT |
4.727 t |
|
DWT |
3.671 t |
|
NT |
1.418 t |
|
Light ship |
4.177 t |
|
Displacement |
7.848 t |
|
Length |
85,80 m overall 73,50 m between perpendiculars |
|
Breadth |
19,90 m moulded |
|
Draught |
Max.: 7,30 m |
|
Freeboard |
Min.: 1.510 mm |
|
Depth |
8,80 m |
|
Speed |
Max.: 17,5 knots Fully loaded: 15,7 knots Economic: 12,0 knots |
|
Built |
2007 |
|
Keel laid |
15.05.2006 |
|
Launch date |
10.08.2007 |
|
Date of completion |
15.11.2007 |
|
Builder casco |
Cemre Muhendislik Gemi Insaat ve Tic Ltd Sti |
|
Builder completion |
Havyard Leirvik AS |
|
Yard number |
86 |
|
Hull material |
Steel |
|
Propulsion |
2x Bergen Diesel B32:40V12P engines each 6.000 kW |
|
Propellers |
2x Controllable pitch propellers with fixed nozzles Diameter: 4.100 mm |
|
Rudders |
2x Independent RRM High flap rudders |
|
Auxiliary generators |
2x Diesel generatorsets each 910 kVA / 440 Volt 60 Hz |
|
Auxiliary / harbour gen. |
1x Diesel generator 425 KW / 440 Volt 60 Hz |
|
Main generators |
2x Generators each 3?000 kW / 380-440 Volt 50- 60 Hz |
|
Emergency generator |
1x Diesel generatorset 99 kW 440 Volt 60 Hz |
|
Bow thruster |
1x Controllable pitch propeller 883 kW |
|
Azimuth thruster bow |
1x Controllable pitch propeller 1.500 kW |
|
Stern thruster |
2x Controllable pitch propeller each 736 kW |
|
Deck cargo |
1.200 t |
|
Deck area |
40,00 x 16,60 m 664 m² |
|
Deck strength |
10,0 t/m² |
|
Dry bulk |
235 m³: 4 vertical tanks |
|
Bollard pull |
195 t main propellers only 207 t included forward azimuth |
|
Anchor handling equipment capacity |
1x Towing drum cap: 1.732 m of 84 mm wire. 400 t pull / 550 t brake 1x AHT drum cap: 5.000 m of 84 mm wire. 400 t pull / 550 t brake 1x AHT drum cap: 2.759 m of 84 mm wire. 400 t pull / 550 t brake 2x Secondary winches capacity each: 138 t pull - 11.000 m of 76 mm wire - or 2.557 m of 150 mm rope - or 2.471 m of 160 mm rope - or 1.565 m of 203 mm rope - or 1.261 m of 210 mm rope 4x Towing pins Strength designed according to bollard pull. 2x Centring device 4 off Rig chain lockers Total chain Capacity 630 m³ 2x 2.050 m 76 mm & 2x 2.100 m 76 mm chain or 2x 1.550 m 84 mm & 2x 1.680 m 84 mm chain 2x RRM hydr rail crane with chain claw, wire twister 5 t / 10,0 m and bracket for SDO tool (travelling on cargo rail) 3 t / 14,3 m 2x Stern Roller each: Dia 4,5 m x L 3,0 m 550 t MWL 2x RRM Anchor Handling Tong 650 t SWL 4x RRM Towing pins 2x 76 mm Gypsies Fitted on winch 2x 84 mm Gypsies Stored on board 1x 95 mm Gypsies Stored on board 1x 120 mm Gypsies Stored on board 2x Chain Rollers 70 – 165 mm adjustable 1x J-Hook 250 t SWL 1x Grapnel 250 t SWL 1x Smith Bracket 300 t |
|
Tow wires / Work wires |
1.500m x 83 mm wire Fitted on towing winch 1.500m x 83 mm wire Fitted on AH winch 500m x 83 mm wire Fitted on AH winch 1.500m x 83 mm wire Spare tow wire 1.500m x 83 mm wire Spare tow wire |
|
Mooring & deck equipment |
Windless: 2x 15 t Deepwater winch Anchors: 2x 3.780 kg Chain: 2x 48 mm ( abt 260 m each) Tugger winch forward: 2x 24 t + 1 x 20 t Tugger winch / Capstan aft: 2x 12 t hydraulic Crane: 15 t / 15,00 m radius. Starbord side 1x Rope reel 10 t |
|
Liferaft / rescue boat |
Safety certificate: 33 persons Survivor capacity: 300 persons 1x Alusafe 770 MOB boat 1x Rescue boat davit: Type TTS Marine HL9D |
|
Tank capacities |
Ballast/drill water: 3.356 m³ Fuel oil: 930 m³ Liquid mud: 695 m³ Brine: 1.023 m³ Base oil: 180 m³ Pot water: 1.170 m³ |
|
Anchor equipment |
Length: 524,00 m Diameter: 48 mm |
|
Accommodation |
Cabins : 7 single cabins + 13 x 2 men cabins Dayroom Sky Lobby / Dayroom Dayroom for smokers Dirty Mess Conference room Ships Office Gymnasium Hospital Cool Store / Freezer |
|
Navigation equipment |
1x Radar Furuno FCR-2837S ARPA (Chart radar) 1x Radar Furuno FAR-2827 ARPA 3x Gyro Compass Anschutz STANDARD 22 Digital 1x Auto Pilot Anschutz ADAPTIVE NAUTOPILOT 2025 2x Electronic Chart Plotter Furuno ECDIS, Model TECDIS 1x AIS Furuno AIS Transponder, Model FA-150 1x GPS Furuno DGPS Navigator Model GP-90 1x Speed Log Furuno Doppler Log, Model DS-80 1x Echo Sounder Furuno Navigational ( IMO Approved ) 1x Magnetic Compass Plath Magnetic. Type, Reflecta 1 Fiberline 1x Weather Faximil Furuno Weather Faximile, Model FAX-207 1x VDR Furuno VDR VR-3000 1x Sound Reception Zenitel Sound Reception System,VSS-111 1x Bridge Watch Monot. Kongsberg Bridge Watch Monot ,BA-11 |
|
Communication equipment |
1x SSB Radio HF/MF/DSC Furuno 250 W Simplex 2x VHF / DSC F uruno FM 8800S 3x VHF Portable Jotron Tron TR-20 2x VHF F uruno Model FM2721 1x VHF Slave In Hospital Furuno 2x Inmarsat C F uruno Felcom 15 1x Navtex F uruno NX-700B 1x EPIRB Jotron T ron 40 S 1x EPIRB Jotron T ron 45 SX 2x Radartransponder Tron Sart 1x Inmarsat Mini M Thr ane Thrane 4x VHF Portable Motorola GP 380 -EX 2x UHF Bridge & ECR Motorola UHF GM380 4x UHF Portable Motorola GP 380 -EX 2x Mobile phone Norway Type GSM 1x V-Sat 128 kbit/s Type Sea |
|
Manager |
Havila Shipping ASA |
|
Registered owner |
Havila Ships AS |
|
Latest data adjustment |
01 November 2017 |
