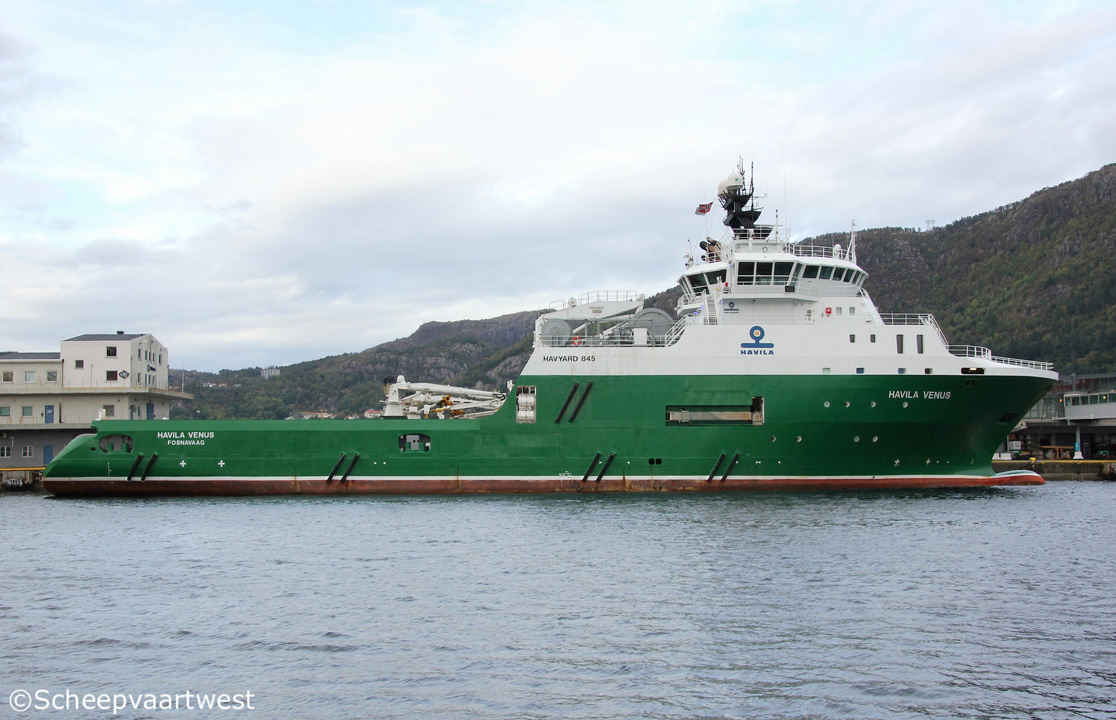

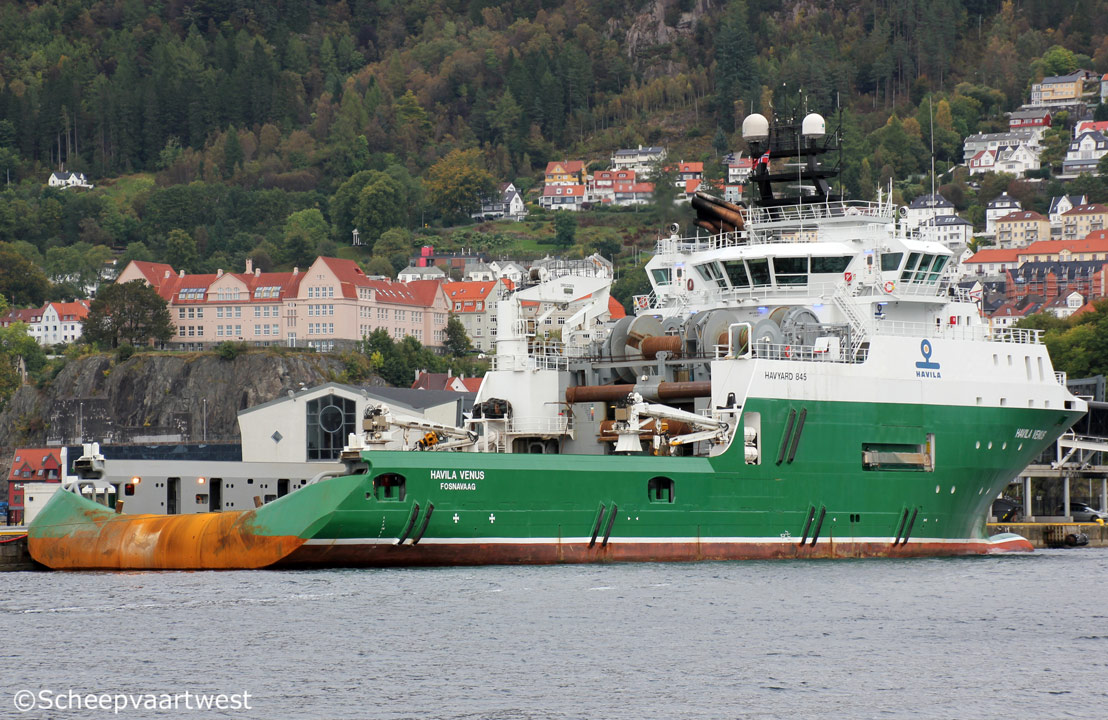

Bergen, Norway 01 October 2017 |
 |
| Bergen, Norway 01/10/17 |
|
Name |
HAVILA VENUS |
|
Type |
Tug / Supply vessel |
|
IMO-number |
9418030 |
|
Call sign |
LAZC |
|
Flag |
Norway |
|
Port of registry |
Fosnavåg (Fosnavaag) |
|
GT |
6.455 t |
|
DWT |
Summer: 3.866 t |
|
NT |
1.936 t |
|
Light ship |
5.821 t |
|
Displacement |
Max.: 9.687 t |
|
Length |
92,00 m overall 79,80 m between perpendiculars |
|
Breadth |
22,00 m extreme |
|
Draught |
7,53 m |
|
Depth |
9,00 m to main deck |
|
Speed |
Max.: 18,1 knots |
|
Built |
2009 |
|
Keel laid |
27/02/2008 |
|
Launch date |
31/01/2009 |
|
Date of completion |
27/10/2009 |
|
Builder casco |
Cemre Muhendislik Gemi Insaat ve Tic Ltd Sti |
|
Builder completion |
Havyard Leirvik AS |
|
Yard number |
99 |
|
Hull material |
Steel |
|
Propulsion |
2x Caterpillar Mak 12M32C - 12 cylinder diesel engine total 12.000 kW Builder: Caterpillar Motoren GmbH & Co. KG 2x El. motor 5.200 kW Total propulsion power: 17.200 kW |
|
Propellers |
2x Kamewa Ulstein controllable pitch propeller - diameter 4.600 mm in nozzle |
|
Boilers |
1x Auxiliary boiler, oil/gas fired EO185 Builder: Clayton of Belgium N.V. |
|
Shaft generator |
2x 5.200 kVA, 4.680 ekW 690 Volt, 60 Hz |
|
Generators |
4x Caterpillar 3516C diesel generatorsets each 2.100 ekW 690 Volt 60 Hz |
|
Emergency & harbour gen. |
1x Volvo Penta D12 diesel generatorset 300 ekW 690 Volt 60 Hz |
|
Side thrusters |
1x Side thruster forward TT 2400 - 1.200 kW 1x Azimuth thruster forward TCNS 92 - 1.500 kW 2xSide thrusters aft TT 2000 - 1.200 kW each |
|
Bollard pull |
260 t main propellers only 284 t included forward azimuth |
|
Cargo deck |
Deck cargo: 1500 t Cargo deck area: 750 m³ Main deck load: 10 t/m² Main deck free length: 36,00 m Max width off cargo deck: 18,00 m |
|
Deck machinery |
1x Rope reel 10 t 1x Hydraulic deck crane 15 t at 15,00 m 2x RRM hydraulic rail crane Type AH55 SWL: 3 t at 11-15,30 m 5 t at 3,4-11,00 m, 7,5 t at 6,00 m and 15 t at 3,00 m with chain claw,wire twister and bracket for SDO tool |
|
ROV equipment |
1x Odim LARS Overhead launch and recovery system for WROV rated for 3000 m operation |
|
A-frame |
1x Hydralift offshore pedestal crane: 250 t Model A0250 t P10138/ T7344 For 250 tonnes with single wire max outreach from sternroller approx. 8,00 m Using topwheel 189 tonnes outreach from sternroller 12,70 m (to be used above sealevel only) |
|
Cargo - tank capacities / Pumps |
All pumps are hydraulic driven Ballast /Drill water cap: 3.519/3.519 m³ 2x off Bw/Dw pumps 0- 200 m³/h - 9,0 bar Freshwater cap: 1.034 m³ 2x off FW pumps 0-200 m³/h - 9,0 bar Fuel oil cap: 1.436 m³ 1x FO pump 0-200 m³/h - 9,0 bar 1x FO pump 0-100 m³/h - 9,0 bar Base oil cap: 221 m³ 1x BO pump 0-100 m³/h - 9,0 bar Liquid mud cap: 529 m³ 2x Mud pumps 0-75 m³/h - 24,0 bar Brine cap: 402 m³ 2x Brine pumps 0-75 m³/h - 18,0 bar Special product cap: 324 m³ 4x SP product pumps 0-75 m³/h - 9,0 bar Dry bulk cargo 4 tanks: Total 262 m³ 2x compr. Each 25,6 m³/min - 5,6 bar Rig chain lockers: 640 m³ |
|
Cargo manifolds |
Main deck midship both side Main deck aft both side |
|
Tank capacities |
Ballast: 3.033,68 m³ |
|
Accommodation |
16x Single cabins 20x Double cabins 1x Four men cabin |
|
Navigation equipment |
1x Furuno S-band ARPA Radar, model FCR-2837S (Chartradar) 1x Furuno X-band ARPA Radar, model FAR-2827 1x Furuno DGPS Navigator model GP-150 2x Furuna ECDIS, model TECDIS T-2136 3xf Gyros Sperry Navigat X MK1 1x AUTOPILOT, Navipilot 4000 1x Magnetic Compass Navipol II 1x Skipper Navigational Echo Sounder GDS 102 ( IMO Aproved ) 1x Dopler Log, NAVIKNOT 450 1x Furuno Weather Faximile, model FAX-30 1x Furuno AIS Transponder, model FA-150 1x Furuno VDR VR-3000 System 1x Phonetec Sound Reception System, model VSS-111 1x Bridge Warch Monitoring System |
|
Communication equipment |
1x Furuno MF/HF/ SSB RADIOSTATION model FS 2570 1x Furuno NX-700B NAVTEX RECIVER 2x Jotron 40S/45SX EPIRBS 2x Jotron Radar Transponder, model TRON SART 3x Jotron GMDSS approved portable VHF, model TRON TR-20 2x Furuno INMARSAT-C w/EGC, model Felcom15 1x Furuno SSAS,part off Inmarsat-c model Felcom 2x Furuno VHF/DSC Simplex, model FM 8800S 1x Sea-tel V-Sat 1x Thrane & Thrane fleet broadband 500 telephone 2x Motorola GSM telephone 2x Furuno VHF Simplex, model FM2721 6x Motorola GP 340 EX Portable VHF, EX Approved 6x Motorola GP 380 EX Portable UHF, EX Approved 1x Furuno Conning System, 4 monitors (2x19”+2x15” ) 3x Motorola UHF Fixed for bridge after & ECR, model GM380 |
|
OP II system |
Dynpos AUTHR 2x Rolls Royce Icon DP 1x Cyscan 1x Veripos LHD2-GG1 1x Veripos LHD2-GG2 2x wind sensors 1x Hipap 500 |
|
Safety equipment |
Safety equipment according to SOLAS for 60 persons Alusafe 770 Mob boat Rescue boat davit: TTS Marine HL9D Equipped with safe anchor handling package from RRM |
|
Manager |
Havila Shipping ASA |
|
Owner |
Havila Subcon AS |
|
Registered owner |
Havila Venus AS |
|
Latest data adjustment |
05 February 2018 |
