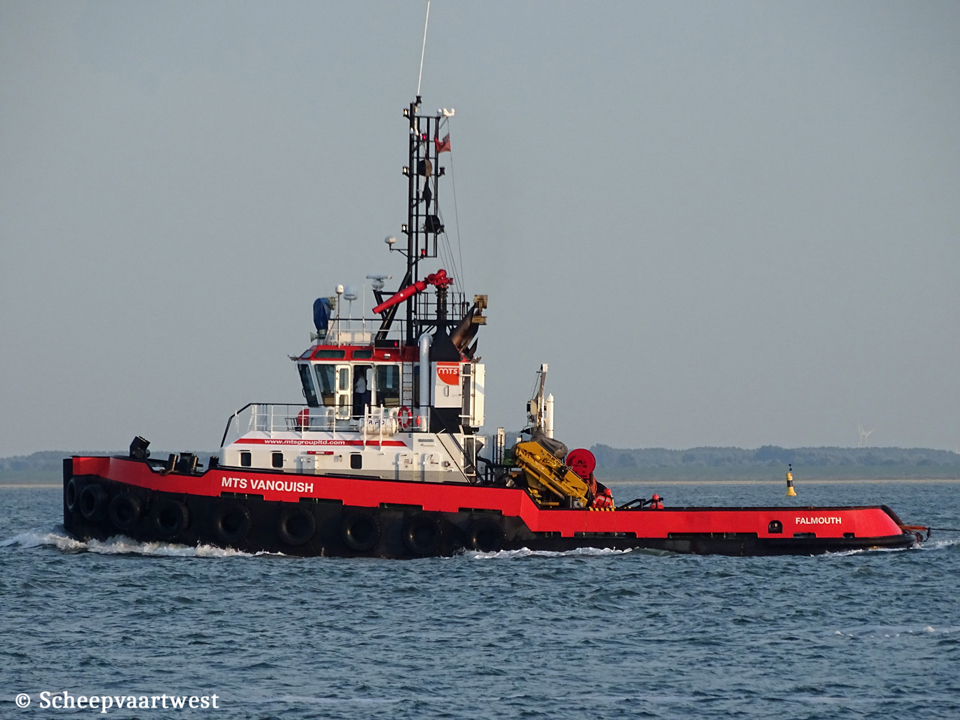

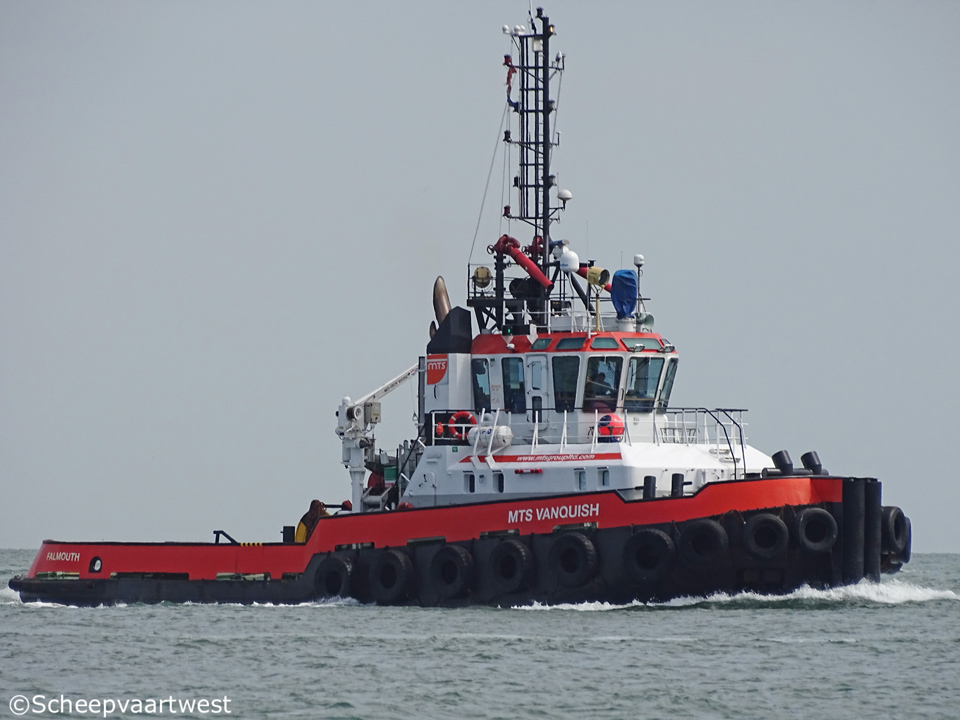

MTS Vanquish - IMO 9559573

Name

MTS VANQUISH

Type

Tug - Anchor handling tug

Type Damen TugBuster 3009

Basic functions

Towing - Mooring - Anchor handling - Dredging support - Salvage - Fire fighting

IMO-number

9559573

Call sign

2HFK5

Flag

United kingdom

Port of registry

Falmouth

Previous flags

Saint Vincent and the Grenadines

GT

272 t

NT

81 t

Length

30,02 m overall

27,96 m between perpendiculars

Breadth

8,80 m overall

Draught

Min: 4,20 m

Operational: 4,30 m

Max: 4,40 m

Freeboard

778 mm

Depth

4,40 m at sides

Speed

Max: 13,4 knots

Economic: 7,0 knots

Built

2013

Launch date

17/10/2009

Date of completion

26/04/2013

Builder casco

Damen Shipyards Galati

Galati

Romania

Yard number: 511626

Builder completion

Damen Shipyards

Hardinxveld

The Netherlands

Hull material

Steel

Continuous decks

1

Main engine

2x Caterpillar 3516B TA HD/B - 4 stroke 16 cylinder 170 x 190 mm combustion engines total 4.750 hp / 3.542 kW at 1.600 rpm

Build 2009

Builder: Caterpillar, Lafayette - USA

Gearbox

2x Reintjes WAF 873

Propulsion

2x Kaplan II fixed pitch propellers - at 218 rpm

Diameter: 2x 2.650 mm Van De Giessen Optima nozzles

Generators

2x Caterpillar C4.4 TA - 4 cylinder 105 x 127 mm diesel engines engines each 93 kW at 1.500 rpm connected with generators each 107 kVA

Bow thruster

350 bhp, electrical driven

Bollard pull

71 t

Free deck space

66 m²

Deck strength

3,0 t/m²

Deck lay-out

• Anchor: 2x 360 kg Pool (H.H.P)

• Deck crane: HEILA 25-4S, remote controlled - 1,5 t @ 12,30 m

• Anchor Winch: DMT - Double Drum

• Anchor Handling / Towing Winch: 40 t - 120 t brake holding

• Towing Wire: 1st drum 48 mm x 750 m - 2nd drum 48 mm x 500 m

• Tugger winch: 8 t 30m

• AH/Towing Pins: Hydraulic Karmay 2 Forks, 2 Pins

• Stern Roller: SWL 35 t

• Push bow: Full length push bow fitted

Transfer pumps

For water & fuel: make SIHI, 32 m³/h

Fire fighting

Caterpillar 3406E TA - 1.200 m³/h at 10,5 Bar with 2x 600 m³/h water/foam monitors

Tank capacities

Fuel oil: 135,1 m³

Fresh water: 20,6 m³

Lub oil: 3,9 m³

Hydraulic oil: 1,5 m³

Dirty oil: 2,5 m³

Sewage: 1,80 m³

Foam: 10,0 m³

Bilge water: 2,9 m³

Dispersant: 3,5 m³

Water ballast: 27,0 m³

Accommodation

Heated and fully air-conditioned living spaces for 8 persons, consisting of two single and three double crew cabin, a galley/mess & sanitary facilities

Single cabins: 2

Double cabins: 3

Nautical & Communication equipment

• GMDSS A300 Equipped

• 2x Pesche 1.000 Watt Searchlights

• 1x Kotter type/ 1x Gyro compass

• 1x Furuno FAR 2117 ARPA Radar

• 1x Koden Radio

• Furuno GP – 150D GPS system

• 2x PCNAV Stations with Transas chart software

• Radio Holland Seapilot Autopilot

• Furuno FE-700 Echo Sounder

• Radio systems include

• 3x Sailor 5822 DSC

• 2x H/H VHF

• SRH NAV -5 NAVTEX

• Furuno A1S

• Inmarsat C / SSB /phone / fax /Sat phone /email

Owner

MTS Group Limited

Falmouth

United Kingdom

Renamed

05/2023 Sea Vanquish

The Netherlands, Vlissingen - Call sign: PGBN

Operator: Seacontractors BV, Vlissingen - The Netherlands

Owner: Marine & Towage Services Group Ltd.

Latest data adjustment

23 July 2024
