Glomar Wave - IMO 9682617

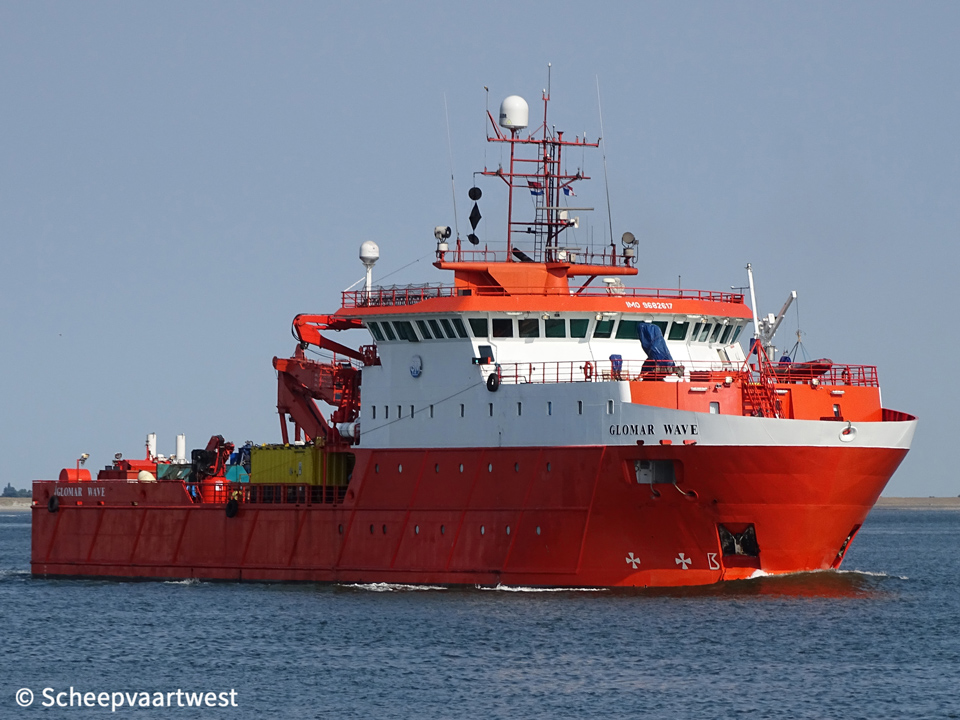

Westerschelde 19 July 2018

Name

GLOMAR WAVE

Type

Tug - DP II multi role vessel - Accommodation Ship - Supply vessel

IMO-number

9682617

Call sign

3FXF4

Flag

Republic of Panama

Port of registry

Panama City

GT

2.177 t

DWT

1.321 t

NT

664,5 t

Length

65,90 m

Breadth

13,20 m

Draught

Max: 5,20 m

Min: 3,20 m

Depth

5,09 m

Speed

Service: 10,0 knots

Max: 12,5 knots

Built

2014

Delivery date

25/11/2014

Builder

Nauta Shiprepair Yard (Gdyńska Stocznia Remontowa Nauta)

Gdynia

Poland

Yard number

58

Hull material

Steel

Main engine

Diesel/electric

2x Mitsubishi S16R- MPTAW main diesel generatorsets each 1.536 kW

Propellers

2x Azimuth thruster Veth Z-drive VZ-900 L-*Dive - 855 kW

Electric installations

440 Volt – 60 Hz

Harbour generator

1x Mitsubishi S12A2-MPTAW main diesel generatorset 752 kW

Emergency generator

1x MAN D2866 LXE20 diesel generatorset 280 kW

Bow thruster

2x Brunvoll controllable pitch propellers each 600 kW

Bollard pull

30,0 t

Deck equipment

• FRC 1: WRH 635 2x75 hp Yamaha

• Davit nr 1 Neddeck PRH 35 H SWL 3,5 t

• Deck Crane 1: Knuckleboom HR 100-23 / 1,0 t @ 23,00 m / TN @ 15,00 m - constant tensioning at the back

• Deck Crane 2: Telescopic Knuckleboom HLRM 45-5S / 2

• Deck Crane 3: TTS Hydraulic Knuckleboom crane 250 t @ 8,00 m 12,5 t @ 20,00 m / auxiliary hoist 5,0 t @ 20,00m

• Rescue zone: 2x Rescue zones with Jason’s Cradles

• 2x Cap stands

Deck loading capacity

Deck area: 250 m²

Deck load: 5,0 t/m²

Dynamic positioning system

• DP class: DP2

• Manufacturer: Bridgemate / Matine Technologies

• DGPS: 2x Fugro Bridge Mate

• Gyro compass: 3x NAVIGAT X MK1 / Sperry Matine C Plath

• Radarscan: Guidance Navigation / Mini Radascan

• Motion Sensors: 3x DMS 500HRP (A, B, C)

• Fanbeam: Fanbeam 4.2 Laser radar

• Accoustic positioning: 1x Ranger 2 HPT Sonardune 5000

• Tautwire: Kongsberg/Bandak - LTW MK15

Bilge water separator

Blohm + Voss Turbulo TMPB1

Fuel oil separator

Westfalia OTC 2-02-137

Tank capacities

Fuel oil: 460 m³

Fresh water: 437 m³

Ballast water: 670 m³

Accommodation

• Total berths: 59 (incl. 16 crew)

• One man cabin: 17 Large and luxury cabins with en suite bathroom, Sat TV, movie and internet

• Two man cabin: 21 Large and luxury cabins with en suite bathroom, Sat TV, movie and internet

• Office: 3 Ships’ office with internet connection

• Treatment: 21 m² equipped with hospital facilities according regulations

• Change room: Equipped with drying system for clothing and personal lockers

• Restaurant: 120 m² with 2 separate dining rooms and TV’s (1 part as meeting room)

• Catering: 24 Hours hot and cold buffet

• Dayroom Unique: Luxurious and spacious dayroom with frontal sea view through large windows and equipped with internet and large TV

• Laundry: Equipped with professional washing & drying machines and iron facility

• Gym: 1 Gym with professional equipment & training programme

Manager

Glomar Shipmanagement BV

Het Nieuwe Diep 34 A3

1781 AD Den Helder

The Netherlands

Registered owner

Glomar Offshore Wind Support

Latest data adjustment

27 July 2024
