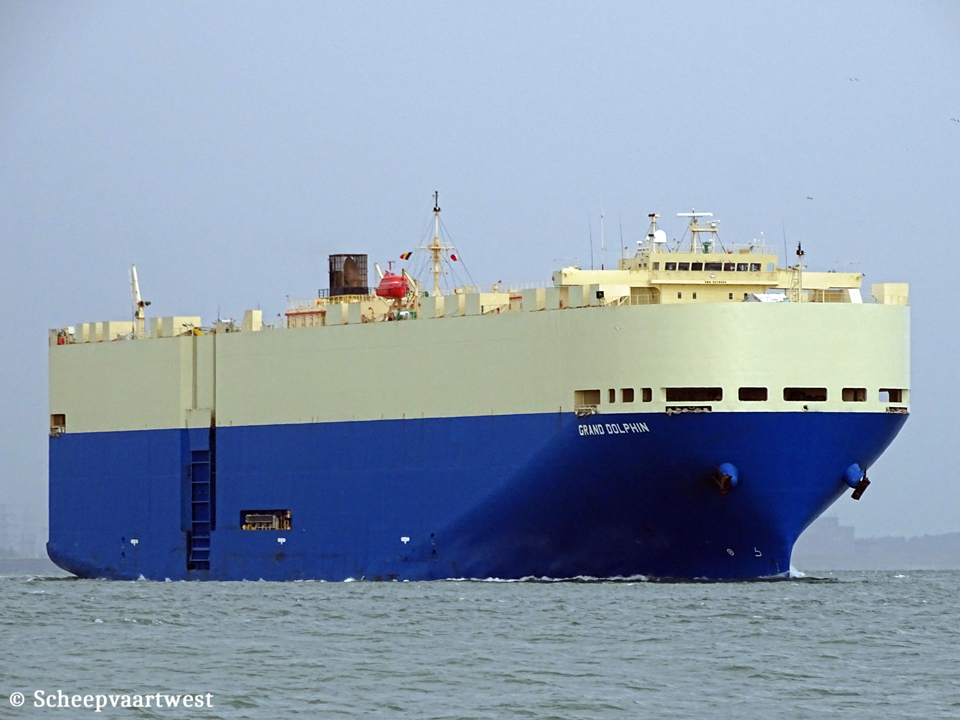

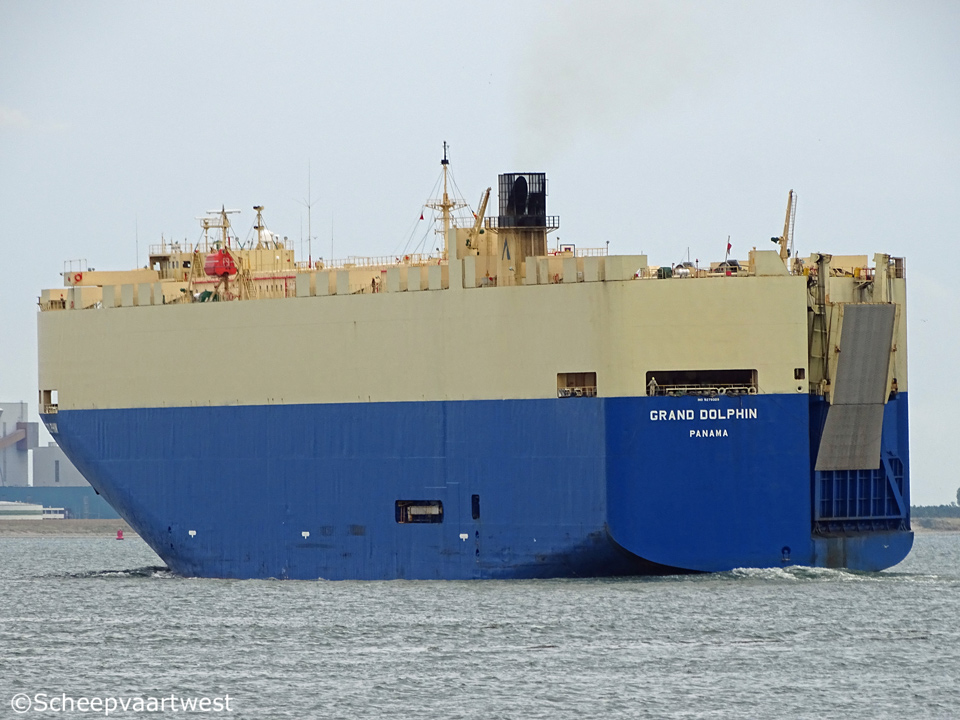

Westerschelde 11 July 2017 |
 |
|
| Westerschelde 10/07/17 | |
|
Name |
GRAND DOLPHIN |
|
Previous names |
04/2004 - 10/2006 Hual Dubai 10/2006 - 03/2014 Höegh Dubai |
|
Type |
Roll-On/Roll-Off carrier PCC - Pure Car Carrier |
|
IMO-number |
9279329 |
|
Call sign |
H3WF |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.217 t |
|
DWT |
Summer: 18.369 t |
|
NT |
17.766 t |
|
Length |
199,90 m overall 192,00 m between perpendiculars 194,70 m registered |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 9,61 m |
|
Reg. dimensions L x B x D |
194,70 x 32,26 x 25,33 m |
|
Rule dimensions L x B x D |
192,00 x 32,26 x 35,80 m |
|
Freeboard |
Summer: 4.664 mm |
|
Depth |
25,33 m |
|
Speed |
Max: 20,6 knots Service: 19,8 knots |
|
Built |
2004 |
|
Keel laid |
26/06/2002 |
|
Launch date |
10/02/2004 |
|
Date of completion |
28/04/2004 |
|
Builder |
Shin Kurushima Toyohashi Shipbuilding Co., Ltd. Toyohashi Japan |
|
Yard number |
H-3566 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
5 |
|
Main engine |
1x Mitsui/MAN-B&W 7S60MC (Mark 6) - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion 14.280 kW / 19.415 hp at 105,0 rpm Built: 11/2003 Builder:Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works, Tamano - Japan |
|
Propellers |
1x Single screw |
|
Boilers |
1x Auxiliary steam tube boiler - 7,0 bar Heating surface: 44,8 m² 1x Auxiliary steam tube boiler - 10,0 bar Heating surface: 171,2 m² |
|
Generators |
3x Main diesel generatorsets each 1.200 kVA - 450 Volt |
|
Number of cars |
6.402 |
|
Number of decks |
9 |
|
Tank capacities |
Ballast: 9.536,6 m³ Fresh water: 466,20 m³ Fuel oil: 3.136,6 m³ |
|
Crew size |
25 |
|
Manager |
CIDO Shipping (H.K.) Co., Ltd. |
|
Technical manager |
CIDO Shipping (Korea) C., Ltd. (Pusan Site) South Korea |
|
Registered owner |
Dynamic Rainbow Marine S. A. Republic of Panama |
|
Latest data adjustment |
03 August 2024 |
