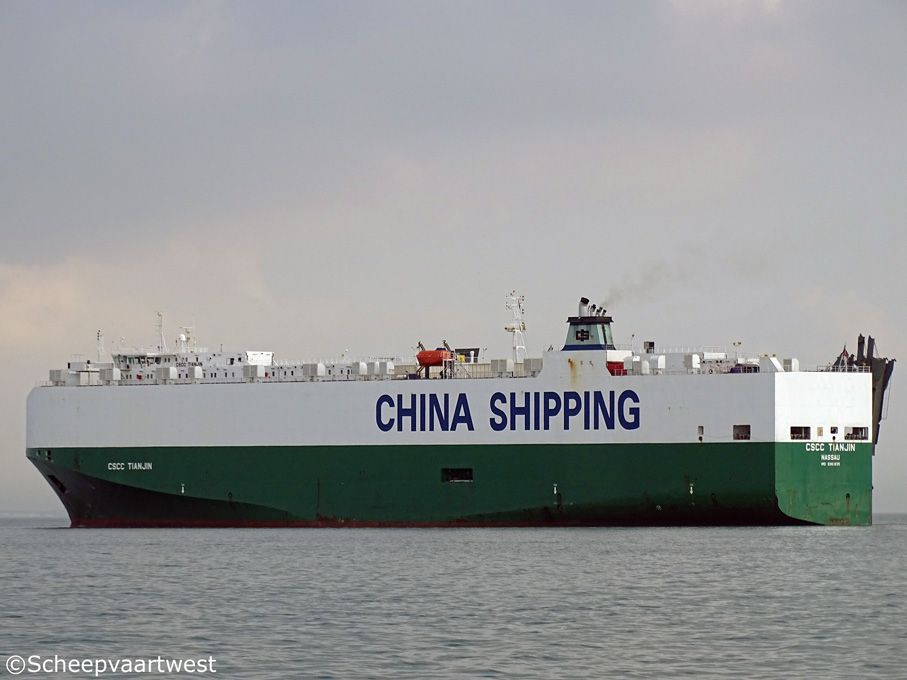

Westerschelde 29 March 2016 |
 |
 |
 |
 |
|||

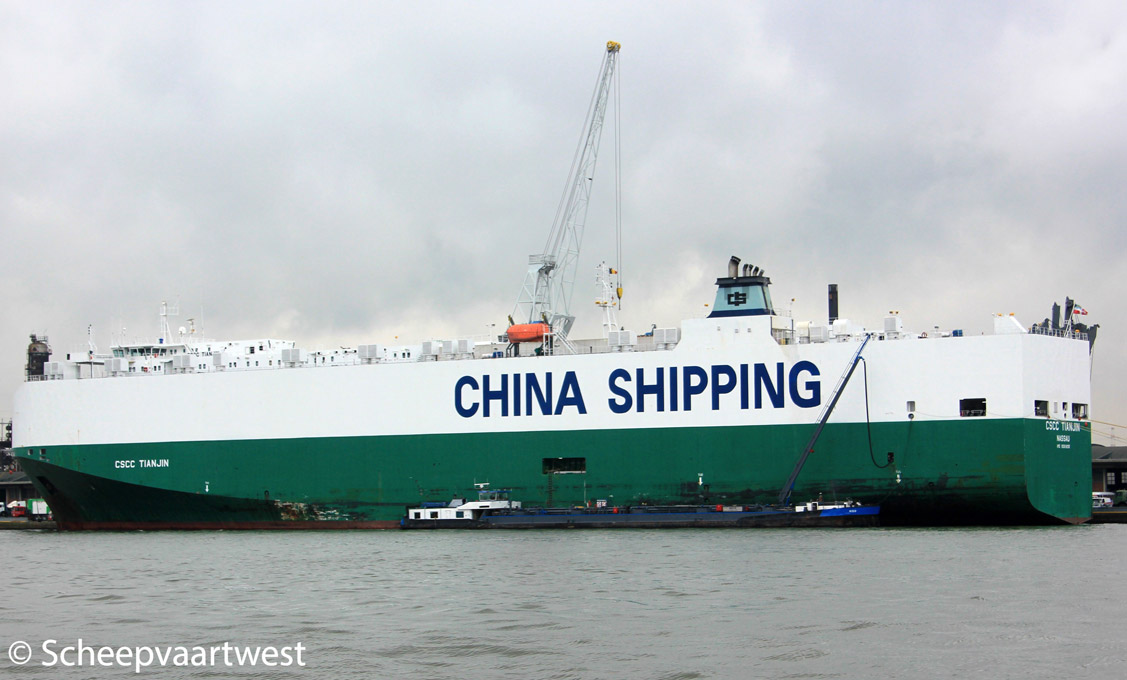

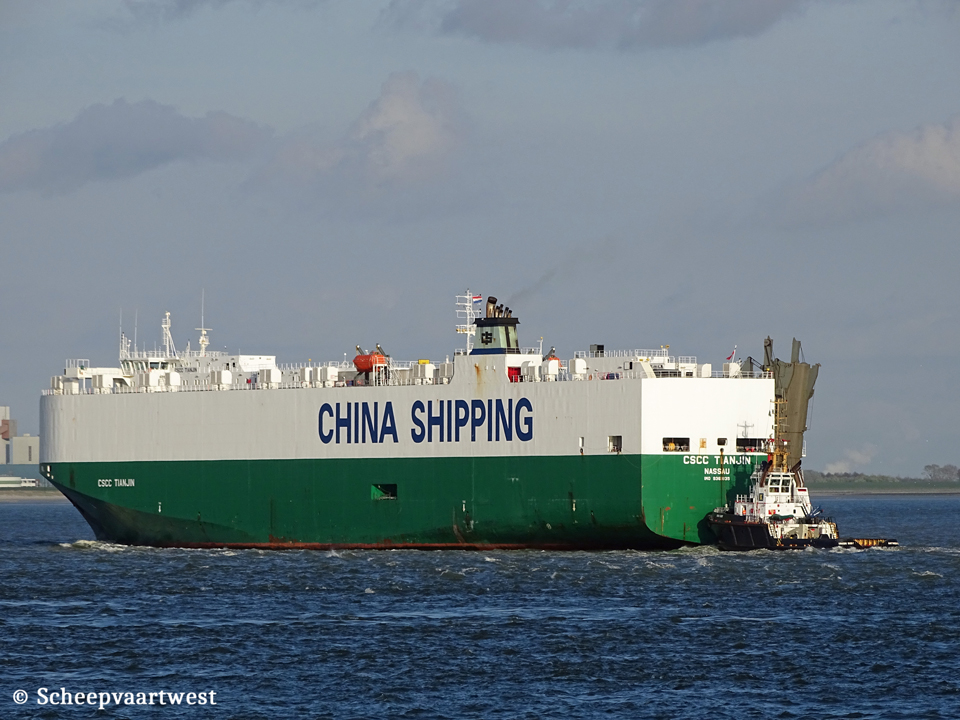

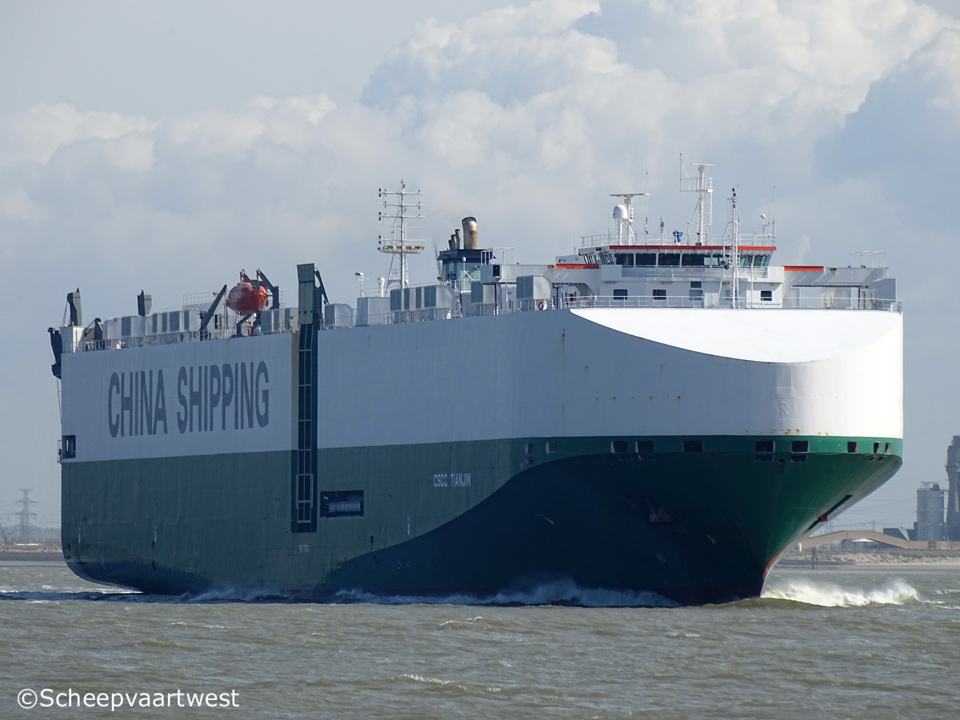

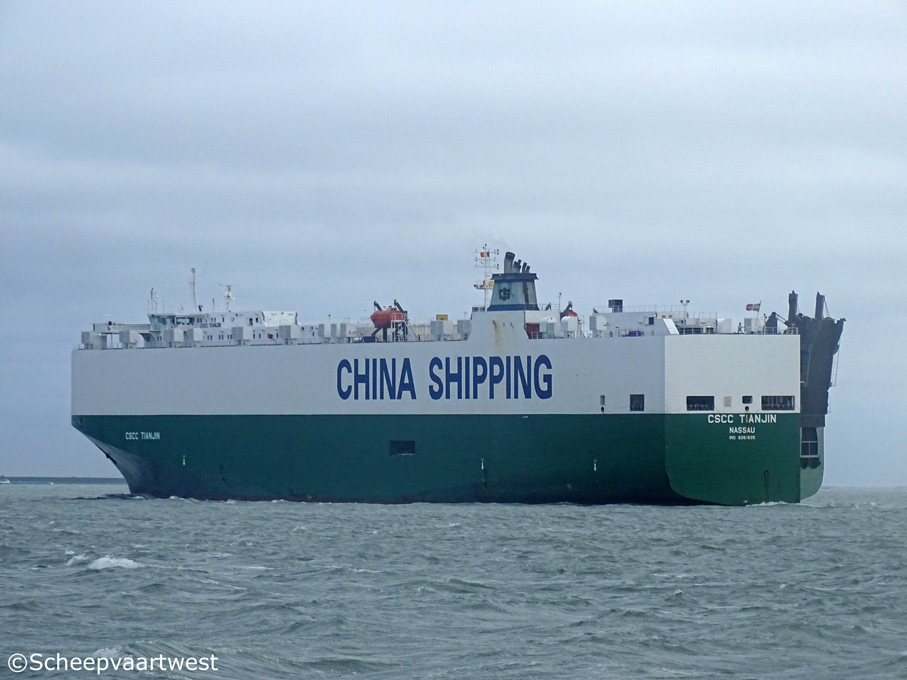

| Westerschelde 29/10/16 | Westerschelde 10/11/15 | Antwerpen 21/12/12 | Westerschelde 10/04/17 | |||
|
Name |
CSCC TIANJIN |
|
Previous names |
2008 - 2008 CSCC Tianjin |
|
Type |
Vehicle carrier - Roll-On / Roll-Off vessel PCTC - Pure car and truck carrier |
|
IMO-number |
9361835 |
|
Call sign |
C6XA4 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
41.009 t |
|
DWT |
Summer: 12.300 t |
|
NT |
22.395 t |
|
Length |
176,00 m overall 165,90 m between perpendiculars |
|
Breadth |
31,10 m extreme |
|
Draught |
8,75 m |
|
Air draft |
45,70 m |
|
Freeboard |
5.766 mm |
|
Depth |
14,50 m |
|
Speed |
20,0 knots |
|
Built |
2008 |
|
Keel laid |
26/01/2008 |
|
Launch date |
05/07/2008 |
|
Date of completion |
15/10/2008 |
|
Builder |
Uljanik Brodogradiliste Flaciusova 1 HR-52100 Pula Croatia |
|
Yard number |
478 |
|
Hull material |
Steel |
|
Hull typ |
Single hull |
|
Main engine |
1x MAN-B&W/Uljanik 8S50MC-C Mk. VII - 2 stroke 8 cylinder combustion engine 12.640 kW |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, vertical shell type (Oil fired) KLN/VM-2,5/7 1x Auxiliary boiler, exhaust gas smoke tube (Exhaust Gas) KIP/DV-1.5/7 Builder: TPK NOVA d.o.o. |
|
Generators |
3x MAN 8L23/30H diesel generatorsets Builder: MAN Diesel & Turbo SE |
|
Emergency generator |
1x Scania DI9 diesel generatorset Builder: Scania CV AB, Industrial & Marine Engines |
|
Bow thruster |
1x 1.000 kW, forward 1x 800 kW, aft |
|
Car capacity |
4.900 |
|
Ro-Ro Ramps |
1x Starboard: 22,00 x 4,20 m - 20 t 1x Starboard: 32,20 x7,50 m - 120 t |
|
Tank capacities |
Ballast: 3.972,3 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 70 mm |
|
Crew |
18 |
|
Manager |
Stamco Ship Management Company Ltd. 21, Akti Miaouli Street 185 35 Piraeus Greece |
|
Operator |
CSCC - China Shipping |
|
Registered owner |
Tianjin Maritime Ltd. 4th Floor One Circular Road IM1 Douglas Isle of Man United Kingdom |
|
Renamed |
11/2018 RCC Tianjin Bahamas, Nassau - Cal sign: C6XA4 Owner: Tianjin Maritime Ltd. Manager: Stamco Ship Management Co. Ltd. |
|
Latest data adjustment |
12 September 2020 |
