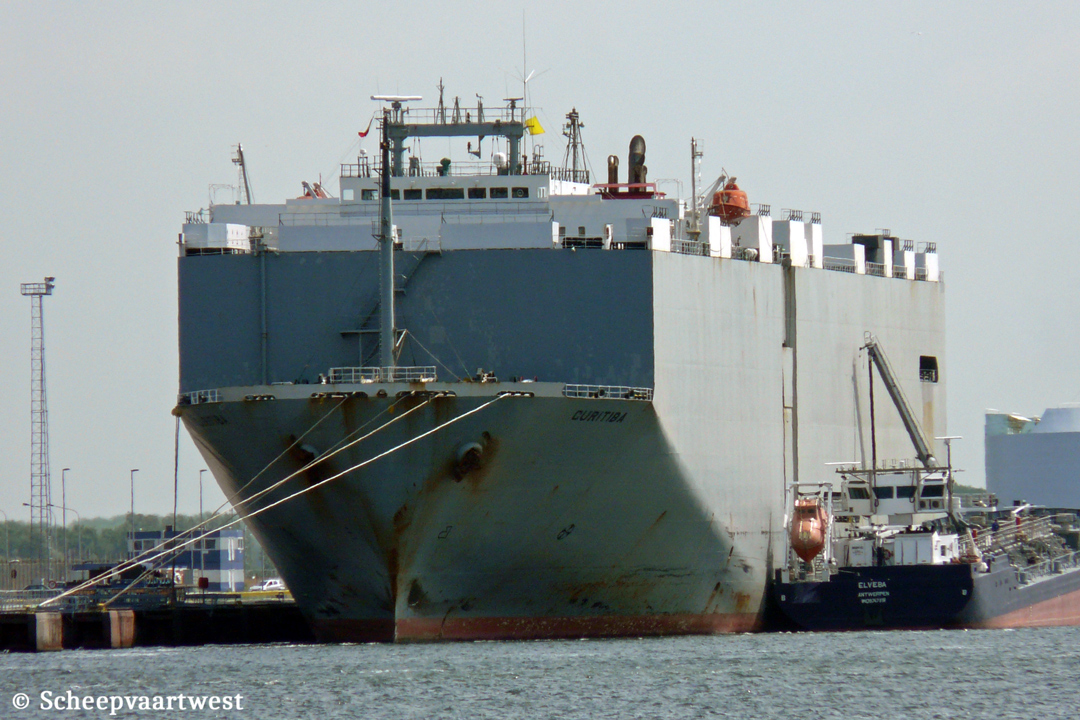

| Zeebrugge 13 May 2011 |
|
Name |
CURITIBA |
|
Previous names |
Rockies Highway |
|
Type |
Vehicle carrier |
|
IMO-number |
9078220 |
|
Call sign |
3FIP4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
47.367 t |
|
DWT |
12.229 t |
|
NT |
14.211 t |
|
Length |
179,99 m |
|
Breadth |
32,20 m |
|
Draught |
Summer: 9,018 m |
|
Moulded L x B x D |
170,00 x 32,20 x 15,23 m |
|
Registered L x B x D |
172,96 x 32,20 x 22,17 m |
|
Freeboard |
Summer: 6.244 mm |
|
Depth |
15,23 m moulded |
|
Speed |
Trial: 20,3 knots |
|
Built |
1994 |
|
Keel laid |
10.02.1994 |
|
Launch date |
13.04.1994 |
|
Date of completion |
22.07.1994 |
|
Builder |
Imabari Shipbuilding Marugame Co., Ltd. |
|
Yard number |
1231 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi - 2 stroke single acting 6 cylinder 620 x 2.150 mm diesel engine - 10.223 kW at 106,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard & Machinery Works |
|
Number of screws |
1 |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Boiler |
1x Auxiliary vertical boiler Pressure: 6,9 bar Evaporation: 3,75 t/h Manufacturer: Mitsubishi Heavy Industries, Ltd. Nagasaki Shipyard & Machinery Works |
|
Generators |
4x Main diesel generatorsets - 4.436 kVA |
|
Car capacity |
4.257 |
|
Tank capacities |
Fuel oil: 2.852 m³ Fresh water: 442 m³ Water ballast: 4.973 m³ |
|
Lifting equipment |
2x Cranes - SWL 4,0 t |
|
Crew |
21 |
|
Manager |
Shoei Kisen Kaisha Ltd. |
|
Operator |
K-Line - Kawasaki Kisen Kaisha Line |
|
Owner |
Catalina Shipping S.A |
