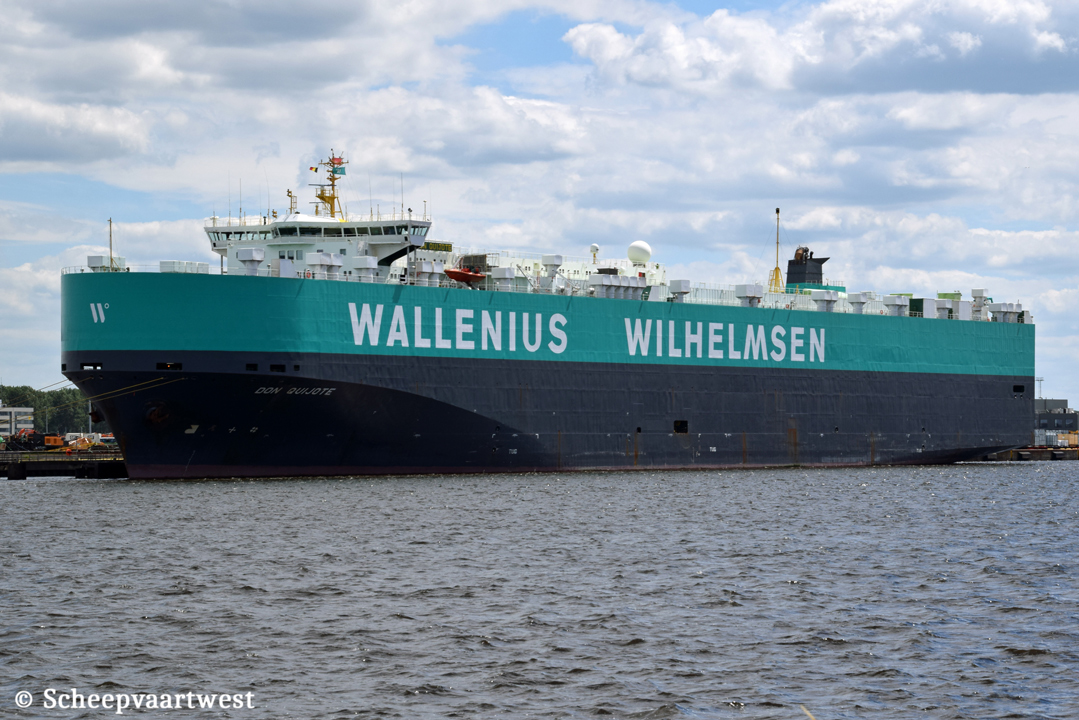

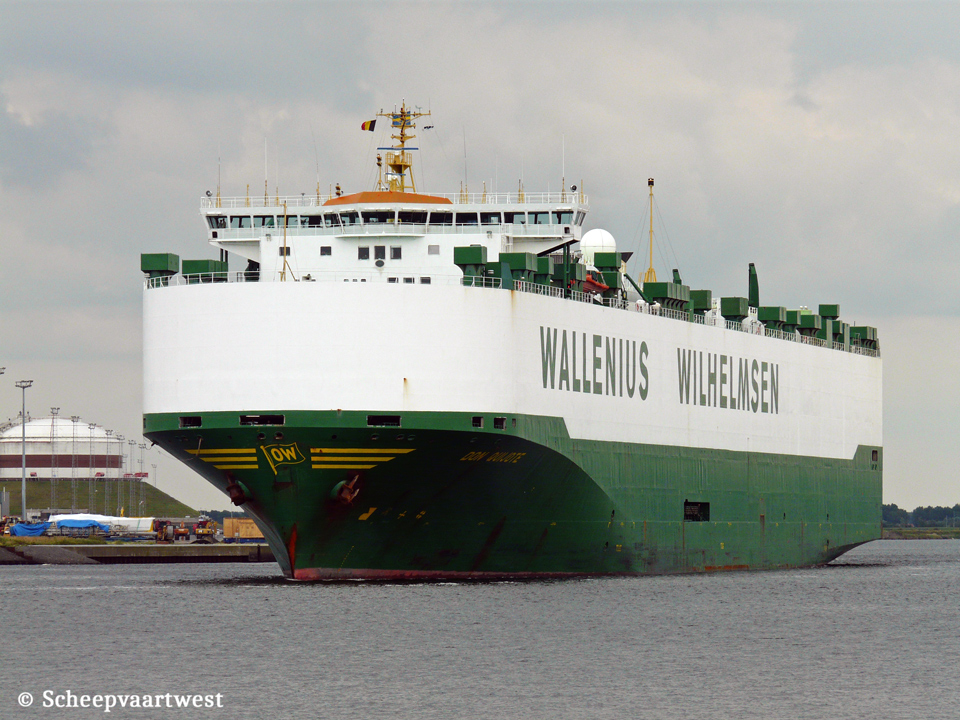

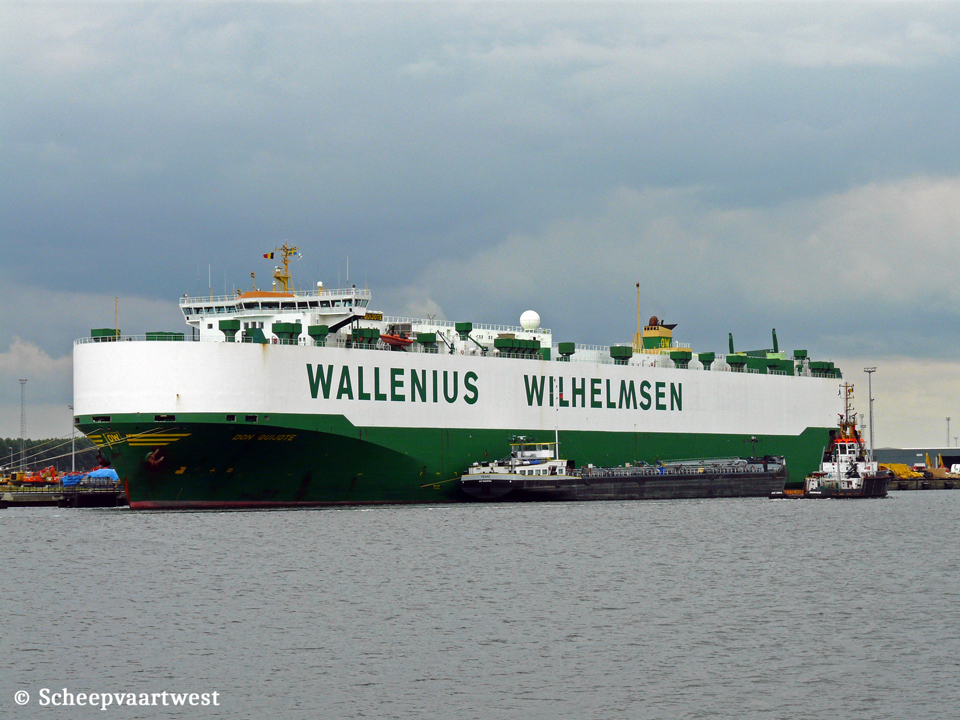

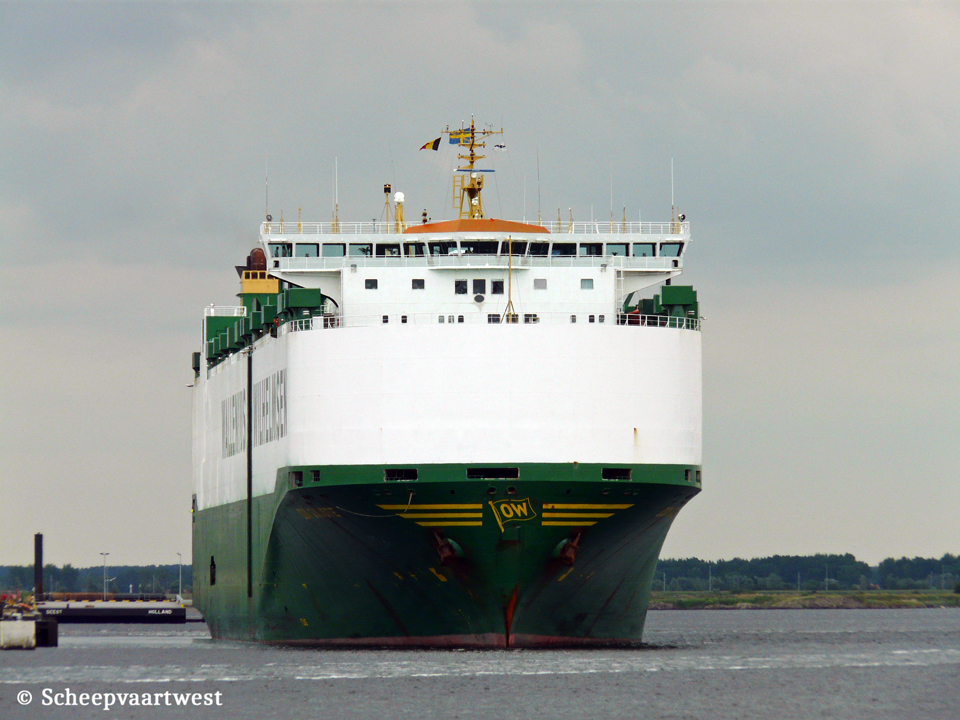

Don Quijote - IMO 9138525 after elongated

Name

DON QUIJOTE

Type

Vehicles carrier

PCTC - Pure car and truck carrier

IMO-number

9138525

Call sign

9V8797

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flag

1998 - 2010 Sweden, Stockholm - Call sign: SFQP

GT

67.141 t

DWT

28.379 t

NT

22.754 t

Length

227,90 m overall

219,30 m between perpendiculars

Breadth

32,29 m extreme

Draught

Summer: 11,00 m

Air draft

47,92 m

Height to upperdeck

33,48 m

Depth

14,05 m

Speed

20,5 knots

Built

1998

Keel laid

14/07/1997

Date of completion

05/02/1998

Builder

Daewoo Shipbuilding & Marine Engineering

Goeje

South Korea

Elongated: 07/11/2006

Vina Shin Hyundai Shipyard

Vietnam

Yard number

4417

Hull material

Steel

Hull type

Single hull

Main engine

1x KHIC/MAN-B&W 8S60MC - 8 cylinder combustion engine 14.700 kW / 20.000 bhp at 101,3 rpm

Number of screws

1

Shaft generator

1x 950 kW

Electrical power

2x Wärtsilä 4R32 diesel engines connected generators each 1.400 kW / 440 Volt 60 Hz

Emergency generators

1x Diesel generatorset 165 kW

Bow thruster

1.500 kW by 23,5 t thrust

Stern ramp

Width : 7,00 m

Height: 5,00 m

Capacity: 125 t

Number of car decks

13 (of which 3 are hoist able)

Capacity car (RT43)

7.200

One RT43 unit = 7,38975 m²

Crew

20

Manager

Wallenius Marine Singapore

Reg owner

WWL Shipowning Singapore Pte.

20 Maxwell Road Nr.12-01 Maxwell House

Singapore 069113

Republic of Singapore

Latest data adjustment

10 July 2022
