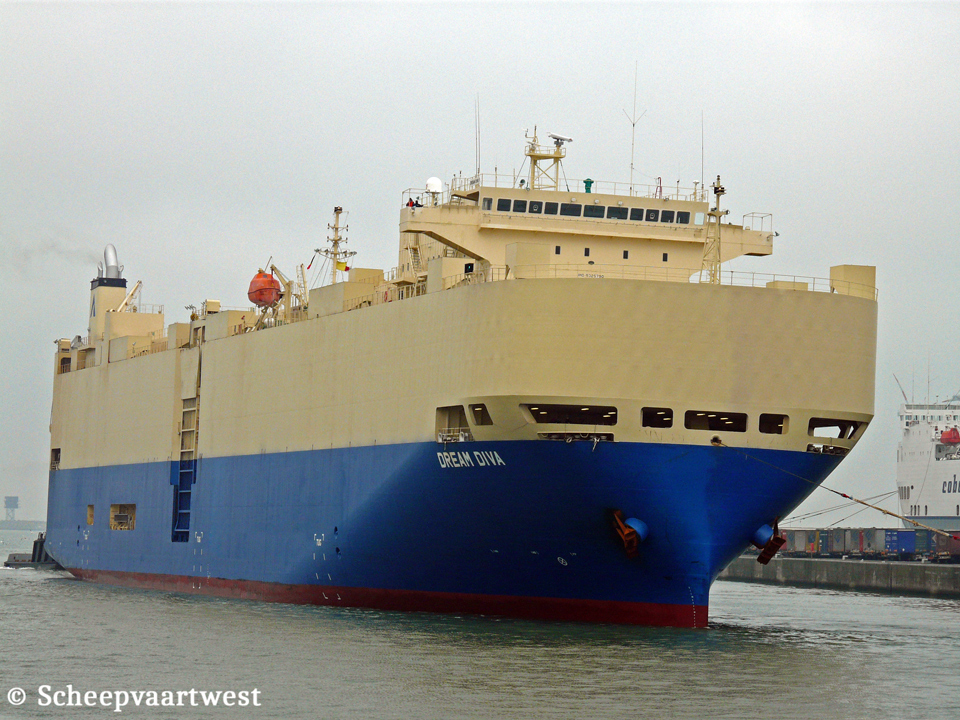

| Zeebrugge 21 November 2010 |
|
Name |
DREAM DIVA |
|
Type |
Roll-On/Roll-Off - Vehicles carrier PCC - Pure car carrier |
|
IMO-number |
9325790 |
|
Call sign |
3EKW6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
41.662 |
|
DWT |
15.068 t |
|
NT |
12.498 |
|
Length |
186,00 m overall |
|
Breadth |
28,20 m |
|
Draught |
Summer: 8,524 m |
|
Reg. Dimensions L x B x D |
181,03 X 28,20 X 18,95 m |
|
Rule Dimensions L x B x D |
181,00 X 28,20 X 29,43 m |
|
Freeboard |
Summer: 3.964 mm |
|
Depth |
18,95 m registered |
|
Speed |
20,0 knots |
|
Built |
2007 |
|
Keel laid |
11/11/2004 |
|
Launch date |
23/03/2007 |
|
Date of completion |
05/07/2007 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. Imabari Japan |
|
Yard number |
5348 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Transportable bulkheads |
5 |
|
Number of decks |
9 |
|
Main engine |
1x 2 stroke single acting 8 cylinder combustion 500 x 1.910 mm engine 11.440 kW at 127,0 rpm Engine builder: Mitsui Engineering & Shipbuilding Co.,Ltd. Tamano Works. Tamano Japan |
|
Boilers |
1x Auxiliary Boiler WTB - 6,9 kg/cm² 1x Economizer EGE - 10,9 kg/cm² |
|
Generators |
3x Main diesel generators each 1.000 kVA 450 Volt |
|
Tank capacities |
Fuel oil: 2.493 m³ Fresh water: 403,80 m³ Water ballast: 7.609,70 m³ |
|
Crew |
22 |
|
Commercial manager |
Cido Shipping (HK) Co., Ltd. 20th Floor, World Wide House, 19, Des Voeux Road Central Hong Kong - China |
|
ISM manager |
Cido Shipping(Korea) Co., Ltd. (Pusan Site) 3rd & 4th Floors, 798, Jungang-daero, Busanjin-gu, Busan South Korea |
|
Registered owner |
Dynamic Spirit Shipping S.A.(HK) Co., Ltd. Care of Cido Shipping (HK) Co., Ltd. 20th Floor, World Wide House, 19, Des Voeux Road Central Hong Kong - China |
|
Latest data adjustment |
03 April 2025 |
